12
208
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 l. Turbo
HDI 16V 90 bhp
1.6 l. Turbo
HDI 16V 110 bhp
2 l. Turbo
HDI 16V 136 bhp
Gearbox
Manual Manual Manual Auto.
Model codes:
4H...
9HX-C 9HZ-H RHR-H RHR-J
- Unladen weight 1 467 1 495 1 575 1 600
- Kerb weight 1 542 1 570 1 650 1 675
- Payload 633 655 640 640
- Gross vehicle weight (GVW) 2 100 2 150 2 215 2 240
- Gross train weight (GTW)
on a 12 % gradient 3 100 3 150 3 615 3 640
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 000 1 400 1 400
- Braked trailer * (with load transfer within the GTW limit) 1 400 1 400 1 650 1 650
- Unbraked trailer 750 750 750 750
- Recommended nose weight 60 60 70 70
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, with in the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 222 of 260
225
11
22
33
44
SOURCE
BAND
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
11
22
33
44
LIST
05 AUDIO/VIDEO
RADIO
SELECTING A STATION
Press the SOURCE button several times in succession and select the RADIO.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to display the list of stations received locally ( 6 0 m a x i m u m ) . To update this list, press for more than two seconds.
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s , . . . ) m a y b l o c k r e c e p t i o n , including in RDS mode. This is a normal effect of t he way in which radio waves are transmitted and doe s not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the RADIO PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue lis tening to the same station by means of frequency following. Howev er, in certain conditions, this RDS station is not followed throughout the country a s r a d i o s t a t i o n s d o n o t c o v e r 1 0 0 % o f t h e t e r r i t o r y . T h i s e x p l a i n s the loss of reception of the station during a journey.
RADIO PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
Page 223 of 260
226
SOURCE
LIST
S
O
SSOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs0 # MENU LIST
TA
PTY
DARK
11
22
05 AUDIO/VIDEO
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
In order to be able to play a recorded CDR or CDRW , when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used f o r a n i n d i v i d u a l d i s c , w i t h a s l o w a s p e e d a s p o s s i b l e ( 4 x m a x i m u m ) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n ".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z. No other type o f fi l e ( . w m a , . m p 4 , m 3 u . . . ) c a n b e p l a y e d .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g special characters (e.g.: " " ? ; ù) to avoid any p laying or displaying problems.
CD
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may generate malfunctions regardless of the quality of the original player. Insert an audio CD or an MP3 compilation in the pl ayer, play begins automatically.
If the player already contains a disc, press the SOURCE button several times in succession and select CD to listen to it.
Press one of the buttons to select a track on the CD. Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation m ay depend on the recording programme and/or the parameter settin gs used. We recommend use of the ISO 9660 recording standard.
MP3 CD
PLAYING A CD OR AN MP3 COMPILATION
Page 224 of 260
227
22
33
S
O
SSOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs0 # MENU LIST
TA
PTY
DARK
ESC
MENU LIST
66
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
44
ESC
MENU LIST
55
11
COPY CD TO JUKEBOX
COMPLETE CD
CREATE ALBUM
OK
Select COPY CD TO JUKEBOX and p r e s s t h e d i a l t o c o n fi r m .
Select COMPLETE CD to copy the entire CD and press the dial to c o n fi r m .
Select CREATE ALBUM and press t h e d i a l t o c o n fi r m .
The AUTO CREATION tab automatically copies the CD by default into an album of the type "album n°...".
The audio or MP3 CD is copied onto the hard disc. Copying may t a k e a p p r o x i m a t e l y 2 0 m i n u t e s d e p e n d i n g o n t h e d u r a t i o n o f t h e C D . During this copying phase, it is not possible to listen to the albums previously recorded on the hard disc or the CDs.
Select the letters one by one and select O K t o c o n fi r m .
I f i t i s n o t a n M P 3 C D , t h e J u k e b o x a u t o m a t i c a l l y c o m p r e s s e s t h e C D i n M P 3 f o r m a t . T h e c o m p r e s s i o n m a y t a k e a p p r o x i m a t e l y 20 minutes depending on the duration of the CD. During this compression phase, it is possible to listen to the CD or to albums previously recorded on the hard disc.
A long press on the SOURCE button starts the copyi ng of the CD.
W h e n c o p y i n g a n M P 3 C D , t h e J u k e b o x o n l y r e t a i n s t h e l a s t a l b u m l e v e l . I t i s n o t p o s s i b l e t o c o p y fi l e s f r o m t h e J u k e b o x t o a C D . T h e S T O P T H E C D C O P Y a c t i o n d o e s n o t d e l e t e t h e fi l e s w h i c h h a v e a l r e a d y b e e n t r a n s f e r r e d o n t o t h e j u k e b o x h a r d d i s c .
Select AUDIO FUNCTIONS and press t h e d i a l t o c o n fi r m .
Insert a CD or an MP3 compilation and press the MENU button.
JUKEBOX FUNCTION
COPYING A CD ONTO THE HARD DISC
Page 231 of 260
234
S
O
S
S
O SSOU R CE
MODE B AND TP T
A Y
DARK
ESC
MENU LIST
ESC
MENU LIST

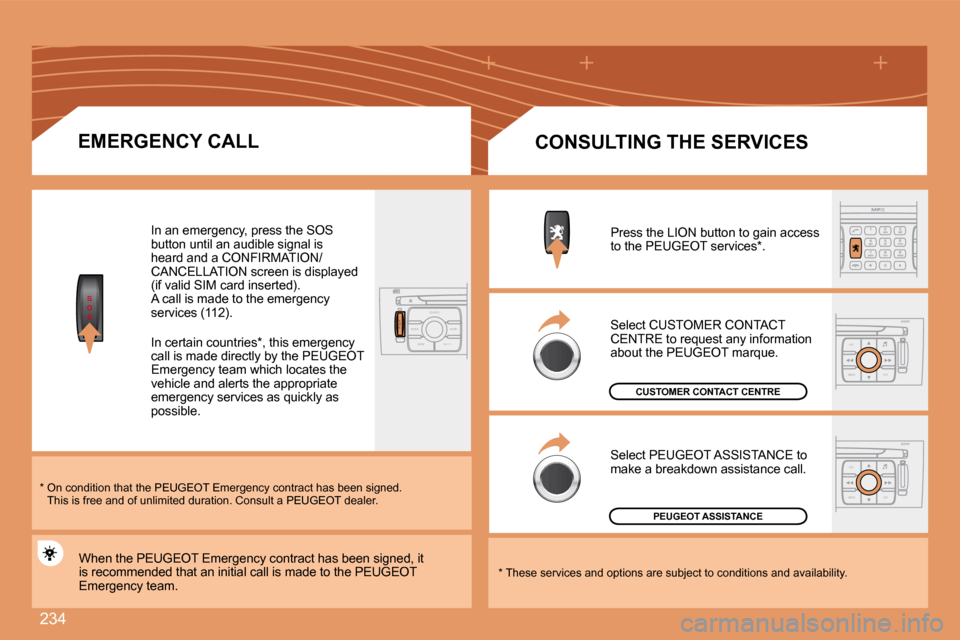

EMERGENCY CALL
* On condition that the PEUGEOT Emergency contract has been signed. This is free and of unlimited duration. Consult a PEUGEOT d ealer.
In an emergency, press the SOS button until an audible signal is heard and a CONFIRMATION/CANCELLATION screen is displayed (if valid SIM card inserted). A call is made to the emergency services (112).
In certain countries * , this emergency call is made directly by the PEUGEOT Emergency team which locates the vehicle and alerts the appropriate emergency services as quickly as possible.
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
When the PEUGEOT Emergency contract has been sig ned, it is recommended that an initial call is made to the PEUGEOT Emergency team.
CONSULTING THE SERVICES
Press the LION button to gain access to the PEUGEOT services * .
Select CUSTOMER CONTACT CENTRE to request any information about the PEUGEOT marque.
Select PEUGEOT ASSISTANCE to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
Page 237 of 260
240
4
3
4
5
5
5
5
4
4
4
3
4
3
4
4
3
3
3
3
2
5
5
1
2
3
4
3
3
3
3
3
2
3
3
3
2
4
4
2
4
3
4
4
4
3
4
4
3
3
4
4
4
4
4
4
5
5
5
5
2
3
5
5
5
3
TELEMATICS
multiple selection
current album
current track
DIRECTORY
m a n a g i n g d i r e c t o r y fi l e s
c o n s u l t o r m o d i f y a fi l e
a d d a fi l e
d e l e t e a fi l e
d e l e t e a l l fi l e s
c o n fi g u r e d i r e c t o r y
select a directory
name directory
select starting directory
fi l e t r a n s f e r fi l e t r a n s f e r fi l e t r a n s f e r
e x c h a n g e b y i n f r a r e d
send all records
send one record
receive by infrared
e x c h a n g e w i t h S I M c a r d
send all records to SIM
send one record to SIM
r e c e i v e a l l S I M fi l e s
r e c e i v e a S I M fi l e
JUKEBOX
jukebox management
j u k e b o x c o n fi g u r a t i o n
h i - fi ( 3 2 0 k b p s )
high (192 kbps)
normal (128 kbps)
delete jukebox data
PLAYLIST MANAGEMENT
CALL
call list
dial
directory
mailbox
services
customer contact centre
PEUGEOT assistance EOT
messages received
TEXT MESSAGES (SMS)
read received text messages
send a text message
write a text message
delete list of text messages
TELEPHONE FUNCTIONS
network
network search mode
automatic mode
manual mode
networks available
length of calls
zero reset
manage PIN code
activate/deactivate
save PIN number
modify PIN code
call options
c o n fi g u r e c a l l s
display my number
a u t o m a t i c r e p l y a f t e r x r i n g ( s )
ring options
for voice calls
f o r t e x t m e s s a g e s ( S M S )
Page 238 of 260
241
1
2
3
3
3
3
2
3
3
4
4
1
3
2
3
1
2
3
3
2
2
2
1
2
2
2
1
1
MENU
4
3
2
2
3
3
6
1
Flow chart version 7.0
t e x t m e s s a g e r i n g
call diversion to mailbox n°
delete calls log
* The parameters vary according to vehicle (refer to the "Multifunction displays" chapter).
CONFIGURATION
VIDEO
VEHICLE DIAGNOSTICS
Press the MENU button for more than 2 seconds to gain access to the n e x t fl o w c h a r t .
VOICE COMMANDS LIST
Press the Music button several times in succession to access the following settings.
MUSICAL AMBIENCE
Each audio source (Radio, CD, MP3, J u k e b o x , C D c h a n g e r ) h a s i t s o w n separate settings.
DISPLAY CONFIGURATION
choose colour
adjust luminosity
set date and time
select units
SOUND
voice commands setting
speech synthesis setting
guidance instructions volume
other message volume
select female/male voice
activate/deactivate auxiliary source
SELECT LANGUAGE
DEFINE VEHICLE PARAMETERS *
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
display formats
adjust luminosity
set colours
set contrasts
ALERT LOG
STATUS OF FUNCTIONS *
RESET TYRE PRESS. DETEC. SYS. *
AUDIO/TELEPHONE DIAGNOSTICS
GPS COVERAGE
UNIT BACKUP POWER
UNIT DESCRIPTION
NAVIGATION DEMONSTRATION
SERVICES CONFIGURATION
BASS TREBLE LOUDNESS CORRECTION FR-RR BALANCE LH-RH BALANCE AUTO VOLUME CORRECTION
Page 239 of 260
254
QUESTION SOLUTION RESPONSE
There is a difference in sound quality between the different audio sources (radio, CD, CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD, CD changer...).
The CD is ejected automatically or is not played by the player.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment. - Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the Audio section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system. - The CD changer does not play MP3 CDs.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
