i
i
!
98
VISIBILITY

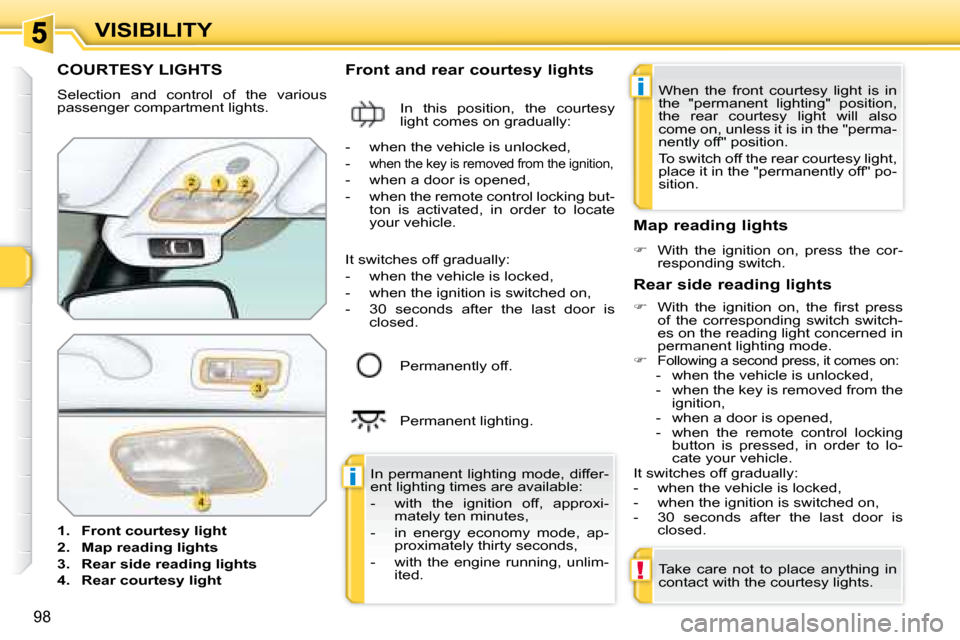

COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear side reading lights
4. Rear courtesy light Front and rear courtesy lights
In this position, the courtesy
light comes on gradually:
Map reading lights
With the ignition on, press the cor-
responding switch.
In permanent lighting mode, differ-
ent lighting times are available:
- w i t h t h e i g n i t i o n o f f , a p p r o x i - mately ten minutes,
- in energy economy mode, ap- p r o x i m a t e l y t h i r t y s e c o n d s ,
- with the engine running, unlim- ited.
- when the vehicle is unlocked,
-
when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting. When the front courtesy light is in
the "permanent lighting" position,
the rear courtesy light will also
come on, unless it is in the "perma-
nently off" position.
To switch off the rear courtesy light,
place it in the "permanently off" po-
sition.
Rear side reading lights
W i t h t h e i g n i t i o n o n , t h e fi r s t p r e s s
of the corresponding switch switch-
es on the reading light concerned in
permanent lighting mode.
Following a second press, it comes on: - when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking button is pressed, in order to lo-
cate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Take care not to place anything in
contact with the courtesy lights.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Page 92 of 260
i
i
99
VISIBILITY

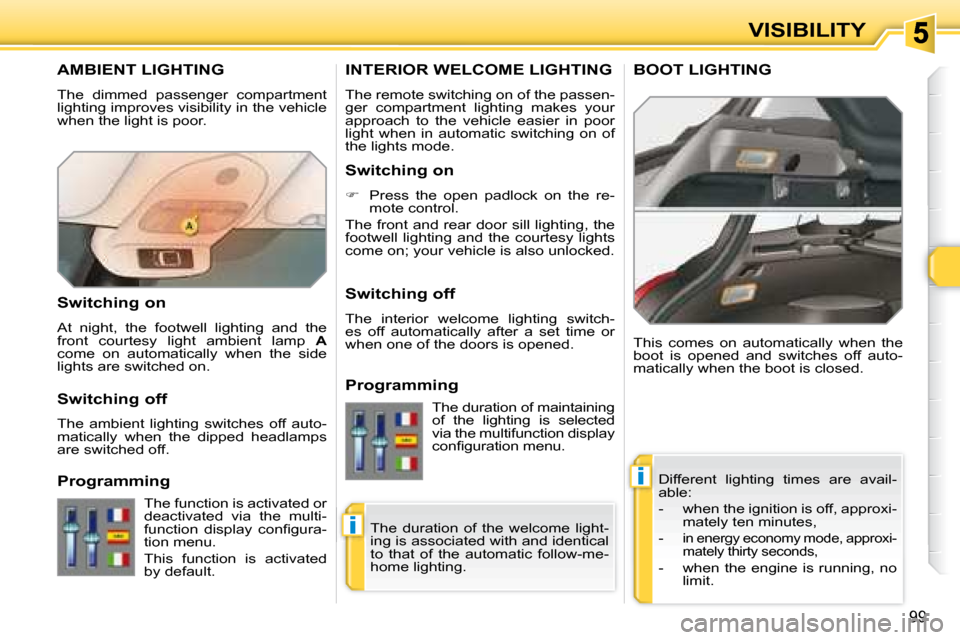

AMBIENT LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor. Different lighting times are avail-
able:
- w h e n t h e i g n i t i o n i s o f f , a p p r o x i -mately ten minutes,
-
i n e n e r g y e c o n o m y m o d e , a p p r o x i -
mately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light when in automatic switching on of
the lights mode.
BOOT LIGHTING
Switching on
Press the open padlock on the re-
mote control.
The front and rear door sill lighting, the
footwell lighting and the courtesy lights
come on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming
Switching on
At night, the footwell lighting and the
front courtesy light ambient lamp
A
come on automatically when the side
lights are switched on.
Switching off
The ambient lighting switches off auto-
matically when the dipped headlamps
are switched off.
Programming
The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting.
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
This function is activated
by default. The duration of maintaining
of the lighting is selected
via the multifunction display
c o n fi g u r a t i o n m e n u .
Page 121 of 260
i
i
i
126
SAFETY
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Lower the lights stalk fully when
moving to the left.
Raise the lights stalk fully when
moving to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c j a m ,
switch on the hazard warning lights if
you are the last in the queue.
Press button A , the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
When braking in an emergency, depend-
ing on the deceleration, the hazard warn-
ing lights come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off.
HORN
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when overtaking a cyclist or a pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road us-
ers to an imminent danger.
Page 143 of 260
i
148
DRIVING

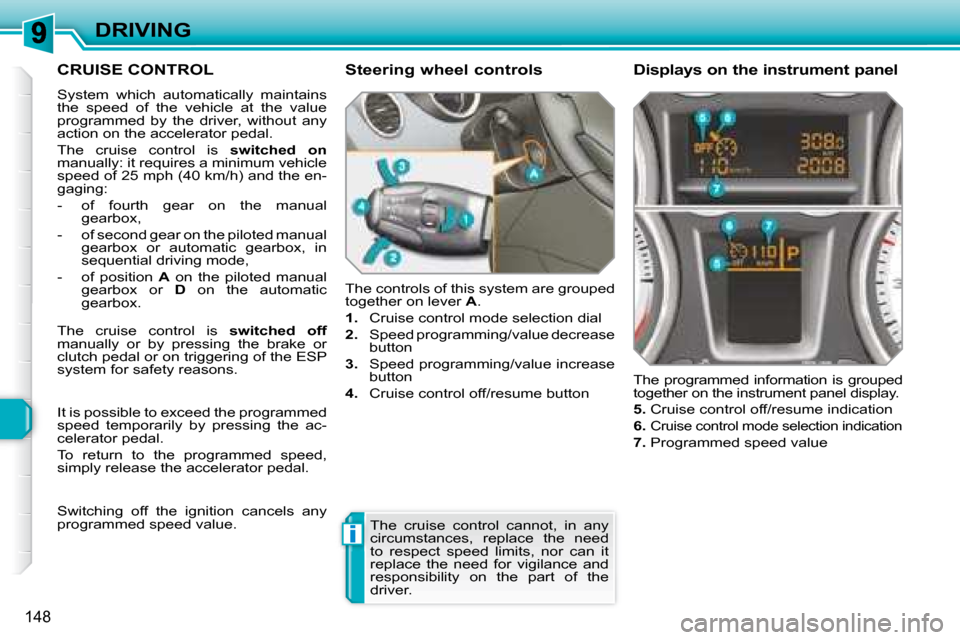

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
- of fourth gear on the manual g e a r b o x ,
- of second gear on the piloted manual g e a r b o x o r a u t o m a t i c g e a r b o x , i n
sequential driving mode,
- of position A on the piloted manual
g e a r b o x o r D on the automatic
g e a r b o x . The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. Speed programming/value decrease
button
3. Speed programming/value increase
button
4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel display.
5. Cruise control off/resume indication
6.
Cruise control mode selection indication
7. Programmed speed value
Steering wheel controls Displays on the instrument
panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The cruise control is
switched off
manually or by pressing the brake or
clutch pedal or on triggering of the ESP
system for safety reasons.
I t i s p o s s i b l e t o e x c e e d t h e p r o g r a m m e d
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 177 of 260
11
!
!
i
182
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and con-
nectors are clean. If they are cov-
ered with sulphate (whitish or
greenish deposit), remove them and
clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
t e m s . H o w e v e r , i f s l i g h t d i f fi c u l t i e s
are encountered following this oper-
ation, contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the glass panoramic roof shut-
ter,
- the GPS satellite navigation system.
Page 178 of 260
11
!
!
i
182
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and con-
nectors are clean. If they are cov-
ered with sulphate (whitish or
greenish deposit), remove them and
clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
t e m s . H o w e v e r , i f s l i g h t d i f fi c u l t i e s
are encountered following this oper-
ation, contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the glass panoramic roof shut-
ter,
- the GPS satellite navigation system.
Page 179 of 260
11
!
i
183
PRACTICAL INFORMATION
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
sponding paragraph).
If the telephone is being used at
this time:
- it will be maintained for 5 min- utes with the RD4 audio equip-
ment hands-free kit,
- i t w i l l s t i l l b e p o s s i b l e t o fi n i s h the call with the RT4 GPS audio/
telephone.

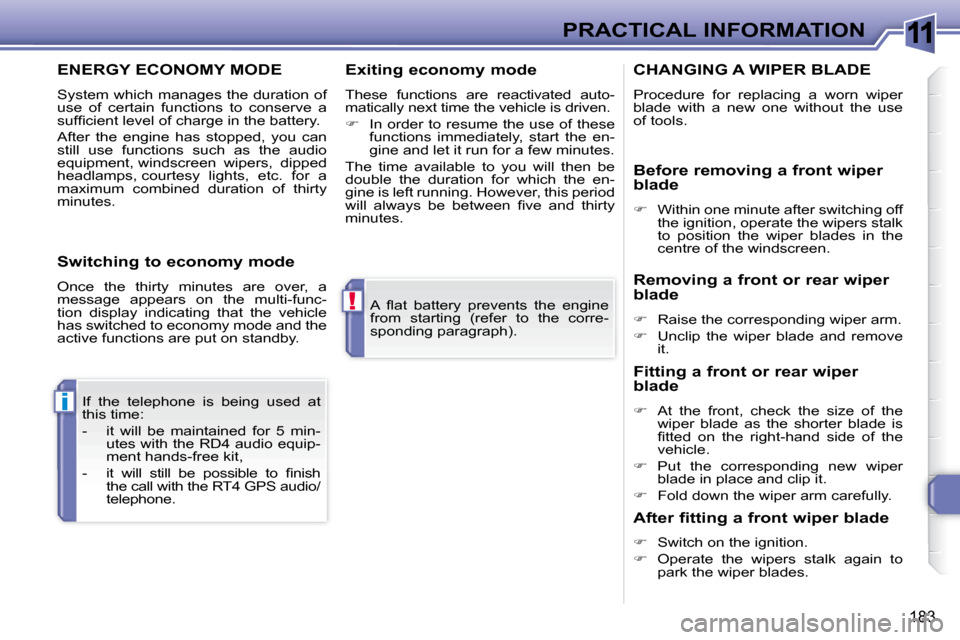

ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lights, etc. for a
m a x i m u m c o m b i n e d d u r a t i o n o f t h i r t y
minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be
double the duration for which the en-
gine is left running. However, this period
w i l l a l w a y s b e b e t w e e n fi v e a n d t h i r t y
minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-func-
tion display indicating that the vehicle
has switched to economy mode and the
active functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove
it.
Fitting a front or rear wiper
blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wipers stalk
to position the wiper blades in the
centre of the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wipers stalk again to
park the wiper blades.
Page 196 of 260
12TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.4 litre VTi 16V 95 bhp 1.6 litre VTi 16V 120 bhp
Gearbox
Manual Manual Auto.
Model codes:
4C... 4A... 4G...
8FS-C 5FW-C 5FW-F
- Unladen weight 1 271 - 1 262 - 1 246 1 287 - 1 277 1 312 - 1 302
- Kerb weight 1 346 - 1 337 - 1 321 1 362 - 1 3 52 1 387 - 1 377
- Payload 489 - 487 - 536 528 - 525 512 - 510
- Gross vehicle weight (GVW) 1 760 - 1 749 - 1 782 1 815 - 1 802 1 824 - 1 812
- Gross train weight (GTW)
on a 12 % gradient 2 960 - 2 949 - 2 982 3 215 - 3 202 3 094 - 3 0
82
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 400 1 270
- Braked trailer * (with load transfer within the GTW limit) 1 450 1 650 1 520
- Unbraked trailer 670 - 665 - 660 680 - 675 6 90 - 685
- Recommended nose weight 58 - 58 - 50 76 61
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a r e v a l i d u p t o a m a x i m u m a l t i t u d e o f 1 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y ) .
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e t o p r o t e c t t h e e n g i n e ; i f t h e e x t e r i o r
temperature is above 37 °C, limit the towed load.
