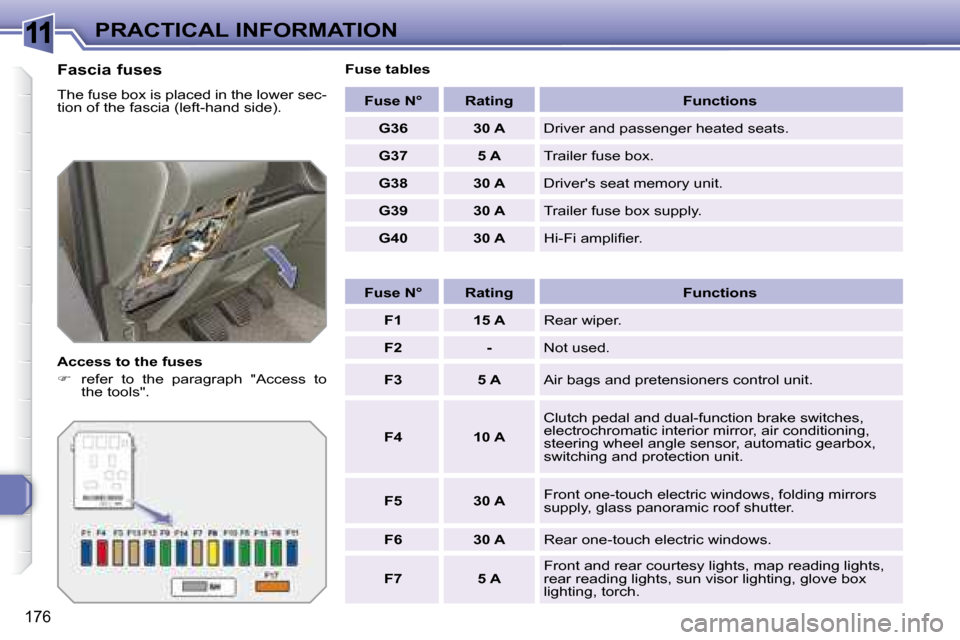

Fascia fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
tion of the fascia (left-hand side).
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
G36 30 A Driver and passenger heated seats.
G37 5 A T r a i l e r f u s e b o x .
G38 30 A Driver's seat memory unit.
G39 30 A T r a i l e r f u s e b o x s u p p l y .
G40 30 A H i - F i a m p l i fi e r .
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Air bags and pretensioners control unit.
F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic interior mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , a u t o m a t i c g e a r b o x ,
switching and protection unit.
F5 30 A Front one-touch electric windows, folding mirrors
supply, glass panoramic roof shutter.
F6 30 A Rear one-touch electric windows.
F7 5 A Front and rear courtesy lights, map reading lights,
r e a r r e a d i n g l i g h t s , s u n v i s o r l i g h t i n g , g l o v e b o x
lighting, torch.
