37
MULTIFUNCTION DISPLAYS
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h - es if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button.
(WITHOUT RD4 AUDIO EQUIPMENT) Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the men-
us or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
general menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
* With air conditioning only.
Page 17 of 260
!
38
MULTIFUNCTION DISPLAYS
V e h i c l e c o n fi g u r a t i o n Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the "OK" button to change its
value.
W a i t f o r a p p r o x i m a t e l y t e n s e c -
onds without any action to allow
the changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the "Ac- cess" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- daytime lights (refer to the "Visibil- ity" section).
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Page 18 of 260
39
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h - es if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. General menu
Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
From the RD4 audio equipment control
panel, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the RD4 audio equipment switched
on, once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For further details concerning the "Ra-
dio-CD" application, refer to the RD4
part of the "Audio and Telematics" sec-
tion.
* With air conditioning only.
Page 19 of 260
!
40
MULTIFUNCTION DISPLAYS For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
o r n e x t s e t t i n g .
Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- selective unlocking (refer to the "Ac-
cess" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome lighting (refer to the "Visibility" sec-
tion),
- daytime lights (refer to the "Visibil- ity" section).
Page 21 of 260
42
MULTIFUNCTION DISPLAYS
"Vehicle diagnostics"
menu
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the " Vehicle diag-
nostics " menu.
On the " Vehicle diagnostics " menu,
select the following application:
Warnings log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction display.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the warn-
ings log.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- selective unlocking (refer to the "Ac-
cess" section),
- wiper linked with reverse gear (refer to the "Visibility" section),
- "follow-me-home" and welcome light- ing (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibil- ity" section),
- daytime lights (refer to the "Visibil- ity" section). "Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- selection of the language.
Page 22 of 260
!
43
MULTIFUNCTION DISPLAYS
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary. "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portu-
gues, Portugues-Brasil).
E x a m p l e : s e t t i n g o f t h e d u r a t i o n o f t h e
"follow-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons, then
the "OK" button to select the "Fol-
low-me-home lighting" line.
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the RD4 audio equipment switched
on, once this menu has been select-
e d y o u c a n c o n fi g u r e y o u r B l u e t o o t h
hands-free kit (matching), consult the
various telephone directories (calls log,
services, ...) and manage your commu-
nications (pick up, hang up, call waiting,
secret mode, ...).
For further details concerning the "Tele-
phone" application, refer to the RD4 part
of the "Audio and Telematics" section.
Page 26 of 260
!
47
MULTIFUNCTION DISPLAYS
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.

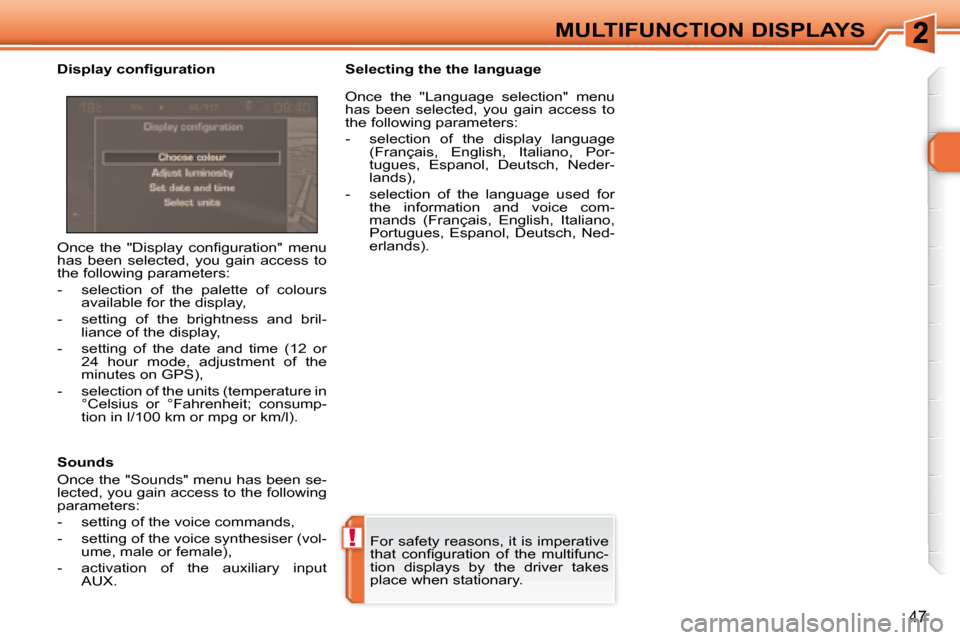

O n c e t h e " D i s p l a y c o n fi g u r a t i o n " m e n u
has been selected, you gain access to
the following parameters:
- selection of the palette of colours
available for the display,
- setting of the brightness and bril- liance of the display,
- setting of the date and time (12 or 24 hour mode, adjustment of the
minutes on GPS),
- selection of the units (temperature in °Celsius or °Fahrenheit; consump-
tion in l/100 km or mpg or km/l).
D i s p l a y c o n fi g u r a t i o n
Selecting the the language
Sounds
Once the "Sounds" menu has been se-
lected, you gain access to the following
parameters:
- setting of the voice commands,
- setting of the voice synthesiser (vol- ume, male or female),
- a c t i v a t i o n o f t h e a u x i l i a r y i n p u t AUX. Once the "Language selection" menu
has been selected, you gain access to
the following parameters:
- selection of the display language
(Français, English, Italiano, Por-
tugues, Espanol, Deutsch, Neder-
lands),
- selection of the language used for the information and voice com-
mands (Français, English, Italiano,
Portugues, Espanol, Deutsch, Ned-
erlands).
Page 210 of 260
213
02 GENERAL MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, C D , J u k e b o x , o p t i o n s .
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, v o i c e , a u x i l i a r y s o c k e t ( A U X ) parameters. parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
