PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Display.
6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or
service indicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials
1. Rev counter.
Indicates the speed of rotation of t h e e n g i n e ( x 1 0 0 0 r p m ) .
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display. The following three functions are dis-
played in succession when the ignition
is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
distance recorder.
(km or miles)
INSTRUMENTS and CONTROLS
Page 2 of 260
i
23
PETROL - DIESEL MANUAL OR 6-SPEED PILOTED MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Small display.
6. Large display.
7. CHECK/display zero reset
button.
Starts a manual CHECK.
Resets the function selected to zero (trip distance recorder or
service indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and
controls.
Dials
1. Rev counter.
Indicates the speed of rotation of t h e e n g i n e ( x 1 0 0 0 r p m ) .
2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Trip distance recorder.
(km or miles)
B. Distance recorder.
(km or miles)
Displays
The following two functions are dis-
played in succession when the ignition
is switched on.
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.
-
Warning lights/CHECK.
- T y r e u n d e r - i n fl a t i o n d e t e c t i o n .
- Speed limiter/Cruise control.
- 6-speed piloted manual or
automatic gearbox.
- Navigation - Guidance/Trip
computer information.
INSTRUMENTS and CONTROLS
Page 12 of 260
33
Service indicator
System which informs the driver when the
n e x t s e r v i c e i s d u e , i n a c c o r d a n c e w i t h
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two para-
meters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
t h e d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service is due.
Example: 2 800 km remain before the
n e x t s e r v i c e i s d u e .
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 900 km remain before the
n e x t s e r v i c e i s d u e .
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.
INSTRUMENTS and CONTROLS
Page 13 of 260
i
i
34
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n -
utes for the zero reset to be taken
into account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
To do this, carry out the following pro-
cedure:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the
distance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
c o m e o n i f y o u h a v e e x c e e d e d t h e
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .
Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder
zero reset button.
The service information is displayed for
a few seconds, then disappears.
INSTRUMENTS and CONTROLS
Page 15 of 260
36

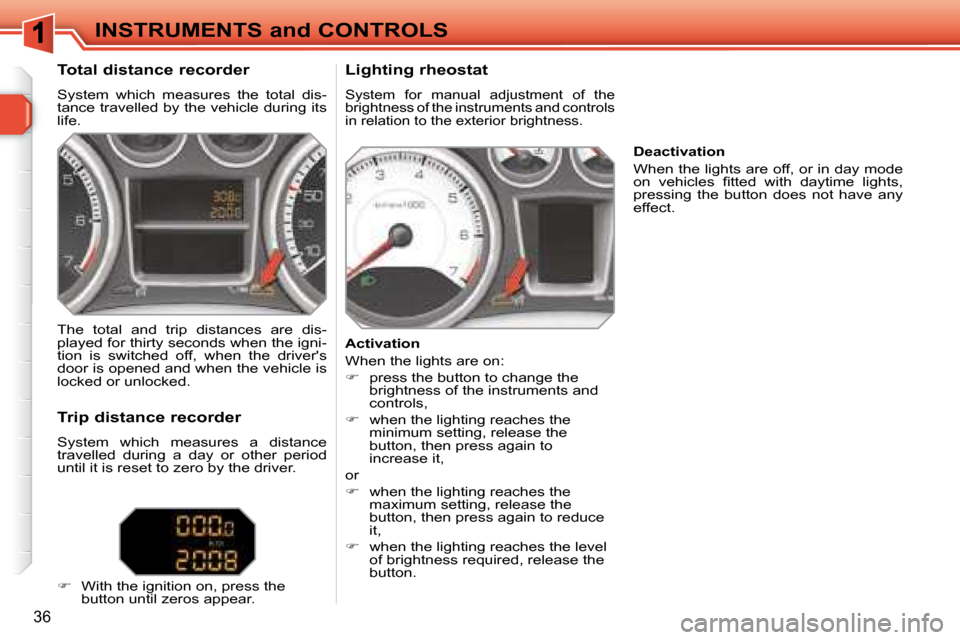

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and controls
i n r e l a t i o n t o t h e e x t e r i o r b r i g h t n e s s .
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.
With the ignition on, press the
button until zeros appear. Activation
When the lights are on:
press the button to change the
brightness of the instruments and
controls,
when the lighting reaches the
minimum setting, release the
button, then press again to
increase it,
or
when the lighting reaches the
m a x i m u m s e t t i n g , r e l e a s e t h e
button, then press again to reduce
it,
when the lighting reaches the level
of brightness required, release the
button. Deactivation
When the lights are off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
pressing the button does not have any
effect.
INSTRUMENTS and CONTROLS
Page 28 of 260
49
MULTIFUNCTION DISPLAYS

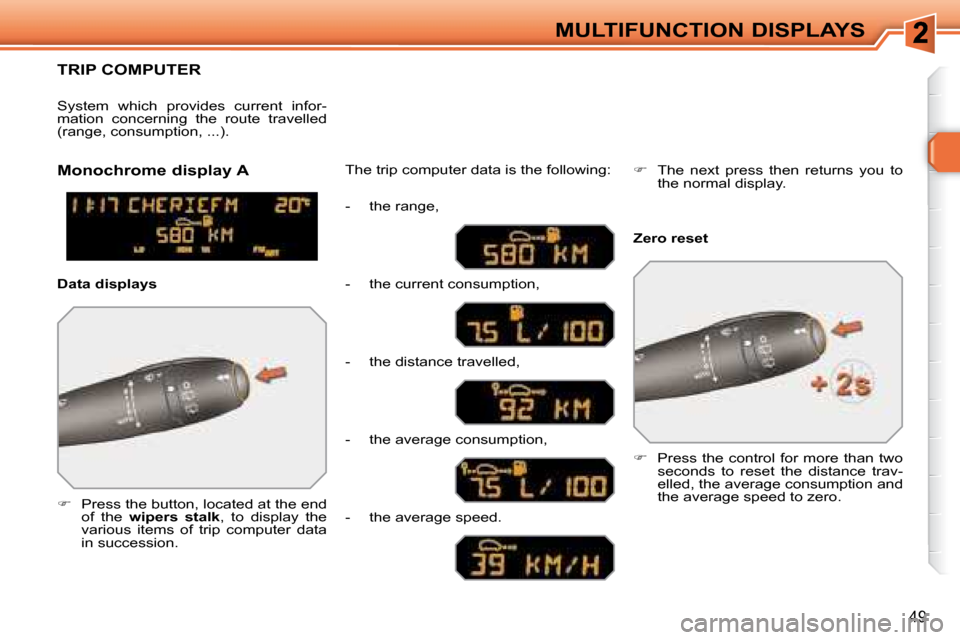

TRIP COMPUTER
Press the button, located at the end
of the wipers stalk , to display the
various items of trip computer data
in succession. The trip computer data is the following:
System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).
Press the control for more than two
seconds to reset the distance trav-
elled, the average consumption and
the average speed to zero.
Monochrome display A
Zero reset
Data displays - the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.
T h e n e x t p r e s s t h e n r e t u r n s y o u t o
the normal display.
Page 29 of 260
!
i
i
51
MULTIFUNCTION DISPLAYS

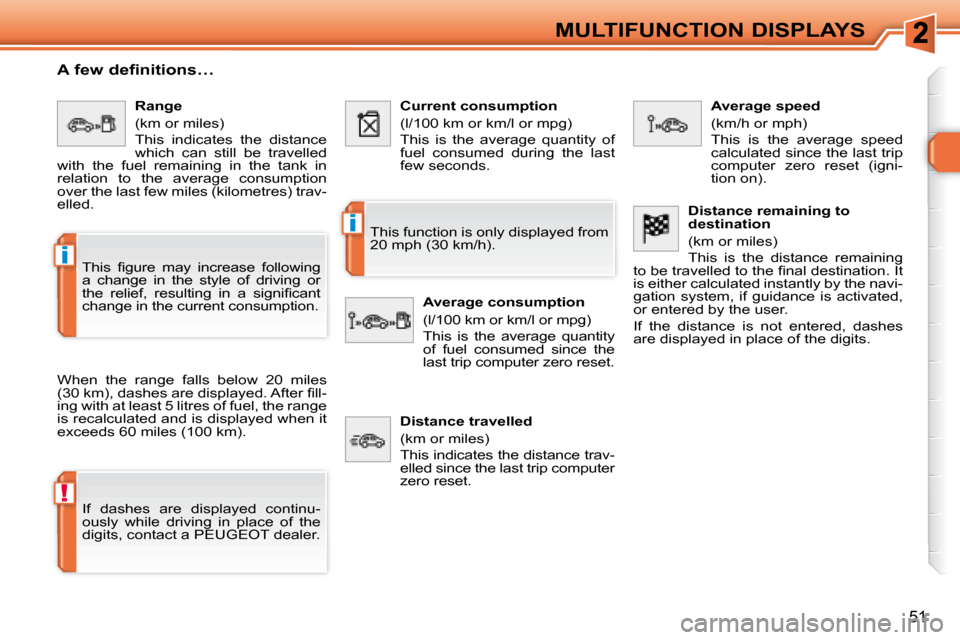

A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
e x c e e d s 6 0 m i l e s ( 1 0 0 k m ) .
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current consumption. Range
(km or miles)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average consumption
over the last few miles (kilometres) trav-
elled. Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed during the last
few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero reset. Average speed
(km/h or mph)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance travelled
(km or miles)
This indicates the distance trav-
elled since the last trip computer
zero reset. Distance remaining to
destination
(km or miles)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 31 of 260
!
i
i
51
MULTIFUNCTION DISPLAYS
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
e x c e e d s 6 0 m i l e s ( 1 0 0 k m ) .
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change in the style of driving or
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
change in the current consumption. Range
(km or miles)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average consumption
over the last few miles (kilometres) trav-
elled. Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed during the last
few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero reset. Average speed
(km/h or mph)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance travelled
(km or miles)
This indicates the distance trav-
elled since the last trip computer
zero reset. Distance remaining to
destination
(km or miles)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
