FAMILIARISATION
4 -
INSTRUMENTS AND
CONTROLS
1. Cruise control / speed limiter
control.
2. S t e e r i n g w h e e l a d j u s t m e n t
control.
3. Lights and direction indicators
stalk.
4. Instrument panel.
5. Driver's air bag.
Horn.
6. Gear lever.
7. Handbrake.
8. Bonnet release.
9. Fuse box.
10. Dynamic stability control
(ESP/ASR) button.
11. R e a r e l e c t r i c w i n d o w s
deactivation control.
12. Passenger air bag disarming
control.
13. Headlamp height adjustment.
14. Side adjustable and
closing vent.
15. S i d e w i n d o w d e m i s t i n g v e n t .
16. S p e a k e r ( t w e e t e r ) .
17. Windscreen demisting vent.
Page 16 of 123
19
INSTRUMENTS and CONTROLS
-
WARNING LIGHTS
A p e r m a n e n t l y l i t w a r n i n g l i g h t o r o n e l a s h i n g , w i t h t h e e n g i n e r u n n i n g , i n d i c a t e s a n o p e r a t i n g f a u l t o f t h e u n i t
c o n c e r n e d .
T h e i l l u m i n a t i o n o f c e r t a i n w a r n i n g l i g h t s m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e m u l t i-
f u n c t i o n d i s p l a y . D o n o t i g n o r e t h i s w a r n i n g : c o n s u l t a P E U G E O T d e a l e r a s s o o n a s p o s s i b l e .
I f t h e c e n t r a l S T O P w a r n i n g l i g h t c o m e s o n w h e n y o u a r e d r i v i n g , s t o p y o u r v e h i c l e i m m e d i a t e l y , w h e r e i t i s s a f e t o
d o s o .
Central (STOP)
warning light
Linked to the warning lights:
- engine oil pressure and temperature,
- handbrake,
- l o w b r a k e l u i d l e v e l ,
- electronic brake force distribution fault.
Linked to the coolant temperature in-
dicator.
Y o u m u s t s t o p i f t h e l i g h t l a s h e s
w i t h t h e e n g i n e r u n n i n g .
Consult a PEUGEOT dealer. E n g i n e o i l p r e s s u r e
a n d t e m p e r a t u r e
warning light
Linked to the central (STOP) warn-
ing light.
Y o u m u s t s t o p .
This warning light indicates one of
the following:
- i n s u f i c i e n t o i l p r e s s u r e ,
- a lack of oil in the lubrication circuit. Top up the level,
- an oil temperature which is too high. The warning light is
accompanied by an audible
signal. To lower the
oil temperature, reduce your
speed.
Consult a PEUGEOT dealer. H a n d b r a k e , l o w
b r a k e f l u i d l e v e l a n d
E l e c t r o n i c B r a k e F o r c e
D i s t r i b u t i o n f a u l t
warning light
Linked to the central (STOP) warn-
ing light.
This indicates one of the following:
- that the handbrake is applied or not fully released,
- a n e x c e s s i v e d r o p i n b r a k e l u i d level (if the warning light remains
on even when the handbrake is
released),
- a fault in the Electronic Brake Force Distribution, if lit at the
same time as the ABS warning
light.
Y o u m u s t s t o p .
Consult a PEUGEOT dealer.
Page 78 of 123
DRIVING
74 -
'PORSCHE TIPTRONIC
SYSTEM' AUTOMATIC
GEARBOX
The four speed automatic gearbox
offers a choice between the comfort
of integral automatic operation , en-
hanced by a sport and a snow pro-
gramme, or manual gear changing .Gear selection gate
F
Move the lever in the gate to
select a position.
The indicator light corresponding
to the position selected appears
on the instrument panel screen.
P ark: to immobilise the vehicle and
to start the engine , with the hand-
brake on or off.
R everse: to reverse (select this po-
sition with the vehicle stationary, en-
gine at idle).
N eutral: to start the engine and to
park , with the handbrake on.
If position N is inadvertently engaged
while driving, allow the engine to re-
turn to idle before engaging position
D to accelerate.
D rive: for driving in automatic mode.
M anual: for selection of gears.
S : sport programme.
T : snow programme. Moving Off
With the engine running, to move off
from position
P:
F it is essential to press the
brake pedal to exit position P ,
F select position R, D or M, then
gradually release the pressure
on the brake pedal; the vehicle
moves off immediately.
You can also move off from position N:
F release the handbrake, with your
foot on the brake,
F select position R, D or M, then
gradually release the pressure
on the brake pedal; the vehicle
moves off immediately.
Starting the engine
F with the handbrake on, select
position P or N in the gate,
F turn the ignition key to the Start
position. WARNING
When the engine is at idle, brakes not
applied, if position
R, D or M is se-
lected, the vehicle moves even with-
out the accelerator being pressed.
For this reason, do not leave chil-
dren unsupervised inside the ve-
hicle, with the engine running.
When maintenance operations need
to be carried out with the engine run-
ning, apply the handbrake and select
position P.
Page 80 of 123
DRIVING
76 -
HANDBRAKE
Operating abnormality
Any operating abnormality is indi-
cated by an audible signal, accom-
panied by the message 'Automatic
gear fault' on the multi-function dis-
play, by a "-" a n d l a s h i n g o f t h e
Sport and Snow warning lights on the
instrument panel display.
In this situation the gearbox oper-
ates in downgrade mode (locked in
3rd gear). You may feel a substan-
tial knock when changing from P to
R and from N to R (this will not cause
any damage to the gearbox).
Do not exceed 60 mph (100 km/h),
respecting local speed limits.
Consult a PEUGEOT dealer.
I f t h e b a t t e r y i s l a t a n d t h e
lever is in position P, it will
be impossible to change
to another position.
In particular, do not force the lever
or there is a risk the gearbox may
be damaged. When the vehicle is be-
ing driven, illumination of
this warning light and of the
STOP
warning light, accom-
panied by an audible signal
and a message on the multifunction
display, indicates that the handbrake
is still on or has not been properly
released.
When parking on a slope,
direct your wheels to im-
mobilise them against the
pavement, pull the hand-
brake and engage a gear.
Applying
Pull the handbrake to immobilise
your vehicle.
Releasing
Pull on the handle and press the but-
ton to release the handbrake.
Page 81 of 123
DRIVING
76 -
HANDBRAKE
Operating abnormality
Any operating abnormality is indi-
cated by an audible signal, accom-
panied by the message 'Automatic
gear fault' on the multi-function dis-
play, by a "-" a n d l a s h i n g o f t h e
Sport and Snow warning lights on the
instrument panel display.
In this situation the gearbox oper-
ates in downgrade mode (locked in
3rd gear). You may feel a substan-
tial knock when changing from P to
R and from N to R (this will not cause
any damage to the gearbox).
Do not exceed 60 mph (100 km/h),
respecting local speed limits.
Consult a PEUGEOT dealer.
I f t h e b a t t e r y i s l a t a n d t h e
lever is in position P, it will
be impossible to change
to another position.
In particular, do not force the lever
or there is a risk the gearbox may
be damaged. When the vehicle is be-
ing driven, illumination of
this warning light and of the
STOP
warning light, accom-
panied by an audible signal
and a message on the multifunction
display, indicates that the handbrake
is still on or has not been properly
released.
When parking on a slope,
direct your wheels to im-
mobilise them against the
pavement, pull the hand-
brake and engage a gear.
Applying
Pull the handbrake to immobilise
your vehicle.
Releasing
Pull on the handle and press the but-
ton to release the handbrake.
Page 98 of 123
CHECKS
92 -
CHECKS
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer. Only use products recom-
mended by PEUGEOT
or products of equivalent
q u a l i t y a n d s p e c i i c a t i o n s .
To ensure best performance from
components as important as the
power steering and the braking
system, PEUGEOT selects and
o f f e r s q u i t e s p e c i i c p r o d u c t s .
To prevent damage to the electri-
cal units, avoid washing the en-
gine.
RUNNING OUT OF FUEL
(DIESEL)
If you should run out of fuel, it is
necessary to re-prime the circuit:
- i l l t h e f u e l t a n k w i t h a t l e a s t i v e litres of diesel,
- squeeze and release the manual re-priming pump, until fuel
appears in the transparent pipe
under the bonnet,
- operate the starter until the engine starts.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances.
It may be necessary to check the
thickness of the pads, even between
services.
Disc wear status
For any information relating to check-
ing the disc wear status, contact a
PEUGEOT dealer. Oil filter
C h a n g e t h e i l t e r r e g u l a r l y , i n a c c o r d
-
ance with the servicing schedule.
Air filter and passenger
compartment filter
H a v e t h e i l t e r e l e m e n t s r e p l a c e d r e g u -
larly. If you drive in dusty condi-
t i o n s , c h a n g e t h e m t w i c e a s o f t e n . Manual gearbox
This does not require an oil change.
Check the level in accordance with the
manufacturer's servicing schedule.
To check the main levels and cer-
t a i n c o m p o n e n t s , i n a c c o r d a n c e
with the manufacturer's servicing
s c h e d u l e , r e f e r t o t h e p a g e s o f
the servicing booklet which corre-
spond to your vehicle's engine.
Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer.
Page 99 of 123
93
PRACTICAL INFORMATION
-
Access to the spare wheel and
the jack
The wheel is located outside the
vehicle, under the boot, supported by
a metal carrier.
- Remove the wheelbrace 1,
secured on the rear right inner
panel of the boot .
- Using the wheelbrace 1, slacken
the spare wheel carrier retaining
bolt, located inside the boot
under the carpet .
- Lift the carrier to release the hook rearwards, then lower it.
- Remove the jack storage box 2 located in the spare wheel.
CHANGING A WHEEL
Removing a wheel
- Chock the rear of the wheel diagonally opposite the wheel
to be changed, using the jack
storage box.
- Remove the wheel trim using the wheelbrace, by pulling at the
valve passage hole.
- Slacken the wheel bolts.
- Place the jack under the locating point on the sub-frame E that
is closest to the wheel to be
changed. Ensure that the entire
surface of the jack base plate is
in contact with the ground.
- Extend the jack, completely unscrew the bolts and remove
the wheel.
Parking the vehicle
- If possible, park the vehicle on
level, stable and non-slippery
ground.
- Apply the handbrake, engage i r s t o r r e v e r s e g e a r ( p o s i t i o n P
for the automatic gearbox).
Page 100 of 123
PRACTICAL INFORMATION
94 -

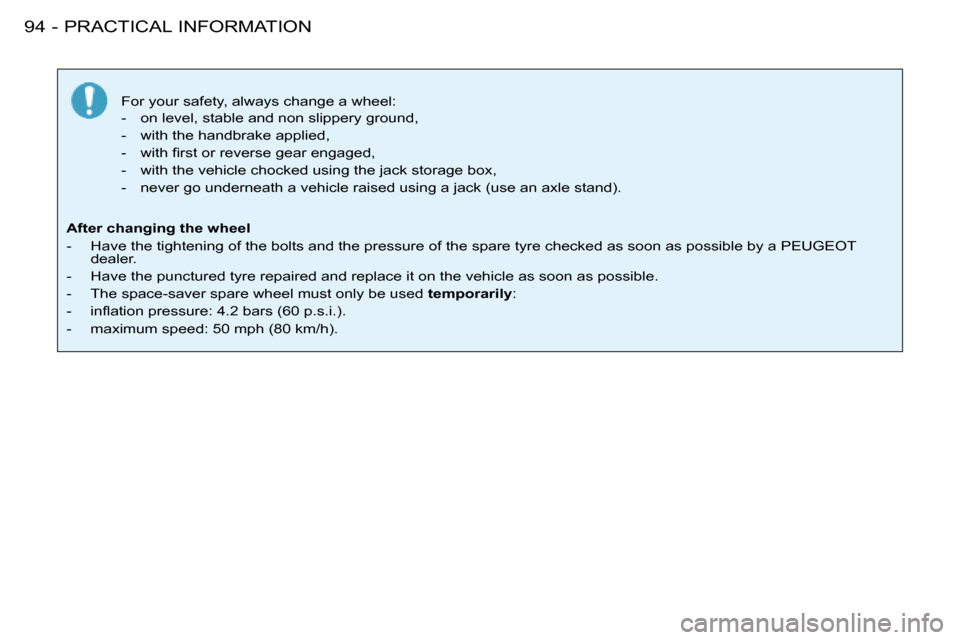

For your safety, always change a wheel:
- on level, stable and non slippery ground,
- with the handbrake applied,
- w i t h i r s t o r r e v e r s e g e a r e n g a g e d ,
- with the vehicle chocked using the jack storage box,
- n e v e r g o u n d e r n e a t h a v e h i c l e r a i s e d u s i n g a j a c k ( u s e a n a x l e s t a n d ) .
After changing the wheel
- Have the tightening of the bolts and the pressure of the spare tyre checked as soon as possible by a PEUGEOT
dealer.
- Have the punctured tyre repaired and replace it on the vehicl e as soon as possible.
- The space-saver spare wheel must only be used temporarily:
- i n l a t i o n p r e s s u r e : 4 . 2 b a r s ( 6 0 p . s . i . ) .
- m a x i m u m s p e e d : 5 0 m p h ( 8 0 k m / h ) .
