2008 PEUGEOT 1007 DAG radio

2
33
General menu
Press the "MENU" button to gain ac-
cess to the general menu, then press
the "

" or "

" buttons to scroll
through the following items:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required. Vehicle confi guration
Once the "Vehicle confi guration"
menu has been selected, you can
activate or deactivate the following
equipment:
- rear wiper linked with reverse
gear,
- "follow-me-home" lighting.
Presentation
This displays the following information,
via the WIP Sound control keypad:
- the time,
- the date,
- the outside temperature (this fl ashes if there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the status of the accesses (doors, boot, ...),
- the warning messages (e.g.: "Antipollution system
faulty") or information messages
(e.g.: "Auto lights on"),
displayed temporarily, can be
cleared by pressing the "ESC"
button,
- the trip computer (see corresponding section).
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active,
not active, faulty).
Radio-CD
With the WIP Sound switched on,
once the "Radio-CD" menu has been
selected, you can activate or deacti-
vate the functions linked with the use
of the radio (RDS following, REG
mode), the CD or the CD changer
(introscan, random play, CD repeat).

6
93
This message is also dis-
played when one of the
wheels is away from the
vehicle (being repaired) or
when one or more wheels
without a sensor are fi tted.
The spare wheel is not fi tted with a
sensor.
All repairs and changing of
tyres on a wheel fi tted with
this system must be carried
out by a PEUGEOT dealer.
If, when changing a tyre, you install
a wheel which is not detected by
your vehicle (example: fi tting of snow
tyres), you must have the system
reinitialised by a PEUGEOT dealer.
Puncture
This warning light and the

STOP warning light come
on on the instrument panel,
accompanied by an audible
signal and a message on the multi-
function display locating the wheel
concerned.

 Stop immediately, avoiding any
sudden movement of the steering
wheel and the brakes.

 Change the damaged wheel
(punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.
Sensor(s) not detected or faulty This warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
multifunction display locating the wheel
or wheels which are not detected or
indicating a fault in the system.
Contact a PEUGEOT dealer to re-
place the faulty sensor(s). This system does not elimi-
nate the need to have the
tyre pressure checked regu-
larly (refer to the "Identifi ca-
tion features" paragraph) to ensure
that the optimum dynamic perfor-
mance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember
to check the pressure of the spare
wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.

140
01
22
11
55
3344
88
99
10101515
11111717
18181212
1616
1414
7766
1313

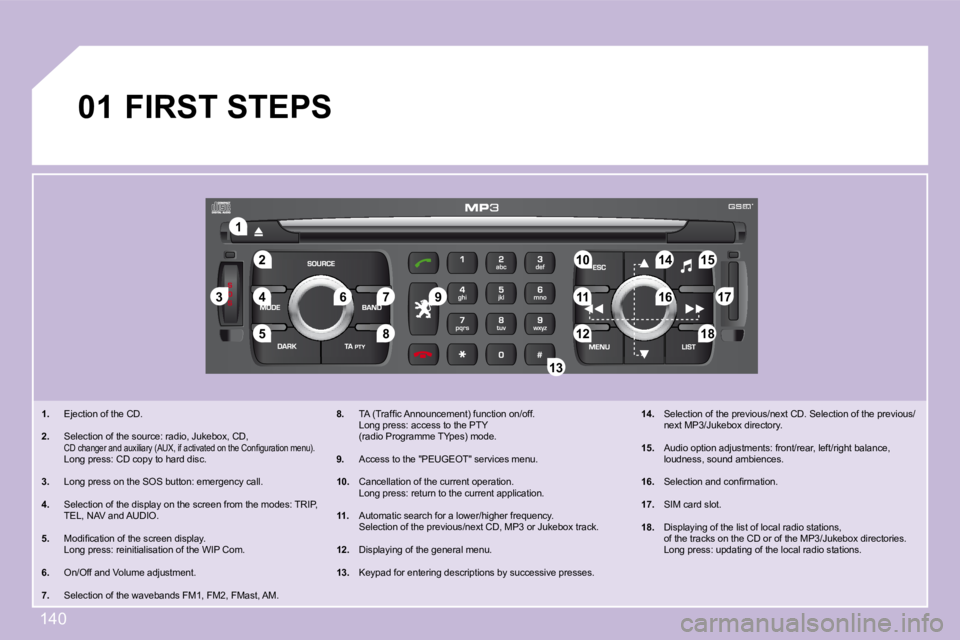

1. Ejection of the CD.

2. Selection of the source: radio, Jukebox, CD,

CD changer and auxiliary (AUX, if activated on the Confi guration menu).
Long press: CD copy to hard disc.

3. Long press on the SOS button: emergency call.

4. Selection of the display on the screen from the m odes: TRIP,
TEL, NAV and AUDIO.

5. Modifi cation of the screen display.
Long press: reinitialisation of the WIP Com.

6. On/Off and Volume adjustment.

7. Selection of the wavebands FM1, FM2, FMast, AM.
8. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (radio Programme TYpes) mode.

9. Access to the "PEUGEOT" services menu.

10. Cancellation of the current operation.
Long press: return to the current application.

11. Automatic search for a lower/higher frequency.
Selection of the previous/next CD, MP3 or Jukebox track.

12. Displaying of the general menu.

13. Keypad for entering descriptions by successive pr esses.
14. Selection of the previous/next CD. Selection of t he previous/
next MP3/Jukebox directory.

15. Audio option adjustments: front/rear, left/right balance,
loudness, sound ambiences.

16. Selection and confi rmation.

17. SIM card slot.

18. Displaying of the list of local radio stations,
of the tracks on the CD or of the MP3/Jukebox dire ctories.
Long press: updating of the local radio stations.
FIRST STEPS

152
11
22
33
44
1
22
33
44
05 AUDIO/VIDEO
RADIO
SELECTING A STATION
Press the SOURCE button several
times in succession and select the
RADIO.
Press the BAND button to select a
waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST button to display the
list of stations received locally
(60 maximum).
To update this list, press for more than
two seconds. The external environment (hills, buildings, tunnel
s, basement car parks, ...) may block reception,
including in RDS mode. This is a normal effect of t he way in which radio waves are transmitted and doe s
not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY
FOLLOWING (RDS) then press OK.
RDS appears on the display.
Select the FM BAND
PREFERENCES function then press
OK.
Select AUDIO FUNCTIONS then
press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue lis tening to the
same station by means of frequency following. Howev er, in certain
conditions, this RDS station is not followed throug hout the country
as radio stations do not cover 100 % of the territo ry. This explains
the loss of reception of the station during a journ ey.
FM BAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)

163
22
11
Press the end of the lights stalk to start the voice
recognition.
Say the words one by one and wait for the audible
confi rmation signal between each word.
The list which follows is exhaustive.
VOICE COMMANDS
To display the list of available voice commands, p ress
the end of the lights stalk to start the voice reco gnition,
then say HELP or WHAT CAN I SAY.
For the same operation, press and
hold the MENU button and select the
function VOICE COMMANDS LIST.
VOICE COMMANDS LIST
DISPLAYING THE LIST AND USING THEM LEVEL 1 LEVEL 2 LEVEL 3
display audio guidance
navigation
trip computer
telephone
call description
changer disc number
previous/next disc
random play
list
track number
previous/next track
repeat
scan 1 ... 20
guide to description
traffi c info display
read
CD player/jukebox random play list
track number
previous/next track
directory (MP3 CD)
scan 1 ... 20
previous/next
repeat
navigation stop/resume
directory
show
zoom out/in destination
description
vehicle
radio autostore list
memory
previous/next 1 ... 6
SMS/message display
read
telephone voice mailbox last number
voice message service
directory description

168
1
2
3
3
3
3
2
3
3
4
4
1
3
2
3
1
2
3
3
2
2
2
1
2
2
2
1
1
4
3
2
2
3
3
6
1
Each audio source (Radio, CD, MP3,
Jukebox, CD changer) has its own
separate settings.
text message ring
CONFIGURATION DISPLAY CONFIGURATION choose colour
adjust luminosity
set date and time
select units
SOUND voice commands setting
speech synthesis setting
guidance instructions volume
other message volume
select female/male voice
activate/deactivate auxiliary source
* The parameters vary according to vehicle (refer to the "Multifunction displays" chapter).
SELECT LANGUAGE
DEFINE VEHICLE PARAMETERS * VIDEO
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
display formats
adjust luminosity
set colours
set contrasts
VEHICLE DIAGNOSTICS Press the MENU button for more
than 2 seconds to gain access to
the next fl ow chart.
ALERT LOG
STATUS OF FUNCTIONS *
RESET TYRE PRESS. DETEC. SYS. * VOICE COMMANDS LIST
AUDIO/TELEPHONE DIAGNOSTICS
GPS COVERAGE
UNIT BACKUP POWER
UNIT DESCRIPTION
NAVIGATION DEMONSTRATION
SERVICES CONFIGURATION
Press the Music button several
times in succession to access
the following settings.
MUSICAL AMBIENCE
BASS
TREBLE
LOUDNESS CORRECTION
FR-RR BALANCE
LH-RH BALANCE
AUTO VOLUME CORRECTION
Flow chart version 7.0
call diversion to mailbox n°
delete calls log

183
There is a difference in
sound quality between
the different audio
sources (radio, CD,
CD changer...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.
For optimum sound quality, the audio settings (Vol
ume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changi ng source (radio, CD,
CD changer...).
The CD is ejected
automatically or is not
played by the player. - Check that the CD is inserted in the player t
he
right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the Audio section.
- The audio equipment's CD player does not play DVDs.
- Due to inadequate quality, certain recorded CDs will not be played by the audio system.
- The CD changer does not play MP3 CDs.
The CD is inserted upside down, is unplayable, doe
s not contain any audio
data or contains an audio format which the player c annot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
The CD player sound
is poor. Insert good quality CDs and store them in
suitable conditions.
The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambien
ces) are unsuitable.
Set the treble or bass level to 0, without selecti ng
an ambience.
The table below groups together the answers to the
most frequently asked questions concerning the WIP Sound and the WIP Com.
QUESTION SOLUTION
RESPONSE
FREQUENTLY ASKED QUESTIONS

184
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. Tune to a radio station which broadcasts traffi c
information.
The radio station is not part of the regional traf
fi c information network.
QUESTION
SOLUTION
RESPONSE
The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used b
y the station listened to or
there is no transmitter in the geographical area th rough which the vehicle
is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block
reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going
through a car wash or into an underground car park) . Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
This phenomenon is normal and does not
indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1
to 2 seconds in radio
mode. During this brief sound cut-out, the RDS searches
for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipme
nt operating time
depends on the battery charge.
The switch-off is normal: the audio equipment swit ches to economy mode
and switches off to prevent discharging of the vehi cle's battery. Start the vehicle's engine to increase the battery
charge.
The stored stations do
not function (no sound,
87.5 Mhz is displayed...)
An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The message "the audio
system is overheated"
appears on the display. Switch the audio system off for a few minutes to
allow the system to cool.
In order to protect the installation if the surrou
nding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stoppi ng of the playing of the
CD.
