2008 PEUGEOT 1007 DAG Owners Manual

3
68

3
69

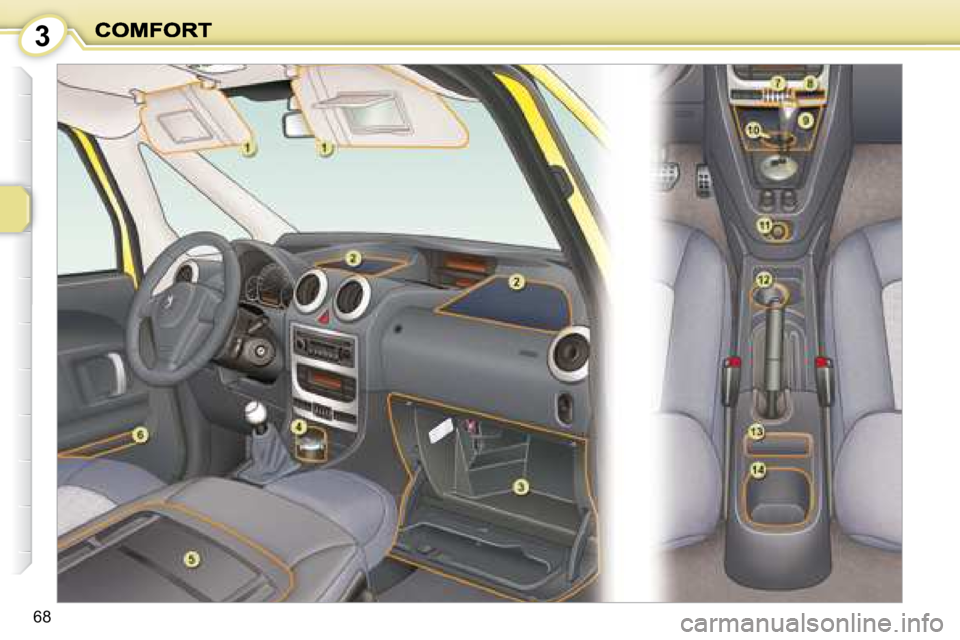

FRONT INTERIOR LAYOUT
5. Writing table
When the front passenger seat is
placed in the table position, you have
a table with two pieces of elastic to
retain A4 format documents, as well
as pen holders.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint, it provides
a panoramic view of the rear interior
of the vehicle.
AREAS FOR TOLL CARDS/CAR PARK TICKETS
* With colour screen only.
1. Sun visor
Each sun visor has a courtesy mirror
with concealer and a ticket holder.
2. Storage trays on the fascia
3. Glove box
To open the glove box, lift the handle.
The glove box lights when the lid is
opened.
The lid has two opening positions, in-
termediate and full.
It contains the passenger air bag dis-
arming switch, a ventilation nozzle
that can be closed (distributing the
same conditioned air as the vents
of the passenger compartment) and
three sockets * for connecting audio/
video equipment (refer to the "Audio
and Telematics" section to activate
the auxiliary input sockets).
The layout allows storage of a pen,
the vehicle handbook, a pair of spec-
tacles, maps, etc.
4. Enclosed storage
compartment/Movable ashtray
This can be placed in the positions
marked 10, 12 and 14. 6. Door storage trays
Before opening the door, ensure that
there are no objects protruding from
the tray.
7. Coin storage
8. Card holder
9. Storage compartment/USB
socket/Buttons and navigator
(Screen C without WIP Sound)
10. Can holder
11. Lighter/12 volt accessories socket (100 W max.)
This is supplied with current from the
running position.
12. Can holder
13. Mobile storage
14. Bottle storage The athermic windscreen has a non-
refl ective zone located above the
base of the interior mirror.
It is intended for affi xing toll cards
and/or car park tickets.

3
70

3
71

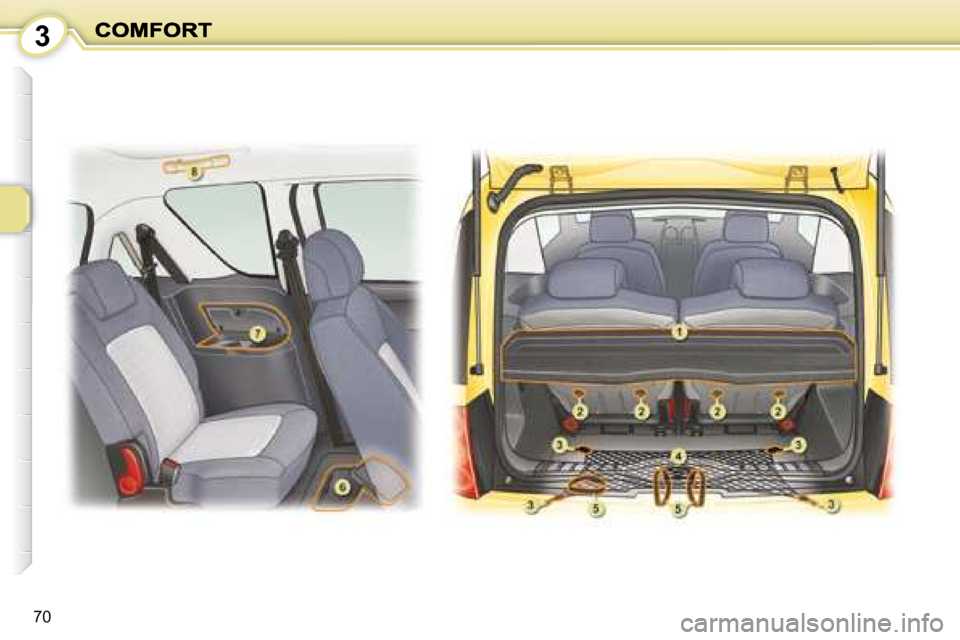

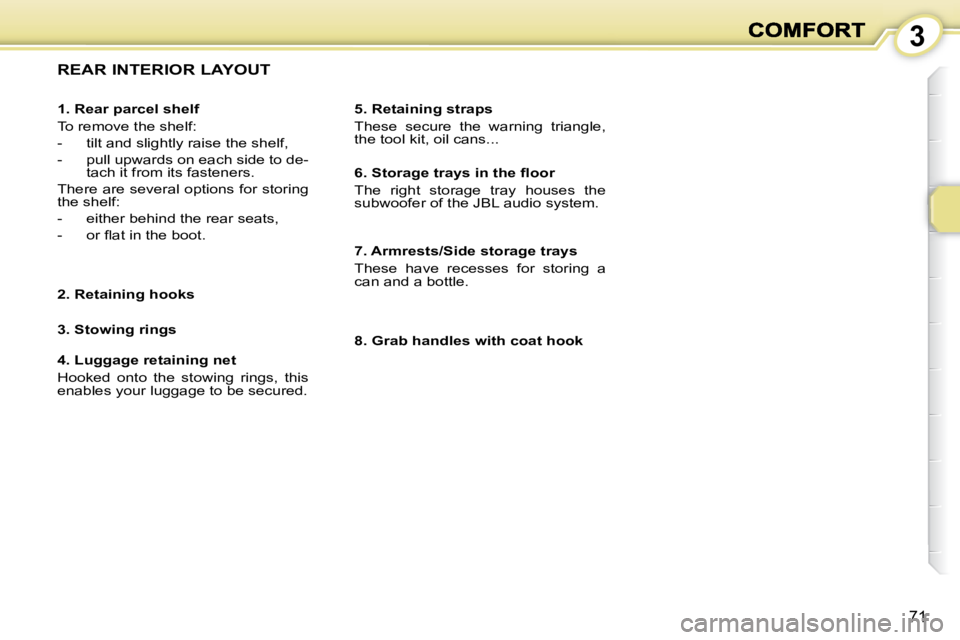

REAR INTERIOR LAYOUT
5. Retaining straps
These secure the warning triangle,
the tool kit, oil cans...
1. Rear parcel shelf
To remove the shelf:
- tilt and slightly raise the shelf,
- pull upwards on each side to de-
tach it from its fasteners.
There are several options for storing
the shelf:
- either behind the rear seats,
- or fl at in the boot.
2. Retaining hooks
3. Stowing rings
4. Luggage retaining net
Hooked onto the stowing rings, this
enables your luggage to be secured. 6. Storage trays in the fl oor
The right storage tray houses the
subwoofer of the JBL audio system.
7. Armrests/Side storage trays
These have recesses for storing a
can and a bottle.
8. Grab handles with coat hook

4
72
THE REMOTE CONTROL KEY
The remote control permits locking,
deadlocking, unlocking and locating of
the vehicle, as well as folding and un-
folding of the exterior mirrors. It does
not work when the ignition is on.
The key permits mechanical and in-
dependent operation of the fuel fi ller
cap and passenger air bag disarming
switch as well as switching on of the
ignition.
From the driver's door, the key per-
mits electrical control of the locking,
deadlocking and unlocking of the ve-
hicle, as well as folding and unfolding
of the exterior mirrors.
If one of the doors or the tailgate is
open, the central locking does not
work. Using the key
Turn the key in the lock on the driver's
door to lock the vehicle.
Normal locking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time.
Using the key
Turn the key in the lock on the driver's
door to unlock the vehicle.
Unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
The exterior mirrors unfold at the
same time.
Folding/Unfolding the key
To fold the key, press button
A then
fold the key into the casing of the re-
mote control.
To unfold the key, press button A .
Unlocking
Normal locking When the vehicle is locked, if
unlocking is activated inadver-
tently, without the doors being
opened within 30 seconds, the
vehicle will lock automatically.
The folding and unfolding of the ex-
terior mirrors can be deactivated by
a PEUGEOT dealer.
The remote control does not work
when the ignition is on.
Using the remote control

Press button B to lock the vehicle.

Pressing button B for more than
2 seconds permits automatic closing
of the windows and sunroof in addition
to locking.
Each action is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time. Using the remote control
Press button
C to unlock the vehicle.
This is confi rmed by rapid fl ashing of
the direction indicators.
The exterior mirrors unfold at the
same time.

4
73
Deadlocking
Deadlocking renders the internal and
external door controls inoperative.
It also deactivates the internal central
locking button.
Using the remote control

Pressing button B locks the vehicle
or pressing button B for more than
2 seconds permits automatic closing
of the windows and sunroof in addi-
tion to locking.

A second press within fi ve seconds
deadlocks the vehicle.
Each action is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds. Opening/Closing the
"Sesame" doors

Pressing button D or E opens or
closes the left or right door.
This press unlocks the vehicle before
opening the corresponding door.

A second press stops the move-
ment of the corresponding door.

A third press reverses the move-
ment of the corresponding door.
Using the key
Turn the key in the lock on the driver's
door to lock the vehicle.
Within the next fi ve seconds, turn the
key again to deadlock the vehicle.
Each action is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds. Key in ignition
A buzzer sounds on opening the driver's
door, if the key has been left in the
ignition.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:

 press button B , the courtesy
lights come on and the direction
indicators fl ash for a few
seconds.
If the deadlocking is opera-
ted from inside the vehicle, it
will change to normal locking
when the vehicle is started.
When closing the windows
and sunroof using the remote
control, the user must ensure
that no one is preventing cor-
rect closing of the windows
and sunroof.
Never leave anyone inside the vehicle
when it is deadlocked.

4
74
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which has a special code. When the
ignition is switched on, the code is
recognised and starting is possible.

If the system does not function
correctly, the service warning light
comes on, accompanied by an au-
dible signal and a message on the
multifunction display.
In this case, your vehicle will not
start. Contact a PEUGEOT dealer as
soon as possible.

Lost keys
Visit a PEUGEOT dealer with the ve-
hicle's V5 registration certifi cate and
your personal identifi cation docu-
ments.
A PEUGEOT dealer will be able to
retrieve the key code and the tran-
sponder code required to order a
replacement key.
Programming the remote
control
Following changing of the remote
control battery or disconnection of
the vehicle battery, the remote con-
trol must be reprogrammed.

 Wait at least one minute before
using the remote control.

 Switch on the ignition.

 Press button B or C for at least
fi ve seconds within the next ten
seconds.

 Switch off the ignition.

 Wait at least one minute before
using the remote control.
The remote control is now working
again.
Changing the remote control
battery
Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by displaying of the service warning
light, accompanied by an audible
signal and a message on the multi-
function display.
To replace the battery, unclip the casing
using a coin at the notch.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.

4
75

Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.

If the keys are lost, a PEUGEOT
dealer can rapidly supply you with
new keys.

The high frequency remote con-
trol is a sensitive system; do not
operate it while it is in your pocket
as there is a possibility that it may
unlock your vehicle, without you
being aware of it.

The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.

Do not operate the deadlocking
function if there is anyone inside
the vehicle.

Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more diffi cult in an emer-
gency.

As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.

Do not repeatedly press the button
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-
hand vehicle, have the key codes
memorised by a PEUGEOT dealer
to ensure that the keys in your
possession are the only ones
which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.

Do not make any modifi cations to
the electronic engine immobiliser
system.
