2008 NISSAN ROGUE Towing Guide

2008 Nissan Towing Guide 24





















































2008 PATHFINDER TOWING DATA
Engine Type 4.0L V6 5.6L V8
Transmission A/T
Maximum
Trailer Weight1,4 (lbs.) 6,000 7,000
Maximum
Trailer Tongue Load (lbs.) 600 700
Gross Combined
Weight Rating (lbs.) 11,133 12,570
Maximum
Trailer Frontal Area 60 sq. ft.
2008 QUEST TOWING DATA
Engine Type 3.5L V6
Transmission A/T
Maximum
Trailer Weight1 (lbs.) 3,500
Maximum
Trailer Tongue Load (lbs.) 350
Gross Combined
Weight Rating (lbs.) 8,500
2008 ROGUE TOWING DATA
Engine Type 2.5L 4-Cylinder
Transmission CVT
Model(s) with
Manual Shift Mode
without
Manual Shift Mode
Maximum
Trailer Weight1 (lbs.) 1,500 1,000
Maximum
Trailer Tongue Load (lbs.) 150 150
Gross Combined
Weight Rating (lbs.) 5,636 5,136

2008 Nissan Towing Guide 25

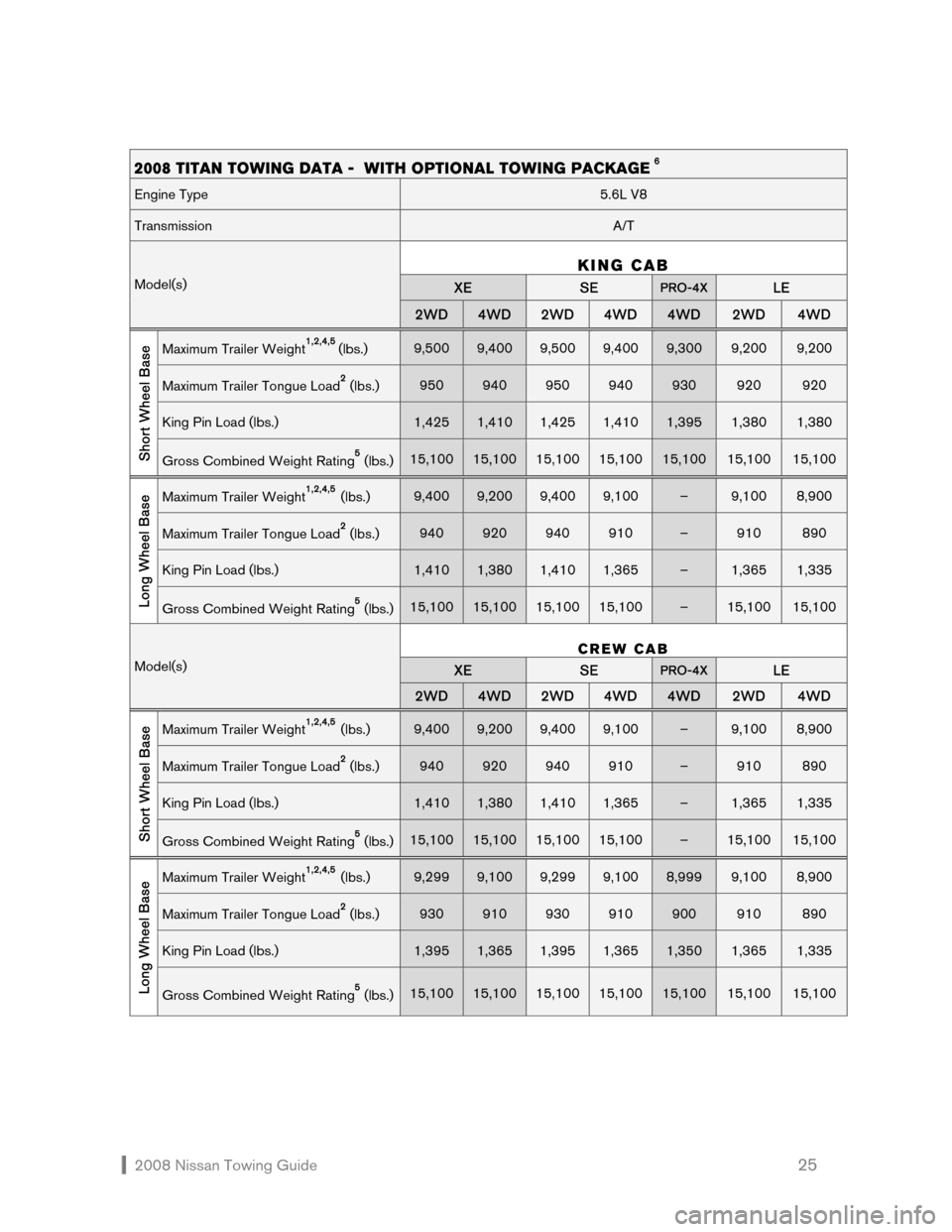

2008 TITAN TOWING DATA - WITH OPTIONAL TOWING PACKAGE 6
Engine Type 5.6L V8
Transmission A/T
KING CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 9,500 9,400 9,500 9,400 9,300 9,200 9,200
Maximum Trailer Tongue Load2 (lbs.) 950 940 950 940 930 920 920
King Pin Load (lbs.) 1,425 1,410 1,425 1,410 1,395 1,380 1,380
Short Wheel Base Gross Combined Weight Rating5 (lbs.)15,10015,10015,10015,10015,100 15,100 15,100
Maximum Trailer Weight1,2,4,5 (lbs.) 9,400 9,200 9,400 9,100 – 9,100 8,900
Maximum Trailer Tongue Load2 (lbs.) 940 920 940 910 – 910 890
King Pin Load (lbs.) 1,410 1,380 1,410 1,365 – 1,365 1,335
Long Wheel Base Gross Combined Weight Rating5 (lbs.)15,10015,10015,10015,100– 15,100 15,100
CREW CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 9,400 9,200 9,400 9,100 – 9,100 8,900
Maximum Trailer Tongue Load2 (lbs.) 940 920 940 910 – 910 890
King Pin Load (lbs.) 1,410 1,380 1,410 1,365 – 1,365 1,335
Short Wheel Base Gross Combined Weight Rating5 (lbs.)15,10015,10015,10015,100– 15,100 15,100
Maximum Trailer Weight1,2,4,5 (lbs.) 9,299 9,100 9,299 9,100 8,999 9,100 8,900
Maximum Trailer Tongue Load2 (lbs.) 930 910 930 910 900 910 890
King Pin Load (lbs.) 1,395 1,365 1,395 1,365 1,350 1,365 1,335
Long Wheel Base Gross Combined Weight Rating5 (lbs.)15,10015,10015,10015,10015,100 15,100 15,100

2008 Nissan Towing Guide 26

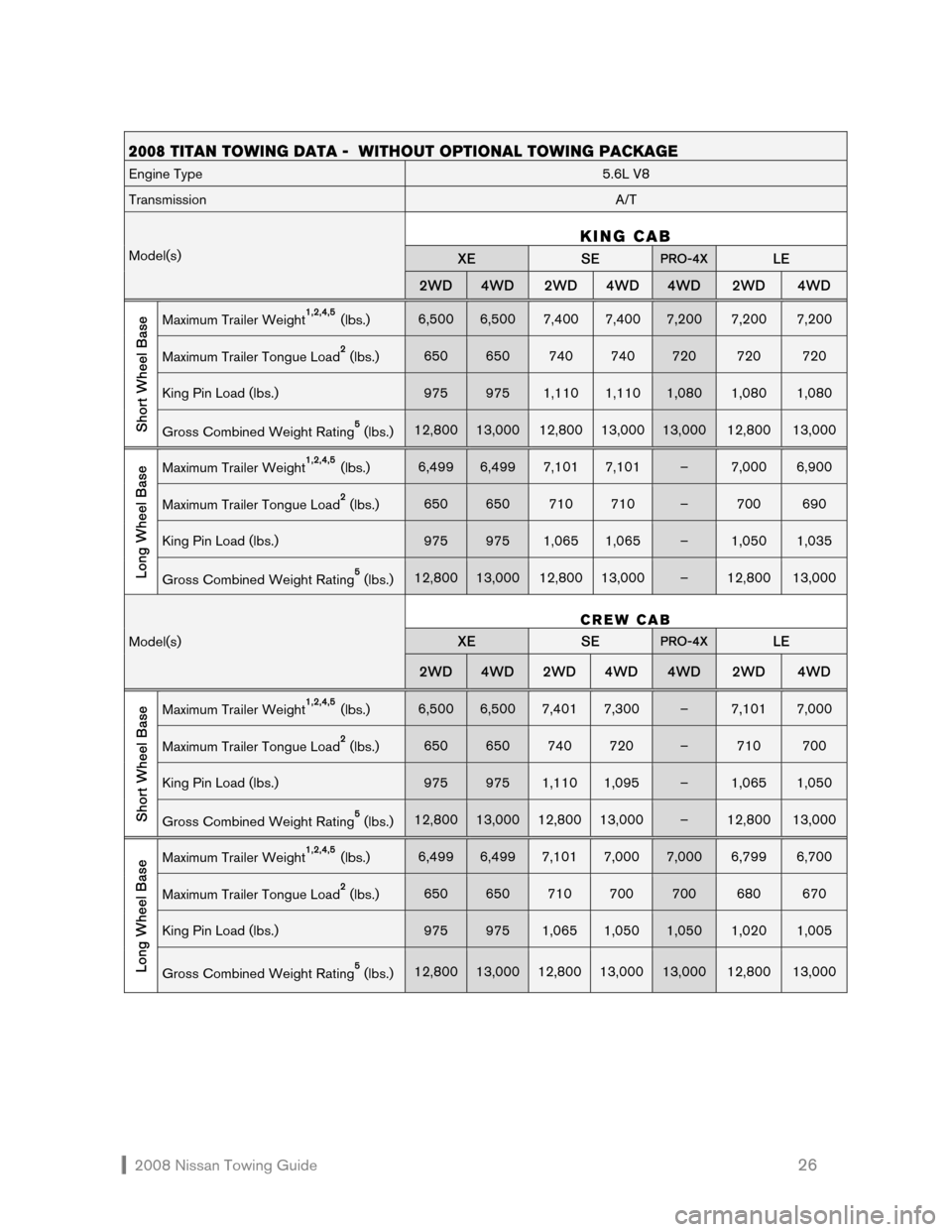

2008 TITAN TOWING DATA - WITHOUT OPTIONAL TOWING PACKAGE
Engine Type 5.6L V8
Transmission A/T
KING CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 6,500 6,500 7,400 7,400 7,200 7,200 7,200
Maximum Trailer Tongue Load2 (lbs.) 650 650 740 740 720 720 720
King Pin Load (lbs.) 975 975 1,110 1,110 1,080 1,080 1,080
Short Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,800 13,00013,000 12,800 13,000
Maximum Trailer Weight1,2,4,5 (lbs.) 6,499 6,499 7,101 7,101 – 7,000 6,900
Maximum Trailer Tongue Load2 (lbs.) 650 650 710 710 – 700 690
King Pin Load (lbs.) 975 975 1,065 1,065 – 1,050 1,035
Long Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,800 13,000– 12,800 13,000
CREW CAB
XE SE PRO-4X LE Model(s)
2WD 4WD 2WD 4WD 4WD 2WD 4WD
Maximum Trailer Weight1,2,4,5 (lbs.) 6,500 6,500 7,401 7,300 – 7,101 7,000
Maximum Trailer Tongue Load2 (lbs.) 650 650 740 720 – 710 700
King Pin Load (lbs.) 975 975 1,110 1,095 – 1,065 1,050
Short Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,80013,000– 12,800 13,000
Maximum Trailer Weight1,2,4,5 (lbs.) 6,499 6,499 7,101 7,000 7,000 6,799 6,700
Maximum Trailer Tongue Load2 (lbs.) 650 650 710 700 700 680 670
King Pin Load (lbs.) 975 975 1,065 1,050 1,050 1,020 1,005
Long Wheel Base Gross Combined Weight Rating5 (lbs.) 12,80013,00012,80013,00013,000 12,800 13,000

2008 Nissan Towing Guide 27










































Passenger Vehicles – The towing capacity for 350Z Coupe, Altima (Coupe, Hybrid, and
Sedan), Maxima, and Sentra is 1,000 lbs.; the maximum trailer tongue load is 100 lbs.
DO NOT
tow a trailer with 350Z Roadster or Versa.
NOTE – For passenger vehicles, the trailer tongue load must be subtracted from the GVWR
as shown on the F.M.V.S.S. certification label located in the driver’s-side door area.

2008 XTERRA TOWING DATA
Engine Type 4.0L V6
Transmission A/T & M/T
Model(s) 2WD & 4WD
Maximum
Trailer Weight1 (lbs.) 5,000
Maximum
Trailer Tongue Load (lbs.) 500
Gross Combined
Weight Rating (lbs.) 9,658
Maximum Trailer
Frontal Area 60 sq. ft.
1 Maximum Trailer Weight values are calculated assuming a base vehicle with driver and any options
required to achieve the rating. Additional passengers, cargo and/or optional equipment will add weight
to the vehicle and reduce your vehicle’s maximum towing capacity and trailer tongue load.
2 The Maximum Trailer Weight when using the Genuine Nissan step bumper in this application as a ball
mount is 5,000 lbs.; the Maximum Trailer Tongue Load is 500 lbs.
3 The Maximum Trailer Weight when using the Genuine Nissan step bumper in this application as a ball
mount is 3,500 lbs.; the Maximum Trailer Tongue Load is 350 lbs. 4 Requires weight-distributing hitch system when towing over 5,000 lbs. 5 The Maximum Trailer Weight and Gross Combined Weight ratings for 5th wheel and gooseneck trailer
towing are the same as specified for conventional trailer towing.
6 The vehicle optional tow package does not include a ball mount. Two ball mount options are available
through your Nissan dealer:
Š Class III hitch ball mount for trailers with a Maximum Trailer Weight of 5,000 lbs. or less.
NOTE – A hitch ball is not included with the Class III ball mount. This ball mount can be used with
any hitch ball with a shank diameter of 1” or larger.
Š Class IV weight-distributing hitch ball mount for trailers with a Maximum Trailer Weight greater
than 5,000 lbs. This ball mount can also be used with trailers under 5,000 lbs. Maximum Trailer
Weight.
NOTE – The Class IV ball mount includes a 2
5/16” hitch ball rated for 10,000 lbs. Smaller hitch
ball sizes may be used by following the instructions included in the ball mount kit.
NOTES:
Š Most states require a separate braking system on trailers with a loaded weight above a specific
smount. Check local ordinances.
Š A/T – Automatic Transmission, CVT – Continuously Variable Transmission

2008 Nissan Towing Guide 28 Other Recommendations and Information – Towing performance and speed are affected by
vehicle payload, tow weight, road grades, and weather conditions, including high
temperatures. See your vehicle owner’s manual for details.

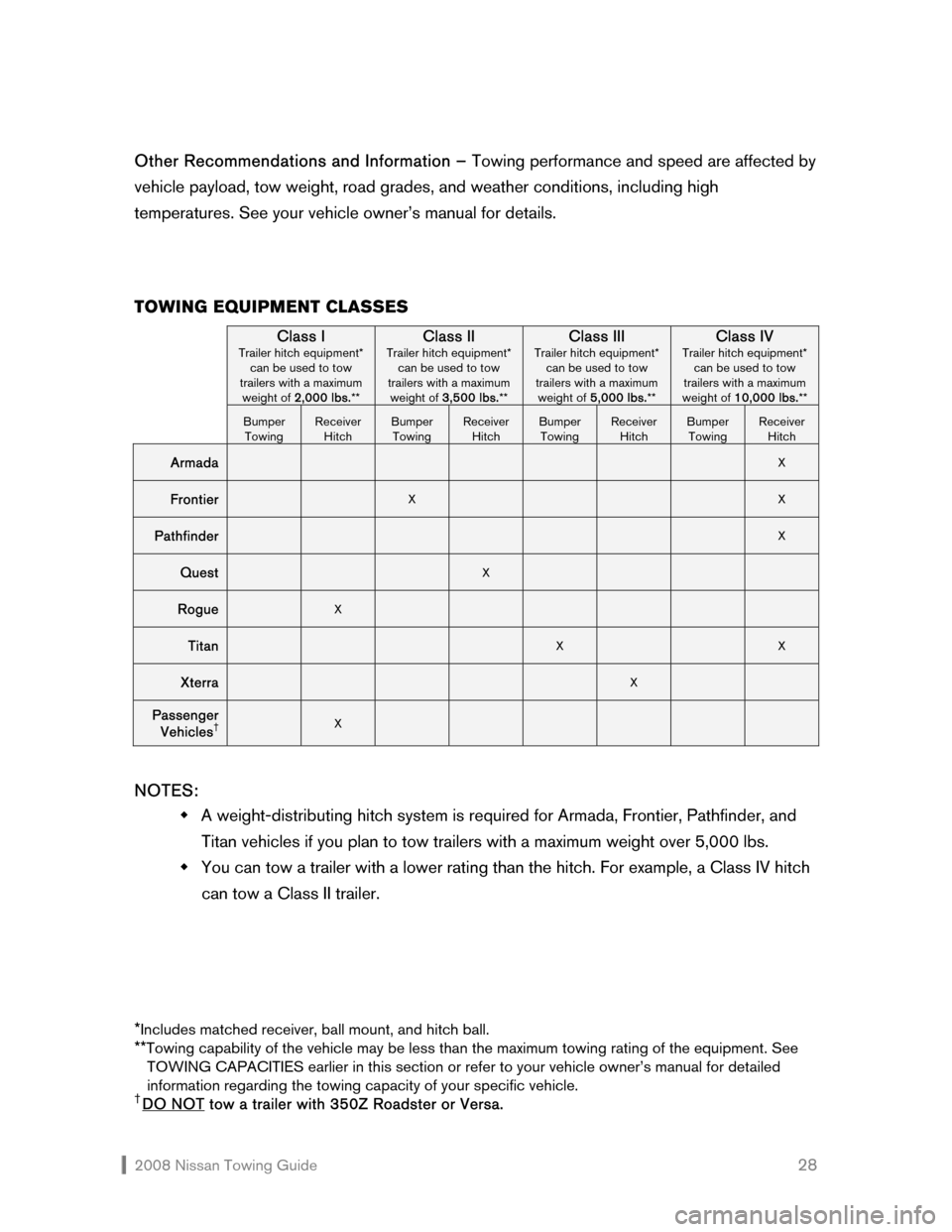

TOWING EQUIPMENT CLASSES

Class I
Trailer hitch equipment* can be used to tow trailers with a maximum weight of 2,000 lbs.**
Class II
Trailer hitch equipment* can be used to tow trailers with a maximum weight of 3,500 lbs.**
Class III
Trailer hitch equipment* can be used to tow trailers with a maximum weight of 5,000 lbs.**
Class IV
Trailer hitch equipment* can be used to tow trailers with a maximum weight of 10,000 lbs.**
Bumper Towing Receiver Hitch Bumper Towing Receiver Hitch Bumper Towing Receiver Hitch Bumper Towing Receiver Hitch
Armada X
Frontier X X
Pathfinder X
Quest X
Rogue X
Titan X X
Xterra X
Passenger
Vehicles† X


NOTES:
Š A weight-distributing hitch system is required for Armada, Frontier, Pathfinder, and
Titan vehicles if you plan to tow trailers with a maximum weight over 5,000 lbs.
Š You can tow a trailer with a lower rating than the hitch. For example, a Class IV hitch
can tow a Class II trailer.





*Includes matched receiver, ball mount, and hitch ball.
**Towing capability of the vehicle may be less than the maximum towing rating of the equipment. See
TOWING CAPACITIES earlier in this section or refer to your vehicle owner’s manual for detailed
information regarding the towing capacity of your specific vehicle.
† DO NOT tow a trailer with 350Z Roadster or Versa.

2008 Nissan Towing Guide 29 TOW VEHICLE WIRING HARNESSES


PROTECTION

At Nissan, we back everything we build. So we’re proud that every Nissan is protected by
some of the best New Vehicle Limited Warranties, including 36-month/36,000-mile basic
coverage. All 2008 models also feature 60-month/60,000-mile powertrain coverage.** And,
Nissan warranties are completely transferable if you should sell your Nissan.
If you want additional peace of mind, we proudly offer the Nissan Security+Plus
® Vehicle
Protection Plan. This plan offers quality mechanical protection long after your New Vehicle
Limited Warranty expires.
The Security+Plus Vehicle Protection Plan is backed by Nissan and designed exclusively
for Nissan owners. From a variety of plans available, you can choose the one that best fits your

*Available only for SL models equipped with Manual Shift Mode.
**For complete warranty details, read the Nissan Warranty Information Booklet or see your nearest

Nissan dealer.
Harness Type Trailer Lighting Electric Trailer Brakes
Armada 7-pin connector wiring harness LE: Pre-wired SE: Tow harness kit available
Receiver hitch: 7-pin connector wiring harness
Pre-wired with 7-pin harness. Requires an electric trailer brake controller (supplied by customer), and an electric trailer brake controller wiring harness (included with vehicle or available from Nissan dealer).
Frontier
4-pin connector wiring harness
Tow harness kit available
Standard equipment: 4-pin connector wiring harness
N/A
Pathfinder
7-pin connector wiring harness
Tow harness kit available Pre-wired with 7-pin harness. Requires an electric trailer brake controller (supplied by customer), and an electric trailer brake controller wiring harness (included with vehicle or available from Nissan dealer).
Quest 4-pin connector wiring harness Available in factory tow package
Rogue 4-pin connector wiring harness SL: Tow harness kit available*
N/A
Titan 7-pin connector wiring harness Pre-wired
Xterra Receiver hitch: 7-pin connector wiring harness Tow harness kit available
Pre-wired with 7-pin harness. Requires an electric trailer brake controller (supplied by customer), and an electric trailer brake controller wiring harness (included with vehicle or available from Nissan dealer).

2008 Nissan Towing Guide 30 driving needs (up to 84 months/100,000 miles!). For the maximum coverage, you will want to
opt for Security+Plus Gold
® Preferred.
Whichever plan you choose, coverage is available throughout the United States. Repair
work will be done at authorized Nissan dealers by Nissan-trained technicians utilizing Genuine
Nissan Parts. For more information about Security+Plus Vehicle Protection Plans, contact
your participating Nissan dealer.
The quality of Genuine Nissan Parts and Accessories is backed by the integrity of a
Genuine Nissan Replacement Parts and Accessories Limited Warranty. If purchased within
the basic coverage period of 36 months/36,000 miles, Genuine Nissan Parts and
Accessories are covered by the remaining period of the warranty. If the remaining period is
less than 12 months/12,000 miles (or if the vehicle warranty has expired), then Genuine
Nissan Accessories are covered by their own 12-month/12,000-mile Limited Warranty. See
your Nissan Warranty Information Booklet or ask your Nissan dealer for specific details.

CONCERN FOR YOUR SAFETY
Nissan urges you to always use your seat belt whenever you drive. And please make sure all
passengers are buckled up. Keep in mind that air bags are a supplemental restraint system
and must always be used in conjunction with a seat belt.
In addition, a rear-facing child restraint must never be used in the front passenger seat if
the vehicle is equipped with a front passenger air bag. Children 12 and under should ride in
the rear seat properly secured in child restraints, booster seats, or seat belts, according to
their size. See your vehicle owner's manual for more details.


COMMITMENT

At Nissan, our commitment to your satisfaction extends well beyond building a full line of
quality products. It begins with people dedicated to designing vehicles to satisfy your needs.
Then, building them to standards that are beyond your expectations. Our nationwide network
of nearly 1,100 dealers will help you select the Nissan that is right for you.
For further assistance, search our Web site at www.NissanUSA.com. For Nissan dealer
locations or for more information on this and other Nissan products, call 1-800-239-8810. Or
call 1-800-NISSAN-1 for answers to product-related issues and solutions to your
transportation needs.

2008 Nissan Towing Guide 31

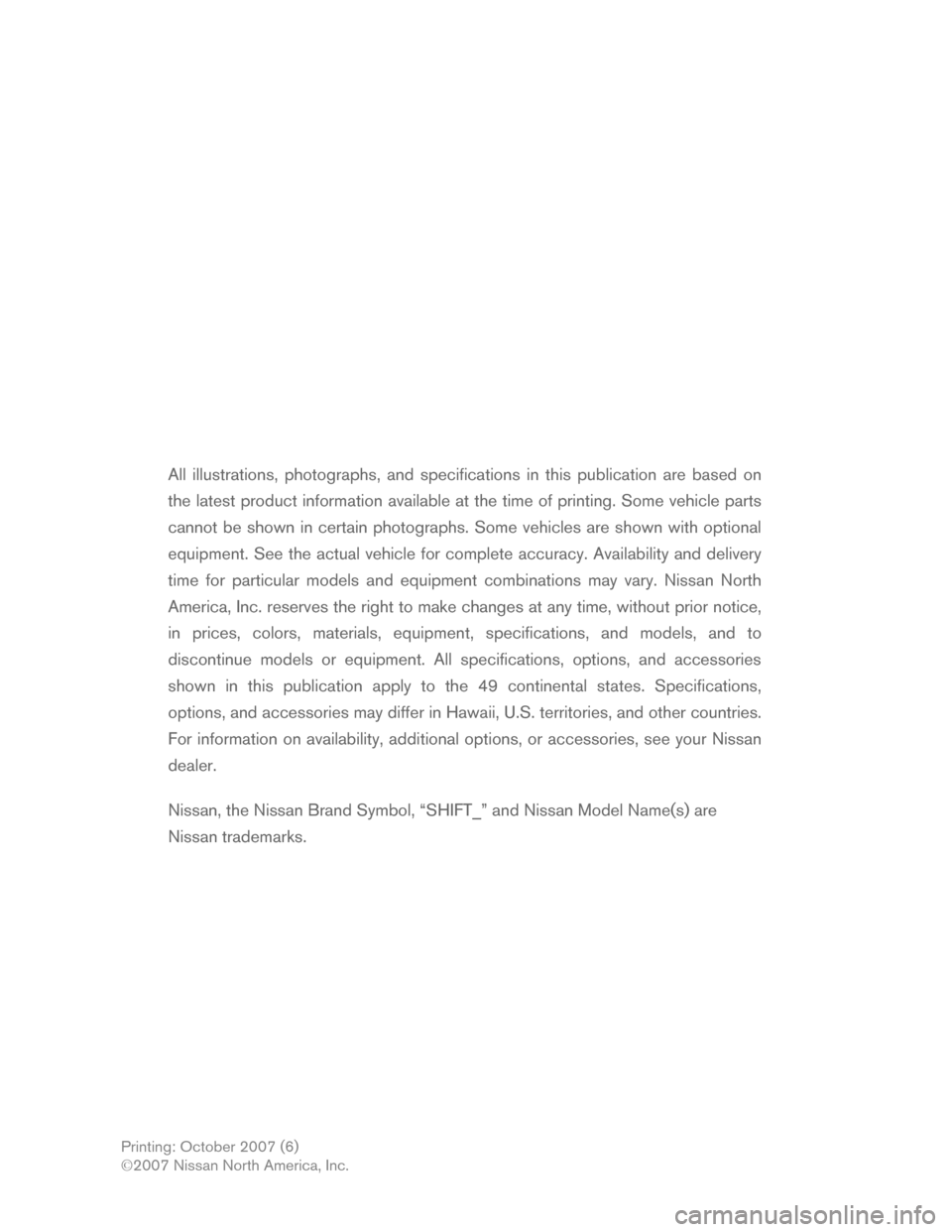

All illustrations, photographs, and specifications in this publication are based on
the latest product information available at the time of printing. Some vehicle parts
cannot be shown in certain photographs. Some vehicles are shown with optional
equipment. See the actual vehicle for complete accuracy. Availability and delivery
time for particular models and equipment combinations may vary. Nissan North
America, Inc. reserves the right to make changes at any time, without prior notice,
in prices, colors, materials, equipment, specifications, and models, and to
discontinue models or equipment. All specifications, options, and accessories
shown in this publication apply to the 49 continental states. Specifications,
options, and accessories may differ in Hawaii, U.S. territories, and other countries.
For information on availability, additional options, or accessories, see your Nissan
dealer.

Nissan, the Nissan Brand Symbol, “SHIFT_” and Nissan Model Name(s) are
Nissan trademarks.









Printing: October 2007 (6)
©2007 Nissan North America, Inc.
