2008 NISSAN ROGUE Owners Manual

Black plate (6,1)
Model "S35-D" EDITED: 2007/ 12/ 19
SSI0350
1. Lift gate (P.3-20)
— Intelligent Key system* (P.3-8)
2. Rear window wiper and washer
— Switch operation (P.2-23)
— Window washer fluid (P.8-12)
3. Rear window defroster (P.2-24)4. High-mounted stop light
— Bulb replacement (P.8-26)
5. Antenna (P.4-24)
— Satellite radio antenna* (P.4-7)
6. Back-up light
— Bulb replacement (P.8-26)7. Rear combination light
— Bulb replacement (P.8-26)
8. Fuel-filler door
— Operation (P.3-21)
— Fuel recommendation (P.9-3)
*: if so equippedEXTERIOR REAR0-4
Illustrated table of contents

Black plate (7,1)
Model "S35-D" EDITED: 2007/ 12/ 19

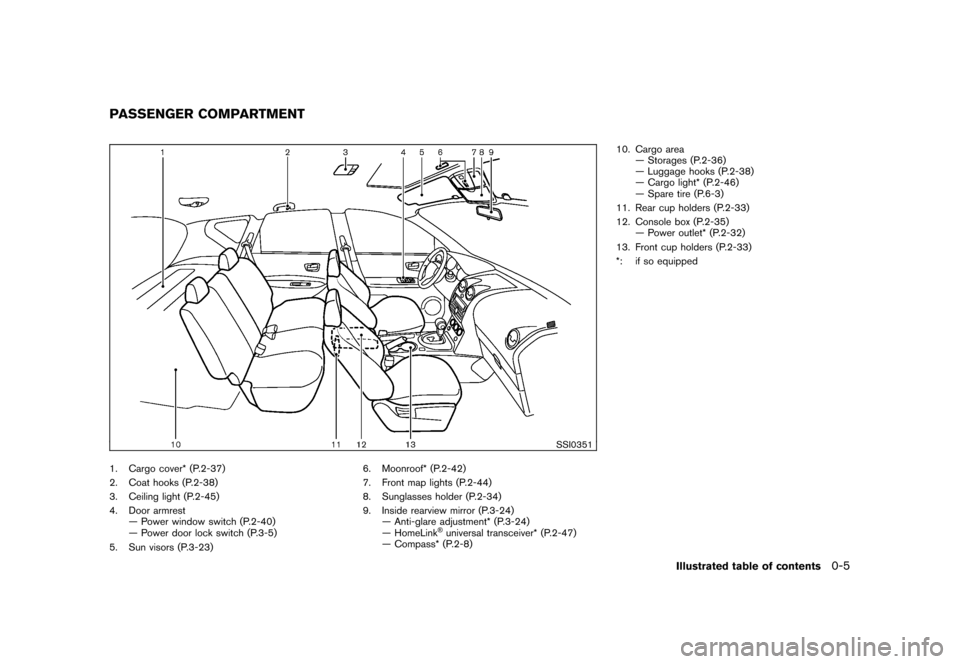

SSI0351
1. Cargo cover* (P.2-37)
2. Coat hooks (P.2-38)
3. Ceiling light (P.2-45)
4. Door armrest
— Power window switch (P.2-40)
— Power door lock switch (P.3-5)
5. Sun visors (P.3-23)6. Moonroof* (P.2-42)
7. Front map lights (P.2-44)
8. Sunglasses holder (P.2-34)
9. Inside rearview mirror (P.3-24)
— Anti-glare adjustment* (P.3-24)
— HomeLink
®universal transceiver* (P.2-47)
— Compass* (P.2-8)10. Cargo area
— Storages (P.2-36)
— Luggage hooks (P.2-38)
— Cargo light* (P.2-46)
— Spare tire (P.6-3)
11. Rear cup holders (P.2-33)
12. Console box (P.2-35)
— Power outlet* (P.2-32)
13. Front cup holders (P.2-33)
*: if so equipped
PASSENGER COMPARTMENT
Illustrated table of contents
0-5

Black plate (8,1)
Model "S35-D" EDITED: 2007/ 12/ 19
SIC3470
1. Side ventilator (P.4-2)
2. Headlight, fog light* and turn signal switch
(P.2-25)
3. Paddle shifter* (P.5-14)4. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-23)
— Bluetooth
®Hands-Free Phone System control*
(P.4-25)
5. Steering wheel
— Horn (P.2-30)
— Driver supplemental air bag (P.1-38)
— Electric power steering system (P.5-25)6. Meters and gauges (P.2-3)
7. Steering-wheel-mounted controls (right side)
— Cruise control switches (P.5-18)
8. Wiper and washer switch (P.2-22)
9. Center ventilator (P.4-2)
10. Hazard warning flasher switch (P.2-29)
11. Audio system (P.4-6)
— Clock (P.2-31)
12. Front passenger supplemental air bag (P.1-38)
13. Outside remote mirror control switch (P.3-25)
14. Headlight aiming control* (P.2-27)
15. All-Wheel Drive (AWD) LOCK switch* (P.5-21)
16. Fuse box cover (P.8-20)
17. Vehicle Dynamic Control (VDC) OFF switch
(P.2-31, 5-27)
18. Hood release handle (P.3-19)
19. Tilting steering wheel lever (P.3-23)
20. Parking brake (P.5-17)
21. Ignition switch (P.5-8)
22. Heated seat switch* (P.2-30)
23. Power outlet (P.2-32)
24. Heater/air conditioner control (P.4-2)
25. Selector lever (P.5-12)
26. Front passenger air bag status light (P.1-45)
27. Rear window and outside mirror* defroster switch
(P.2-24)
28. Glove box (P.2-35)
*: if so equipped
INSTRUMENT PANEL0-6
Illustrated table of contents

Black plate (9,1)
Model "S35-D" EDITED: 2007/ 12/ 19
SIC3471
1. Tachometer (P.2-5)
2. Fuel gauge (P.2-6)
3. Vehicle information display (P.2-6)
— Odometer/twin trip odometer (P.2-4)
— Trip computer* (P.2-7)
— Outside air temperature* (P.2-6)
— Continuously Variable Transmission (CVT)
position indicator (P.2-7)4. Engine coolant temperature gauge (P.2-5)
5. Speedometer (P.2-4)
6. Warning/indicator lights (P.2-11)
7. Instrument brightness control knob (P.2-28)
8. RESET switch for trip odometer (P.2-4)/Trip
computer* mode switch (P.2-7)
*: if so equipped
METERS AND GAUGES
Illustrated table of contents
0-7

Black plate (10,1)
Model "S35-D" EDITED: 2007/ 12/ 19
SDI2127
QR25DE ENGINE1. Engine oil filler cap (P.8-8)
2. Brake fluid reservoir (P.8-11)
3. Air cleaner (P.8-16)
4. Coolant reservoir (P.8-8)
5. Window washer fluid reservoir (P.8-12)6. Drive belt location (P.8-14)
7. Engine oil dipstick (P.8-8)
8. Radiator filler cap (P.8-7)
9. Battery (P.8-13)
10. Fuse/fusible link holder (P.8-19)ENGINE COMPARTMENT0-8
Illustrated table of contents

Black plate (4,1)
1 Safety — Seats, seat belts and supple-mental restraint system
Model "S35-D" EDITED: 2007/ 12/ 25
Seats .............................................................. 1-2
Front seats ................................................... 1-3
Rear seats .................................................... 1-6
Head restraints .............................................. 1-7
Front-seat Active Head Restraints ...................... 1-8
Seat belts ........................................................ 1-9
Precautions on seat belt usage ......................... 1-9
Child safety ................................................ 1-11
Pregnant women .......................................... 1-12
Injured persons ............................................ 1-12
Three-point type seat belt .............................. 1-13
Seat belt extenders ....................................... 1-18
Seat belt maintenance ................................... 1-19
Child restraints ................................................ 1-19
Precautions on child restraints ......................... 1-19
Lower Anchors and Tethers for CHildren system
(LATCH) .................................................... 1-21 Top tether strap child restraint
......................... 1-22
Child restraint installation using LATCH ............. 1-24
Child restraint installation using the seat belts . .... 1-28
Booster seats .................................................. 1-34
Precautions on booster seats .......................... 1-34
Booster seat installation ................................. 1-36
Supplemental restraint system ............................. 1-38
Precautions on supplemental restraint system . .... 1-38
NISSAN advanced air bag system (front seats) . . . 1-44
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems ......... 1-48
Seat belts with pretensioners (front seats) ......... 1-50
Supplemental air bag warning labels ................. 1-51
Supplemental air bag warning light ................... 1-51
Repair and replacement procedure ................... 1-52

Black plate (14,1)
Model "S35-D" EDITED: 2007/ 12/ 19
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sitwell back in the seat with both feet
on the floor and adjust the seat
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.
.After adjustment, gently rock in the
seat to make sure it is securely
locked.
.Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents..Do not adjust the driver’s seat while
driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system

Black plate (15,1)
Model "S35-D" EDITED: 2007/ 12/ 19
SSS0792
FRONT SEATS
Front manual seat adjustmentForward and backward:
Pull the lever
*1
up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
To recline the seatback, pull the lever
*2
up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission in
the P (Park) position with the parking brake fully
applied.
SSS0793
Seat lifter (if so equipped):
Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
WARNING
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is
reclined, the risk of sliding under the
lap belt and being injured is increased.
Safety — Seats, seat belts and supplemental restraint system
1-3
