MINOR ADJUSTMENT OF THE
STORED HOME AND LOCATIONS
When you select [Edit], you can edit the
following items of the home or stored location.
.Show Icon on Map
.Name (only for stored locations)
.Icon
.Sound
.Direction
.Distance
.Phone No.
.Group (only for stored locations)
.Entry Number (only for stored locations)
NAV2953

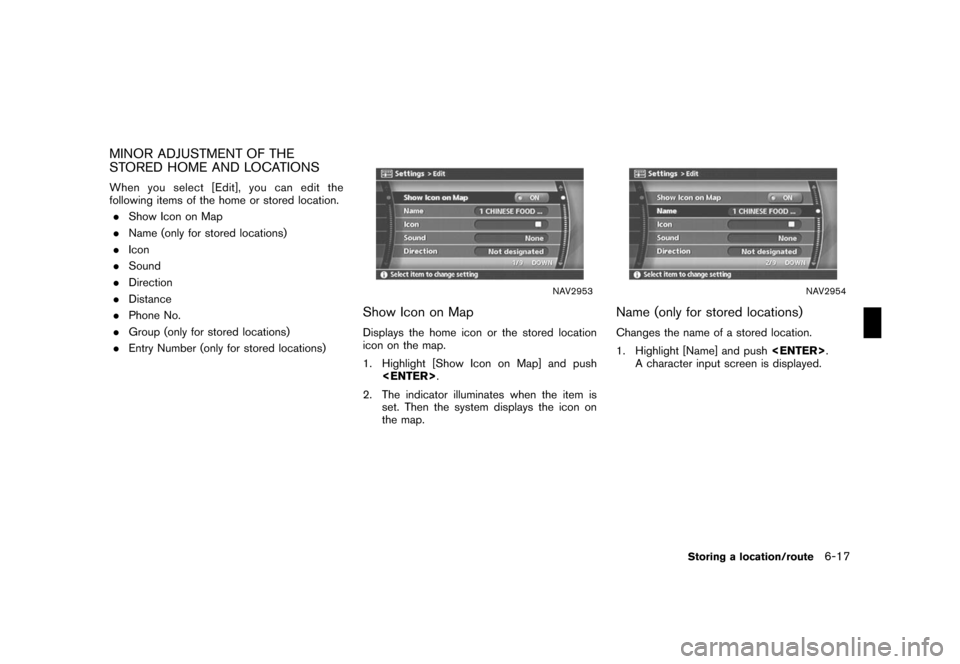

Show Icon on Map
Displays the home icon or the stored location
icon on the map.
1. Highlight [Show Icon on Map] and push
.
2. The indicator illuminates when the item is
set. Then the system displays the icon on
the map.
NAV2954
Name (only for stored locations)
Changes the name of a stored location.
1. Highlight [Name] and push.
A character input screen is displayed.
Storing a location/route6-17

Black plate (180,1)
Model "NISSAN_NAVI" EDITED: 2007/ 2/ 26
NAV2955

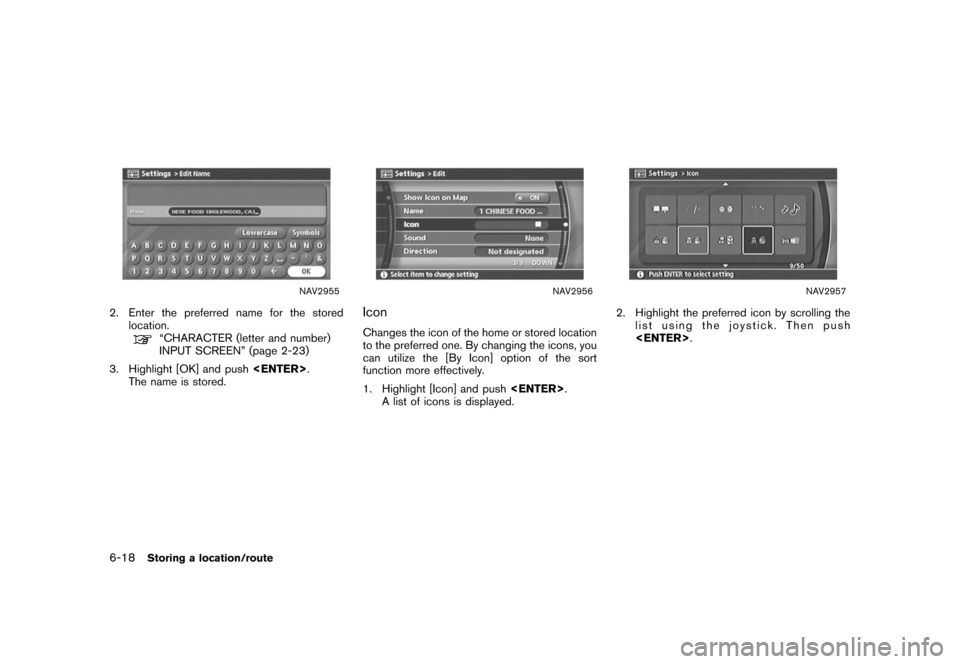

2. Enter the preferred name for the stored
location.
“CHARACTER (letter and number)
INPUT SCREEN” (page 2-23)
3. Highlight [OK] and push.
The name is stored.
NAV2956
Icon
Changes the icon of the home or stored location
to the preferred one. By changing the icons, you
can utilize the [By Icon] option of the sort
function more effectively.
1. Highlight [Icon] and push.
A list of icons is displayed.
NAV2957
2. Highlight the preferred icon by scrolling the
list using the joystick. Then push
.
6-18Storing a location/route

Black plate (181,1)
Model "NISSAN_NAVI" EDITED: 2007/ 2/ 26

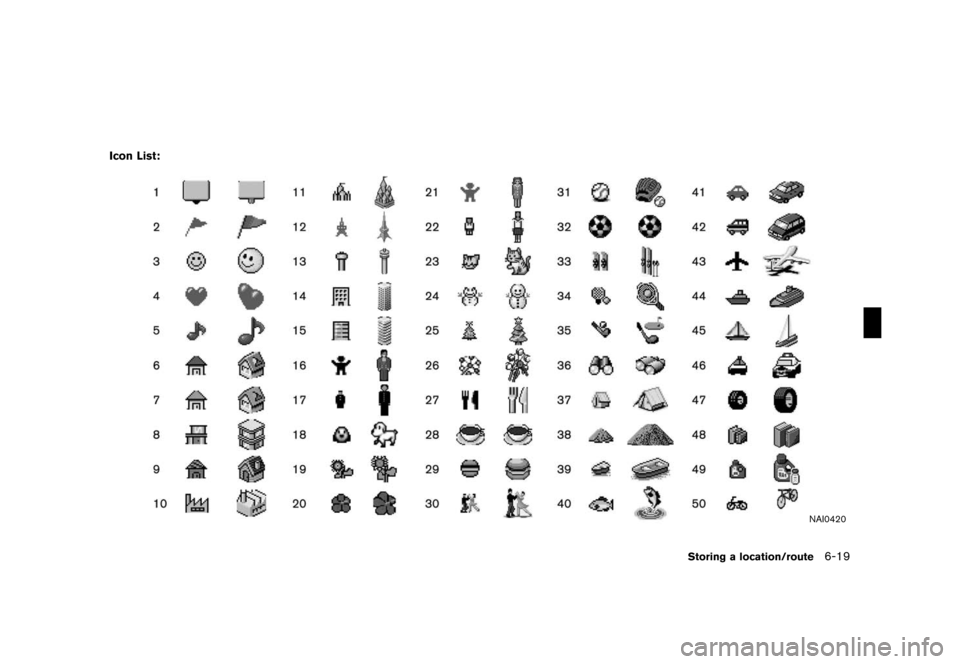

Icon List:
NAI0420
Storing a location/route6-19

Black plate (182,1)
Model "NISSAN_NAVI" EDITED: 2007/ 2/ 26
NAV2958

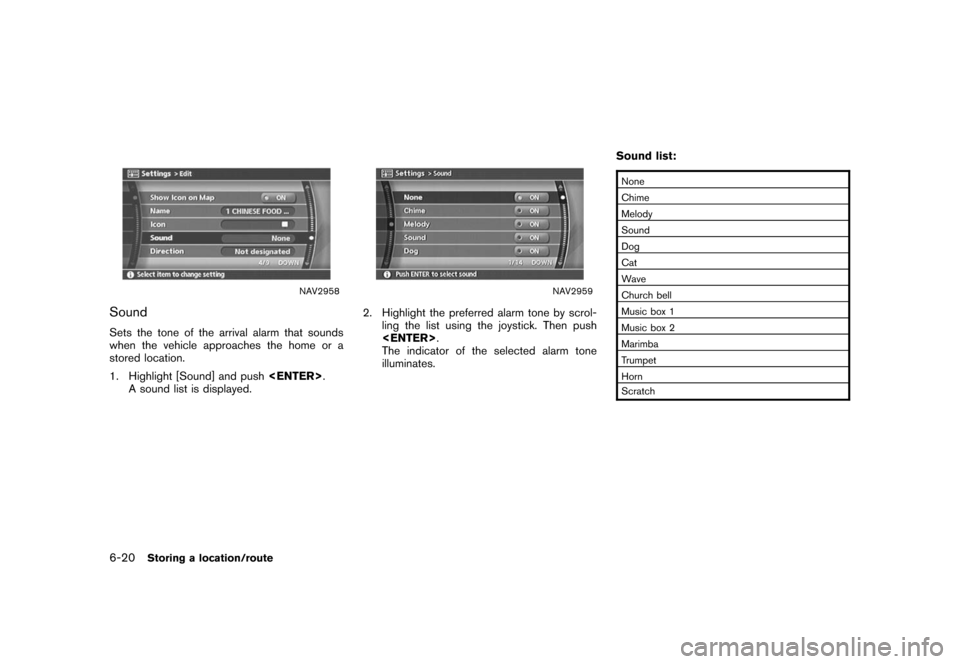

Sound
Sets the tone of the arrival alarm that sounds
when the vehicle approaches the home or a
stored location.
1. Highlight [Sound] and push.
A sound list is displayed.
NAV2959
2. Highlight the preferred alarm tone by scrol-
ling the list using the joystick. Then push
.
The indicator of the selected alarm tone
illuminates.Sound list:
None
Chime
Melody
Sound
Dog
Cat
Wave
Church bell
Music box 1
Music box 2
Marimba
Trumpet
Horn
Scratch
6-20Storing a location/route

Black plate (183,1)
Model "NISSAN_NAVI" EDITED: 2007/ 2/ 26
NAV2960

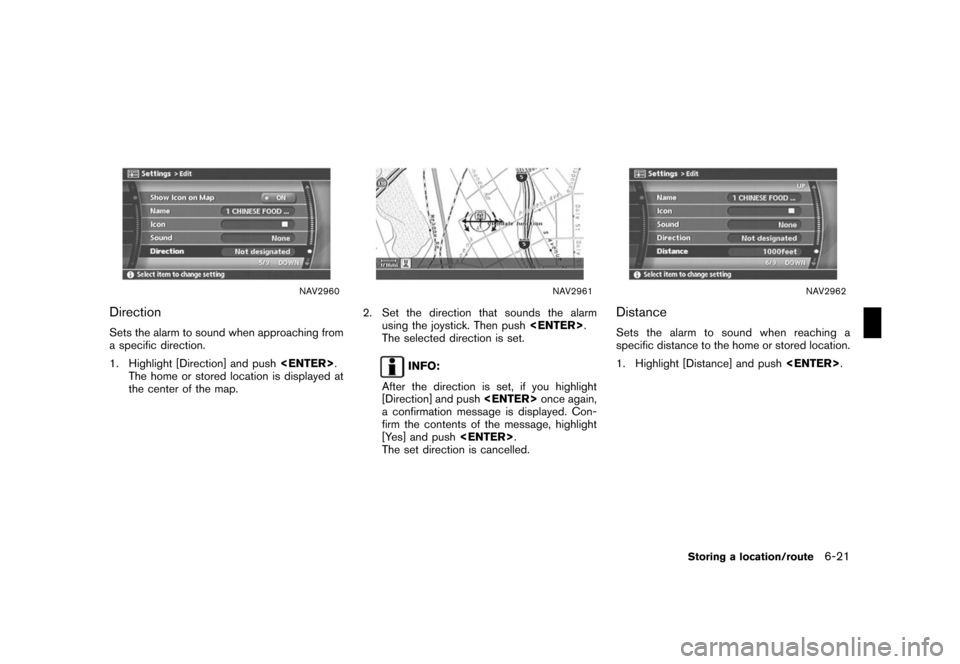

Direction
Sets the alarm to sound when approaching from
a specific direction.
1. Highlight [Direction] and push.
The home or stored location is displayed at
the center of the map.
NAV2961
2. Set the direction that sounds the alarm
using the joystick. Then push.
The selected direction is set.
INFO:
After the direction is set, if you highlight
[Direction] and pushonce again,
a confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push.
The set direction is cancelled.
NAV2962
Distance
Sets the alarm to sound when reaching a
specific distance to the home or stored location.
1. Highlight [Distance] and push.
Storing a location/route6-21

Black plate (184,1)
Model "NISSAN_NAVI" EDITED: 2007/ 2/ 26
NAV2963

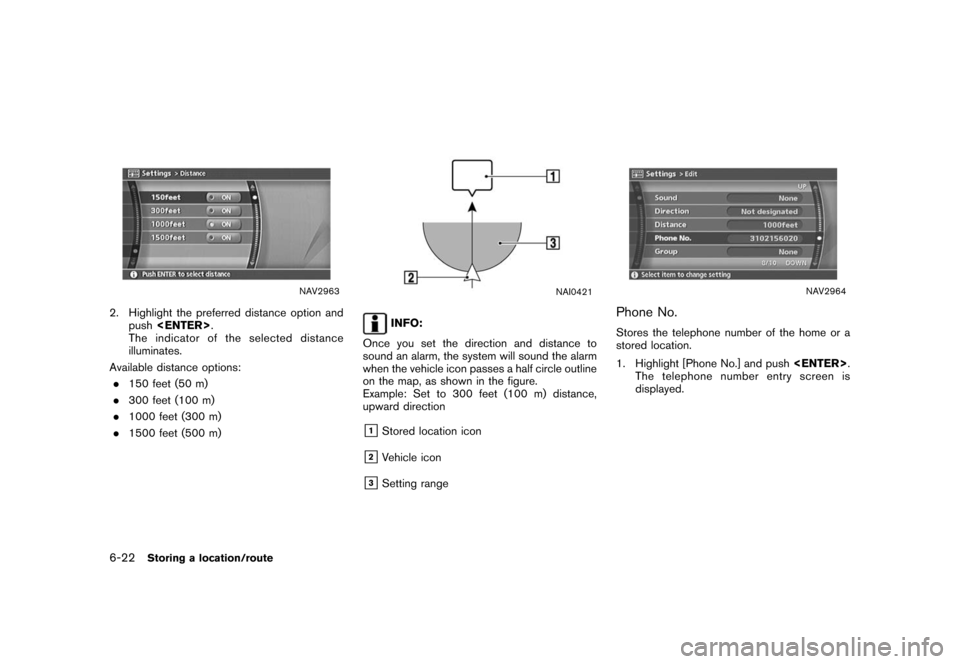

2. Highlight the preferred distance option and
push.
The indicator of the selected distance
illuminates.
Available distance options:
.150 feet (50 m)
.300 feet (100 m)
.1000 feet (300 m)
.1500 feet (500 m)
NAI0421
INFO:
Once you set the direction and distance to
sound an alarm, the system will sound the alarm
when the vehicle icon passes a half circle outline
on the map, as shown in the figure.
Example: Set to 300 feet (100 m) distance,
upward direction
&1Stored location icon
&2Vehicle icon
&3Setting range
NAV2964
Phone No.
Stores the telephone number of the home or a
stored location.
1. Highlight [Phone No.] and push.
The telephone number entry screen is
displayed.
6-22Storing a location/route

Black plate (185,1)
Model "NISSAN_NAVI" EDITED: 2007/ 2/ 26
NAV2965

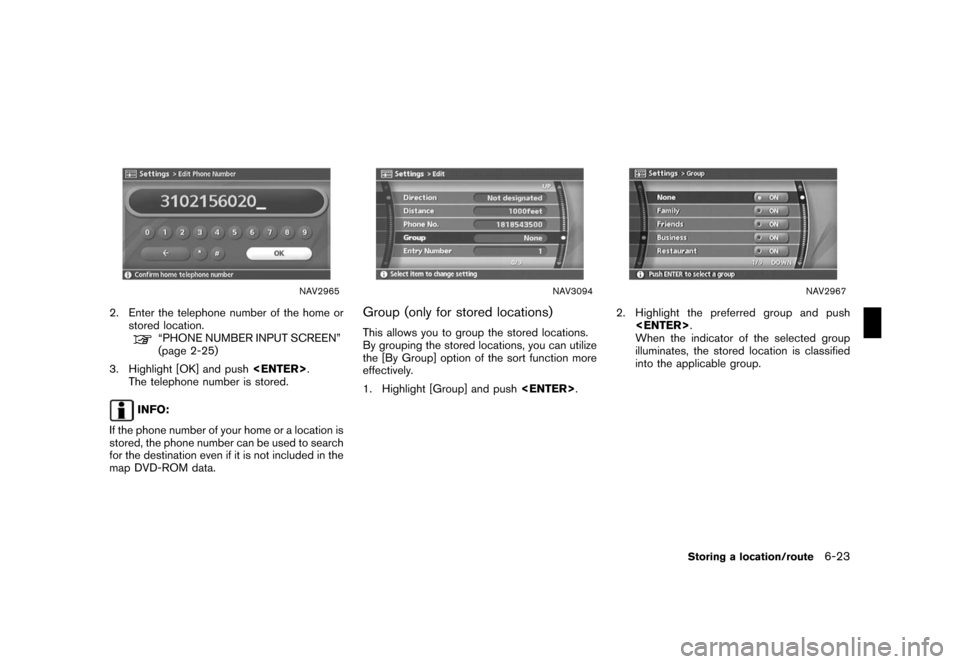

2. Enter the telephone number of the home or
stored location.
“PHONE NUMBER INPUT SCREEN”
(page 2-25)
3. Highlight [OK] and push.
The telephone number is stored.
INFO:
If the phone number of your home or a location is
stored, the phone number can be used to search
for the destination even if it is not included in the
map DVD-ROM data.
NAV3094
Group (only for stored locations)
This allows you to group the stored locations.
By grouping the stored locations, you can utilize
the [By Group] option of the sort function more
effectively.
1. Highlight [Group] and push.
NAV2967
2. Highlight the preferred group and push
.
When the indicator of the selected group
illuminates, the stored location is classified
into the applicable group.
Storing a location/route6-23

Black plate (186,1)
Model "NISSAN_NAVI" EDITED: 2007/ 2/ 26
NAV3095
Entry Number (only for stored locations)
Swaps the position numbers of any two stored
locations in the list.
1. Highlight [Entry Number] and push
.
A list of stored locations is displayed.
NAV3096
2. Highlight the stored locations you want to
swap and push.
The position numbers of the selected stored
locations are swapped.
6-24Storing a location/route
