2008 NISSAN MURANO Owners Manual

Black plate (8,1)
Model "Z51-D" EDITED: 2008/ 6/ 23
Coat hooks................................................. 2-49
Cargo net (if so equipped)............................. 2-49
Windows....................................................... 2-49
Power windows........................................... 2-49
Moonroof (if so equipped).................................. 2-52
Automatic moonroof and sunshades................. 2-52
Interior lights................................................... 2-54
Map lights.................................................. 2-54
Personal lights............................................. 2-54
Interior light control switch............................. 2-54
Mood lights.................................................... 2-55
Vanity mirror lights............................................ 2-56Cargo lights.................................................... 2-56
HomeLink
®Universal Transceiver (if so equipped).... 2-57
Programming HomeLink
®............................... 2-57
Programming HomeLink®for Canadian
customers.................................................. 2-59
Operating the HomeLink®Universal
Transceiver................................................. 2-59
Programming trouble-diagnosis....................... 2-59
Clearing the programmed information................ 2-59
Reprogramming a single HomeLink
®button........ 2-59
If your vehicle is stolen.................................. 2-60

Black plate (70,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SSI0376
1. Headlight aiming control*
2. Side ventilator
3. Power lift gate switch*
4. Headlight, fog light* and turn signal switch
5. Fuel-filler door opener switch6. Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth
®Hands-Free Phone System control*
7. Meters and gauges8. Steering wheel
— Horn
— Driver supplemental air bag
— Power steering system
9. Steering-wheel-mounted controls (right side)
— Cruise control switches
10. Wiper and washer switch
11. Push-button ignition switch
12. Center ventilator
13. Center display/Center color display*/Navigation
system**
14. Heater/air conditioner or
Center multi-function control panel*
— Navigation system**
— Vehicle information and setting buttons
— Bluetooth
®Hands-Free Phone System
— Audio system
15. Hazard warning flasher switch
16. Front passenger supplemental air bag
17. Vehicle Dynamic Control (VDC) OFF switch
18. Hood release handle
19. Power lift gate main switch
20. Power seatback switch
21. Fuse box cover
22. Parking brake
23. Tilting telescopic steering wheel lever or switch
24. Key port
25. Audio system
— Clock
26. Heated seat switch*
27. Selector lever
28. Front passenger air bag status light
INSTRUMENT PANEL2-2
Instruments and controls

Black plate (71,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
29. Power outlet
30. All-Wheel Drive (AWD) LOCK switch*
31. Rear window and outside mirror* defroster switch
32. Heater/air conditioner control or Audio system
33. Glove box
*: if so equipped
**: Refer to the separate Navigation System Owner’s
Manual (if so equipped) .
Instruments and controls
2-3

Black plate (72,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SSI0377
1. Instrument brightness control switch
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Warning/indicator lights
6. Trip computer switch
7. Dot matrix liquid crystal display
8. Engine coolant temperature gauge
9. Vehicle information display
— Odometer/twin trip odometer
— Continuously Variable Transmission (CVT)
position indicator
10. RESET switch for trip odometerThe needle indicators may move slightly
after the ignition switch is pushed to the
LOCK position. This is not a malfunction.
METERS AND GAUGES2-4
Instruments and controls

Black plate (73,1)
Model "Z51-D" EDITED: 2008/ 6/ 26

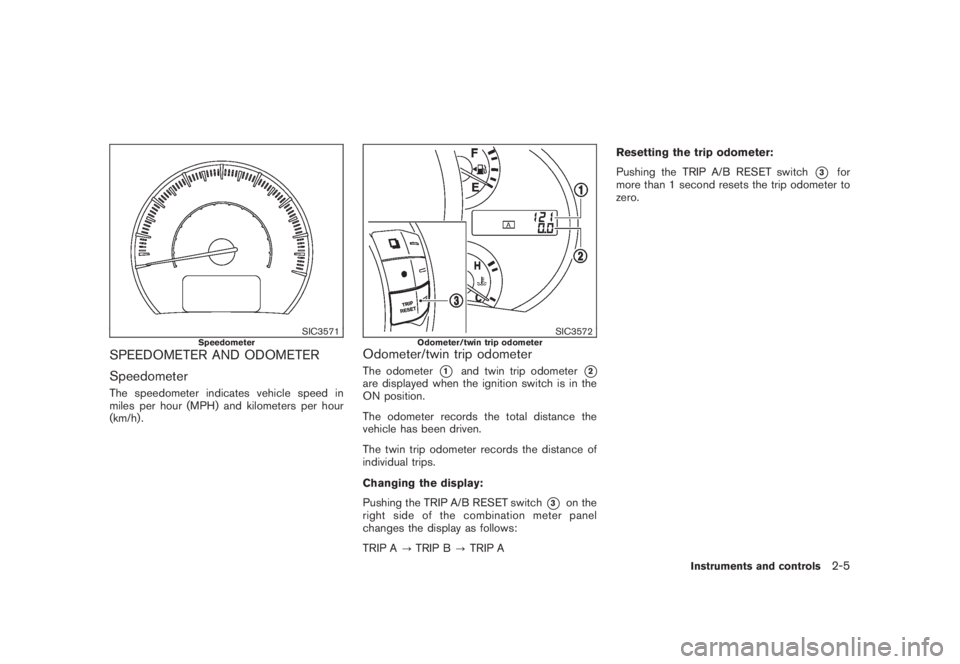

SIC3571
Speedometer
SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC3572
Odometer/twin trip odometer
Odometer/twin trip odometerThe odometer
*1
and twin trip odometer
*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
Pushing the TRIP A/B RESET switch
*3
on the
right side of the combination meter panel
changes the display as follows:
TRIP A?TRIP B?TRIP AResetting the trip odometer:
Pushing the TRIP A/B RESET switch
*3
for
more than 1 second resets the trip odometer to
zero.
Instruments and controls
2-5

Black plate (74,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SIC3573
TACHOMETERThe tachometer indicates engine speed in
revolutions per minute (RPM) .Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
SIC3574
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
*1
shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. See “IF YOUR VEHICLE OVER-
HEATS” in the “6. In case of emergency”
section for immediate action required.
2-6
Instruments and controls

Black plate (75,1)
Model "Z51-D" EDITED: 2008/ 6/ 26

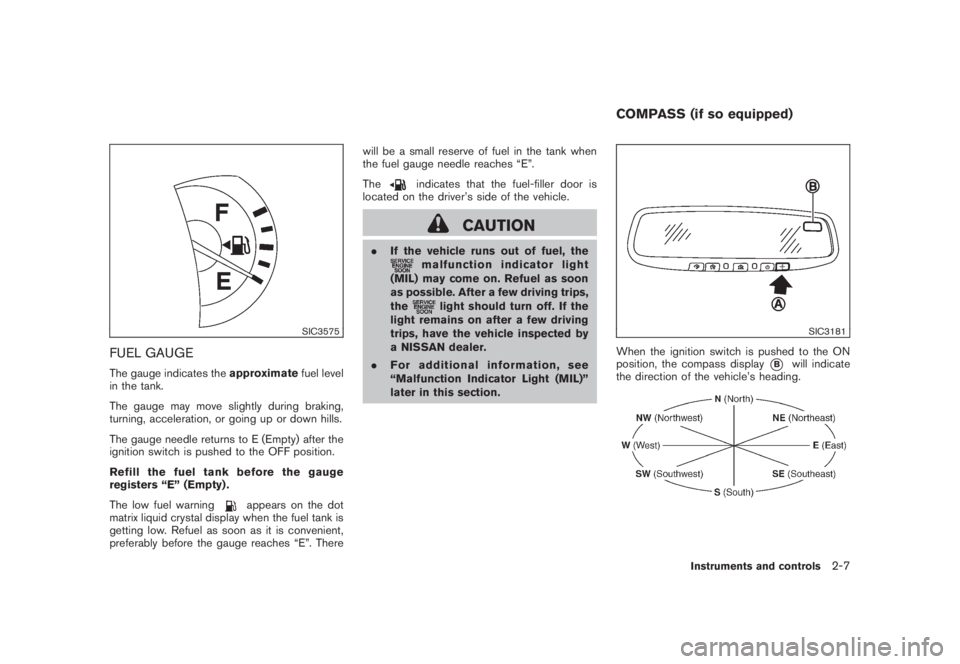

SIC3575
FUEL GAUGEThe gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge
registers “E” (Empty) .
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel tank is
getting low. Refuel as soon as it is convenient,
preferably before the gauge reaches “E”. Therewill be a small reserve of fuel in the tank when
the fuel gauge needle reaches “E”.
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
.If the vehicle runs out of fuel, the
malfunction indicator light
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
.For additional information, see
“Malfunction Indicator Light (MIL)”
later in this section.
SIC3181
When the ignition switch is pushed to the ON
position, the compass display
*B
will indicate
the direction of the vehicle’s heading.
COMPASS (if so equipped)
Instruments and controls
2-7

Black plate (76,1)
Model "Z51-D" EDITED: 2008/ 6/ 26

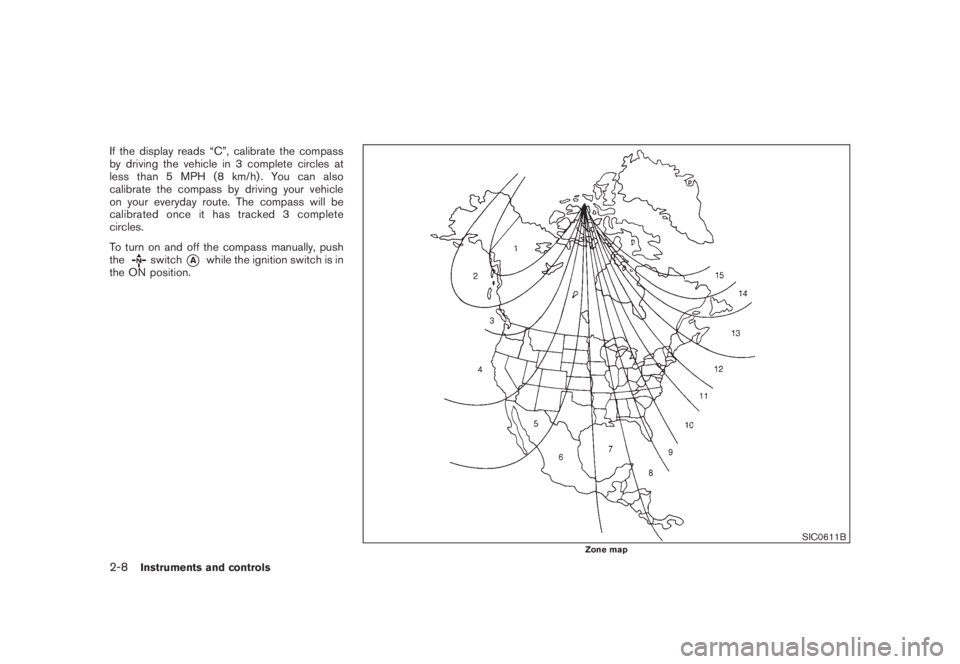

If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle
on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.
To turn on and off the compass manually, push
the
switch
*A
while the ignition switch is in
the ON position.
SIC0611B
Zone map
2-8
