2008 NISSAN MAXIMA turn signal

HEADLIGHT AND TURN SIGNAL CON-
TROLLOW TIRE PRESSURE WARNING LIGHTWINDSHIELD WIPER/WASHER SWITCHSTEERING WHEEL SWITCHES FOR AU-
DIO CONTROL/BLUETOOTH
CRUISE CONTROLINSTRUMENT BRIGHTNESS CONTROL*OUTSIDE MIRROR CONTROL SWITCHREAR SONAR SYSTEM OFF SWITCH
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCHTILT AND TELESCOPIC STEERING
COLUMNHOOD RELEASE*CONTROL PANEL DISPLAY
AUDIO SYSTEMFRONT PASSENGER AIR BAG
STATUS LIGHTCLIMATE CONTROLS
*See your Owner’s Manual for more information.

TABLE OF CONTENTS
Intelligent Key System...............................2
Windshield Wiper/Washer Switch .......................2
Headlight and Turn Signal Control .......................3
Steering Wheel Switches for Audio Control/Bluetooth
(if so equipped) ..................................4
Cruise Control ...................................4
Auto Climate Control ...............................5
FM/AM/XM Radio with CD Changer (if so equipped) ...........7
Clock Set/Adjustment ...............................9
Control Panel Display with Navigation System (if so equipped) .......9
Automatic Driver Positioner (if so equipped) .................10
Xtronic Continuously Variable Transmission (CVT) .............11
Vehicle Dynamic Control (VDC) Off Switch .................12
Front-Passenger Air Bag Status Light ....................12
Tire Pressure Monitoring System (TPMS) ..................12
Seat Belt Warning Light and Chime ......................13
Rear Sonar System Off Switch (if so equipped) ...............13
Child Safety Rear Door Lock ..........................13
Fuel-Filler Cap ..................................13
Fuel-Filler Door and Trunk Lid Release Switches ..............14
Trunk Lid Cancel Switch ............................14
Tilt and Telescopic Steering Column (if so equipped) ...........14
Outside Mirror Control Switch .........................14
Moonroof Controls (if so equipped) ......................15
Front Seat Adjustments .............................15
Folding Down the Rear Seats .........................16
Homelink Universal Transceiver (if so equipped) ..............17
Bluetooth Hands-Free Phone System (if so equipped) ..........18
Navigation System (if so equipped) ......................20
This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand the
important safety warnings, features, operation, and maintenance of your
vehicle.

High Speed(HI)– Continuous high-speed operation of front wipers.
Mist (MIST) – Lift the lever up for one sweep of the front wipers.
 Pull the lever toward you to activate front washer fluid and several sweeps of the wipers.

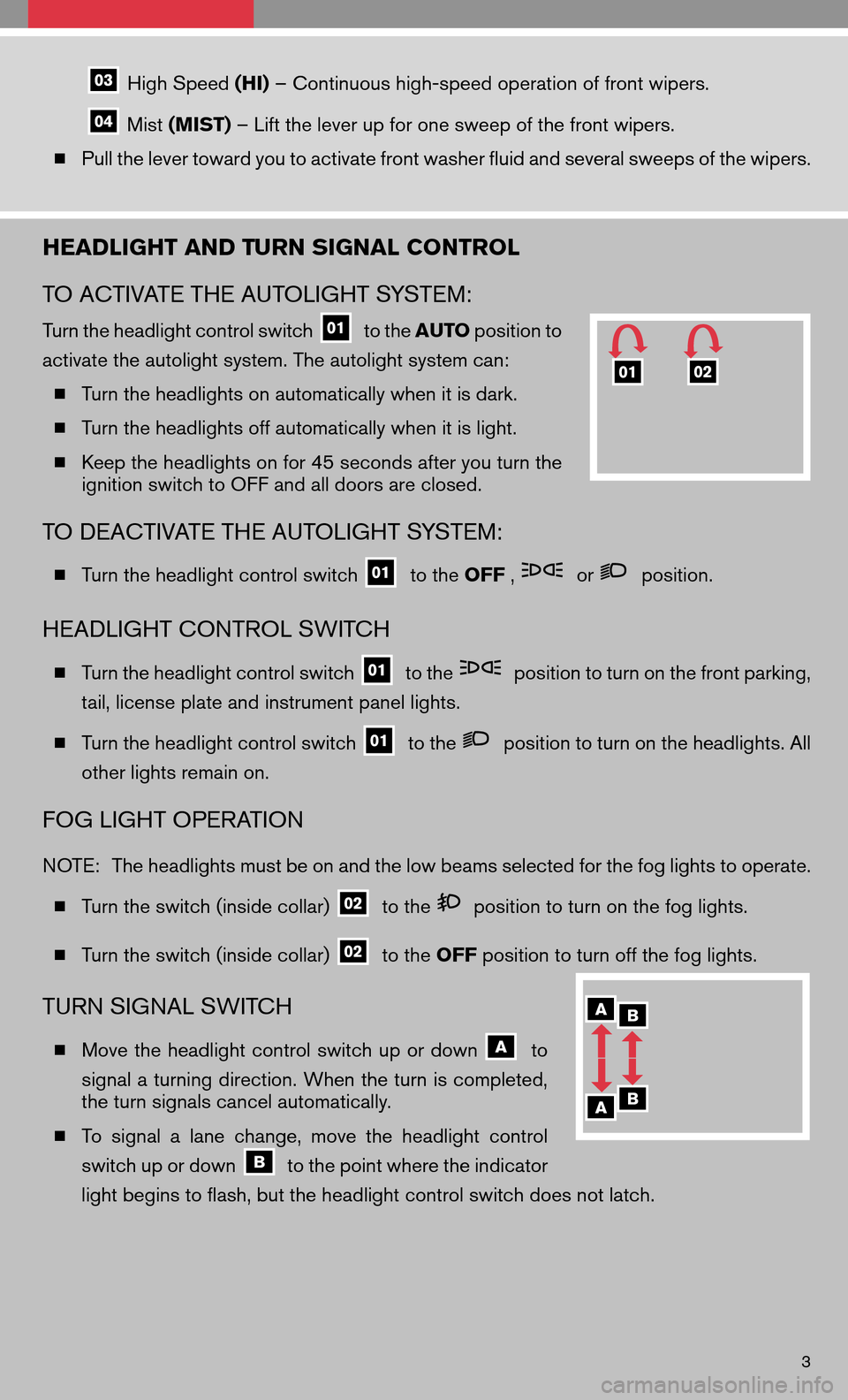

HEADLIGHT AND TURN SIGNAL CONTROL
TO ACTIVATE THE AUTOLIGHT SYSTEM:
Turn the headlight control switchto the AUTO position to
activate the autolight system. The autolight system can:
 Turn the headlights on automatically when it is dark.
 Turn the headlights off automatically when it is light.
 Keep the headlights on for 45 seconds after you turn the
ignition switch to OFF and all doors are closed.
TO DEACTIVATE THE AUTOLIGHT SYSTEM:
 Turn the headlight control switchto the OFF,orposition.
HEADLIGHT CONTROL SWITCH
Turn the headlight control switchto theposition to turn on the front parking,
tail, license plate and instrument panel lights.
 Turn the headlight control switch
to theposition to turn on the headlights. All
other lights remain on.
FOG LIGHT OPERATION
NOTE: The headlights must be on and the low beams selected for the fog lights to operate.
 Turn the switch (inside collar)
to theposition to turn on the fog lights.
 Turn the switch (inside collar)
to the OFFposition to turn off the fog lights.
TURN SIGNAL SWITCH
Move theheadlight controlswitchupordownto
signal a turning direction. When the turn is completed,
the turn signals cancel automatically.
 To signal alane change, movetheheadlight control
switch up or down
to the point where the indicator
light begins to flash, but the headlight control switch does not latch.
3

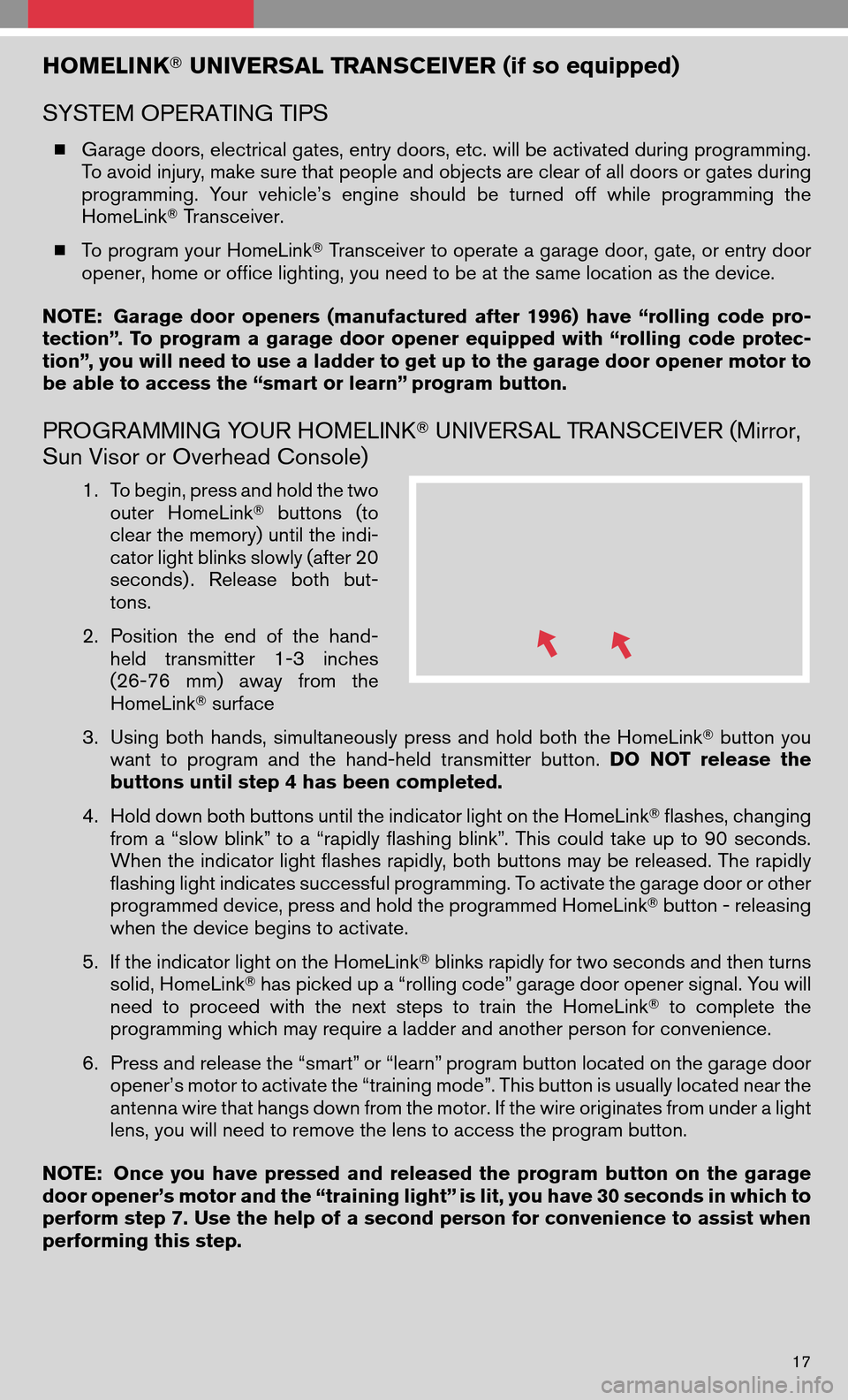

HOMELINKUNIVERSAL TRANSCEIVER (if so equipped)
SYSTEM OPERATING TIPS
 Garage doors, electrical gates, entry doors, etc. will be activated during programming.
To avoid injury, make sure that people and objects are clear of all doors or gates during
programming. Yourvehicle’s engineshouldbeturned offwhile programming the
HomeLink Transceiver.
 To program your HomeLink Transceiver to operate a garage door, gate, or entry door
opener, home or office lighting, you need to be at the same location as the device.
NOTE: Garage dooropeners (manufactured after1996) have“rolling codepro-
tection”. Toprogram agarage dooropener equipped with“rolling codeprotec-
tion”, you will need to use a ladder to get up to the garage door opener motor to
be able to access the “smart or learn” program button.
PROGRAMMING YOUR HOMELINK  UNIVERSAL TRANSCEIVER (Mirror,
Sun Visor or Overhead Console)
1. To begin, press and hold the two
outer HomeLink buttons (to
clear the memory) until the indi-
cator light blinks slowly (after 20
seconds) . Releasebothbut-
tons.
2. Position theend ofthe hand-
held transmitter 1-3inches
(26-76 mm)away fromthe
HomeLink surface
3. Using bothhands, simultaneously pressandhold both theHomeLink button you
want toprogram andthehand-held transmitter button. DONOT release the
buttons until step 4 has been completed.
4. Hold down both buttons until the indicator light on the HomeLink flashes, changing
from a“slow blink” to a“rapidly flashing blink”.Thiscould takeupto90 seconds.
When the indicator light flashes rapidly, both buttons may be released. The rapidly
flashing light indicates successful programming. To activate the garage door or other
programmed device, press and hold the programmed HomeLink button - releasing
when the device begins to activate.
5. If the indicator light on the HomeLink blinks rapidly for two seconds and then turns
solid, HomeLink has picked up a “rolling code” garage door opener signal. You will
need toproceed withthenext steps totrain theHomeLink to complete the
programming which may require a ladder and another person for convenience.
6. Press and release the “smart” or “learn” program button located on the garage door
opener’s motor to activate the “training mode”. This button is usually located near the
antenna wire that hangs down from the motor. If the wire originates from under a light
lens, you will need to remove the lens to access the program button.
NOTE: Onceyouhave pressed andreleased theprogram buttononthe garage
door opener’s motor and the “training light” is lit, you have 30 seconds in which to
perform step 7. Use the help of a second person for convenience to assist when
performing this step.
17
