2008 NISSAN ALTIMA HYBRID navigation

POWER METERLOW TIRE PRESSURE WARNING LIGHTHIGH VOLTAGE BATTERY STATUS
METERHEADLIGHT AND TURN SIGNAL CON-
TROLINSTRUMENT BRIGHTNESS CONTROL*
VEHICLE INFORMATION DISPLAY (behind
steering wheel)TWIN TRIP ODOMETER (behind steering
wheel)WINDSHIELD WIPER/WASHER SWITCHSTEERING WHEEL SWITCH FOR AUDIO
CONTROL/BLUETOOTH CRUISE CONTROL
TRUNK LID OPENER*INTELLIGENT KEY PORTTILT AND TELESCOPIC STEERING COL-
UMN (behind steering wheel)*HOOD RELEASE*FRONT-PASSENGER AIR BAG STATUS
LIGHT
AUDIO SYSTEM AND NAVIGATION
SYSTEM (if so equipped)*CLIMATE CONTROLSAUXILIARY AUDIO INPUT JACK*
*See your Owner’s Manual for more information.

TABLE OF CONTENTS
Unique Hybrid Characteristics..........................2
Power Meter ....................................2
High Voltage Battery Status Meter .......................2
Energy Monitors (Navigation System only) ...................2
Low Temperature Indicator Light (Blue) ....................3
Intelligent Key System ...............................3
Windshield Wiper/Washer Switch .......................5
Headlight and Turn Signal Control .......................5
Steering Wheel Switches for Audio Control/Bluetooth
(if so equipped) ..................................6
Cruise Control ...................................7
Auto Climate Control ...............................7
FM/AM/XM Radio with CD Changer (if so equipped) ...........9
Clock Set/Adjustment ..............................10
Twin Trip Odometer ...............................11
Vehicle Information Display ...........................11
Front-Passenger Air Bag Status Light ....................11
Tire Pressure Monitoring System (TPMS) ..................12
Seat Belt Warning Light and Chime ......................12
Child Safety Rear Door Lock ..........................12
Moonroof Controls (if so equipped) ......................13
Fuel-Filler Door Release .............................13
Trunk Lid Cancel Switch ............................13
Front Seat Adjustments .............................14
RearView Monitor (if so equipped) ......................14
Electronically controlled Continuously Variable Transmission (eCVT) . .15
Homelink Universal Transceiver (if so equipped) ..............15
Bluetooth Hands-Free Phone System
(Without Navigation System – if so equipped) ................16
Bluetooth Hands-Free Phone System
(Navigation System only – if so equipped) ..................19
NISSAN Voice Recognition System (Navigation System only) ......21
Navigation System (if so equipped) ......................22
This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand the
important safety warnings, features, operation, and maintenance of your
vehicle.

UNIQUE HYBRID CHARACTERISTICS
TheAltima Hybrid vehicle hasunique characteristics. Someofthe unique features ofthis
vehicle are:
 Ifthe READY lightison, you can begin driving evenwhen thegasoline engineisnot
running.
 The gasoline engine may shut off while driving or stopping.
 The vehicle will not run if the high voltage battery is discharged.
POWER METER
The power meter indicates the total amount of power the Hybrid
System is producing to move the vehicle. In the start position, the
READY lightilluminates andthevehicle canbestarted and
driven.
 When thepower meterreadslessthan 0,the Hybrid System
high voltage battery is being charged
NOTE: The maximum power output may be reduced when the out-
side temperature is extremely high or low, or when climbing hills.
HIGH VOLTAGE BATTERY STATUS METER
The meter indicates the amount of power that is left in the high voltage
battery.
ENERGY MONITORS (Navigation System only)
Energy flow for various operating modes can be displayed on the navigation system monitor.
The screen must be set to the Energy Flow mode or the Energy/Fuel History mode.
ENERGY FLOW MODE
This isarepresentative exampleofthe En-
ergy Flow display. TheEnergy Flowdisplay
might vary, depending on the operating con-
dition ofthe vehicle. Thegraphic doesnot
reflect the actual motion of the vehicle.
The Energy Flow will display:
 When the vehicle is powered only by the
traction motor.
 When the vehicle is powered by both the traction motor and the gasoline engine.
 When the vehicle is powered only by the gasoline engine.
 When the vehicle is regenerating and charging the high voltage battery.
 When there is no energy flow in the vehicle.
2

ENERGY/FUEL HISTORY MODE
The Energy/Fuel History can be displayed on
thenavigation systemmonitor. Thescreen
must be set to the Energy Flow mode or the
Energy/Fuel History mode. This displays the
vehicle’s averagefuelconsumption andre-
generative electricpowerat5minute inter-
vals.
The displayed values on the screen indicate
general drivingconditions. Accuracyvaries
with driving habits and road conditions.
Regenerated energy in the past 30 minutes: The regenerated energy in the past 30
minutes is indicated with symbols. One symbol indicates 50 watt hours. The energy
of 50 watt hours illuminates a 50 watt bulb for an hour.
Fuel consumption in the past 30 minutes: Fuel consumption in the past 30 minutes
is displayed.
Current fuel consumption (“Latest” column): The current fuel consumption is calcu-
lated and displayed based on distance and fuel consumption.
LOW TEMPERATURE INDICATOR LIGHT (Blue)
 The lowtemperature indicatorlightilluminates bluewhen theengine
coolant temperature is low.
 When the ignition switch is pushed to the ON position, the low tempera-
ture indicator lightwillilluminate. Thelight willturn offafter theengine
coolant has warmed up.
 If the low temperature indicator light remains illuminated after the engine has warmed up,
it may indicate that the engine coolant system is not functioning properly and may need
servicing.
INTELLIGENT KEY SYSTEM
The Intelligent KeySystem allowsyoutolock orunlock your
vehicle, open your trunk and turn the Hybrid System ON.
NOTE: It is important to make sure the Intelligent Key is with you
(that is, in your pocket or purse) .
 The operating range of the door and trunk lock/unlock func-
tion is approximately 31 in (0.8 m) .
3

EJECT BUTTON
 EJECT ASINGLE DISC-Press
the
button forless than 1.5
seconds. Selecttheeject slotby
pressing oneofthe CD insert se-
lect buttons ( 1-6 ) . The CDwill
then eject.
 EJECT ALL DISCS - Press and hold the
button for more than 1.5 seconds. The
CDs will be ejected one after another.
CD SELECT/LOAD BUTTONS
 LOAD A SINGLE DISC - Press one of the CD insert select buttons ( 1-6 ) for less
than 1.5 seconds, wait for the CD slot door to open, then insert the CD.
 LOAD UP TO 6 DISCS - Press and hold one of the CD insert select buttons ( 1-6
) for more than 1.5 seconds. Wait for the CD slot door to open before loading each
disc. The slot numbers (1-6) will illuminate on the display when CDs are loaded into
the changer
XM  presets are only available on XM Satellite Radio equipped vehicles.
CLOCK SET/ADJUSTMENT
NAVIGATION SYSTEM ONLY (if so equipped)
Press the SETUP button,thentouch the
“Clock” keytoaccess thefollowing clock
settings:
 On-screen Clock–When thisitem is
turned toON, aclock isalways dis-
played inthe upper rightcorner ofthe
screen. Theclock isautomatically ad-
justed by the GPS system.
 Clock Format – Choose either the 12-hour clock display or the 24-hour clock display.
 Offset Adjust – Adjust the time by increasing or decreasing per minute.
 Daylight Saving Time – Turn this item to ON for daylight savings time application.
 Time Zone – Choose the time zone.
NON NAVIGATION SYSTEM ONLY
Press and hold the CLOCKbutton for approximately 2 seconds.
 The display will show “H-Seek M-Tune,”
 Press the SEEK/TRACK button to adjust the hours.
 Press the TUNE/FF·REW button to adjust the minutes.
 Press the CLOCKbutton again to exit the clock set mode.
10

4.Hold down both buttons until the indicator light on the HomeLink flashes, changing
from a“slow blink” to a“rapidly flashing blink”.Thiscould takeupto90 seconds.
When the indicator light flashes rapidly, both buttons may be released. The rapidly
flashing light indicates successful programming. To activate the garage door or other
programmed device, press and hold the programmed HomeLink button - releasing
when the device begins to activate.
5. If the indicator light on the HomeLink blinks rapidly for two seconds and then turns
solid, HomeLink has picked up a “rolling code” garage door opener signal. You will
need toproceed withthenext steps totrain theHomeLink to complete the
programming which may require a ladder and another person for convenience.
6. Press and release the “smart” or “learn” program button located on the garage door
opener’s motor to activate the “training mode”. This button is usually located near the
antenna wire that hangs down from the motor. If the wire originates from under a light
lens, you will need to remove the lens to access the program button.
NOTE: Onceyouhave pressed andreleased theprogram buttononthe garage
door opener’s motor and the “training light” is lit, you have 30 seconds in which to
perform step 7. Use the help of a second person for convenience to assist when
performing this step.
7.Quickly within30seconds ofpressing andreleasing thegarage dooropener
program button,firmlypress andrelease theHomeLink button you’vejustpro-
grammed. Press and release the HomeLink button up to three times to complete the
training.
8. Your HomeLink button should nowbeprogrammed. (Toprogram theremaining
HomeLink buttons for additional door or gate openers, follow steps 2-8 only) .
BLUETOOTH HANDS-FREE PHONE SYSTEM (Without Navigation
System – if so equipped)
With anoverhead microphone andsound
transmitted through the audio system speaker,
the Bluetooth Hands-Free PhoneSystem
utilizes Bluetooth wireless technology and
voice recognition to provide hands-free cellu-
lar phone communication.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere withsystem operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the tone before speaking.
 Begin speaking a command within 5 seconds of the tone.
 To go back to the previous command, say “Go back” or “Correction.”
 To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit,” or
press the
button.
 To increase ordecrease thevolume ofthe voice prompts, pushthe+or –(volume)
control buttons on the steering wheel or turn the VOL(volume) knob on the audio system
while the system is responding.
16

BLUETOOTHHANDS-FREE PHONE SYSTEM (Navigation System
only – if so equipped)
With anoverhead microphone andsound
transmitted through the audio system speaker,
the Bluetooth Hands-Free PhoneSystem
utilizes Bluetooth wireless technology,
touch-screen, andvoice recognition topro-
vide hands-free cellularphonecommunica-
tion.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere withsystem operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the “Please say a command” prompt and the listening tone before speaking.
 Begin speaking a command within 1.5 seconds of the listening tone.
 To cancel a voice recognition session, press and hold the
button or press the
button.
 To increase ordecrease thevolume ofthe voice prompts, pushthe+or –(volume)
control buttons on the steering wheel or turn the VOL(volume) knob on the audio system
while the system is responding.
 Speak in a clear and natural voice without pausing between words.
 Some commands are not available while the vehicle is in motion.
 The “Help” command will bring up the voice recognition command list.
 For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth.
PAIRING YOUR PHONE
Before using the hands-free feature, you need to set-up, or pair, the system to recognize your
cellular phone(s) . Up to 5 Bluetooth -enabled phones can be paired to this system. After the
initial one-time set-up,thesystem automatically connectswithapaired phone whenthe
ignition switch is in the ACC or ON position, as long as the phone is in range and within the
vehicle cabin.
PAIRING PROCEDURE
NOTE: Thevehicle mustbestationary whenpairing
the phone.
INITIAL PAIRING
NOTE: Thisprocedure canonly beused topair the
first phone to the system.
1.Press the
button on the steering wheel.
2. A message is displayed. Press the
button again.
19

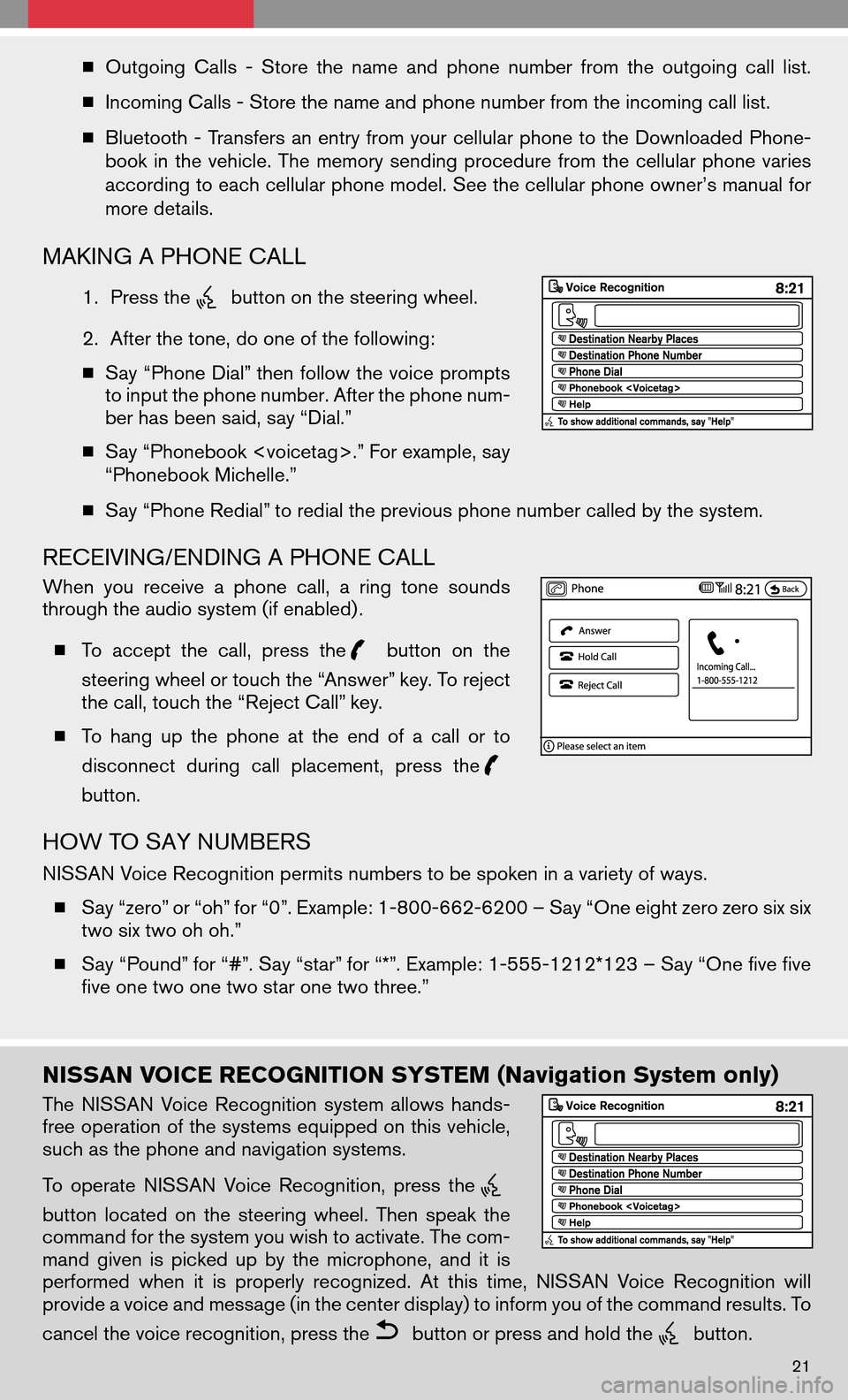

Outgoing Calls-Store thename andphone number fromtheoutgoing calllist.
 Incoming Calls - Store the name and phone number from the incoming call list.
 Bluetooth -Transfers anentry fromyourcellular phonetothe Downloaded Phone-
book inthe vehicle. Thememory sending procedure fromthecellular phonevaries
according to each cellular phone model. See the cellular phone owner’s manual for
more details.
MAKING A PHONE CALL
1. Press thebutton on the steering wheel.
2. After the tone, do one of the following:
 Say “Phone Dial” then follow the voice prompts
to input the phone number. After the phone num-
ber has been said, say “Dial.”
 Say “Phonebook .” For example, say
“Phonebook Michelle.”
 Say “Phone Redial” to redial the previous phone number called by the system.
RECEIVING/ENDING A PHONE CALL
When youreceive aphone call,aring tone sounds
through the audio system (if enabled) .
 To accept thecall, press the
button onthe
steering wheel or touch the “Answer” key. To reject
the call, touch the “Reject Call” key.
 To hang upthe phone atthe end ofacall orto
disconnect duringcallplacement, pressthe
button.
HOW TO SAY NUMBERS
NISSAN Voice Recognition permits numbers to be spoken in a variety of ways.
 Say “zero” or “oh” for “0”. Example: 1-800-662-6200 – Say “One eight zero zero six six
two six two oh oh.”
 Say “Pound” for “#”. Say “star” for “*”. Example: 1-555-1212*123 – Say “One five five
five one two one two star one two three.”
NISSAN VOICE RECOGNITION SYSTEM (Navigation System only)
The NISSAN VoiceRecognition systemallowshands-
free operation of the systems equipped on this vehicle,
such as the phone and navigation systems.
To operate NISSAN VoiceRecognition, pressthe
button located onthe steering wheel.Thenspeak the
command for the system you wish to activate. The com-
mand givenispicked upbythe microphone, anditis
performed whenitis properly recognized. Atthis time, NISSAN VoiceRecognition will
provide a voice and message (in the center display) to inform you of the command results. To
cancel the voice recognition, press the
button or press and hold thebutton.
21
