2008 NISSAN ALTIMA HYBRID climate control

POWER METERLOW TIRE PRESSURE WARNING LIGHTHIGH VOLTAGE BATTERY STATUS
METERHEADLIGHT AND TURN SIGNAL CON-
TROLINSTRUMENT BRIGHTNESS CONTROL*
VEHICLE INFORMATION DISPLAY (behind
steering wheel)TWIN TRIP ODOMETER (behind steering
wheel)WINDSHIELD WIPER/WASHER SWITCHSTEERING WHEEL SWITCH FOR AUDIO
CONTROL/BLUETOOTH CRUISE CONTROL
TRUNK LID OPENER*INTELLIGENT KEY PORTTILT AND TELESCOPIC STEERING COL-
UMN (behind steering wheel)*HOOD RELEASE*FRONT-PASSENGER AIR BAG STATUS
LIGHT
AUDIO SYSTEM AND NAVIGATION
SYSTEM (if so equipped)*CLIMATE CONTROLSAUXILIARY AUDIO INPUT JACK*
*See your Owner’s Manual for more information.

TABLE OF CONTENTS
Unique Hybrid Characteristics..........................2
Power Meter ....................................2
High Voltage Battery Status Meter .......................2
Energy Monitors (Navigation System only) ...................2
Low Temperature Indicator Light (Blue) ....................3
Intelligent Key System ...............................3
Windshield Wiper/Washer Switch .......................5
Headlight and Turn Signal Control .......................5
Steering Wheel Switches for Audio Control/Bluetooth
(if so equipped) ..................................6
Cruise Control ...................................7
Auto Climate Control ...............................7
FM/AM/XM Radio with CD Changer (if so equipped) ...........9
Clock Set/Adjustment ..............................10
Twin Trip Odometer ...............................11
Vehicle Information Display ...........................11
Front-Passenger Air Bag Status Light ....................11
Tire Pressure Monitoring System (TPMS) ..................12
Seat Belt Warning Light and Chime ......................12
Child Safety Rear Door Lock ..........................12
Moonroof Controls (if so equipped) ......................13
Fuel-Filler Door Release .............................13
Trunk Lid Cancel Switch ............................13
Front Seat Adjustments .............................14
RearView Monitor (if so equipped) ......................14
Electronically controlled Continuously Variable Transmission (eCVT) . .15
Homelink Universal Transceiver (if so equipped) ..............15
Bluetooth Hands-Free Phone System
(Without Navigation System – if so equipped) ................16
Bluetooth Hands-Free Phone System
(Navigation System only – if so equipped) ..................19
NISSAN Voice Recognition System (Navigation System only) ......21
Navigation System (if so equipped) ......................22
This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand the
important safety warnings, features, operation, and maintenance of your
vehicle.

CRUISE CONTROL
To activate the cruise control, push the ON/OFF
switch. The indicator light in the instrument panel
will illuminate.
 To set cruising speed,accelerate thevehicle to
the desired speed, push the COAST/SETswitch
and release it. The SET indicator light in the instru-
ment panel will illuminate.
 To reset at a faster cruising speed, push and hold
the ACCEL/RES switch.Whenthevehicle at-
tains the speed you desire, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SETswitch. Release the
switch when the vehicle slows to the desired speed.
 Tocancel cruisecontrol, pushtheCANCEL switchortap thebrake pedal. TheSET
indicator light in the instrument panel will go out.
 To resume apreset speed, pushandrelease theACCEL/RES switch.Thevehicle
returns to the last set cruising speed when the vehicle speed is over 25 MPH (40 km/h) .
 To turn off cruise control, push the ON/OFFswitch. Both the CRUISE indicator light and
the SET indicator light in the instrument panel will go out.
AUTO CLIMATE CONTROL
AUTO BUTTON
● Press the AUTObutton
. Turn the driver’s side temperature control dialto
the desired temperature. Thiswillallow thefanspeed, airflow distribution and
temperature to be automatically maintained.
● When AUTO is pressed, AUTOwill illuminate. When DUAL
is pressed,DUAL
will illuminate.
● To disable auto mode, press one of the air flow mode control buttons
, turn the
fan speed control dial
or press the front defroster control button.
DRIVER’S SIDE TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air.
7

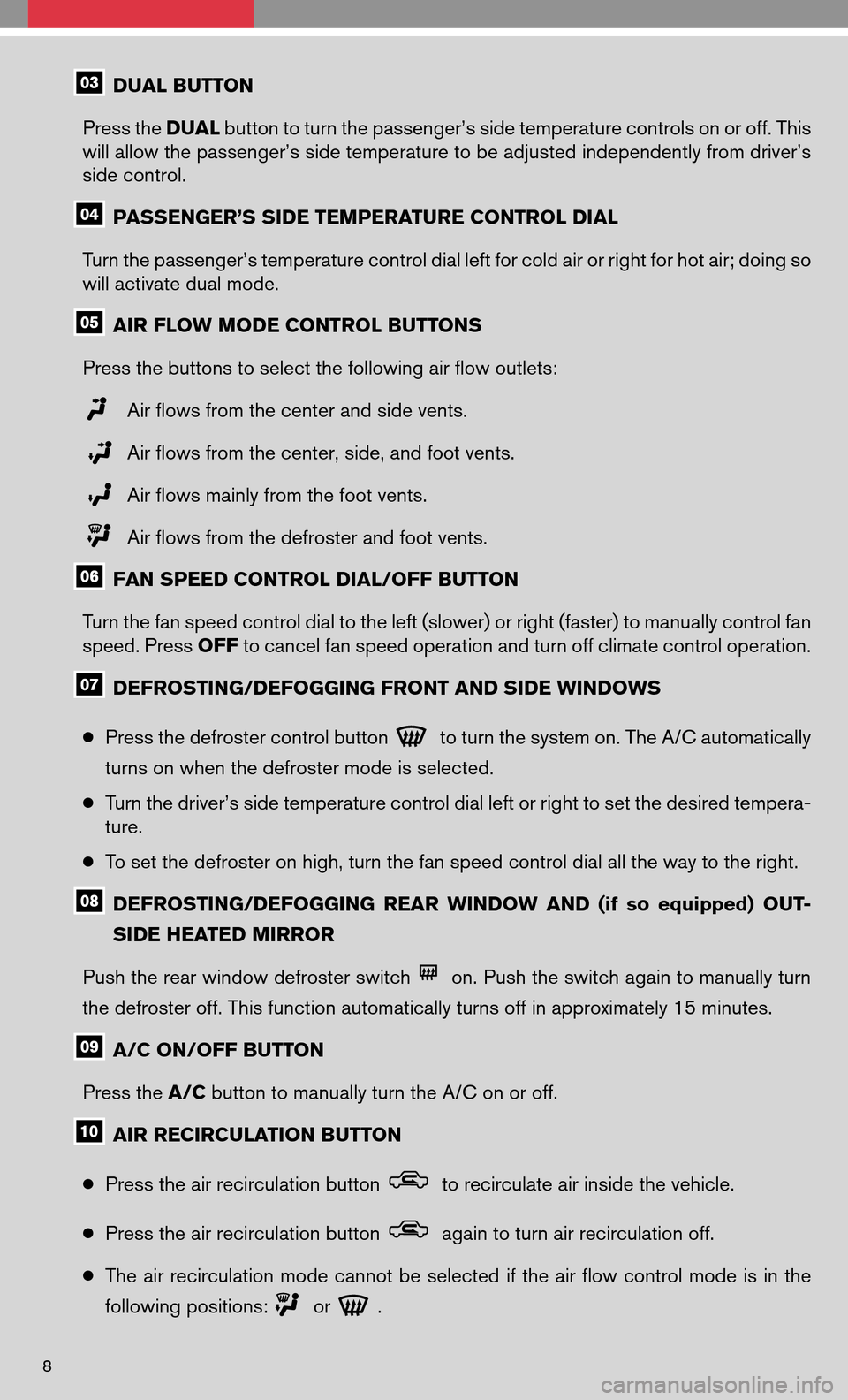

DUAL BUTTON
Press the DUALbutton to turn the passenger’s side temperature controls on or off. This
will allow the passenger’s side temperature to be adjusted independently from driver’s
side control.
PASSENGER’S SIDE TEMPERATURE CONTROL DIAL
Turn the passenger’s temperature control dial left for cold air or right for hot air; doing so
will activate dual mode.
AIR FLOW MODE CONTROL BUTTONS
Press the buttons to select the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
FAN SPEED CONTROL DIAL/OFF BUTTON
Turn the fan speed control dial to the left (slower) or right (faster) to manually control fan
speed. Press OFFto cancel fan speed operation and turn off climate control operation.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
● Press the defroster control button
to turn the system on. The A/C automatically
turns on when the defroster mode is selected.
● Turn the driver’s side temperature control dial left or right to set the desired tempera-
ture.
● To set the defroster on high, turn the fan speed control dial all the way to the right.
DEFROSTING/DEFOGGING REARWINDOW AND(ifso equipped) OUT-
SIDE HEATED MIRROR
Push the rear window defroster switch
on. Push the switch again to manually turn
the defroster off. This function automatically turns off in approximately 15 minutes.
A/C ON/OFF BUTTON
Press the A/Cbutton to manually turn the A/C on or off.
AIR RECIRCULATION BUTTON
● Press the air recirculation button
to recirculate air inside the vehicle.
● Press the air recirculation button
again to turn air recirculation off.
● The airrecirculation modecannot beselected ifthe airflow control modeisin the
following positions:
or.
8
