Maintenance8-3
8

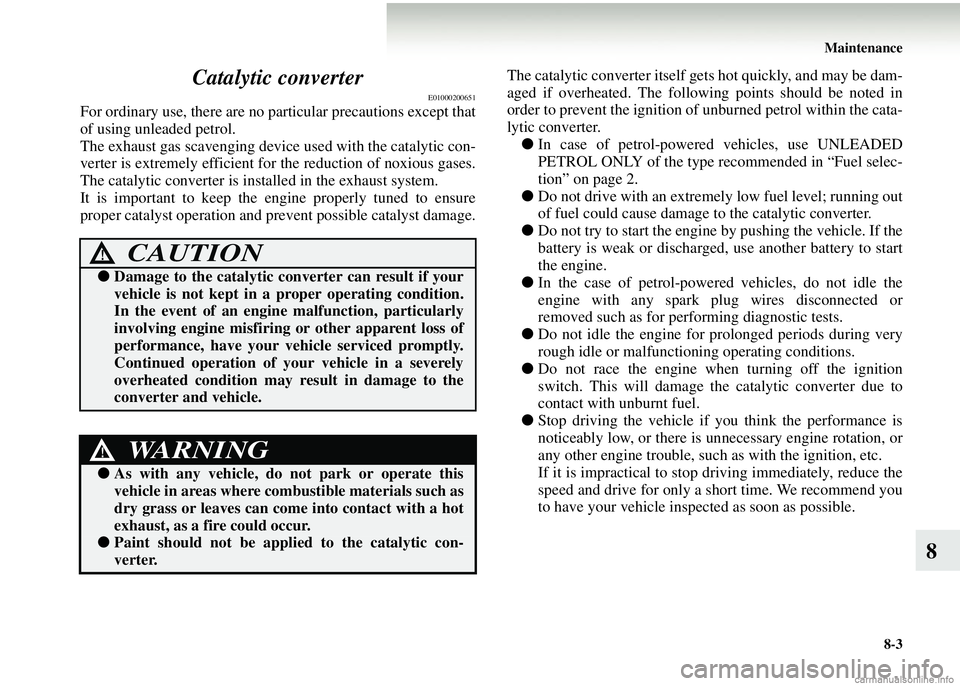

Catalytic converter
E01000200651
For ordinary use, there are no
particular precautions except that
of using unleaded petrol.
The exhaust gas scavenging device used with the catalytic con-
verter is extremely ef ficient for the reduction of noxious gases.
The catalytic converter is inst alled in the exhaust system.
It is important to keep the engine properly tuned to ensure
proper catalyst operation and prevent po ssible catalyst damage. The catalytic converter itself gets hot quickly, and may be dam-
aged if overheated. The followi
ng points should be noted in
order to prevent the ignition of unburned petrol within the cata-
lytic converter. ● In case of petrol-powered vehicles, use UNLEADED
PETROL ONLY of the type recommended in “Fuel selec-
tion” on page 2.
● Do not drive with an extremely low fuel level; running out
of fuel could cause damage to the catalytic converter.
● Do not try to start the engine by pushing the vehicle. If the
battery is weak or discharged, use another battery to start
the engine.
● In the case of petrol-powered vehicles, do not idle the
engine with any spark plug wires disconnected or
removed such as for performing diagnostic tests.
● Do not idle the engine for prolonged periods during very
rough idle or malfunctioning operating conditions.
● Do not race the engine when turning off the ignition
switch. This will damage the catalytic converter due to
contact with unburnt fuel.
● Stop driving the vehicle if you think the performance is
noticeably low, or there is un necessary engine rotation, or
any other engine trouble, such as with the ignition, etc.
If it is impractical to stop driving immediately, reduce the
speed and drive for only a s hort time. We recommend you
to have your vehicle inspected as soon as possible.
CAUTION!
● Damage to the catalytic co nverter can result if your
vehicle is not kept in a proper operating condition.
In the event of an engine malfunction, particularly
involving engine misfiring or other apparent loss of
performance, have your vehicle serviced promptly.
Continued operation of your vehicle in a severely
overheated condition may re sult in damage to the
converter and vehicle.
WARNING!
● As with any vehicle, do not park or operate this
vehicle in areas where combustible materials such as
dry grass or leaves can come into contact with a hot
exhaust, as a fire could occur.
●Paint should not be applied to the catalytic con-
verter.
9-14 Specifications
9Electrical system
E01100801206
*: Optional equipment
Item
Petrol-powered vehicles
Diesel-powered vehicles1100 models,
1300 models1500 models
Except for vehicles with turbochargerVehicles withturbocharger
Voltage 12 V
Battery capacity (DIN type)42 Ah (542),
61 Ah (561)* 74 Ah (574)
Alternator capacity
85 A80 A115 A
Spark plug
typeBOSCH FR7SE, FR7NPP33 —
—
NGK —ILZFR6C—K
Alphabetical index5
System 4-40
Precautions to observe when using wipers and washers 3-45
Pregnant women restraint 2-29
Puncture (Tyre changing) 6-28
R
Radio LW/MW/FM electronic tuning radio with CD player 5-24
Rear combination lamps Bulb capacity 8-41
Replacement 8-57
Rear fog lamp Bulb capacity 8-41
Indication lamp 3-8
Replacement 8-57, 8-62
Switch 3-38
Rear seat 2-8
Rear shelf panel 5-70
Rear turn-signal lamps Bulb capacity 8-41
Replacement 8-57
Rear window demister switch 3-45
Rear-view mirror Inside 4-10
Outside 4-10
Replacement of lamp bulbs 8-40
Reversing lamps Bulb capacity 8-41
Replacement 8-57, 8-62 Room lamp 5-62
Room lamps & map lamps
Bulb capacity 8-43
Replacement 8-68
Running-in recommendations 4-5S
Safe driving techniques 4-3
Seat Adjustment 2-4
Arrangement 2-3
Front seat 2-5
Head restraints 2-10
Heated seats 2-7
Rear seat 2-8
Seat belt 2-22 Adjustable seat belt anchor 2-26
Child restraint 2-31
Inspection 2-46
Pregnant women restraint 2-29
Pre-tensioner 2-29
Seat belt reminder/warning lamp 2-25
Service precaution 8-2
Side turn-signal lamps Bulb capacity 8-41
Replacement 8-49
Snow tyres 8-22
Spare wheel 6-25
Spark plug 9-14
