7. The fluid level should be within
1/4 inch (6 mm) of the plug threads.
8. Replace the check plug.
Adjusting eCVT fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is indicated in theMaintenance product specifications and
capacitiessection in this chapter.
Use of a non-approved fluid may cause internal transaxle
component damage.
If the fluid level is low, add fluid through the check port until the level is
correct and fluid begins to run out of the transmission. If an overfill
occurs, excess fluid should be removed by allowing the fluid to run out
of the check port.
A serious overfill condition of transmission fluid may cause
damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
To reduce the risk of vehicle damage and/or personal burn
injuries do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
281

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Automatic eCVT
transaxle fluid5.3 quarts (5.0L)
3
Motorcraft MERCONV
AT F
4
XT-5-QM /
MERCONV
Rear axle fluid (4WD) 2.96 pints (1.4L)
5
Motorcraft SAE 80W-90
Premium Rear Axle
Lubricant
6
XY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
fluid (4WD)
7
12 ounces (0.35L)Motorcraft SAE 75W-140
Rear Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer fluid 2.7 quarts (2.6L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank 15 gallons (56.8L) — —
1Add the coolant type originally equipped in your vehicle. Refer toAdding engine coolantin this
chapter.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity.4Using any transmission fluid other than those that meet the recommended specification may cause
internal transaxle damage. Do not use Motorcraft MERCONCVT (blue) ATF. This vehicle uses
only Motorcraft MERCONVATF5Fill to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.64WD vehicles exposed for prolonged periods to temperatures less than -40° C (-40° F) should
change out the rear axle fluid to Motorcraft SAE 75W-140 Rear Axle Lubricant, Ford part number
XY-75W140-QL meeting Ford specification WSL-M2C192-A.7The Power Transfer Unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace Power Transfer Unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
286

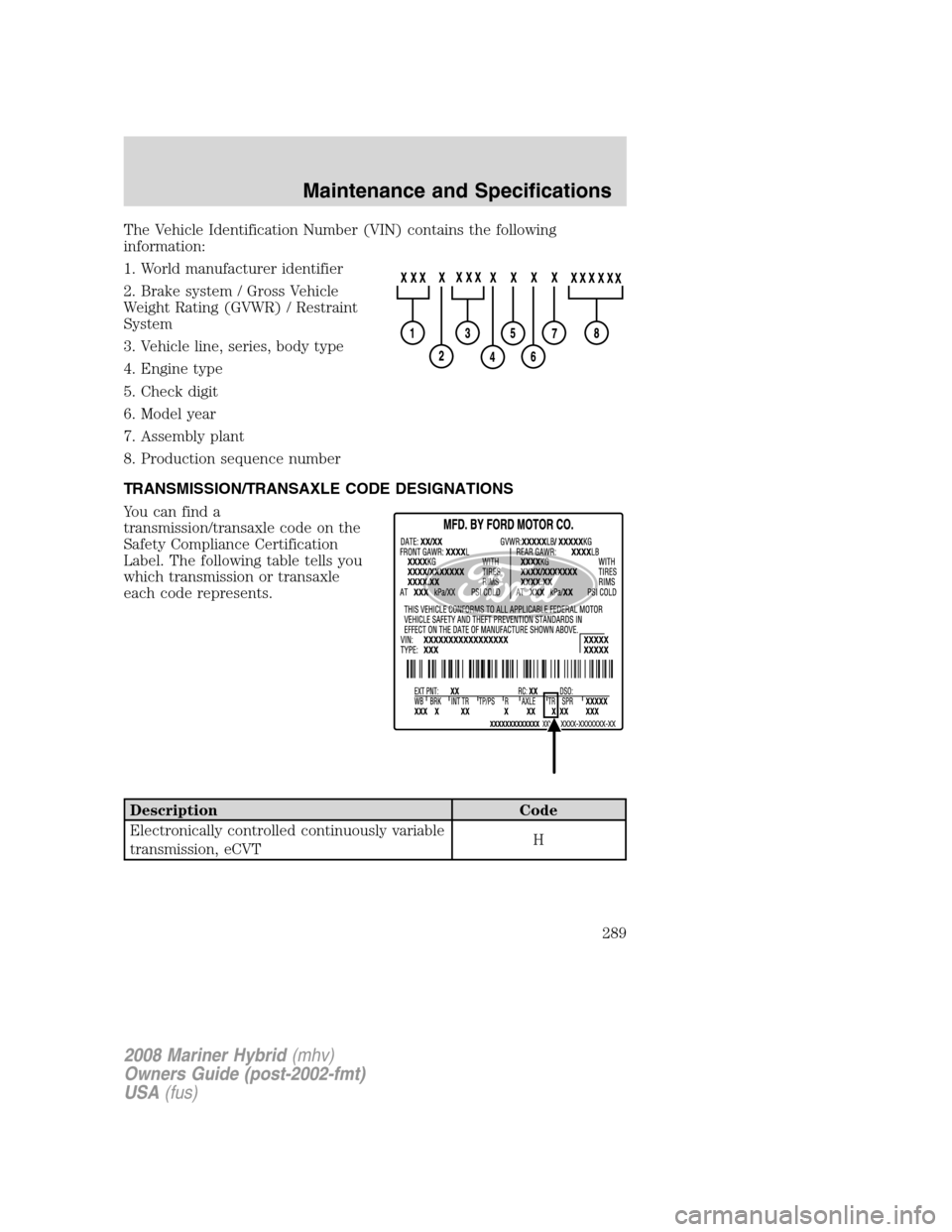

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Electronically controlled continuously variable
transmission, eCVTH
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
289

Get the most from your service and maintenance visits
There are a lot of reasons why visiting your Ford or Lincoln Mercury
Dealership for all your service needs is a great way to help keep your
vehicle running great.
Convenience
Many Dealerships have extended evening and Saturday hours to make
your service visit more convenient. How’s that for quality service?
Factory-trained Technicians
Ford and Lincoln Mercury service technicians participate in extensive
factory-sponsored certification training to help them become experts on
the operation of your vehicle. Ask your Dealership about the training and
certification their technicians have received.
Factory Authorized Systems Checks
In the event your vehicle experiences a component related concern,
please contact your Ford, Lincoln or Mercury dealership. The Ford Motor
Company Trained Technicians who work at Ford, Lincoln or Mercury
dealerships are specifically trained to understand your vehicle.
A proper repair begins with a thorough system check. Factory
Authorized Systems Checks can ONLY be found at a Ford or Lincoln
Mercury dealership. In some circumstances, the Technician may need to
request your authorization to perform additional operations to determine
the final diagnosis. The Technician’s goal is to ensure that your vehicle is
fixed right the first time, at the best value to you.
The following list represents several of the Factory Authorized Systems
Checks available at participating Ford and Lincoln Mercury Dealerships:
•Climate Control
•Check Engine Light
•All Wheel Drive/Four-Wheel Drive
•Automatic Transmission
•Engine Cooling/Cabin Heating
•Suspension/Steering
•Charge/Start/Battery
•Wheel Alignment
•Brakes
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Scheduled Maintenance Guide
294

WHICH MAINTENANCE SCHEDULE SHOULD YOU FOLLOW?
Owner Checks and Services
Refer to Mileage Intervals for Additional Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in thisOwner’s
Guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Maximum Oil Change Interval
❑12 months, 10,000 miles (16,000 km) or 200 hours of engine operation.
Motorcraft Premium Gold Engine Coolant change interval
❑6 years or 100,000 miles (160,000 km) - change Motorcraft Premium Gold Engine Coolant (whichever comes first)❑After initial change - change Motorcraft Premium Gold Engine Coolant every 3 years or 50,000 miles (80,000 km).
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check that externally mounted spare tire is properly stowed (tight)
❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, air bag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check low voltage (underhood) battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Scheduled Maintenance Guide
296

Multi-point Inspection
In order to keep your vehicle running right, it is important that you have
the systems on your vehicle checked regularly. This can help identify any
potential issue before there are any problems. Ford Motor Company
suggests the following multi-point inspection to be performed at every
scheduled maintenance as the way to ensure your vehicle keeps running
right.
NORMAL SCHEDULED MAINTENANCE AND LOG
The following section contains the “Normal Schedule”. This schedule is
presented at specific mileage (kilometer) intervals with exceptions
noted.
ADDITIONAL INFORMATION AVAILABLE ON THE WEB
To learn more about the importance of routine and dealer-performed
maintenance on your vehicle, please visit the Ford Customer Service Web
site. You’ll also find important warranty information, customer assistance,
technical expertise, frequently asked questions and much more. The Web
site location is: www.genuineservice.com.
Then go to the vehicles and services pick at the Web site.
Multi-point inspection - Recommended at every visit
❑Check and top up fluid levels: brake, engine coolant recovery reservoir, motor/electronics reservoir and window washer.❑Inspect tires for wear and correct air pressure.
❑Check exhaust system for leaks, damage, loose parts and foreign materials.
❑Check low voltage (underhood) battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers and heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air cleaner filter and elements.
❑Inspect half-shaft dust boots.
❑Check shocks, struts and other suspension components for leaks and damage.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Scheduled Maintenance Guide
297

A
Accessory delay ..........................62
Air cleaner filter ...............281–284
Air conditioning
automatic temperature
control system ..........................39
Airbag supplemental restraint
system ........................123, 132, 135
and child safety seats ............125
description ..............123, 132, 135
disposal ....................................138
driver airbag ............125, 133, 136
indicator light .........132, 134, 137
operation .................125, 133, 136
passenger airbag .....125, 133, 136
side airbag ...............................132
All Wheel Drive (AWD),
driving off road .........................198
Ambulance packages ..................15
Anti-lock brake system
(see Brakes) ..............................188
Anti-theft system ........................96
Audio system (see Radio) .........25
Automatic transaxle
fluid, adding ............................279
fluid, checking ........................279
Automatic transmission
driving an automatic
overdrive .................................194
fluid, refill capacities ..............285
fluid, specification ..................285
Auxiliary input jack (Line in) ....32
Auxiliary power point .................58
Axle
lubricant specifications ..........285
refill capacities ........................285B
Battery .......................................259
acid, treating emergencies .....259
jumping a disabled
battery .............................227, 232
maintenance-free ....................259
replacement, specifications ...284
servicing ..................................259
Belt-Minder.............................118
Booster seats .............................139
Brakes ................................187–188
anti-lock ...................................188
anti-lock brake system (ABS)
warning light ...........................189
fluid, checking and adding ....278
fluid, refill capacities ..............285
fluid, specifications .................285
lubricant specifications ..........285
parking ....................................190
shift interlock ..........................192
Bulbs ............................................50
C
Capacities for refilling fluids ....285
Cargo area shade ........................79
Cell phone use ............................15
Child safety restraints ..............138
child safety belts ....................138
Child safety seats ......................142
attaching with tether straps ..146
in front seat ............................143
in rear seat ..............................143
Child safety seats - booster
seats ...........................................139
Cleaning your vehicle
engine compartment ..............245
instrument panel ....................247
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
309

interior .....................................247
plastic parts ............................246
washing ....................................243
waxing .....................................244
wheels ......................................244
wiper blades ............................246
Climate control (see Air
conditioning or Heating) ............39
Compass, electronic ....................63
calibration .................................64
set zone adjustment .................63
Console ........................................57
Controls
power seat ...............................102
steering column ........................68
Coolant
checking and adding ......261–263
refill capacities ................266, 285
specifications ..........................285
Cruise control
(see Speed control) ....................65
Customer Assistance ................205
Ford Extended Service
Plan ..........................................239
Getting assistance outside the
U.S. and Canada .....................240
Getting roadside assistance ...205
Getting the service you
need .........................................235
Ordering additional owner’s
literature .................................241
Utilizing the
Mediation/Arbitration
Program ...................................239
D
Daytime running lamps
(see Lamps) ................................46Dipstick
automatic transmission
fluid ..........................................279
engine oil .................................256
Driving under special
conditions ..................195, 199, 202
sand .........................................200
snow and ice ...........................202
through water .................201, 204
E
Electronic message center .........70
Emergencies, roadside
jump-starting ..................227, 232
Emission control system ..........275
Engine ........................................287
cleaning ...................................245
idle speed control ...................259
lubrication specifications .......285
refill capacities ........................285
service points ..........................253
Engine block heater .................187
Engine oil ..................................256
checking and adding ..............256
dipstick ....................................256
filter, specifications ........258, 284
recommendations ...................258
refill capacities ........................285
specifications ..........................285
Event data recording ..................14
Exhaust fumes ..........................187
F
Fluid capacities .........................285
Foglamps .....................................45
Four-Wheel Drive vehicles
driving off road .......................198
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
310
