2008 Mercury Mariner Hybrid Owner's Manuals

Introduction 4
Instrument Cluster 18
Warning lights and chimes 18
Gauges 23

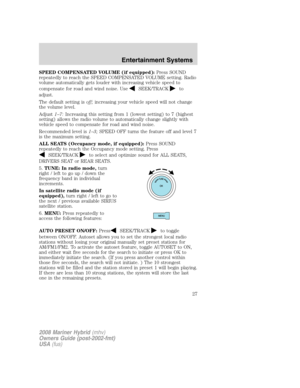

Entertainment Systems 25
Auxiliary input jack (Line in) 32
Satellite radio information 35
Navigation system 38
Climate Controls 39
Dual automatic temperature control 39
Rear window defroster 43
Lights 44
Headlamps 44
Turn signal control 48
Bulb replacement 50
Driver Controls 55
Windshield wiper/washer control 55
Steering wheel adjustment 56
Power windows 61
Mirrors 62
Speed control 65
Moon roof 69
Message center 70
Locks and Security 83
Keys 83
Locks 85
Anti-theft system 96
Table of Contents
1
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)

Seating and Safety Restraints 100
Seating 100
Safety restraints 108

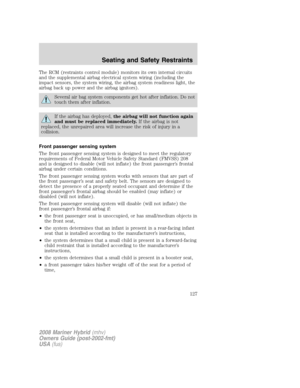

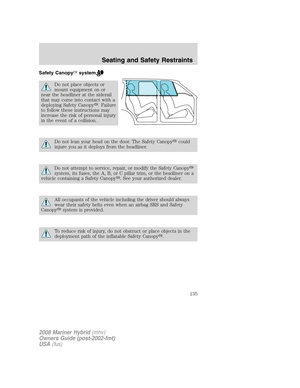

Airbags 123

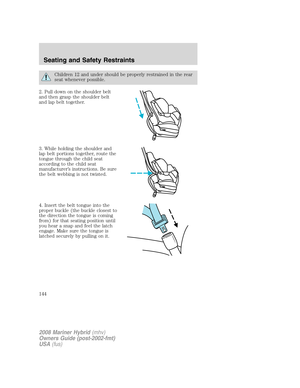

Child restraints 138
Tires, Wheels and Loading 150

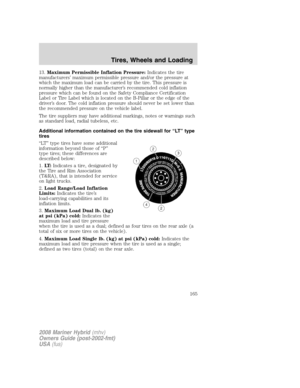

Tire information 152
Tire inflation 155

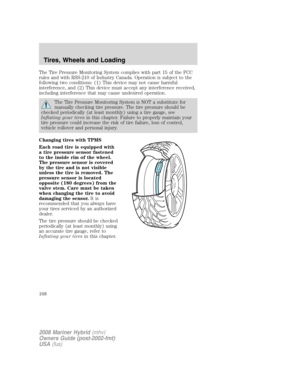

Tire Pressure Monitoring System (TPMS) 167

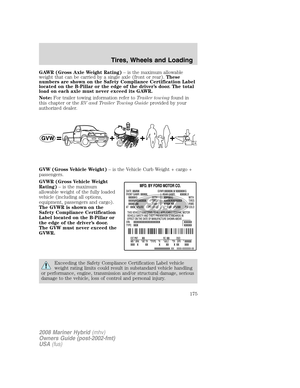

Vehicle loading 172

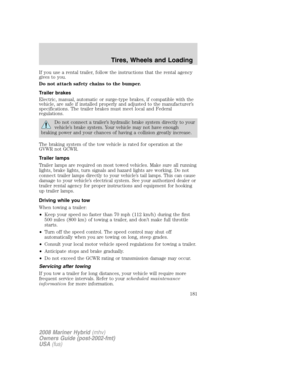

Trailer towing 178
Recreational towing 183
Driving 184
Starting 184
Brakes 187
Transmission operation 192
Roadside Emergencies 205
Getting roadside assistance 205
Hazard flasher switch 207
Fuel pump/High voltage shut-off switches 207
Fuses and relays 209
Changing tires 215
Lug nut torque 226
Jump starting 227
Wrecker towing 234
Customer Assistance 235
Reporting safety defects (U.S. only) 241
Reporting safety defects (Canada only) 242
Cleaning 243
Table of Contents
2
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)

Maintenance and Specifications 250
Engine compartment 253
Engine oil 256
Battery 259
Engine Coolant and Motor/Electronics Coolant 261
Fuel information 267
Air filter(s) 281
Part numbers 284
Maintenance product specifications and capacities 285
Engine data 287
Accessories 290
Scheduled Maintenance Guide 292
Normal scheduled maintenance and log 297
Special operating conditions and log 303
Index 309
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2006 Ford Motor Company
Table of Contents
3
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)

CALIFORNIA Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Certain components of this vehicle such as air bag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
CONGRATULATIONS
Congratulations on acquiring your new Mercury Mariner Hybrid. Please
take the time to get well acquainted with your vehicle by reading this
handbook. The more you know and understand about your vehicle, the
greater the safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the
following website:
•In the United States: www.ford.com
•In Canada: www.ford.ca
Additional owner information is given in separate publications.
ThisOwner’s Guidedescribes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on thisOwner’s Guidewhen reselling the vehicle. It
is an integral part of the vehicle.
Fuel pump and high voltage battery shut-off switches:In
the event of an accident the fuel pump shut-off switch may
automatically cut off the fuel supply to the engine and the high voltage
shut-off switch cuts off power from the high voltage battery. These
switches can also be activated through sudden vibration (e.g. collision
when parking). For information on resetting the fuel pump shut-off
switch and the high voltage battery shutoff switch, refer to theFuel
pump/high voltage shut-off switchesin theRoadside Emergencies
chapter.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
4

SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.
Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Drive your new vehicle at least 500 miles (800 km) before towing a
trailer. For more detailed information about towing a trailer, refer to
Trailer towingin theTires, Wheels and Loadingchapter.
Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating. SeeEngine oilin the
Maintenance and Specificationschapter for more information on oil
usage.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
5

HYBRID OPERATION
The Hybrid is a whole new kind of SUV that combines electric and
gasoline propulsion without compromise, to provide breakthrough
performance and efficiency. It requires no special fuels and never has to
be plugged in. Familiarizing yourself with these unique characteristics
will help ensure optimal performance from your new vehicle.
Normal vehicle operation
Starting:Turn the ignition key to the START position while your vehicle
is in Park (P). The gas engine will turn on,accompanied by the green
“ready indicator” light. Your engine may shut off shortly after starting,
depending on temperature and battery charge level. This is a natural
part of your Hybrid’s fuel-saving features. The “ready indicator” light will
stay on, and you do not need to restart the vehicle.
Note:You may notice higher engine speeds upon start-up. This
temporary condition is normal and necessary to heat up the cabin for
occupant comfort.
Driving:The gas engine automatically starts and stops to provide power
when it’s needed and to save fuel when it’s not. While coasting at low
speeds, coming to a stop, or standing, the gas engine normally shuts
down and the vehicle operates in electric-only mode. Conditions that
cause the engine to start up or remain running include:
•Driving request for moderate to rapid acceleration
•Vehicle speed above 40 mph (65 kph)
•Ascending a hill
•ECON mode not selected (while Climate Control is ON)
•Selection of climate control defrost mode or defrost/floor mode
•Charge level of high voltage battery is low
•Very high or low outside temperature (to provide system
cooling/heating)
Stopping:The gas engine may shut off to conserve fuel as you come to
a stop. Restarting the vehicle is not required. Simply step on the
accelerator when you are ready to drive.
Transmission Operation:Due to the technologically advanced,
electronically controlled Continuously Variable Transaxle (eCVT) you will
not feel shift changes like those of a non-hybrid vehicle. Your Hybrid’s
transmission is designed to do its work seamlessly.
Since your engine speed is controlled by the transmission, it may
seem elevated at times. This is normal hybrid operation and helps
deliver fuel efficiency and performance.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
6

Neutral:It is not recommended to idle the vehicle in (N) Neutral for
extended periods of time because this will discharge your high voltage
battery and decrease fuel economy. Also, the engine cannot provide
power to the hybrid system in (N) Neutral.
Low Gear:Low gear (L) is designed to mimic the enhanced engine
braking available in non-hybrid vehicles. On long downhill grades, (L)
Low gear may produce high engine speeds to provide necessary engine
braking. This is normal and will not damage your vehicle. Response
during acceleration should be the same as in the (D) Drive position.
Reverse:(R) Reverse Gear vehicle speed is limited to 22 mph
(35 km/h).
Unique Hybrid operating characteristics
Your Hybrid, with its new technology, behaves differently compared to a
non-hybrid. Here is a description of the major differences:
Battery:Your Hybrid is equipped with a high voltage battery cooling
system in the rear of the vehicle. A cool battery ensures battery life and
provides the best possible performance. Your hybrid high voltage battery
may periodically re-condition itself to ensure maximum efficiency. You
may notice slight changes in drivability during this process, but it’s an
important part of your Hybrid’s high voltage battery optimization
features.
You may hear a series of clicks from the cargo area when you first turn
the key in the ignition. This sound is the high voltage contactors closing
to allow you to start your hybrid.
In addition, you may hear fan noise and a slight tapping sound from the
rear as the vent door operates. This fan may continue to operate for
short durations after the vehicle has been turned off. These noises are a
customary part of hybrid operation and do not require service.
If the vehicle is left inoperative for over 31 days, it may be necessary to
jumpstart the vehicle. For more information, refer toJump starting
your (Low voltage [underhood] battery only)in theRoadside
Emergencieschapter.
Engine:The engine speed in your hybrid is not directly tied to your
vehicle speed. Your vehicle’s engine and transmission are designed to
deliver the power you need at the most efficient engine speed. During
heavy accelerations, your hybrid may reach high engine speeds (up to
6000 RPM). This is characteristic of the Atkinson cycle engine
technology helping to maximize your hybrid’s fuel economy.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
7

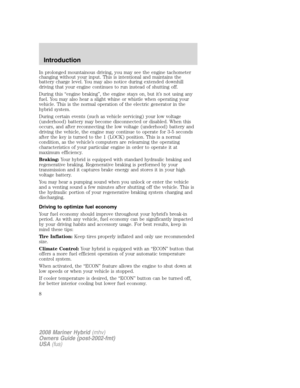

In prolonged mountainous driving, you may see the engine tachometer
changing without your input. This is intentional and maintains the
battery charge level. You may also notice during extended downhill
driving that your engine continues to run instead of shutting off.
During this “engine braking”, the engine stays on, but it’s not using any
fuel. You may also hear a slight whine or whistle when operating your
vehicle. This is the normal operation of the electric generator in the
hybrid system.
During certain events (such as vehicle servicing) your low voltage
(underhood) battery may become disconnected or disabled. When this
occurs, and after reconnecting the low voltage (underhood) battery and
driving the vehicle, the engine may continue to operate for 3-5 seconds
after the key is turned to the 1 (LOCK) position. This is a normal
condition, as the vehicle’s computers are relearning the operating
characteristics of your particular engine in order to operate it at
maximum efficiency.
Braking:Your hybrid is equipped with standard hydraulic braking and
regenerative braking. Regenerative braking is performed by your
transmission and it captures brake energy and stores it in your high
voltage battery.
You may hear a pumping sound when you unlock or enter the vehicle
and a venting sound a few minutes after shutting off the vehicle. This is
the hydraulic portion of your regenerative braking system charging and
discharging.

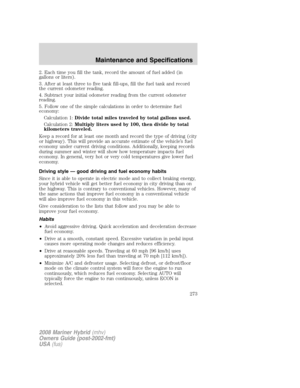

Driving to optimize fuel economy
Your fuel economy should improve throughout your hybrid’s break-in
period. As with any vehicle, fuel economy can be significantly impacted
by your driving habits and accessory usage. For best results, keep in
mind these tips:

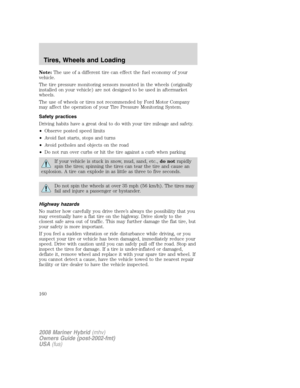

Tire Inflation:Keep tires properly inflated and only use recommended
size.
Climate Control:Your hybrid is equipped with an “ECON” button that
offers a more fuel efficient operation of your automatic temperature
control system.
When activated, the “ECON” feature allows the engine to shut down at
low speeds or when your vehicle is stopped.
If cooler temperature is desired, the “ECON” button can be turned off,
for better interior cooling but lower fuel economy.
2008 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
8
