2008 MERCEDES-BENZ R-CLASS MPV brake sensor

6
Distance recorder
see Total distance recorder
see Trip meter
Distance warning system (Vehi-
cles with Distronic) . . . . . . . . . . . . . ..62
Activating/deactivating (on-
board computer) . . . . . . . . . . . . . .136
Distronic . . . . . . . . . . . . . . . . . . . . . . .143
Cleaning the sensors . . . . . . . . . . .247
Cove r.. . . . . . . . . . . . . . . . . . . . . .247
Display message . . . . . .257, 258, 264
Driving tips . . . . . . . . . . . . . . . . . . .148
Door
Automatic locking . . . . . . . . . . . . . .75
Display message . . . . . . . . . . . . . .265
Emergency locking . . . . . . . . . . . . .303
Emergency unlocking . . . . . . . . . . .302
Opening (from the inside) . . . . . . . .71
Door control panel
Overview . . . . . . . . . . . . . . . . . . . . .34
Drinks holder
see Cup holder
Driver's airbag . . . . . . . . . . . . . . . . . . .45
Driver's door Unlocking (KEYLESS GO) . . . . . . . . .71
Driver's seat position . . . . . . . . . . . ..96
Driving abroad . . . . . . . . . . . . . . . . . .235
Driving safety system . . . . . . . . . . . ..58
ABS . . . . . . . . . . . . . . . . . . . . . . . . .58
Adaptive brake lamps . . . . . . . . . . .59BAS . . . . . . . . . . . . . . . . . . . . . . . .
.59
Distance warning system (vehi-
cles with Distronic) . . . . . . . . . . . . .62
EBV . . . . . . . . . . . . . . . . . . . . . . . . .62
ESP ®
. . . . . . . . . . . . . . . . . . . . . . . .60
Driving system . . . . . . . . . . . . . . . . . .140
4MATIC . . . . . . . . . . . . . . . . . . . . .154
Cruise control . . . . . . . . . . . . . . . .140
Distronic . . . . . . . . . . . . . . . . . . . .143
Level control . . . . . . . . . . . . . . . . .152
Parktroni c.. . . . . . . . . . . . . . . . . .155
Rear axle level control . . . . . . . . . .151
Reversing camera . . . . . . . . . . . . .157
Speedtronic . . . . . . . . . . . . . . . . . .149
Driving tip
Braking . . . . . . . . . . . . . . . . . . . . . .232
Distronic . . . . . . . . . . . . . . . . . . . .148
Driving abroad . . . . . . . . . . . . . . . .235
Driving on wet road s.. . . . . . . . ..234
Fording . . . . . . . . . . . . . . . . . . . . .234
Trailer towing . . . . . . . . . . . . . . . . .239
Winter . . . . . . . . . . . . . . . . . . . . . .232
DVD audio
Operation (on-board computer) . . .126
DVD video
Operation (on-board computer) . . .127 E
Easy-entry/exit feature Activating/deactivating (on-
board computer) . . . . . . . . . . . . . .135
Easy-entry feature . . . . . . . . . . . . . . ..89
3rd row of seats . . . . . . . . . . . . . . . .84
Easy-exit feature . . . . . . . . . . . . . . . . .89
3rd row of seats . . . . . . . . . . . . . . . .84
EASY-PACK tailgate . . . . . . . . . . . . . ..73
EBV (electronic brake-power distri-
bution) . . . . . . . . . . . . . . . . . . . . . . . . .62
Display message . . . . . . . . . . . . . .266
Electrical/electronic equipment
Retrofitting . . . . . . . . . . . . . . . . . . .339
Electronic brake-power distribution
see EBV
Electronic Stability Program
see ESP ®
Electronic Traction Support see ETS
e mark . . . . . . . . . . . . . . . . . . . . . . . . .339
Emergency key element Lost . . . . . . . . . . . . . . . . . . . . . . . .296
Emergency locking
Vehicle . . . . . . . . . . . . . . . . . . . . . .303
Emergency release
Fuel filler fla p.. . . . . . . . . . . . . . . .303
Emergency running mode
Automatic transmission . . . . . . . . .292 Index
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 6Dateiname: 6515_1825_02_buchblock.pdf; preflight

8 G
Garage door Opening/closing (with the remote
control) . . . . . . . . . . . . . . . . . . . . .212
Garage door opener . . . . . . . . . . . . ..211
Clearing the memory . . . . . . . . . . .212
Frequencies . . . . . . . . . . . . . . . . . .363
Programming the remote control . .211
Genuine Mercedes-Benz parts . . . ..338
Glove compartment . . . . . . . . . . . . ..201
Gross vehicle weight, maximum
permissible . . . . . . . . . . . .351, 352, 353 H
Headlamps Cleaning . . . . . . . . . . . . . . . . . . . . .245
Cleaning system . . . . . . . . . . . . . . .102
Misting up . . . . . . . . . . . . . . . . . . .294
Headlamps delayed switch-off
see Exterior lighting delayed switch-off
Head restraint
Adjusting (front) . . . . . . . . . . . . .78, 80
Adjusting (rear) . . . . . . . . . . . . . . . .83
NECK-PRO . . . . . . . . . . . . . . . . . . . .47
Removing (rear) . . . . . . . . . . . . . . . .83
Resetting triggered NECK-PRO
head restraints . . . . . . . . . . . . . . . .304
Heating
see Air conditioning High-pressure cleaners
. . . . . . . . . ..244
Hill start assist . . . . . . . . . . . . . . . . .112
HomeLink ®
see Garage door opener I
Immobiliser . . . . . . . . . . . . . . . . . . . . .63
Indicator and warning lamp Brakes (red ).. . . . . . . . . . . . .282, 283
Engine diagnostic . . . . . . . . . . . . . .284
ESP ®
. . . . . . . . . . . . . . . . . . . .60, 282
PASSENGER AIRBAG OFF . . . .50, 279
Reserve fuel . . . . . . . . . . . . . . . . . .286
Seat belt . . . . . . . . . . . . . . . . . . . . .284
SRS . . . . . . . . . . . . . . . . . . . . .41, 283
Tyre pressure monitor . . . . . . . . . .284
Indicator and warning lamps . . . . ..281
Indicator lamp see Indicator and warning lamp
Instrument cluster . . . . . . . . . . . . ..118
Overview . . . . . . . . . . . . . . . . . . . . .26
Selecting the language (on-board
computer) . . . . . . . . . . . . . . . . . . .131
Instrument lighting . . . . . . . . . . . . ..119
Interior lighting . . . . . . . . . . . . . . . . .103
Automatic control system . . . . . . .103
Delayed switch-off (on-board
computer) . . . . . . . . . . . . . . . . . . .133
Emergency lighting . . . . . . . . . . . .103 Manual control . . . . . . . . . . . . . . .
.103
Reading lamp . . . . . . . . . . . . . . . . .103
Interior motion sensor . . . . . . . . . . ..64
Switching on/off (on-board com-
puter) . . . . . . . . . . . . . . . . . . . . . . .137
ISOFIX child seat securing system ..54 J
Jack Operation . . . . . . . . . . . . . . . . . . . .317
Jump-starting . . . . . . . . . . . . . . . . . . .329
Jump leads . . . . . . . . . . . . . . . . . . .329 K
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Changing the battery . . . . . . . . . . .305
Checking the battery . . . . . . . . . . .305
Convenience closing . . . . . . . . . . .109
Display message . . . . . . . . . . . . . . . . . . . . . . .275, 276
Factory setting . . . . . . . . . . . . . .68, 69
Loss . . . . . . . . . . . . . . . . . . . . . . . .296
Malfunction . . . . . . . . . . . . . . . . . .296
Modifying the programming . . . . . . .68
KEYLESS GO . . . . . . . . . . . . . . . . . . . . .69
Button . . . . . . . . . . . . . . . . . . . . . . .76
Changing the battery . . . . . . . . . . .305
Checking the battery . . . . . . . . . . .305
Closing the boot lid automatically . .74Index
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 8Dateiname: 6515_1825_02_buchblock.pdf; preflight

Driving sys
tems 144 under braking or acceleration. The vehi-
cle could start to skid.
R if the sensors are dirty or there is poor
visibility, e.g. due to snow, rain or fog.
Distance control may be impaired.
Always pay attention to traffic conditions
even when Distronic is activated. Other-
wise, you may fail to recognise danger in
time, could cause an accident and injure
yourself and others.
If there is no vehicle in front, Distronic oper-
ates in the same way as cruise control. Dis-
tronic functions in the 30 km/h to
180 km/h range. G
Risk of accident
Distronic brakes your vehicle at a maximum
of 2 m/s 2
, depending on its speed. This
corresponds to approximately 20% of your
vehicle's maximum braking power. You
must also apply the brakes yourself if this
braking power is not sufficient.
If Distronic detects a risk of collision with a
vehicle in front, an intermittent warning
tone sounds. In addition, the ldistance
warning lamp in the instrument cluster
lights up. Brake to avoid a collision. Cruise control lever You can operate Distronic and variable
Speedtronic with the cruise control lever.
The LIM indicator lamp on the cruise control
lever indicates which system you have selec-
ted:
R
LIM indicator lamp off:
Distronic is selected.
R LIM indicator lamp lit:
Variable Speedtronic is selected. 1
To store the current speed or a higher
speed
2 To adjust the set distance
3 LIM indicator lamp
4 To store the current speed or call up the
last stored speed 5
To store the current speed or a lower
speed
6 To switch between Distronic and variable
Speedtronic
7 To deactivate Distronic
Selecting Distronic X
Check whether LIM indicator lamp 3is off.
If it is off, Distronic is already selected.
If it is not, press the cruise control lever in
the direction of arrow 6.
LIM indicator lamp 3in the cruise control
lever goes off. Distronic is selected.
Switching on Distronic, storing and
maintaining the current speed If Distronic is not activated after the cruise
control lever is pressed, you will see the mes-
sage
DISTRONIC - - - km/h in the multi-
function display.
You cannot activate Distronic in the following
circumstances:
R for two minutes after the engine is started
R if you are driving slower than 30 km/h or
faster than 180 km/h
R when braking Controls
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 144 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Driving sys
tems 155If a drive wheel spins due to insufficient
grip:
R Only depress the accelerator pedal as far
as necessary when pulling away.
R Accelerate less when driving.
R Adapt your driving style to suit road and
traffic conditions.
i In wintry driving conditions, the maximum
effect of 4MATIC can only be achieved if
you use winter tyres (M+S tyres), with snow
chains if necessary.
! When testing the parking brake, operate
the vehicle only briefly (for a maximum of
ten seconds) on a brake dynamometer.
When doing this, turn the key to position
0 or 1in the ignition. Failure to do this can
cause damage to the drive train or the
brake system.
! A function or performance test should
only be carried out on a twin-axle dyna-
mometer. If you wish to operate the vehicle
on such a dynamometer, please consult a
Mercedes-Benz Service Centre in advance.
You could otherwise damage the drive train
or the brake system. Parktronic*
G
Risk of accident
Parktronic is only an aid and may not detect
all obstacles. It is not a substitute for atten-
tive driving.
You are always responsible for safety and
must continue to pay attention to your
immediate surroundings when parking and
manoeuvring. You could otherwise endan-
ger yourself and others. G
Risk of injury
Make sure that no persons or animals are
in the manoeuvring range. Otherwise, they
could be injured.

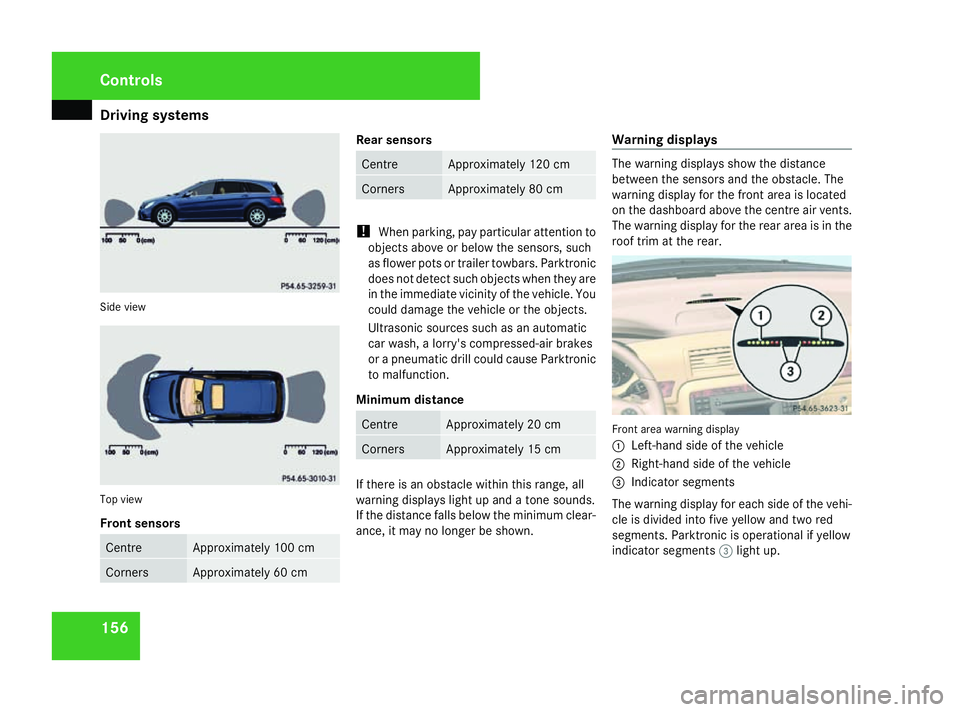

Parktronic is an electronic parking aid. It indi-
cates visually and audibly the distance
between your vehicle and an object.
Parktronic is activated automatically when
you:
R switch on the ignition
R release the parking brake
R shift the automatic transmission to D,Ror
N
Parktronic is deactivated at speeds above
18 km/h. It is reactivated at lower speeds. Parktronic monitors the area around your
vehicle using six sensors in the front bumper
and four sensors in the rear bumper.
1
Example: sensors in the front bumper,
left-hand side
Range of the sensors The sensors must be free of dirt, ice and
slush, otherwise they may not function cor-
rectly. Clean the sensors regularly, taking
care not to scratch or damage them
(Y
page 247). Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh
, Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 155 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Driving sys
tems 156Side view
Top view
Front sensors
Centre Approximately 100 cm
Corners Approximately 60 cm Rear sensors
Centre Approximately 120 cm
Corners Approximately 80 cm
!
When parking, pay particular attention to
objects above or below the sensors, such
as flower pots or trailer towbars. Parktronic
does not detect such objects when they are
in the immediate vicinity of the vehicle. You
could damage the vehicle or the objects.
Ultrasonic sources such as an automatic
car wash, a lorry's compressed-air brakes
or a pneumatic drill could cause Parktronic
to malfunction.
Minimum distance Centre Approximately 20 cm
Corners Approximately 15 cm
If there is an obstacle within this range, all
warning displays light up and a tone sounds.
If the distance falls below the minimum clear-
ance, it may no longer be shown.Warning displays The warning displays show the distance
between the sensors and the obstacle. The
warning display for the front area is located
on the dashboard above the centre air vents.
The warning display for the rear area is in the
roof trim at the rear.
Front area warning display
1
Left-hand side of the vehicle
2 Right-hand side of the vehicle
3 Indicator segments
The warning display for each side of the vehi-
cle is divided into five yellow and two red
segments. Parktronic is operational if yellow
indicator segments 3light up. Controls
251_AKB; 5; 7, en-GB
wobuchh
, Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 156 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Care
244 H
Environmental note
Dispose of empty packaging, cleaning
cloths and polishing wads in an environ-
mentally responsible manner.
! Do not affix:
R stickers
R films
R magnetic plates or similar items
to painted surfaces, otherwise you could
damage the paintwork. Vehicle care
! Do not park the vehicle for a long period
of time directly after cleaning, especially if
the wheels have just been cleaned with a
wheel cleaner. Wheel cleaners could cause
rapid corrosion of the brake discs and
brake pads/linings. After cleaning, park
the vehicle when it is at normal operating
temperature.
Automatic car wash You can wash the vehicle in an automatic car
wash from the very start. !
Do not use a touch-free automatic car
wash that uses chemical agents to wash
the vehicle.
Preferably use one without brushes.
If the vehicle is very dirty, prewash it before
cleaning it in an automatic car wash.
! Make sure that the automatic car wash is
suitable for the size of the vehicle. Fold in
the exterior mirrors before the vehicle is
washed. There is otherwise a risk of dam-
age to the exterior mirrors.
! Make sure that the automatic transmis-
sion is not in position Pwhen washing your
vehicle in an automatic car wash.
R Vehicles with a key:
Do not remove the key from the ignition
lock. Do not open the driver's or front-
passenger door when the engine is
switched off, as this automatically shifts
the automatic transmission to park posi-
tion Pand locks the wheels, unless you
have shifted the automatic transmission
to N.
R Vehicles with KEYLESS GO*:
Do not open the driver's or front-
passenger door when the engine is
switched off, as this shifts the automatic transmission to park position
Pand locks
the wheels.
! Make sure the side windows are com-
pletely closed, the ventilation/heater
blower is fully turned off and the wind-
screen wiper switch is set to 0. The rain
sensor may otherwise be activated, for
instance, leading to inadvertent wiper
sweeps being triggered. This could cause
damage to the vehicle.
After using an automatic car wash, wipe off
wax from the windscreen and the wiper
blades. This will prevent smears and reduce
wiping noises caused by residue on the wind-
screen.
High-pressure cleaners G
Risk of accident
Do not use high-pressure cleaners with cir-
cular-jet nozzles (dirt grinders) to clean
your vehicle or - especially - the tyres. You
could otherwise damage the tyres and
cause an accident.
! Observe the instructions issued by the
equipment manufacturer concerning the
distance to be maintained between the Operation
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 244Dateiname: 6515_1825_02_buchblock.pdf; preflight

Display
messages 261Display messages Possible cause/consequence Possible solution
P To start the
engine, shift to
either P or N You attempted to start the engine while
transmission position
Ror Dwas selec-
ted. X
Shift the automatic transmission to Por N. Depress brake
to shift out of position P X
Depress the brake pedal. PRE-SAFE inoperative See
Owner's Manual G
Risk of injury
Important functions of PRE-SAFE ®
have
failed. All other occupant safety systems,
e.g. airbags, remain available. X
Visit a qualified specialist workshop. Tyre pressure
monitor inoperative
The tyre pressure monitor* is malfunc-
tioning. X
Have the tyre pressure monitor* and wheels
checked at a qualified specialist workshop. Tyre pressure
monitor inoperative No
wheel sensors The tyre pressure monitor* is deactivated
because the vehicle is fitted with wheels
that do not have suitable wheel sensors. X
Have wheels with suitable wheel sensors fitted
at a qualified specialist workshop.
Once wheels with the correct wheel sensors
have been fitted, the tyre pressure monitor*
reactivates automatically after a few minutes
of driving. Practical advi
ce
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 261 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
