2008 MERCEDES-BENZ R-CLASS MPV key

Cockpit
23Function Page
1 Cruise control lever:
• cruise control 140
• Speedtronic 149
• Distronic* 143
2 Instrument cluster
26
3 Multi-function steering
wheel
30
4 Horn
5 DIRECT SELECT steering
wheel gearshift buttons 117
6 DIRECT SELECT selector
lever 114
7
Parktronic* warning dis-
play
156 Function Page
8 Overhead control panel
33
9 Locks/unlocks the glove
compartment 201
a Glove compartment
201
b Centre console
31
c Ignition lock/KEYLESS GO
button*
76
d Adjusts the steering wheel
manually
88
e Adjusts the steering wheel
electrically*
88
Steering wheel heating* 89
f Opens the bonnet
220 Function Page
g Releases the parking brake
112
h Parking brake
112
j Door control panel
34
k Light switch
97
l Adjusts the headlamp
range
100
m Combination switch:
• main-beam headlamps 99
• turn signals 99
• windscreen wipers 104
• headlamp cleaning sys-
tem
102At a glance
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 23Dateiname: 6515_1825_02_buchblock.pdf; preflight

Cockpit
25Function Page
1 Overhead control panel
33
2
Parktronic* warning dis-
play
156
3 DIRECT SELECT steering
wheel gearshift buttons 117
4 Horn
5 Multi-function steering
wheel
30
6 Instrument cluster
26
7 DIRECT SELECT selector
lever 114
8 Adjusts the headlamp
range
100
9 Light switch
97 Function Page
a Door control panel
34
b Releases the parking brake
112
c Opens the bonnet
220
d Ignition lock/KEYLESS GO
button*
76
e Adjusts the steering wheel
manually
88
f Parking brake
112
g Adjusts the steering wheel
electrically*
88
Steering wheel heating*
89 Function Page
h Combination switch:
• main-beam headlamps 99
• turn signals 99
• windscreen wipers 104
• headlamp cleaning sys-
tem
102
j Cruise control lever:
• cruise control 140
• Speedtronic 149
• Distronic* 143
k Centre console
31
l Locks/unlocks the glove
compartment
201
m Glove compartment
201At a glance
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 25Dateiname: 6515_1825_02_buchblock.pdf; preflight

Occupant safety
50 Information about recommended child
restraint systems is available at any
Mercedes-Benz Service Centre.
Automatic child seat recognition on the
front-passenger seat*
If your vehicle does not have automatic child
seat recognition on the front-passenger seat,
this is indicated by a special sticker. The
sticker is affixed to the side of the dashboard
on the front-passenger side. It is visible when
you open the front-passenger door.
The warning lamp 13
is located on the centre
console. 1
5 PASSENGER AIRBAG OFF warning
lamp The front-passenger seat sensor system for
child restraint systems detects whether a
special Mercedes-Benz child seat with auto-
matic child seat recognition has been fitted.
In such cases,
5PASSENGER AIRBAG
OFF indicator lamp 1lights up. The front-
passenger airbag is deactivated. G
Risk of injury
If the 5 PASSENGER AIRBAG OFF warn-
ing lamp does not light up when the child
restraint system is fitted, the front-
passenger front airbag has not been disa-
bled. If the front-passenger front airbag is
deployed, the child could be seriously or
even fatally injured.
Proceed as follows:
R do not use a rearward-facing child
restraint system on the front-passenger
seat.
R fit a rearward-facing child restraint sys-
tem on a suitable rear seat.
or
R only use a forward-facing child restraint
system on the front-passenger seat and move the front-passenger seat to its rear-
most position.
R have the automatic child seat recognition
checked at a qualified specialist work-
shop.
To ensure that the automatic child seat rec-
ognition on the front-passenger seat func-
tions correctly, never place objects (such
as a cushion) under the child restraint sys-
tem. The entire base of the child restraint
system must always rest on the seat cush-
ion. An incorrectly fitted child restraint sys-
tem cannot perform its intended protective
function in the event of an accident, and
could lead to injuries.
i The windowbag, the sidebag and the belt
tensioner on the front-passenger side are
still active even when the front-passenger
front airbag is disabled.
13 Vehicles without automatic child seat recognition in the front-passenger seat: the warning lamp lights up briefly when you turn the key to position 2 in the ignition
lock. However, it has no function and does not indicate that there is automatic child seat recognition on the front-passenger seat. Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 50Dateiname: 6515_1825_02_buchblock.pdf; preflight

Occupant safety
51G
Risk of injury
Do not place items of electronic equipment
on the front-passenger seat, e.g.:
R laptops, when switched on
R mobile phones
R cards with transponders, e.g. ski passes
or access cards Signals from electronic equipment can
cause interference in the automatic child
seat recognition sensor system. This could
lead to a system malfunction. This may
cause the 5PASSENGER AIRBAG OFF
warning lamp to light up without there
being a child seat with automatic child seat
recognition fitted. This means that the front-passenger airbag does not deploy
during an accident. It is also possible that
the
5 PASSENGER AIRBAG OFF warning
lamp will not light up briefly if you turn the
key in the ignition lock to position 2.
Suitable positioning of the child restraint system Weight categories and
ages Child restraint system
on the front-
passenger seat 2nd row of seats:
child restraint sys-
tem on the left-hand
and right-hand seats 2nd row of seats: child
restraint system on
the centre rear seat
3rd row of seats*: child
restraint system
Group 0: up to 10 kg;
up to approx. 9 months Vehicles with automatic
child seat recognition*
on the front-passenger
seat: as recommen-
ded
14 Universal
15 As recommended Universal
Group 0+: up to 13 kg;
up to approx. 18 months 14
Only use child restraint systems with automatic child seat recognition.
15 Position the rear seat backrest vertically. Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 51 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Driving safety sys
tems60 ESP
®
(Electronic Stability Program)
ESP ®
monitors driving stability and traction,
i.e. power transmission between tyres and
the road surface.
If ESP ®
detects that the vehicle is deviating
from the direction desired by the driver, one
or more wheels are braked to stabilise the
vehicle. The engine output is also modified, if
necessary, to keep the vehicle on the desired
course within physical limits. ESP ®
assists
the driver when pulling away on wet or slip-
pery roads. ESP ®
can also stabilise the vehi-
cle during braking.
When ESP ®
intervenes, the vwarning
lamp flashes in the instrument cluster. G
Risk of accident
If the v warning lamp in the instrument
cluster flashes, proceed as follows:
R do not deactivate ESP ®
under any cir-
cumstances.
R only depress the accelerator pedal as far
as necessary when pulling away.
R adapt your driving style to suit prevailing
road and weather conditions.
The vehicle could otherwise go into a skid. ESP
®
cannot reduce the risk of an accident
if you drive too fast. ESP ®
cannot override
the laws of physics.
! If you have the vehicle towed with the
front or rear axle raised, the ignition must
be switched off (key in position 0or 1in the
ignition lock). Intervention by ESP ®
could
otherwise destroy the braking system on
the front or rear axle.
! Vehicles with 4MATIC* may not be towed
with the front or rear axle raised.
! Vehicles with 4MATIC*: operate the vehi-
cle only briefly (for a maximum of ten sec-
onds) on a brake dynamometer. Turn the
key in the ignition lock to position 0or 1.
You could otherwise damage the drive train
or the brake system.
! Vehicles with 4MATIC*: function or per-
formance tests may only be carried out on
a 2-axle dynamometer. If you wish to oper-
ate the vehicle on such a dynamometer,
please consult a Mercedes-Benz Service
Centre in advance. You could otherwise
damage the drive train or the brake system. i
Only use wheels with the recommended
tyre sizes. Only then will ESP ®
function
properly.
ESP ®
trailer stabilisation If your trailer begins to lurch, you can only
stabilise the vehicle/trailer combination by
depressing the brake firmly.
In this situation, ESP
®
assists you and detects
if the trailer begins to lurch. ESP ®
slows the
vehicle down by braking and limiting the
engine output so the vehicle/trailer combi-
nation can stabilise.
Trailer stabilisation is active from about
65 km/h. G
Risk of accident
If road and weather conditions are bad,
trailer stabilisation will not be able to pre-
vent the trailer from swerving and thereby
reduce the risk of accident. Trailers with a
high centre of gravity can tip over before
ESP ®
can detect this.
Trailer stabilising does not work if ESP ®
is
deactivated or disabled because of a mal-
function. Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 60 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Anti-theft syste
ms 63Anti-theft systems
Immobiliser
The immobiliser prevents your vehicle from
being started without the correct key.
Activating the immobiliser X
With the key: remove the key from the
ignition lock.
X With KEYLESS GO*: press the KEYLESS
GO button on the dashboard.
The engine switches off.
Deactivating the immobiliser X
With the key: turn the key to position 2in
the ignition lock.
X With KEYLESS GO*: press the KEYLESS
GO button on the dashboard twice without
depressing the brake.
i The immobiliser is always deactivated
when you start the engine. ATA* (anti-theft alarm system)
A visual and audible alarm is triggered when
the alarm system is primed and you open:
R a door
R a door using the emergency key element
R the tailgate
R the bonnet
The alarm is not switched off even if you close
an open door again. 1
Indicator lamp X
To prime: lock the vehicle using the key.
On vehicles with KEYLESS GO*, the locking
button on the door handle can also be used.
Indicator lamp 1flashes. The alarm sys-
tem is primed after approximately 10 sec-
onds.
X To deactivate: unlock the vehicle using the
key. On vehicles with KEYLESS GO*, you
can also unlock the vehicle by grasping the
door handle.
Switching off the alarm X
With the key: insert the key into the igni-
tion lock.
The alarm is switched off.
or
X Press the Œor‹ button on the key.
The alarm is switched off.
X With KEYLESS GO*: grasp the door han-
dle. The key must be outside the vehicle.
The alarm is switched off.
or
X Press the KEYLESS GO* button on the
dashboard. The key must be inside the
vehicle.
The alarm is switched off. Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 63 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Anti-theft syste

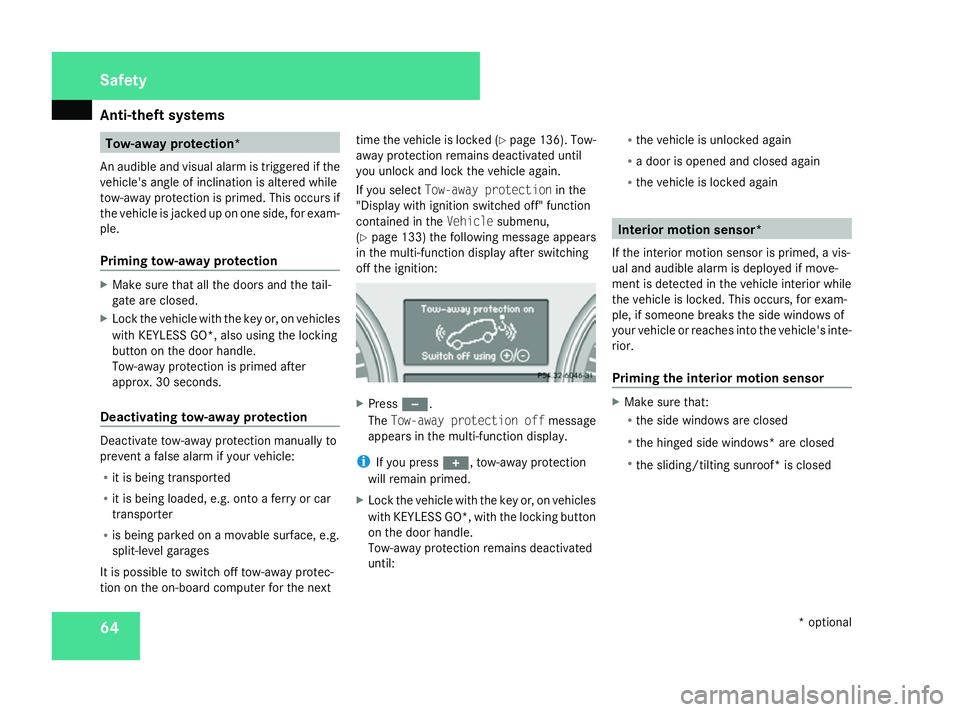

ms64 Tow-away protection*
An audible and visual alarm is triggered if the
vehicle's angle of inclination is altered while
tow-away protection is primed. This occurs if
the vehicle is jacked up on one side, for exam-
ple.
Priming tow-away protection X
Make sure that all the doors and the tail-
gate are closed.
X Lock the vehicle with the key or, on vehicles
with KEYLESS GO*, also using the locking
button on the door handle.
Tow-away protection is primed after
approx. 30 seconds.
Deactivating tow-away protection Deactivate tow-away protection manually to
prevent a false alarm if your vehicle:
R it is being transported
R it is being loaded, e.g. onto a ferry or car
transporter
R is being parked on a movable surface, e.g.
split-level garages
It is possible to switch off tow-away protec-
tion on the on-board computer for the next time the vehicle is locked (Y
page 136). Tow-
away protection remains deactivated until
you unlock and lock the vehicle again.
If you select Tow-away protection in the
"Display with ignition switched off" function
contained in the Vehiclesubmenu,
(Y page 133) the following message appears
in the multi-function display after switching
off the ignition: X
Press -.
The Tow-away protection off message
appears in the multi-function display.
i If you press +, tow-away protection
will remain primed.
X Lock the vehicle with the key or, on vehicles
with KEYLESS GO*, with the locking button
on the door handle.
Tow-away protection remains deactivated
until: R
the vehicle is unlocked again
R a door is opened and closed again
R the vehicle is locked again Interior motion sensor*
If the interior motion sensor is primed, a vis-
ual and audible alarm is deployed if move-
ment is detected in the vehicle interior while
the vehicle is locked. This occurs, for exam-
ple, if someone breaks the side windows of
your vehicle or reaches into the vehicle's inte-
rior.
Priming the interior motion sensor X
Make sure that:
R
the side windows are closed
R the hinged side windows *are closed
R the sliding/tilting sunroof* is closed Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 64Dateiname: 6515_1825_02_buchblock.pdf; preflight

Anti-theft syste
ms 65
R
the panorama sliding sunroof* is closed
R there are no objects, e.g. mascots, hang-
ing on the rear-view mirror or on the
grasp handles on the roof trim.
This will prevent false alarms.
X Make sure that all the doors and the tail-
gate are closed.
X Lock the vehicle with the key or, on vehicles
with KEYLESS GO*, with the locking button
on the door handle.
The interior motion sensor is primed after
approximately 40 seconds.
Deactivating the interior motion sensor To prevent a false alarm, deactivate the inte-
rior motion sensor if you lock your vehicle and
R people or animals remain in the vehicle
R a window remains open
R a hinged side window* remains open
R the panorama sliding sunroof * remains
open
R the sliding/tilting sunroof* remains open
It is possible to deactivate the interior motion
sensor using the on-board computer for the
next time the vehicle is locked
(Y page 136). The interior motion sensor remains deactivated until you unlock and lock
the vehicle again.
If you select
Interior motion sensor in
the "Display with ignition switched off" func-
tion contained in the Vehiclesubmenu,
(Y page 133) the following message appears
in the multi-function display after switching
off the ignition: X
Press -.
The Interior motion sensor off mes-
sage appears in the multi-function display.
i If you press +, the interior motion sen-
sor will remain activated.
X Lock the vehicle with the key or, on vehicles
with KEYLESS GO*, with the locking button
on the door handle.
The interior motion sensor remains deacti-
vated until: R
the vehicle is unlocked again
R a door is opened and closed again
R the vehicle is locked again Safety
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 65 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
