Where to find it
Introduction

Where to find it
This Operator’s Manual is designed to pro-
vide support information for you, the
COMAND operator. Each chapter has its
own guide color to provide fast access to
information.
At a glance
Here you will find an overview of
all COMAND control elements and system
components. If you are operating
COMAND for the first time or if you have
rented or borrowed the vehicle, this is the
chapter you should read first.
Audio
Here you will find all the information on
how to use the radio, CD player (CD,
MP3 CD), CD changer* (CD, MP3 CD) and
AUX operation.
Rear Audio/Video*
Hear you can learn about the rear audio*
functions and the rear seat entertainment*
operation.
Satellite radio*
This chapter provides information on how
to select a station and a program category.
Telephone*
Here you can learn in detail about the
many functions of the telephone, how to
initiate an emergency call and use the pho-
ne book.
Navigation
This chapter provides detailed information
on the following topics:
Destination input
Route guidance including detour
Last destinations and destination
memory
POIs
Today’s plan
System
Here you will find all the information about:
COMAND system settings
SMS*
Tele Aid*
Directories
The glossary explains the most important
technical terms.
The table of contents and index directory
will help you quickly locate the information
you need.

87 Rear Audio/Video*
Rear Seat Entertainment (RSE) operation* (except CLK-Class)

Rear Seat Entertainment (RSE) operation* (except CLK-Class)
Tips on caring for your DVDs
Treat DVDs with care to prevent
malfunctions during playback.
Do not scratch, touch or soil your
DVDs.
Do not attach labels to or write on your
DVDs.
From time to time, clean your DVDs
with a commercially available cleaning
cloth. Never wipe circularly, but in a
straight line from inside to outside.
After use, put your DVDs into the DVD
box.
Protect your DVDs from high
temperatures and direct sunlight.
WarningG
The RSE CD/DVD player is a Class 1 laser
product. There is a danger of invisible laser
radiation when you open or damage the cov-
er.
Do not remove the cover. The RSE CD/DVD
player does not contain any parts which can
be serviced by the user. For safety reasons,
have any necessary service work performed
by qualified personnel.
WarningG
The driver should not wear a Rear Seat
Entertainment headset while operating the
vehicle under any circumstances. The use of
a headset while driving the vehicle could
drastically impair the ability to react to
audible traffic conditions (e.g. emergency
sirens from police/fire/ambulance, another
driver’s horn, etc.).
WarningG
When not in use, headsets or external video
sources should be stored in a safe location
(e.g. one of the vehicle’s storage
compartments) so that they are not loose
within the passenger compartment during
braking, vehicle maneuvers or a traffic
accident. Objects moving within the
passenger compartment could cause
serious personal injury to vehicle
occupants.
WarningG
Due to a potential choking hazard, wired
headset usage by children should only occur
with adult supervision.
General information on CD/DVD
operation

88 Rear Audio/Video*
Rear Seat Entertainment (RSE) operation* (except CLK-Class)
Multi session discs
With multi session discs, the content of the
first session determines how the RSE CD/
DVD player treats the CD.
For example, if the first session contains
data in audio CD format and the second
session contains data in MP3 format, the
RSE CD/DVD player will treat the CD as a
conventional audio CD.The following file and disc formats can be
played in the RSE CD/DVD player:
Audio CD which bears the below label
CD-R and CD-RW containing MP3 files
or CDDA files with title text.
DVD-Video which bears the below label
DVD-R, DVD+R, DVD-RW and DVD+RW
containing video content.
Tips on creating MP3 CDs (
page 72)
Tips on copyright (
page 73)
i
Your RSE CD/DVD player has been de-
signed to play CDs/DVDs which corre-
spond to the IEC 60908 standard. You
can therefore only use CDs with a max-
imum thickness of 1.3 mm.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected and
will damage the drive.
i
CDs, software and hardware for writing
data to CDs vary widely. Therefore, we
cannot guarantee that the system will
be able to play every user-written CD.
i
The system may not be able to play
copied CDs or those with copy
protection.
!
Do not attach labels of any type to the
CD. They may become detached and
damage the drive.
!
Do not play single CDs (80mm) with an
adapter. An adapter could become
stuck and damage the drive. Only use
12 cm diameter CDs.
Permissible CDs/DVDs

89 Rear Audio/Video*
Rear Seat Entertainment (RSE) operation* (except CLK-Class)
You can operate the RSE via
the Remote control and
the button panel at the front on the two
rear monitors.
Point the remote control with the
infrared transmitter 1 at the receiver
diode l on one of the two rear
monitors.
Switching between the rear monitors
Move the left/right monitor switch 3
on the right side of the remote control
to switch between the left monitor and
the right monitor.Soft key selection via remote control
Turn the thumb wheel up or down.
You navigate through the soft keys. The
corresponding soft key on the selected
rear monitor changes its color.
Press the thumb wheel.
The function is selected.
DVD playback requirements
i
Some DVDs may not comply with the
NTSC or PAL TV playback standards.
Sound, picture and other playback
problems may occur when you play
such DVDs.
The RSE CD/DVD player can playback
video DVDs meeting the following
requirements:
Correct regional code
NTSC or PAL TV standard
The appropriate information is usually
given either on the DVD or the DVD
box. The factory setting of the RSE CD/
DVD player is regional code 1. The
setting can be changed at an
authorized Mercedes-Benz Center. This
will allow you to playback video DVDs
with other regional codes, as long as
they comply with the NTSC or PAL TV
standard.
Operating the Rear Seat
Entertainment* (RSE)

90 Rear Audio/Video*
Rear Seat Entertainment (RSE) operation* (except CLK-Class)

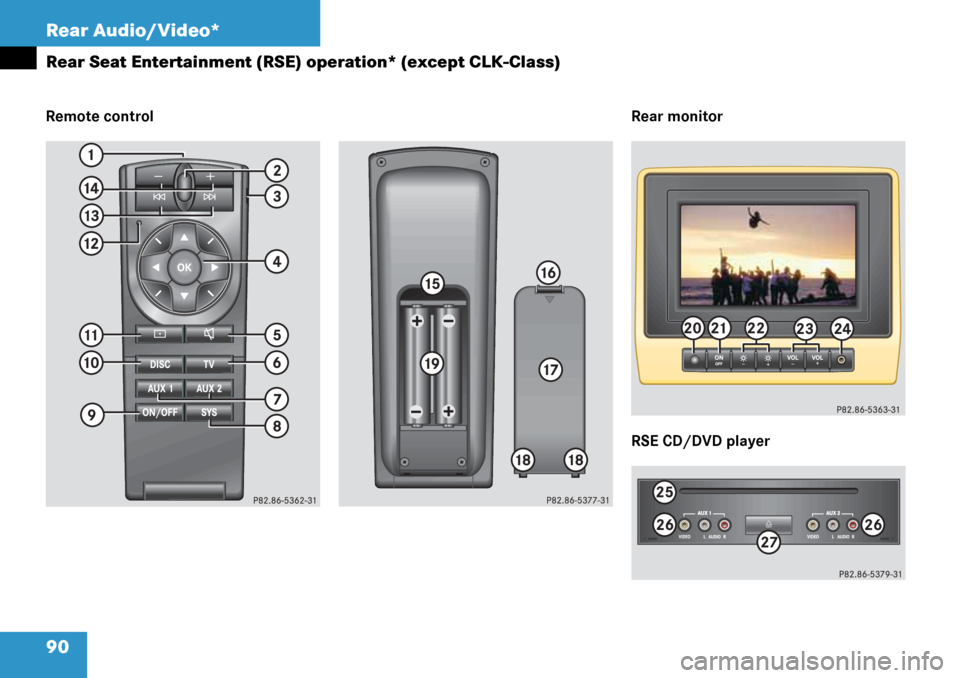

Remote control Rear monitor
RSE CD/DVD player

91 Rear Audio/Video*
Rear Seat Entertainment (RSE) operation* (except CLK-Class)
FunctionPage
1
Remote control
Infrared transmitter
2Thumb wheel. Turn to
select a soft key and press
to confirm
95
3Left/right monitor switch
4H,h,g,G
Function selection
Press E to confirm
5
Muting
110
6
Not available. Message No
TV
7or
Switching to the external
video source, if connected
or
AUX menu
107
107
8
System menu108
FunctionPage
9
Switching on and off92
a
Switching to the mode
corresponding to the
inserted CD
b Monitor off/on111
cLED112
dGH
Track select
(CD, MP3 CD)
Fast forward/reverse
(CD, MP3 CD, DVD)
Scene/chapter skip (DVD)
96, 100
97, 100,
106
106
eAdjusting the headset
volume
ç Volume down
æ Volume up
95
fBattery compartment
gRetainer clip
hCover
FunctionPage
jLocating lugs
kBatteries - 2 Type AAA 1.5 V
l
Rear monitor
Infrared receiver diode
m
Switching monitor on and
off
92
n
Adjusting the display
brightness
95
o
Adjusting the headset
volume
95
pHeadset connector socket92
q
RSE CD/DVD player
CD/DVD slot
93
rVideo socket and two audio
(L - left, R - right) sockets
94
s Eject button94

93 Rear Audio/Video*
Rear Seat Entertainment (RSE) operation* (except CLK-Class)
In all cases, one of the following
messages will appear on the monitor
Please wait, loading disc...
The RSE CD/DVD player will load the
CD which was in the drive when the
system was switched off. The
corresponding menu will appear on the
rear monitors and playback will begin.
Drive empty
Load a CD into the RSE CD/DVD
player.
Switching off
Press on the rear monitor or press
on the remote control again.
or
Turn the key in the starter switch to
position 0 and pull the key out.
The message
Vehicle key re-
moved. Please confirm by
pressing OK so that the device
continues operating.
will appear
for approx. 10 seconds. If no action is
taken the system will turn off. If
OK is
selected via the remote the system will
continue to operate for approx. 30 min-
utes.
M and GL-Class
The RSE CD/DVD player is located under
the right rear seat.
R-Class
The RSE CD/DVD player is located in the
storage compartment of the center
console.1CD/DVD slot
The system is already switched on
(
page 92).
Slide the protective cover open.
Insert a CD into the slot 1. The CD
should be inserted with the label side
up.
The RSE CD/DVD player pulls the
medium in.

i
If the system is being used while the
key is out or inserted in position 0, the
system will switch off after approx. 30
minutes.
Loading/ejecting CDs
!
Inserting a second CD with another CD
still loaded will cause damage to the
RSE CD/DVD player which is not
covered by the Mercedes-Benz Limited
Warranty.

94 Rear Audio/Video*
Rear Seat Entertainment (RSE) operation* (except CLK-Class)
The message Please wait,
loading disc...
will appear on the
rear monitor. It may take a while to
load the data.
After loading, the player plays the
loaded medium and the corresponding
menu will appear on the rear monitor.
Ejecting a CD from the RSE CD/DVD
player
1CD/DVD slot
2 Eject button
Slide the protective cover open.
Press .
The message
Press any key to
continue...
will appear.
Within 10 seconds, remove the
medium from the slot 1.
The medium will be pulled in again if it
is not removed from the slot within
approx.10 seconds. The RSE CD/DVD
player starts playing the medium again.
After removing the medium, the
message
Drive empty will appear.
Two external video sources can be
connected to the RSE CD/DVD player via
the video and audio (L - left, R - right)
sockets located on the front panel.
1Video socket
2Audio (L - left, R - right) sockets
Gently push the video and audio
connectors of the external video
source into the AUX 1 and AUX 2
sockets 1 and 2.
The external video source is played
back on the monitor switched to the
corresponding AUX source.
Connecting external video sources
i
For instructions on how to operate the
external video sources, please see the
operation manual of the device con-
nected.
!
When not in use, external video
sources should be stored in a safe
location (e.g. one of the vehicle’s
storage compartments) so that they
are not loose within the passenger
compartment during braking, vehicle
maneuvers or a traffic accident.
Objects moving within the passenger
compartment could cause serious
personal injury to vehicle occupants.
