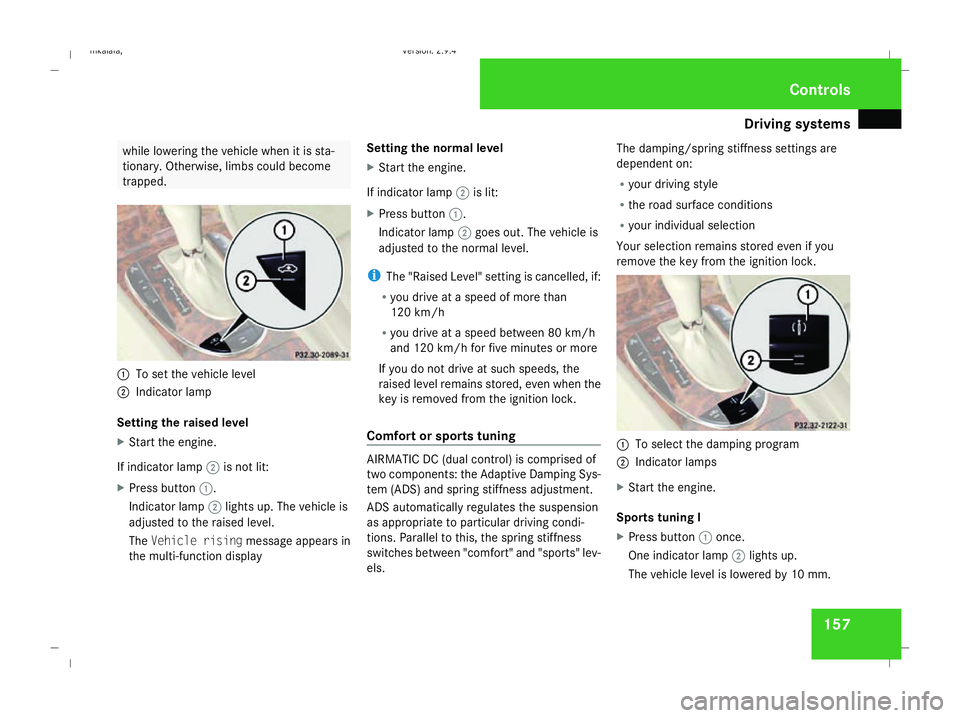

2008 MERCEDES-BENZ E-CLASS ESTATE air suspension

Driving sys
tems 157while lowering the vehicle when it is sta-
tionary. Otherwise, limbs could become
trapped. 1
To set the vehicle level
2 Indicator lamp
Setting the raised level
X Start the engine.
If indicator lamp 2is not lit:
X Press button 1.
Indicator lamp 2lights up. The vehicle is
adjusted to the raised level.
The Vehicle rising message appears in
the multi-function display Setting the normal level
X
Start the engine.
If indicator lamp 2is lit:
X Press button 1.
Indicator lamp 2goes out. The vehicle is
adjusted to the normal level.
i The "Raised Level" setting is cancelled, if:
R you drive at a speed of more than
120 km/h
R you drive at a speed between 80 km/h
and 120 km/ hfor five minutes or more
If you do not drive at such speeds, the
raised level remains stored, even when the
key is removed from the ignition lock.
Comfort or sports tuning AIRMATIC DC (dual control) is comprised of
two components: the Adaptive Damping Sys-
tem (ADS) and spring stiffness adjustment.
ADS automatically regulates the suspension
as appropriate to particular driving condi-
tions. Parallel to this, the spring stiffness
switches between "comfort" and "sports" lev-
els.The damping/spring stiffness settings are
dependent on:
R
your driving style
R the road surface conditions
R your individual selection
Your selection remains stored even if you
remove the key from the ignition lock. 1
To select the damping program
2 Indicator lamps
X Start the engine.
Sports tuning I
X Press button 1once.
One indicator lamp 2lights up.
The vehicle level is lowered by 10 mm. Controls
211_AKB; 2; 5, en-GB
mkalafa
, Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 157 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

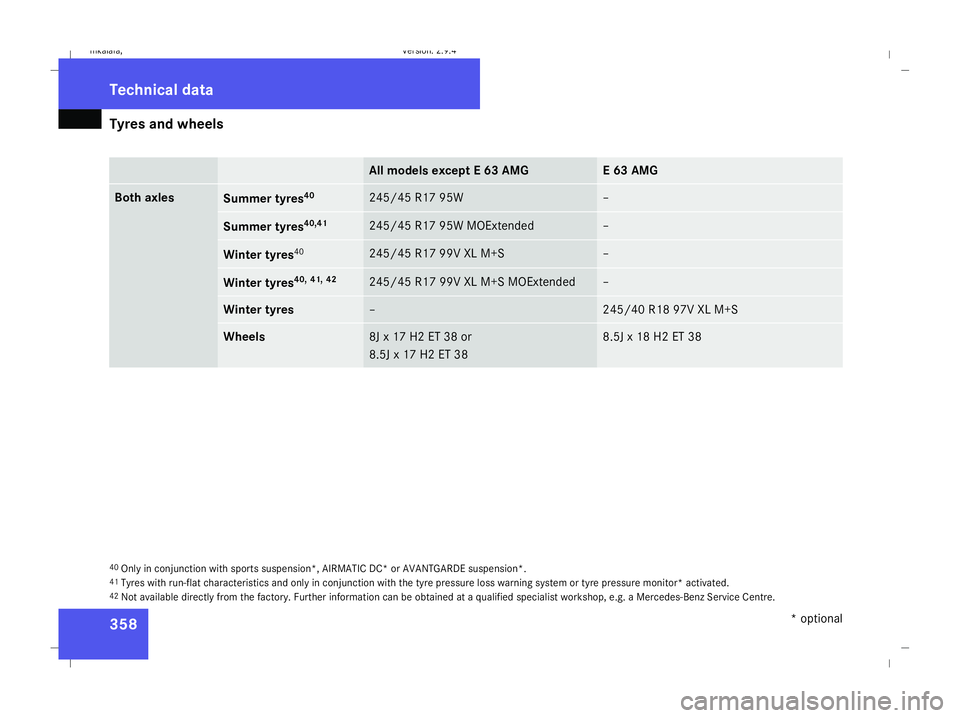

Tyres and wheels
358 All models except E 63 AMG E 63 AMG
Both axles
Summer tyres
40 245/4
5 R17 95W –
Su
mmer tyres 40,41 245/4
5 R17 95W MO Extended –
Winter tyres
40 245/45 R17 99V XL M+S –
Winter tyres
40
,4 1, 42 245/45 R17 99V XL M+S MOExtended –
Winter tyres – 245/40 R18 97V XL M+S
Wheels 8J x 17 H2 ET 38 or
8.5J x 17 H2 ET 38 8.5J x 18 H2 ET 38
40
Only in conjunction with sports suspension*, AIRMATIC DC* or AVANTGARDE suspension*.
41 Tyres with run-flat characteristics and only in conjunction with the tyre pressure loss warning system or tyre pressure monitor* activated.
42 Not available directly from the factory. Further information can be obtained at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 358Dateiname: 6515_3416_02_buchblock.pdf; preflight

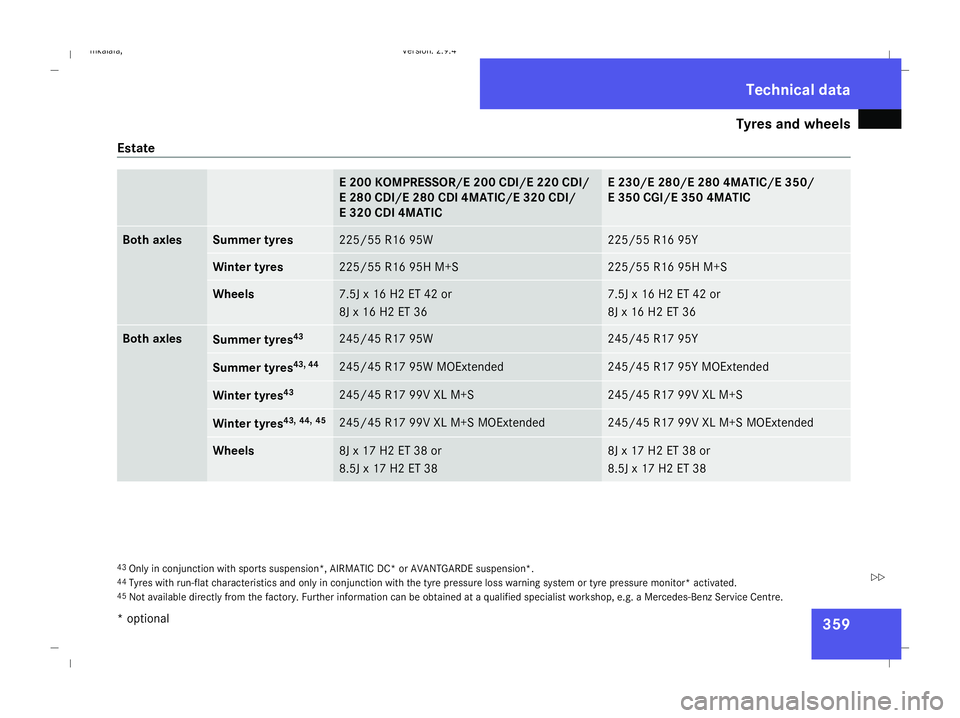

Tyres and wheels
359
Estate E 200 KOMPRESSOR/E 200 CDI/E 220 CDI/
E 280 CDI/E 280 CDI 4MATIC/E 320 CDI/
E 320 CDI 4MATIC E 230/E 280/E 280 4MATIC/E 350/
E 350 CGI/E 350 4MATIC Both axles Summer tyres 225/5
5 R16 95W 225/55 R16 95Y
Winter
tyres 225/55 R16 95H M+S 225/55 R16 95H M+S
Wheels 7.5J x 16 H2 ET 42 or
8J x 16 H2 ET 36 7.5J x 16 H2 ET 42 or
8J x 16 H2 ET 36
Both axles
Summer tyres
43 245/45 R17 95W 245/45 R17 95Y
Summer tyres
43, 44 245/45 R17 95W MOExtended 245/45 R17 95Y MOExtended
Winter tyres
43 245/45 R17 99V XL M+S 245/45 R17 99V XL M+S
Winter tyres
43
,4 4, 45 245/45 R17 99V XL M+S MOExtended 245/45 R17 99V XL M+S MOExtended
Wheels 8J x 17 H2 ET 38 or
8.5J x 17 H2 ET 38 8J x 17 H2 ET 38 or
8.5J x 17 H2 ET 38
43
Only in conjunction with sports suspension*, AIRMATIC DC* or AVANTGARDE suspension*.
44 Tyres with run-flat characteristics and only in conjunction with the tyre pressure loss warning system or tyre pressure monitor* activated.
45 Not available directly from the factory. Further information can be obtained at a qualified specialist workshop, e.g. a Mercedes-Benz Service Centre. Technical data
* optional
