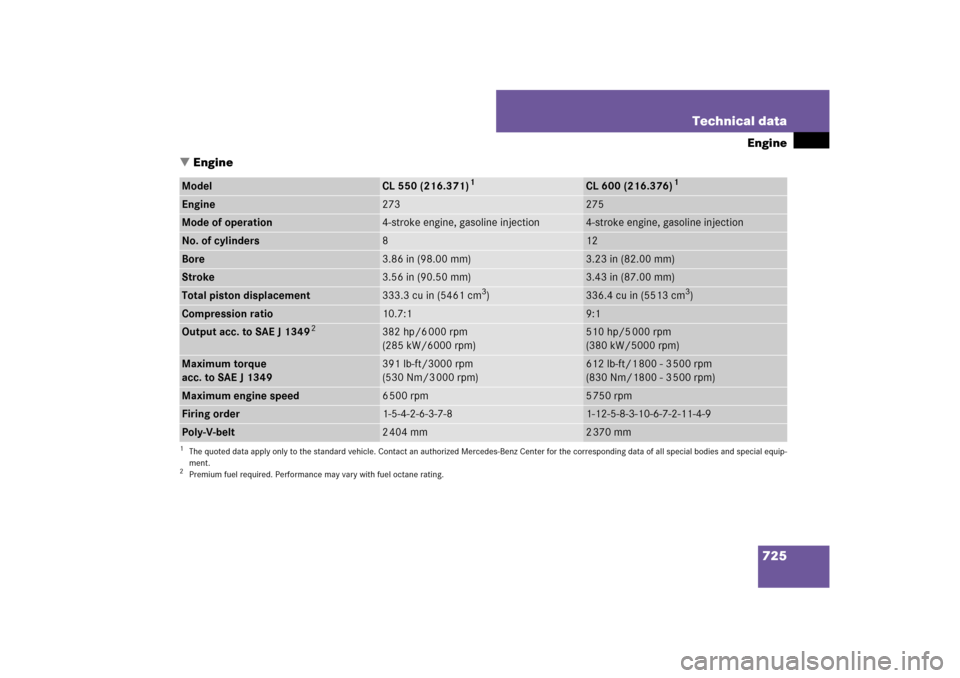

725 Technical data
Engine
Engine
Model
CL 550 (216.371)
1
1The quoted data apply only to the standard vehicle. Contact an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equip-
ment.
CL 600 (216.376)
1
Engine
273
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.86 in (98.00 mm)
3.23 in (82.00 mm)
Stroke
3.56 in (90.50 mm)
3.43 in (87.00 mm)
Total piston displacement
333.3 cu in (5461 cm
3)
336.4 cu in (5513 cm
3)
Compression ratio
10.7:1
9:1
Output acc. to SAE J 1349
2
2Premium fuel required. Performance may vary with fuel octane rating.
382 hp/6 000 rpm
(285 kW/6000 rpm)
510 hp/5 000 rpm
(380 kW/5000 rpm)
Maximum torque
acc. to SAE J 1349
391 lb-ft/3000 rpm
(530 Nm/3 000 rpm)
612 lb-ft/1 800 - 3 500 rpm
(830 Nm/1800 - 3 500 rpm)
Maximum engine speed
6500 rpm
5750 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2404 mm
2370 mm
726 Technical dataEngineModel
CL 63 AMG (216.377)
1
CL 65 AMG (216.379)
1
Engine
156
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
4.02 in (102.20 mm)
3.25 in (82.60 mm)
Stroke
3.72 in (94.60 mm)
3.66 in (93.00 mm)
Total piston displacement
378.8 cu in (6 208 cm
3)
364.9 cu in (5 980 cm
3)
Compression ratio
11.3:1
9:1
Output acc. to SAE J 1349
1
1Premium fuel required. Performance may vary with fuel octane rating.
518 hp/6 800 rpm
(386 kW/6 800 rpm)
603 hp/4 800 - 5 100 rpm
(450 kW/4 800 - 5 100 rpm)
Maximum torque
acc. to SAE J 1349
465 lb-ft/5 200 rpm
(630 Nm/5 200 rpm)
738 lb-ft/2 000 - 4 000 rpm
(1 000 Nm/2 000 - 4 000 rpm)
Maximum engine speed
7 200 rpm
5950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2 360 mm
2370 mm
