2008 MERCEDES-BENZ B-CLASS HATCHBACK technical data

Vehicle identification plates
277Vehicle identification number (VIN)
In addition to the information on the vehicle
identification plate, the vehicle identification
number (VIN) is also stamped onto the vehicle
body. It is located in the engine compartment
below the windscreen frame. 1
Vehicle identification number (VIN) X
Open the bonnet (Y page 171).
You will see vehicle identification number
(VIN) 1. Engine number
The engine number is stamped on the engine
block (crankcase). More information can be
obtained from any Mercedes-Benz Service
Centre. Technical data
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 277 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

Engine
278 Engine
B 150
B 150
BlueEFFICIENCY B 170
B 170
BlueEFFICIENCY B 200 B 200 Turbo
Rated output
70 kW (95 bhp) 85 kW (116 bhp) 100 kW (136 bhp) 142 kW (193 bhp)
At engine speed
5,200 rpm 5,500 rpm 5,500 rpm 5,000 rpm
Rated torque
140 Nm 155 Nm 185 Nm 280 Nm
At engine speed
3,500 – 4,000 rpm 3,500 – 4,000 rpm 3,500 – 4,000 rpm 1,800 – 4,850 rpm
Number of cylinders
4 4 4 4
Displacement
1,498 cm
3 1,699 cm
3 2,034 cm
3 2,034 cm
3 Maximum engine speed
6,300 rpm 6,300 rpm 6,300 rpm 6,000 rpm
B 180 CDI B 200 CDI
Rated output
80 kW (109 bhp) 103 kW (140 bhp)
At engine speed
4,200 rpm 4,200 rpm
Rated torque
250 Nm
300 Nm (280 Nm
33
) At engine speed
1,600 – 2,600 rpm 1,600 – 3,000 rpm
Number of cylinders
4 4
33
Vehicles with AUTOTRONIC* Technical data
* optional
245_AKB; 2; 7, en-GB
wdomann
,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 278 Dateiname: 6515_1640_02_buchblock.pdf; preflight

Engine
279B 180 CDI B 200 CDI
Displacement
1,991 cm
3 1,991 cm
3 Maximum engine speed
4,800 rpm 4,800 rpm Technical data
245_AKB; 2; 7, en-GB
wdomann
,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 279 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

Performance
280 Performance
Speeds
Manual trans-
mission B 150
B 150
BlueEFFICIENCY B 170
B 170
BlueEFFICIENCY B 200 B 200 TURBO B 180 CDI B 200 CDI
Maximum
speed
174 km/h 184 km/h 196 km/h 225 km/h 183 km/h 200 km/h
AUTOTRONIC* B 150 B 170 B 200 B 200 Turbo B 180 CDI B 200 CDI
Maximum
speed
168 km/h 180 km/h 190 km/h 218 km/h 178 km/h 195 km/h
Acceleration from 0 to 100 km/h
B 150 B 150
BlueEFFICIENCY B 170 B 170
BlueEFFICIENCY Manual transmission
13.2 seconds 13.2 seconds 11.3 seconds 11.3 seconds
AUTOTRONIC* 14.2 seconds – 12.0 seconds –Technical data
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 280Dateiname: 6515_1640_02_buchblock.pdf; preflight

Performance
281B 200 B 200 Turbo B 180 CDI B 200 CDI
Manual transmission
10.1 seconds 7.6 seconds 11.3 seconds 9.6 seconds
AUTOTRONIC* 10.2 seconds 7.4 seconds 11.8 seconds 9.7 secondsTechnical data
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 281 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

Tyres and wheels
282 Tyres and wheels
Points to remember
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres which
have been approved specifically for your
vehicle by Mercedes-Benz. These tyres are
specially adapted for use with the control
systems, such as ABS or ESP ®
, and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Exten-
ded* (with run-flat characteristics)
If you use other tyres, Mercedes-Benz can-
not accept any responsibility for damage
which may occur. Information about tyres
can be obtained from any Mercedes-Benz
Service Centre.
i Vehicles with MOExtended run-flat sys-
tem are not equipped with the TIREFIT
kit* 34
.
Therefore, it is recommended that you
additionally equip your vehicle with the
TIREFIT kit* when fitting tyres that do not
feature run-flat properties, e.g. winter
tyres. i
A TIREFIT kit* is available from any quali-
fied specialist workshop, e.g. a Mercedes-
Benz Service Centre.
! If you fit tyres other than those tested and
recommended by Mercedes-Benz, charac-
teristics such as handling, noise levels and
fuel consumption, etc. may be adversely
affected. In addition, when driving with a
load, tyre dimensional variations could
cause the tyres to come into contact with
the bodywork and axle components. This
could result in damage to the tyres or the
vehicle.
i Further information about tyres and
wheels can be obtained from any
Mercedes-Benz Service Centre.
You will find a table of tyre pressures on the
inside of your vehicle's fuel filler flap. You
will find further information about tyre pres-
sures in the "Operation" section
(Y page 178).
34 Only for certain countries. Technical data
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 282Dateiname: 6515_1640_02_buchblock.pdf; preflight

Tyres and wheels
283Tyres
B 150 /
B 150 BlueEFFICIENCY /
B 170 /
B 170 BlueEFFICIENCY B 200 / B 180 CDI / B 200 CDI B 200 Turbo
15" Both
axles Summer tyres
195/6
5 R15 91T – –
Winter
tyres 195/65 R15 91T M+S – –
Wheels
6J x 15 H2 ET 44 – –
16" Both
axles Summer tyres
205/55 R16 91H 205/55 R16 91H 205/55 R16 91V
Winter tyres
205/55 R16 91H M+S 205/55 R16 91H M+S 205/55 R16 91H M+S
Wheels
6J x 16 H2 ET 46 6J x 16 H2 ET 46 6J x 16 H2 ET 46
17" Both
axles
Summer tyres
35 215/45 R17 87V 215/45 R17 87V 215/45 R17 87V
Wheels
7J x 17 H2 ET 49 7J x 17 H2 ET 49 7J x 17 H2 ET 49
35
Snow chains only permitted as a starting-off aid. Technical data
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 283 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

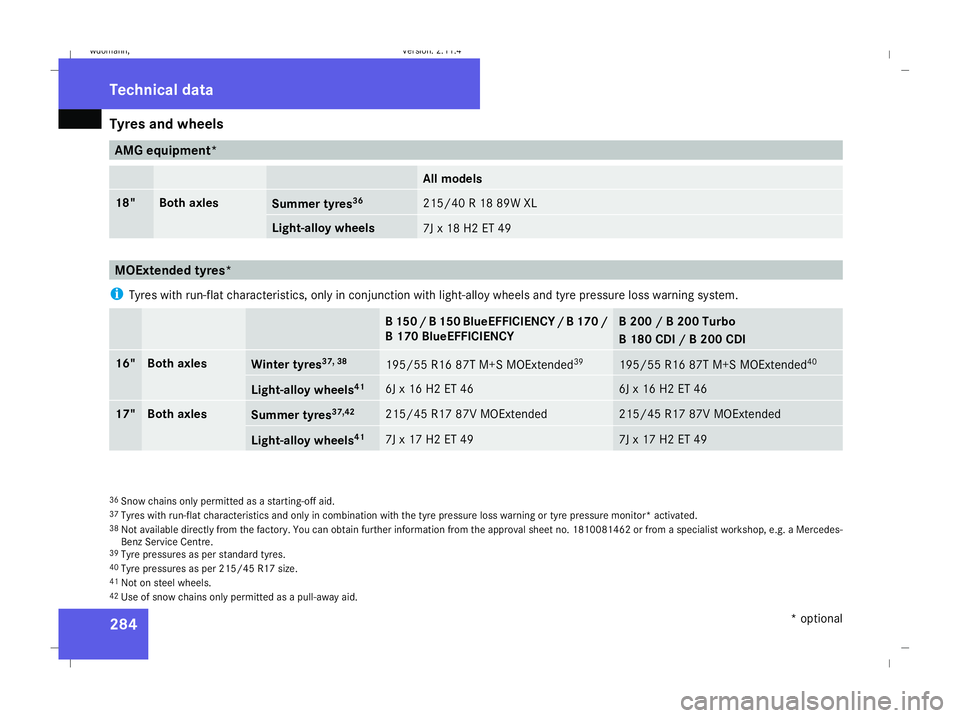

Tyres and wheels
284 AMG equipment*
All models
18" Both axles
Summer tyres
36 215/4
0 R 18 89W XL Light-alloy wheels
7J
x 18 H2 ET 49 MOExtended tyres*
i Tyres with run-flat characteristics, only in conjunction with light-alloy wheels and tyre pressure loss warning system. B 150 / B 150 BlueEFFICIENCY / B 170 /
B 170 BlueEFFICIENCY B 200 / B 200 Turbo
B 180 CDI / B 200 CDI 16" Both axles
Winter tyres
37, 38 195/55 R16 87T M+S MOExtended
39 195/55 R16 87T M+S MOExtended
40 Light-alloy wheels
41 6J x 16 H2 ET 46 6J x 16 H2 ET 46
17" Both axles
Summer tyres
37,42 215/45 R17 87V MOExtended 215/45 R17 87V MOExtended
Light-alloy wheels
41 7J x 17 H2 ET 49 7J x 17 H2 ET 49
36
Snow chains only permitted as a starting-off aid.
37 Tyres with run-flat characteristics and only in combination with the tyre pressure loss warning or tyre pressure monitor* activated.
38 Not available directly from the factory. You can obtain further information from the approval sheet no. 1810081462 or from a specialist workshop, e.g. a Mercedes-
Benz Service Centre.
39 Tyre pressures as per standard tyres.
40 Tyre pressures as per 215/45 R17 size.
41 Not on steel wheels.
42 Use of snow chains only permitted as a pull-away aid. Technical data
