2008 MAZDA MODEL MX-5 MIATA POWER RETRACTABLE HARDTOP Owners Manual

Black plate (257,1)

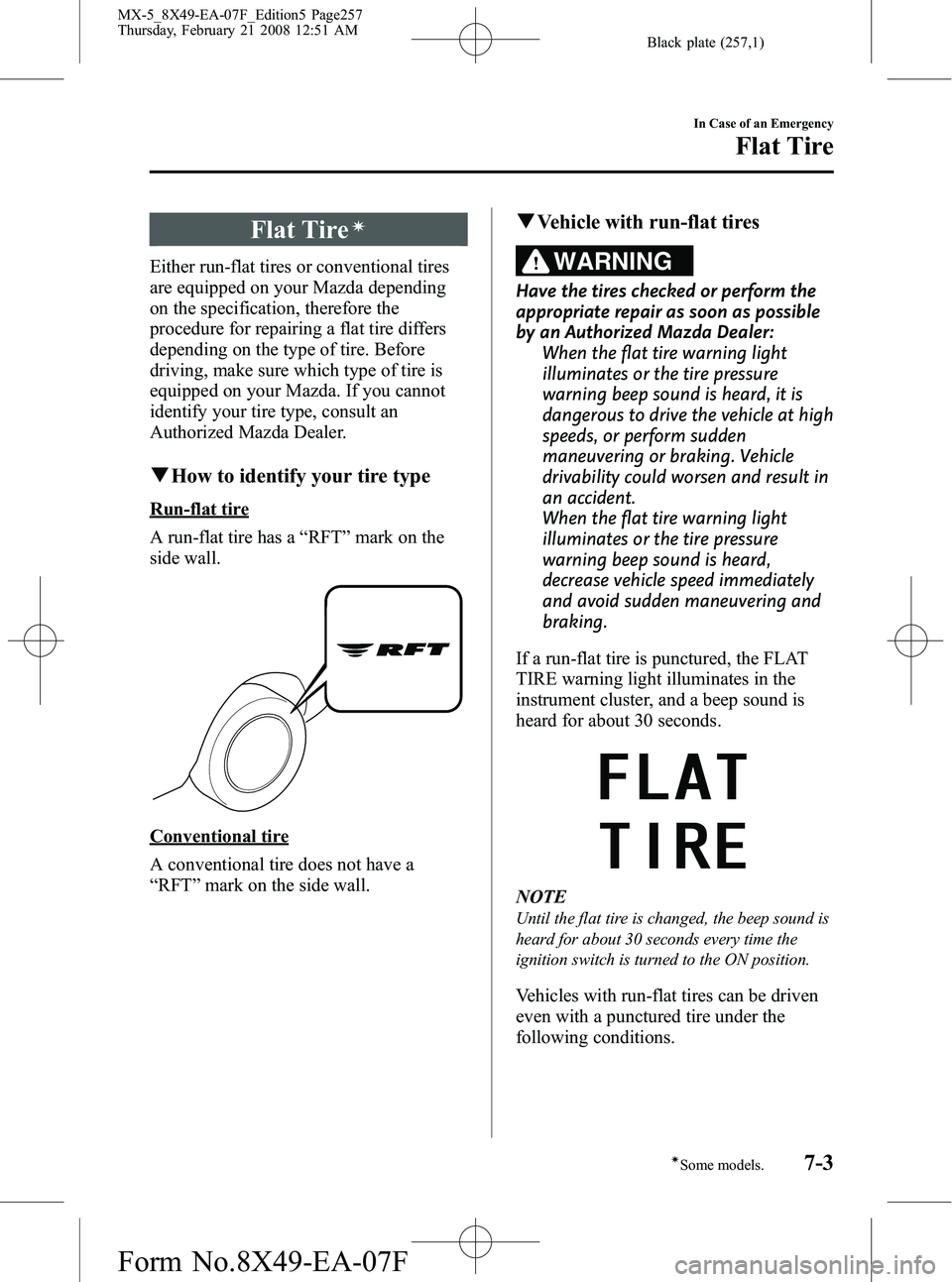

Flat Tireí
Either run-flat tires or conventional tires
are equipped on your Mazda depending
on the specification, therefore the
procedure for repairing a flat tire differs
depending on the type of tire. Before
driving, make sure which type of tire is
equipped on your Mazda. If you cannot
identify your tire type, consult an
Authorized Mazda Dealer.
qHow to identify your tire type
Run-flat tire
A run-flat tire has a “RFT ”mark on the
side wall.
Conventional tire
A conventional tire does not have a
“ RFT ”mark on the side wall.
q Vehicle with run-flat tires
WARNING
Have the tires checked or perform the
appropriate repair as soon as possible
by an Authorized Mazda Dealer:
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard, it is
dangerous to drive the vehicle at high
speeds, or perform sudden
maneuvering or braking. Vehicle
drivability could worsen and result in
an accident.
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard,
decrease vehicle speed immediately
and avoid sudden maneuvering and
braking.
If a run-flat tire is punctured, the FLAT
TIRE warning light illuminates in the
instrument cluster, and a beep sound is
heard for about 30 seconds.
NOTE
Until the flat tire is changed, the beep sound is
heard for about 30 seconds every time the
ignition switch is turned to the ON position.
Vehicles with run-flat tires can be driven
even with a punctured tire under the
following conditions.
In Case of an Emergency
Flat Tire
7-3íSome models.
MX-5_8X49-EA-07F_Edition5 Page257
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (258,1)
Maximum vehicle speed with a
punctured run-flat tire: 90 km/h (55
mph)
Maximum driving distance with a
punctured rum-flat tire: 80 km (49
miles)
CAUTION
The maximum driving distance may
be shorter depending on the driving
conditions.
If a run-flat tire is punctured, carefully
drive the vehicle to the nearest Mazda
Dealer and have the tire changed.
NOTE
lA spare tire or Instant Mobility System
(IMS) emergency flat tire repair kit is not
equipped on vehicles with run-flat tires as
standard.
lReplacing a punctured run-flat tire with a
new run-flat tire is recommended.
lDo not use run-flat tires and conventional
tires on the same vehicle.
q Vehicle with conventional tires
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction. If a
conventional tire is punctured, refer to
“Tool Storage ”(page 7-5) and “Instant
Mobility System (IMS) Emergency
Flat Tire Repair Kit ”(page 7-7).
7-4
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page258
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (259,1)
Tool Storage
Tools are stored in the locations illustrated in the diagram.
Towing/Tiedown eyelet
Power retractable hardtop
emergency tool bag
Tool bag
ropeGlove boxLug wrench
Jack
Jack Lever
eyebolt
hexagonal
wrench
Some models.
Instant Mobility System (IMS) Emergency Flat Tire Repair Kit
Trunk room
In Case of an Emergency
Flat Tire
7-5
MX-5_8X49-EA-07F_Edition5 Page259
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (260,1)
qJack
To remove the jack
1. Turn the knob and remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing back and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
7-6
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page260
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (261,1)
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
í
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit.
After temporarily repairing a tire with the
emergency flat tire repair kit, take your vehicle
to an Authorized Mazda Dealer to have the tire
replaced.
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hose
Compressor
Instruction
Repaired tire
stickerValve core
tool
Spare valve
core
Speed restriction
sticker Case
WARNING
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant: Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
In Case of an Emergency
Flat Tire
7-7íSome models.
MX-5_8X49-EA-07F_Edition5 Page261
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (262,1)
NOTElThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher. 4. Unload passengers and luggage, and
remove the emergency flat tire repair
kit.
5. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the
injection hose is screwed on, tire
sealant could spray out from the
injection hose. Tire sealant
contacting clothing or other objects
may be impossible to remove. Shake
the bottle before screwing on the
injection hose.
7-8
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page262
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (263,1)
NOTE
The tire sealant can be used at outside
temperatures down to_
30°C.
In extremely cold temperatures (0°C (32°F) or
below), the tire sealant hardens easily and
injection of the sealant will be difficult. Warm
the sealant inside the vehicle before doing the
injection work.
6. Remove the cap from the bottle. Screw on the injection hose with the bottle's
inner cap left on to break the inner cap.
Injection hose
Bottle
7. Remove the valve cap from the flat tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool
Valve
Valve cap
CAUTION
If there is air remaining in the tire
when the valve core is removed, the
valve core could fly out. Remove the
valve core carefully.
8. Turn the valve core counterclockwise with the valve core tool and remove the
valve core.
Valve Valve core
NOTE
Store the valve core in a place where it won't
get dirty.
9. Remove the plug from the injection
hose and insert the injection hose into
the valve.
Plug
Injection hose
In Case of an Emergency
Flat Tire
7-9
MX-5_8X49-EA-07F_Edition5 Page263
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (264,1)
10. Hold the bottom of the bottle upright,squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
NOTE
The tire sealant cannot be reused. Purchase a
new tire sealant kit at an Authorized Mazda
Dealer.
11. Pull out the injection hose from thevalve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates completion of the tire repair on a flat
outer surface of the repaired tire.
NOTE
Do not throw away the empty tire sealant
bottle after use. Return the empty tire sealant
bottle to an Authorized Mazda Dealer when
replacing the tire. The empty tire sealant bottle
will need to be used to extract and dispose of
the used sealant from the tire.
13. Attach the vehicle speed restrictionsticker in a place where the driver can
easily see it.
WARNING
Do not attach the vehicle speed
restriction sticker to the instrument
panel, as it would obstruct vision of
areas such as warning light indicators
or the speedometer:Attaching the vehicle speed
restriction sticker to the steering
wheel pad is dangerous. The sticker
could interfere with air bag inflation
and cause serious injury.
