2008 MAZDA MODEL CX-7 bluetooth

©2007 Mazda Motor Corporation
Printed in Japan July 2007(Print1)
Before Use
Gettingstarted
Routing
Address Book
Vo i c e
Recognition
Rear View Monitor
Volume
Adjustment
PreparationNAVIGATION
SYSTEMSee page for specific information.
See page for specific information.
See page for specific information.
Immediate use
Advanced use
See page for specific information.
Rear View Monitor
If
necessary
See page for specific information.
If necessary
Audio
System
See page for specific information.
Audio System
Bluetooth
Hands-Free
See page for specific information.
Bluetooth Hands-Free
5 4
4
5
61
85
91
'<C)%FSSO4EKI8LYVWHE]1EVGL41

4
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Contents
Preparation
nBefore Use
Accessories ........................................................................\
................ 2
Laser products: ........................................................................\
.......... 2
Contents ........................................................................\
..................... 4
Safety Information ........................................................................\
...... 6
Introduction ........................................................................\
................ 8
(Product Use Safety), (Navigation System), (Beep sound and voice guidance restrictions while using Bluetooth Hands-Free
(Mazda CX-9 only)), (Screens)
Names and Functions ........................................................................\
9
Immediate use
nGetting startedlActivation........................................................................\
............... 12(Removing the Map Disc), (On-screen Buttons)
l
Set Clock ........................................................................\
............... 14lNavigation Set Up ........................................................................\
. 15(Language), (Calibration), (User Setting), (Quick POI Selection),
(Restore System Defaults), (Map Configuration)
l
Screen Names and Functions....................................................... 25(Screens Before Setting Route), (Screens During Route Guidance),
(Menu), (Screen adjustments, beep alert and other settings)
l
Screen change ........................................................................\
...... 29(Changing the Map Orientation/Scale)
n
RoutinglDestination Entry and Route Search............................................. 30(Change (Change Search Area)), (Address), (Point of interest),
(Emergency), (Memory Point), (Home), (Preset Destination),
(Previous Destination), (Intersection), (Freeway On/Off Ramp),
(Coordinates), (Select from map)
l
Quick POI ........................................................................\
.............. 38(Displaying POI(s) on a Map), (Local Search), (Deleting POI Markers),
(Showing POI Data)
l
Character Entry ........................................................................\
..... 39(Street name, city name, and other input),
(House phone number, and other input)
l
Direct Destination Input................................................................. 40(Direct Destination Input), (Selecting Route)
l
POI Icons on Maps / Delete Destination ....................................... 41(POI (Point of Interest) Icons), (Delete destination)
l
Route Options ........................................................................\
....... 42(Route Preferences), (Modification of Destination or Way Point Positions),
(Deletion of Destination or Way Points), (Detour), (Turn List),
(Display Preview), (Route Preview)
'<C)%FSSO4EKI8LYVWHE]1EVGL41

8
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Introduction
nExtremely low or high temperatures may interfere with normal operationThe inside of the vehicle can become very hot or cold when it is parked for extended
periods in direct sunlight or in cold places with the engine turned off. The navigation system
may not operate normally under such circumstances. Turn off the navigation system until
the inside of the vehicle has cooled down or warmed up. If the system does not operate
thereafter, consult an authorized dealer, we recommend an Authorized Mazda Dealer.
This navigation system utilizes GPS* satellite signals, a speed sensor and gyrosensor to track
and display your vehicle’s current position, and to guide you from your starting point to your
destination along a calculated route.
* : GPS (Global Positioning System) is a position detecting system utilizing the signals from GPS satellites deployed by the U.S. Defense Department.
The beep sound and voice guidance related to the navigation system operation are not heard
while a Bluetooth Hands-Free is being used.
Screens displayed in this manual may differ from those on the actual display.
Product Use Safety
Navigation System
Beep sound and voice guidance restrictions while using Bluetooth Hands-Free (Mazda CX-9 only)
Screens
'<C)%FSSO4EKI8LYVWHE]1EVGL41

13
Getting started
Ifnecessary
Rear View
Monitor
lThe Current Position screen appears.
Note
lYou can select the language by selecting the on-screen button. You can also
change the selected language using Language Selection. ( page 22)
l The CAUTION screen remains on the display unless you select the on-screen
button.
(Mazda CX-9)
If the mobile telephone is programmed to the hands-free unit for use with the Bluetooth
hands-free telephone, the Bluetooth hands-free information is displayed on the screen
momentarily. While this information is displayed, the on-screen button cannot be
selected. Select the on-screen button after the display is cleared.
Select the on-screen button lightly with your finger.
Colors for unavailable buttons will be pale.
3
Read the CAUTION
carefully, and select
the on-screen
button.
Removing the Map Disc
1
With the ignition switch in the ACC position, remove the cover.
2
Press (EJECT).
On-screen Buttons
Most functions are inhibited while the
vehicle is in motion.
Please read the handbook for operation
instructions.
Always obey traffic regulations.
Caution
Mazda CX-9
Cover
Do not get your hand or fingers caught in
moving parts or in the disc slot. This can
cause injuries. Children are inquisitive, try
to install or remove the map disc without
infants looking on.
Caution
Screw Screw
Bracket
Mazda CX-7
'<C)%FSSO4EKI8LYVWHE]1EVGL41

51
Voice Recognition
Avoiding Voice Recognition Errors.
Read the notes listed below to allow the Voice Recognition function to recognize your voice properly.
lSpeak a voice command clearly.
l Keep yourself in a safe driving position. Do not face or approach the microphone to make
your voice command recognizable.
Voice recognition may fail to recognize your command due to voice tone. If this happens,
change the tone of your voice by speaking more loudly and clearly.
l
Keep the inside of the vehicle quiet when making a voice command. Your command may be compromised
by noises made by people, blinkers, the horn, vehicle vibration, and noises from outside the vehicle.
l Use the language you selected in voice recognition.Please be aware that the voice recognition may error or not function despite following the above points.
Note
VOICE switch cannot be used while a Bluetooth Hands-Free is being used. (Mazda CX-9 only)
The following voice commands can be used with voice control.
( ): Indicates the commands to be the object of “/”
[]: Recognizes without saying the command in “[]”
“/”: Recognizes when saying either commands before and after “/”
Voice Recognition Command
Shortcut Commands
[Show] Current (Position/Location)
[Show] Map
Repeat [Voice] [Guidance]
Cancel
Map Operation Commands
Zoom In
Zoom Out
Zoom In Maximum
Zoom Out Maximum
Right Map Zoom In
Right Map Zoom Out
Right Map (Zoom In Maximum/
Minimum Scale)
Right Map (Zoom Out Maximum/Maximum Scale)[Change to/Show] North up [Mode][Change to/Show] Heading up [Mode][Change] Map DirectionRight Map [Change to/Show] North up [Mode]Right Map [Change to/Show] Heading Up [Mode]Right Map [Change Map] Direction
[Show/Change to] Dual Map [Mode]
[Show/Change to] Single Map [Mode](Store/Mark) [This Point]POI Display Commands
Automobile Club
Gas Station/Gas
Parking/Parking Lot/Parking Garage/Car ParkAuto Service & Maintenance/Auto ServiceAT M
Bank
Town Center/City
CenterConvention Center/Exhibition CenterCourt House
Government Offices
Higher Education/University/CollegeHospital
Library
Parks & Recreation/Park & RecreationPolice Station
School
Amusement Park
Casino
Golf Course
Historical Monument
Marina
Museum
Ski Resort/Skiing
Sports Complex/Stadium
Performing Arts
Tourist Attraction
Tourist Information
Winery
Restaurant/I'm Hungry/Show RestaurantAmerican Restaurant/American FoodChinese Restaurant/Chinese Food
Continental Restaurant/
Continental Food
Fast Food/Fast Food Restaurant
French Restaurant/French Food
Italian Restaurant/Italian Food
Japanese Restaurant/Japanese FoodMexican Restaurant/Mexican Food
Seafood Restaurant/Seafood
Thai Restaurant/Thai Food
Other Restaurant/Other Food
Grocery Store
Shopping Mall
Airport
Bus Station
Ferry Terminal
Hotel
Rental Car Agency
Rest Area
Train Station
Business Facility
POI Off
Destination Operation Commands
[Go] Home
Enter Destination
Add to Waypoint
(Go to/Previous) Starting Point
[Go to] Previous Destination
[Go to] Preset Destination [Number] 1
[Go to] Preset Destination [Number] 2
[Go to] Preset Destination [Number] 3
[Go to] Preset Destination [Number] 4
[Go to] Preset Destination [Number] 5CancelGuidance Commands
Louder
Softer
[Show] (Whole/Entire) Route [Map]
[Show] Next Way Point [Map]
Show First Way Point [Map]
Show Second Way Point [Map]
Show Third Way Point [Map]
Show Fourth Way Point [Map]
Show Fifth Way Point [Map]
Show Destination [Map]
(Delete/Cancel) Next Way Point
Ye s
No
(Delete/Cancel) Destination
(Delete/Cancel) All Way Points and
Destination
Voice Guidance Off
Voice Guidance On
Quick
Alternative
Short
Detour
Detour Entire Route
[Change to] Arrow (Guide/Guidance)
[Change to] Turn List (Guide/Guidance)[Change to] Freeway (Guide/Guidance)[Change to] Intersection (Guide/Guidance)Display Commands
display [set]day [mode]
display [set]night [mode]
display [set] auto [mode]
'<C)%FSSO4EKI8LYVWHE]1EVGL41

61
Audio Operation
Contents
Audio system
nAudio OperationlOperating Tips for Audio system ................................................... 62(Radio Reception), (Operating Tips for In-Dash CD Changer),
(Operating tips for MP3), (CD-TEXT)
l
Operating Tips for Display ............................................................. 68lBeep sound and voice guidance restrictions while using Bluetooth
Hands-Free (Mazda CX-9 only)..................................................... 68
lPower/Volume/Sound Controls ...................................................... 69(Power ON/OFF), (Volume adjustment), (Audio sound adjustment),
(Sound quality adjustment), (Volume balance adjustment), (AudioPilot™),
(Centerpoint®), (Rear seat-optimized (With Rear Entertainment System)
(Mazda CX-9 only)), (Surround)
l
Operating the Radio ...................................................................... 73(Radio ON), (Band selection), (Tuning), (Manual tuning), (Seek tuning),
(Scan tuning), (Preset channel tuning), (Auto memory tuning),
(Audio Sound Adjustment), (Satellite Radio (SAT))
l
Operating the In-Dash CD Changer .............................................. 76(Inserting the CD), (During CD playback), (During MP3 CD playback),
(Normal insertion), (Inserting CDs into desired tray number),
(Multiple insertion), (Normal ejection),
(Ejecting CDs from desired tray number), (Multiple ejection),
(Playing), (Fast-forward/Reverse), (Track search), (Disc search),
(Folder search (during MP3 CD playback)), (Music scan), (Repeat play),
(Audio sound adjustment), (Operating tips for audio control switch),
(Safety Certification)
'<C)%FSSO4EKI8LYVWHE]1EVGL41

68
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
l

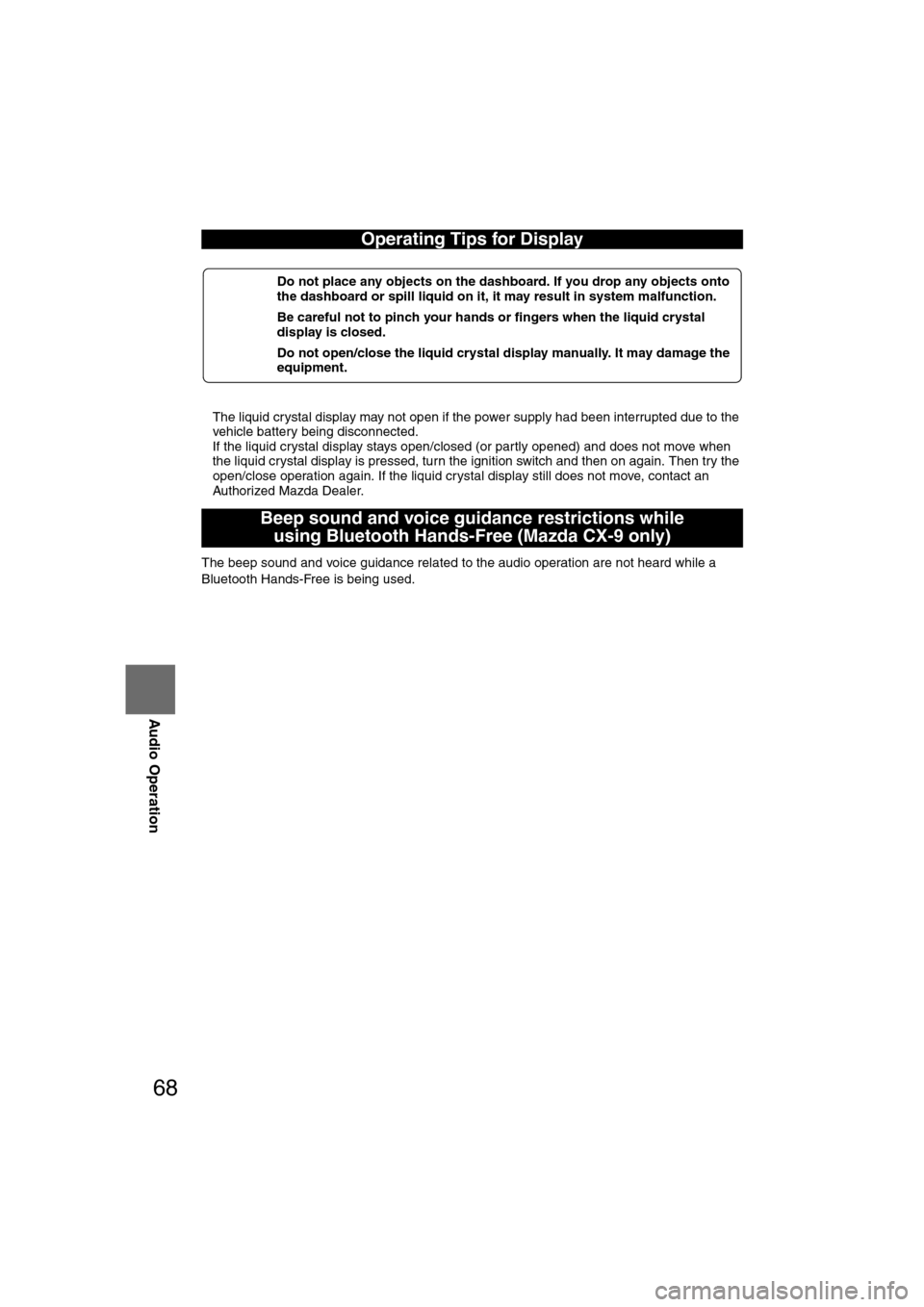

The liquid crystal display may not open if the power supply had been interrupted due to the
vehicle battery being disconnected.
l If the liquid crystal display stays open/closed (or partly opened) and does not move when
the liquid crystal display is pressed, turn the ignition switch and then on again. Then try the
open/close operation again. If the liquid crystal display still does not move, contact an
Authorized Mazda Dealer.
The beep sound and voice guidance related to the audio operation are not heard while a
Bluetooth Hands-Free is being used.
Operating Tips for Display
nDo not place any objects on the dashboard. If you drop any objects onto
the dashboard or spill liquid on it, it may result in system malfunction.
nBe careful not to pinch your hands or fingers when the liquid crystal
display is closed.
nDo not open/close the liquid crystal display manually. It may damage the
equipment.
Beep sound and voice guidance restrictions while using Bluetooth Hands-Free (Mazda CX-9 only)
'<C)%FSSO4EKI8LYVWHE]1EVGL41

91
Bluetooth Hands-Free (Mazda CX-9 only)
Contents
Bluetooth Hands-Free
nBluetooth Hands-Free (Mazda CX-9 only)lScreen display of Bluetooth Hands-Free information .................... 92
'<C)%FSSO4EKI8LYVWHE]1EVGL41
