2008 MAZDA MODEL 5 display

Black plate (210,1)
Audio unit/Navigation system
The audio unit or navigation system is
used for adjusting the volume.
If Bluetooth Hands-Free is operated,
information such as mobile phone signal
strength of Bluetooth Hands-Free are
displayed on the screen. (With navigation
system)
Bluetooth Hands-Free information
qVoice
To prevent the deterioration in voice
recognition rate and voice quality, the
following points must be observed:
lIt is not necessary to face the
microphone or approach it. Call out the
voice commands while maintaining a
safe driving position.
lClose the windows and/or the
moonroof to shut out loud noises from
outside the vehicle, or turn down the
airflow of the climate control system
while the Bluetooth Hands-Free is
being used. Voice recognition may not
function correctly or voice quality may
deteriorate under the following
conditions.
lA passenger is speaking.lDriving with the window and/or the
moonroof open.
lDriving on bumpy roads.lNoise outside of the vehicle is loud.
(Construction sites, inside tunnels,
excess oncoming traffic, or heavy
rain.)
lOperation noise from turn signals,
wipers, or the horn is heard.
lA/C airflow is strong or wind is
blowing on the microphone.
lThere is noise coming from cargo
loaded in the vehicle.
lVoice commands may not be
recognized depending on the voice. If
the voice commands are not recognized
correctly, repeat the commands in a
louder voice, at a natural pace, as if
speaking to another person.
lDialects or different wording other than
hands-free prompts cannot be
recognized by voice recognition. Call
out in the wording specified by the
voice commands.
Please be aware that the voice recognition
may error despite following the above
points.
6-46
Interior Comfort
Bluetooth Hands-Free
Mazda5_8X53-EA-07I_Edition3 Page210
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (228,1)
Information Display
ClockAudio display Climate control display/
Ambient temperature display
6-64
Interior Comfort
Interior Equipment
Mazda5_8X53-EA-07I_Edition3 Page228
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (229,1)
qInformation Display Functions
The information display has the following functions:lClocklAmbient Temperature Display (Outside Temperature Display, Fully Automatic Type)lClimate Control Display (Fully Automatic Type)lAudio Display
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Turn the ignition switch to the ACC or
ON position.
2. Adjust the time using the time setting buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting
1. Turn the ignition switch to the ACC or ON position.
2. Press the:00 button for 1.5 seconds or more. The displayed time flashes. 3. When the button is released, the time
will be reset as follows:
(Example)
12:01 ―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the:00 button is released, the seconds
will start at “00 ”.
Switching between 12 and 24-hour
clock time
1. Turn the ignition switch to the ACC or
ON position.
2. Press both time setting buttons (
,)
simultaneously for 1.5 seconds or
more.
3. “12h ”or “24h ”is displayed.
4. The selected clock time will be displayed within three seconds.
Interior Comfort
Interior Equipment
6-65
Mazda5_8X53-EA-07I_Edition3 Page229
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (230,1)
qAmbient Temperature Display
(Fully Automatic Type)
When the ignition switch is in the ON
position, press the AMB switch (page
6-10) to display the ambient temperature.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AMB switch a few seconds or
more to switch the display from Fahrenheit
to Centigrade or vice versa.
lPress the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
qClimate Control Display (Fully
Automatic Type)
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-17).
6-66
Interior Comfort
Interior Equipment
Mazda5_8X53-EA-07I_Edition3 Page230
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (372,1)
A
Accessory Socket .............................. 6-74
Add-On Non-Genuine Parts and
Accessories ....................................... 9-17
Air Bag Systems ............................... 2-39
Ambient Temperature Display .......... 6-66
Antenna ............................................. 6-17
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-8
Appearance Care ............................... 8-48
Audio System ................................... 6-17 Audio control switch .................. 6-38
Audio set .................................... 6-23
AUX mode ................................. 6-40
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-43
Automatic Transaxle Driving tips ................................ 5-16
Fluid ........................................... 8-23
Manual shift mode ..................... 5-13
Shift-lock override ..................... 5-13
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
BatteryEmergency starting .................... 7-15
Maintenance ............................... 8-29
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-44
Lights-on reminder ..................... 5-44
Seat belt warning beep ............... 5-44
Tire inflation pressure warning
beep ............................................ 5-44
B
Before Starting the Engine .................. 4-5After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth Hands-Free ....................... 6-44 Basic Bluetooth Hands-Free
Operation ................................... 6-48
Convenient Use of the Hands-Free
System ........................................ 6-51
Hands-Free Telephone Setting .... 6-56
Safety certification ..................... 6-61
When the Bluetooth Hands-Free
cannot be used ............................ 6-60
Body Lubrication .............................. 8-25
Bottle Holder ..................................... 6-69
Brake/Clutch Fluid ........................................... 8-22
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-35
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-73
Cargo Sub-Compartment .................. 6-73
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-18
Center Console .................................. 6-70
Child Restraint
Child restraint precautions ......... 2-26
LATCH child-restraint
systems ....................................... 2-36
11-2
Index
Mazda5_8X53-EA-07I_Edition3 Page372
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

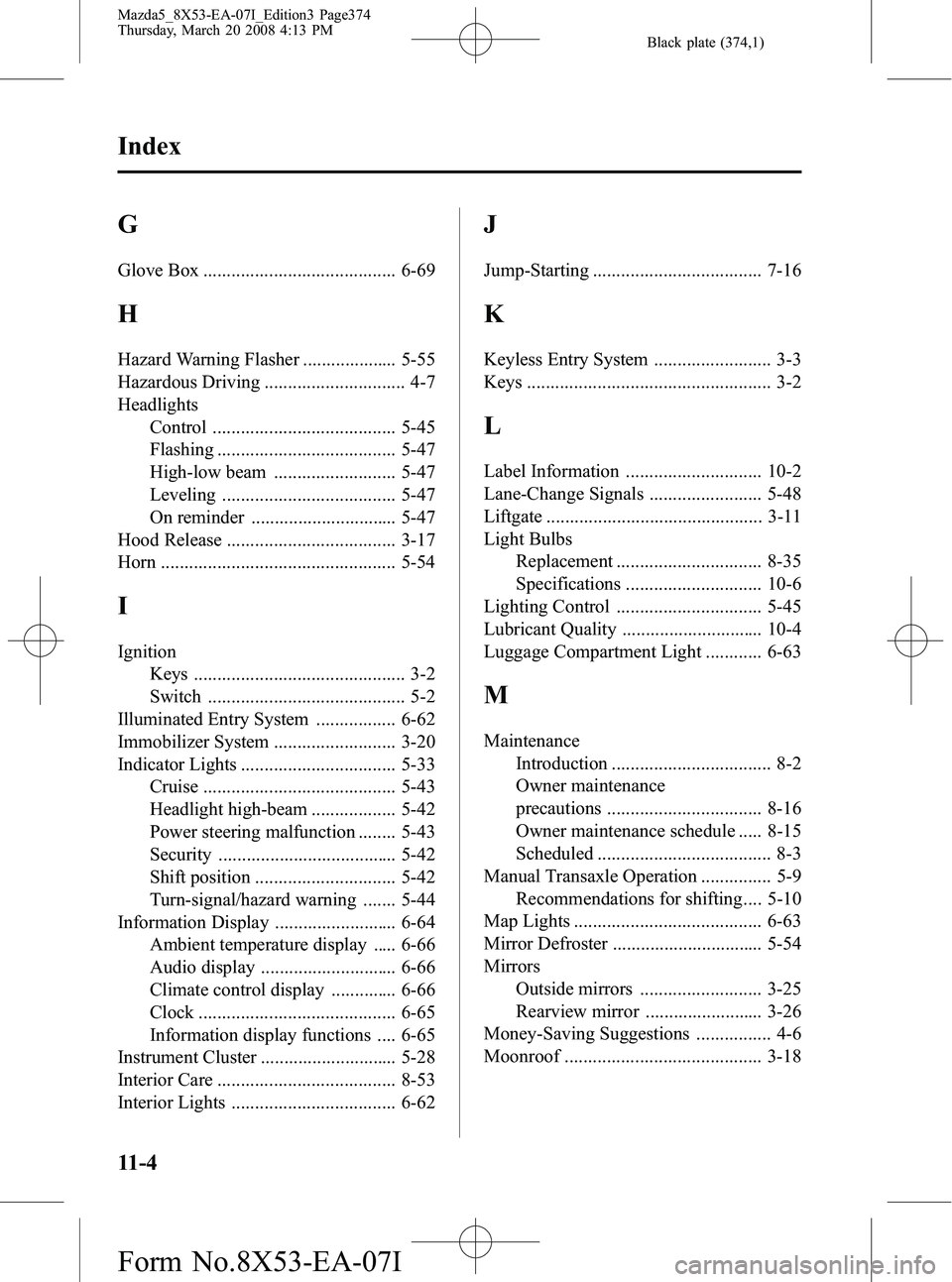

Black plate (374,1)
G
Glove Box ......................................... 6-69
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-7
HeadlightsControl ....................................... 5-45
Flashing ...................................... 5-47
High-low beam .......................... 5-47
Leveling ..................................... 5-47
On reminder ............................... 5-47
Hood Release .................................... 3-17
Horn .................................................. 5-54
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-62
Immobilizer System .......................... 3-20
Indicator Lights ................................. 5-33 Cruise ......................................... 5-43
Headlight high-beam .................. 5-42
Power steering malfunction ........ 5-43
Security ...................................... 5-42
Shift position .............................. 5-42
Turn-signal/hazard warning ....... 5-44
Information Display .......................... 6-64 Ambient temperature display ..... 6-66
Audio display ............................. 6-66
Climate control display .............. 6-66
Clock .......................................... 6-65
Information display functions .... 6-65
Instrument Cluster ............................. 5-28
Interior Care ...................................... 8-53
Interior Lights ................................... 6-62
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-48
Liftgate .............................................. 3-11
Light Bulbs Replacement ............................... 8-35
Specifications ............................. 10-6
Lighting Control ............................... 5-45
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-63
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-63
Mirror Defroster ................................ 5-54
Mirrors Outside mirrors .......................... 3-25
Rearview mirror ......................... 3-26
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-18
11-4
Index
Mazda5_8X53-EA-07I_Edition3 Page374
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I
