2008 Lexus IS F Scheduled Maintenace Guide / LEXUS 2008 IS F QUICK GUIDE OWNER'S MANUAL (OM53613U)

Topic 5
Driving Comfort
41
Interior Lights
Without moon roof
Door position on/off
On/off
With moon roof
Door position on/off
On/off
Compass
To display the compass, press and hold the
“AUTO” button for 3 or more seconds.
To cancel the display, press and hold the “AUTO”
button again for 3 or more seconds.
1
2
1
2

Topic 5
Driving Comfort
42
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before Driving
Tr u n k S t o r a g e E x t e n s i o n
Pull down the rear armrest.
Lift up the trunk door cover.
Open the inside trunk door from the trunk and
load baggage or other items.
Longer items can be loaded in the vehicle by utilizing the trunk space and rear seat area.

Topic 5
Driving Comfort
43
Luggage Mat
Pull the lever upwards when lifting the luggage
mat up.
The lever can be hooked on the edge of the trunk.

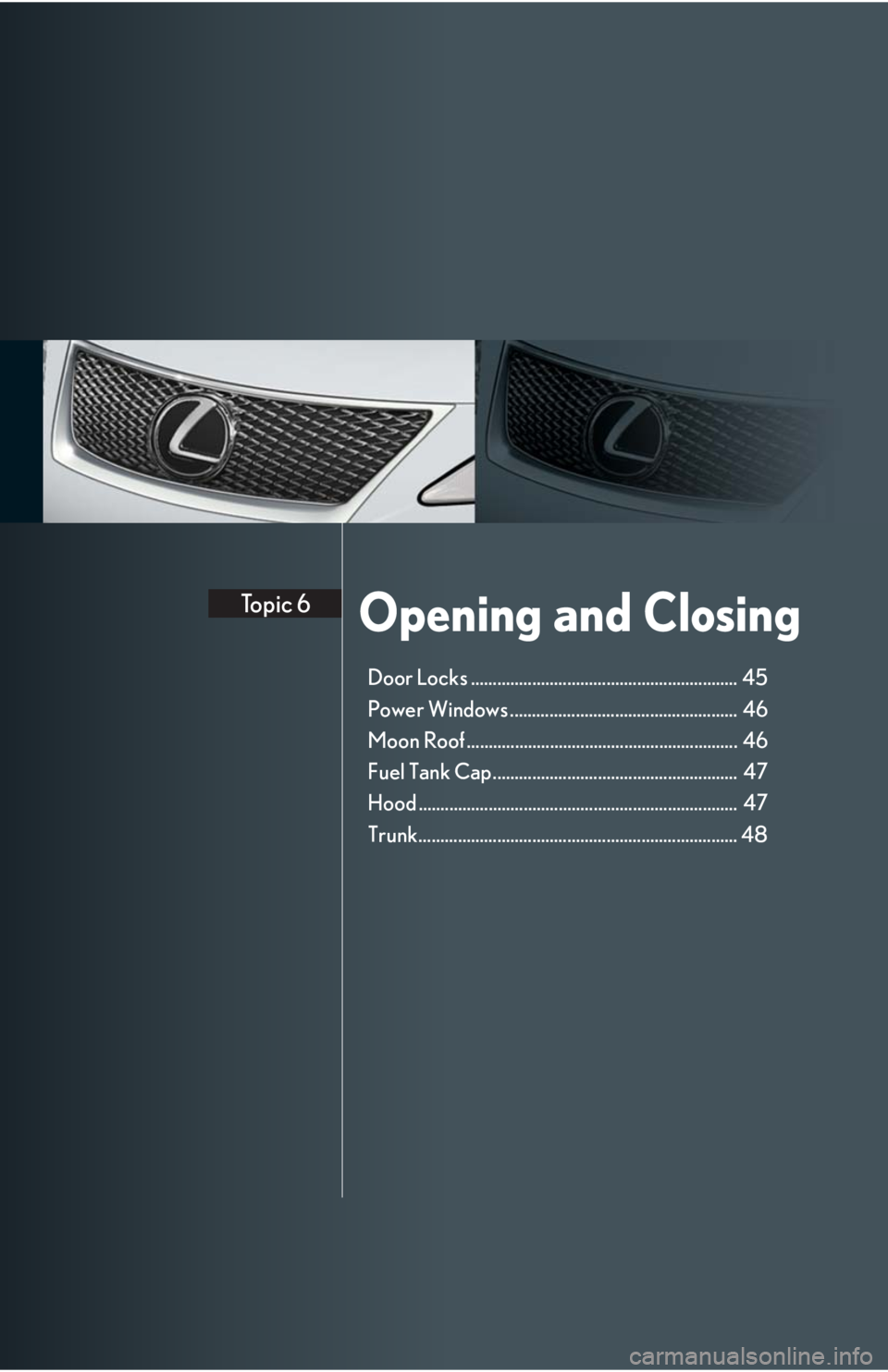

Opening and ClosingTopic 6
Door Locks ............................................................. 45
Power Windows .................................................... 46
Moon Roof .............................................................. 46
Fuel Tank Cap........................................................ 47
Hood ......................................................................... 47
Trunk......................................................................... 48

Topic 6
Opening and Closing
45
Door Locks
■Locking the vehicle from inside
Inside lock button
Locks
Unlocks
Door lock switch
Operates all door locks.
Locks
Unlocks
■Locking the vehicle from outside
Use the entry function or wireless remote control (P. 7 , 8 )
■Rear door child-protector lock
Pushing down the switch prevents the rear doors
from being opened from the inside.
Always set the child protector locks when chil-
dren are seated in the rear seat.
1
2
1
2

Topic 6
Opening and Closing
46
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Powe r Wi n d ows
Powe r w i n d ow s w i t c h e s
To o p e n : press the switch.
To c l o s e : pull the switch up.
Fully pulling up and releasing the switches
causes the windows to close fully. Fully
pressing down and releasing the switches
causes the windows to open fully.
Window lock switch
The window lock switch disables the opera-
tion of all windows other than the driver’s
door window.
Moon Roof (If Equipped)
■Opening and closing
The moon roof can be opened to 7 different
positions by turning the dial clockwise from
the closed position.
To open the moon roof to the comfort stop
position, simply press the dial.
Press again to close.
The comfort stop position reduces wind noise.
■Tilting up and down
To tilt the moon roof up, turn the dial counter-
clockwise from the closed position.
To tilt the moon roof down, turn the dial clockwise.
1
2
Comfort stop
position1
2

Topic 6
Opening and Closing
47
Fuel Tank Cap
Press the fuel filler door opener.
Slowly remove the cap by turning it counter-
clockwise.
After the cap is removed, it can be hung on the
inside of the fuel filler door.
Hood
Pull the hood release lever.
Insert your fingers under the hood, pull the
hood catch and lift the hood.

Topic 6
Opening and Closing
48
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Tr u n k
Trunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn off the main
switch in the glove box.
On
Off
When the trunk opener is disabled, the trunk can-
not be opened using the wireless remote control
or the entry function.
Entry function and wireless remote control (P. 7 , 8 )
1
2
