2008 Lexus IS F fuses

TABLE OF CONTENTSIndex
4
Power outlet .................................... 241
Seat heaters .................................... 242
Seat heaters and ventilators .... 244
Armrest ............................................ 246
Trunk storage extension............ 247
Coat hooks ..................................... 249
Floor mat......................................... 250
Trunk features................................. 251
Garage door opener .................. 254
Compass.......................................... 259
4-1. Maintenance and care............ 264 Cleaning and protecting the vehicle exterior................... 264
Cleaning and protecting the vehicle interior .................... 267
4-2. Maintenance ............................. 270 Maintenance requ irements ..... 270
General maintenance ................ 272
Emission inspection and maintenance (I/M)
programs ...................................... 275 4-3. Do-it-yourself
maintenance............................ 276
Do-it-yourself service precautions .................................. 276
Hood.................................................. 279
Positioning a floor jack.............. 280
Engine compartment.................. 282
Tires ................................................... 296
Tire inflation pressure................. 307
Wheels................................................. 311
Air conditioning filter................... 313
Electronic key battery ................. 316
Checking and replacing fuses ................................................. 318
Headlight aim................................. 332
Light bulbs ....................................... 334
5-1. Essential information .............. 340 If your vehicle needs to be towed ...................................... 340
If you think something is wrong ......................................... 346
Fuel pump shut off system ........ 347
Event data recorder ................... 348
4Maintenance and care
5When trouble arises

Maintenance and care4
263
4-1. Maintenance and care ............................... 264
Cleaning and protecting the vehicle exterior............. 264
Cleaning and protecting the vehicle interior .............. 267
4-2. Maintenance .................. 270 Maintenance requirements ........................ 270
General maintenance .......... 272
Emission inspection and maintenance (I/M)
programs................................ 275 4-3. Do-it-yourself
maintenance ................ 276
Do-it-yourself service precautions ............................ 276
Hood ........................................... 279
Positioning a floor jack ......... 280
Engine compartment ........... 282
Tires............................................ 296
Tire inflation pressure........... 307
Wheels ........................................ 311
Air conditioning filter ............ 313
Electronic key battery........... 316
Checking and replacing fuses ......................................... 318
Headlight aim ......................... 332
Light bulbs ................................ 334

277
4-3. Do-it-yourself maintenance
4
Maintenance and care
ItemsPa r t s a n d t o o l s
Engine oil level (P. 2 8 4 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used only for adding engine oil)
Fuses ( P. 3 1 8 )• Fuse with same amperage rating as
original
Headlight aim ( P. 3 3 2 )• Phillips-head screwdriver
Radiator and condenser (P. 2 9 0 )
Tire inflation pressure ( P. 3 0 7 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 2 9 5 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

318
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Engine compartment (type B): Remove the engine compart-
ment cover. ( P. 283)
Open the fuse box cover.
Engine compartment (type A)
Push the tabs in and lift the lid
off.
Engine compartment (type B) Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

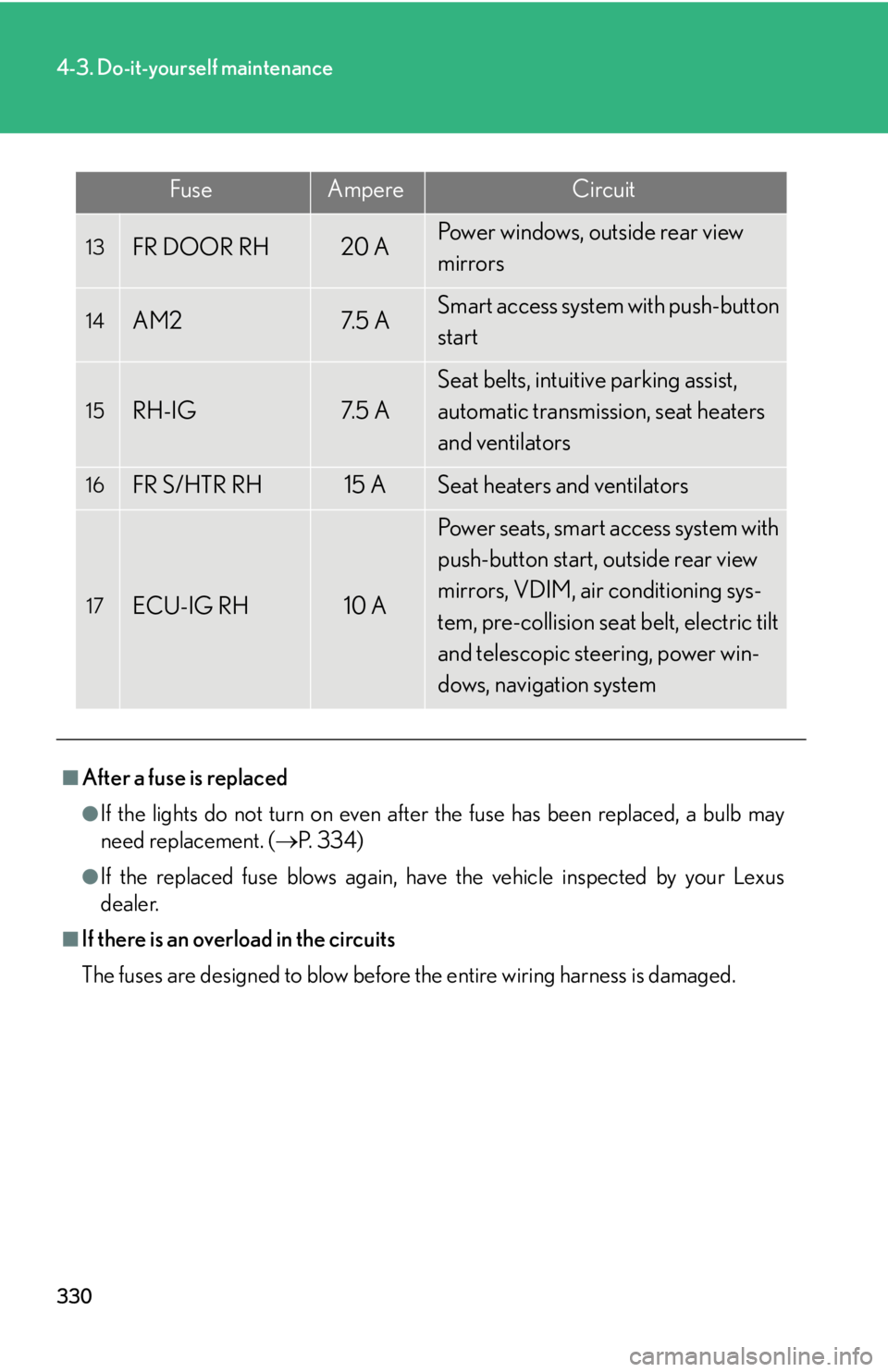

330
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heaters
and ventilators
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, outside rear view
mirrors, VDIM, air conditioning sys-
tem, pre-collision seat belt, electric tilt
and telescopic steering, power win-
dows, navigation system
■After a fuse is replaced
●If the lights do not turn on even afte r the fuse has been replaced, a bulb may
need replacement. ( P. 3 3 4 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

331
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.

442
Alphabetical index
First-aid kit storage belt ...................... 251
Floor mat ..................................................250
FluidBrake........................................................290
Washer ................................................... 295
Fog lights Switch ........................................................ 142
Wattage................................................. 408
Foot well lights ....................................... 223
Front fog lights Switch ........................................................ 142
Wattage................................................. 408
Front passenger occupant classification system ........................... 88
Front passenger's seat belt
reminder light......................................353
Front seats Adjustment............................................... 44
Driving position memory.................. 45
Seat position memory ........................ 48
Front turn signal lights Switch ........................................................ 126
Wattage................................................. 408
Fuel Capacity .................................................. 401
Fuel gauge ..............................................128
Fuel pump shut off system ............ 347
Gas station information.................. 452
Information............................................409
Refueling ................................................... 67
Fuel door ..................................................... 67
Fuel filler door ........................................... 67
Fuel pump shut off system ................. 347
Fuses ........................................................... 318 Garage door opener .......................... 254
Gas station information ..................... 452
Gauges ...................................................... 128
Glove box .................................................227
Glove box light ...................................... 228
Head restraints
Adjusting ................................................. 50
Headlight aim......................................... 332
Headlight cleaner...................................146
Headlights Discharge headlights precautions ....................................... 338
Replacing light bulbs ....................... 334
Switch ........................................................ 139
Wattage ................................................. 408
Heaters Seat heaters .............................. 242, 244
Side mirrors............................................ 194
Hill-start assist control ..........................166
Hood .......................................................... 279
Hooks Cargo........................................................ 251
Coat ..........................................................249
Shopping bag ....................................... 251FG
H

444
Alphabetical index
Odometer................................................. 128
OilEngine oil ............................................... 284
Opener Fuel filler door......................................... 67
Hood........................................................ 279
Trunk ............................................................. 41
Outer foot lights Outer foot lights ................................. 223
Wattage................................................. 408
Outside rear view mirrors Adjusting and folding ......................... 60
Mirror position memory ................... 45
Outside temperature display............ 136
Overhead console ............................... 229
Overhead courtesy lights Overhead courtesy lights ............. 223
Wattage................................................. 408
Overheating, Engine...........................392
Parking assist sensors .......................... 160
Parking brake ...........................................127
Parking lights
Replacing light bulbs........................ 334
Switch ........................................................139
Wattage................................................. 408
PCS ............................................................. 173
Personal lights Switch ...................................................... 225
Power outlet............................................. 241
Power windows ........................................ 62
Pre-collision system.............................. 173 Radar cruise control............................. 150
Radiator .................................................... 290
Radio........................................................... 198
RDS ..............................................................199
Rear turn signal lights
Replacing light bulbs ....................... 334
Wattage ................................................. 408
Rear view mirror Compass ............................................... 259
Rear window defogger ........................194
Replacing Electronic key battery ....................... 316
Fuses .......................................................... 318
Light bulbs ............................................ 334
Reporting safety defects for U.S. owners.......................................... 432
Seat belts Adjusting the seat belt ........................52
Automatic locking retractor ............53
Child restraint system installation ..............................................96
Cleaning and maintaining
the seat belts .................................... 268
Emergency locking retractor..........53
How to wear your seat belt .............. 51
How your child should wear the seat belt...........................................54
Pregnant women, proper seat belt use .........................53
Reminder light..................................... 353
Seat belt extenders...............................54
Seat belt pretensioners ......................52O
