2008 Lexus GX470 Operating the lights and windshield wipers / LEXUS 2008 GX470 OWNER'S MANUAL (OM60D82U)

121
2-1. Driving procedures
2
When driving
Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the engine switch is in the “ON” position, depress the
brake pedal and move the shift lever.
■ Shift position uses
*: To improve fuel consumption and reduce noises, set the shift lever in the
“D” position for normal driving.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*
4Position for moderate engine braking
3, 2Position for more powerful engine braking
LPosition for maximum engine braking

122
2-1. Driving procedures

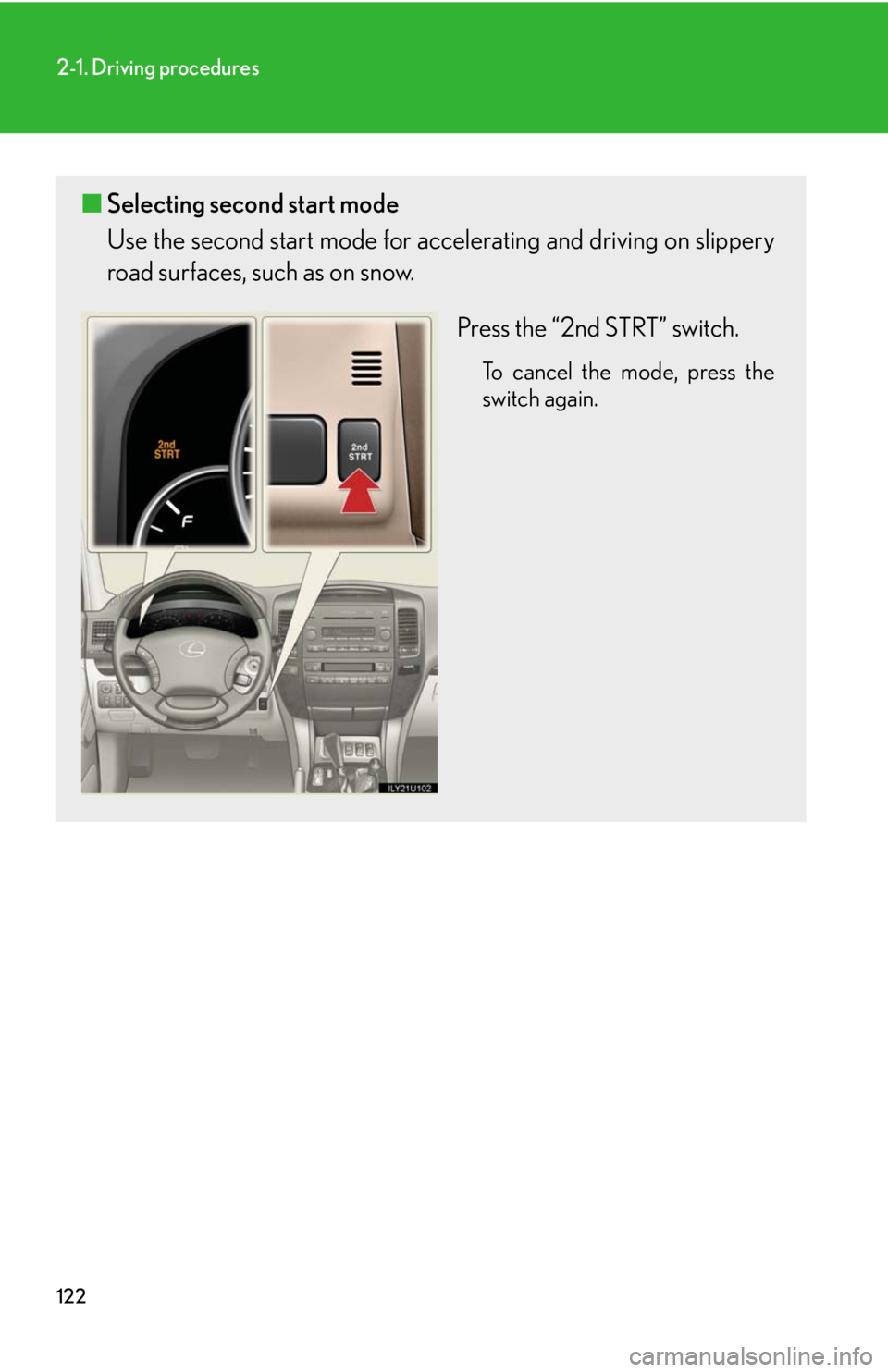

■Selecting second start mode
Use the second start mode for a ccelerating and driving on slippery
road surfaces, such as on snow.
Press the “2nd STRT” switch.
To cancel the mode, press the
switch again.

123
2-1. Driving procedures
2
When driving
■Downshifting restrictions
Keep the engine rpm from going into the red zone. The maximum allowable speed
is as follows:
■When driving with the cruise control system
The engine brake will not operate when downshifting from “D” to “4”. (P. 1 4 2 )
■If the shift lever cannot be shifted from “P”
P. 4 0 3
DownshiftingTr a n s f e r p o s i t i o nMaximum speed
mph (km/h)
4 3“H”86 (139)
“L”33 (54)
3 2“H”58 (94)
“L”22 (36)
2 L“H”24 (40)
“L”9 (15)

124
2-1. Driving procedures
Turn signal lever
■Turn signals can be operated when
The engine switch is in the “ON” position.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.

125
2-1. Driving procedures
2
When driving
Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
Sets the parking brake
Fully set the parking brake while depressing the brake pedal
Releases the parking brake
CanadaU.S.A.

126
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the target
region.

The following gauges and meters illuminate when the engine switch is
in the “ON” position.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer/trip meter and trip meter reset knob
Switches between odometer and trip meter displays. Pushing and holding
the knob will reset the trip meter when the trip meter is being displayed.

127
2-2. Instrument cluster
2
When drivingInstrument panel light controlThe brightness of the instrument panel lights can be adjusted. Brighter
Darker
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

128
2-2. Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediatel y stop the vehicle in a safe place, and
check the engine after it has cooled completely. ( P. 4 0 8 )
