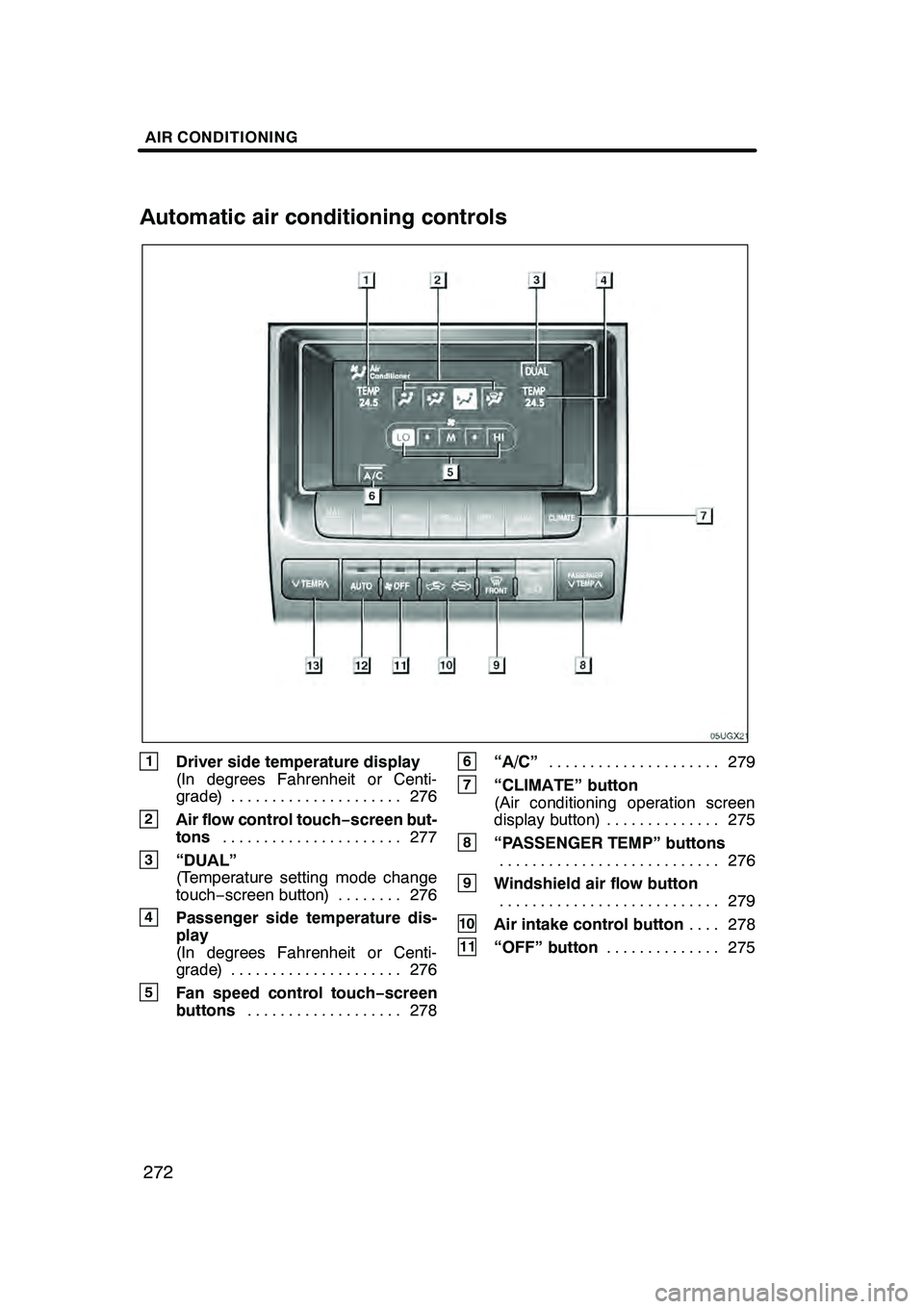

AIR CONDITIONING
272
1Driver side temperature display
(In degrees Fahrenheit or Centi-
grade) 276.....................
2Air flow control touch −screen but-
tons 277
......................
3“DUAL”
(Temperature setting mode change
touch− screen button) 276 ........
4Passenger side temperature dis-
play
(In degrees Fahrenheit or Centi-
grade) 276.....................
5Fan speed control touch− screen
buttons 278
...................
6“A/C” 279
.....................
7“CLIMATE” button
(Air conditioning operation screen
display button) 275 ..............
8“PASSENGER TEMP” buttons
276
...........................
9Windshield air flow button
279
...........................
10Air intake control button 278
....
11“OFF” button 275
..............
GX470_Navi_U (OM60D58U) 07/06/16
Automatic air conditioning controls
AIR CONDITIONING
275
The automatic air conditioning auto-
matically maintains the set tempera-
ture.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off the air
conditioning according to the temperature.
The ignition switch must be in the “ON”
position.
“CLIMATE”: Push this button to display
touch− screen buttons for automatic air
conditioning controls.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condi-
tioning on longer than necessary
when the engine is not running.
(a) Climate control
SETTING OPERATION −automatic con-
trol
1. Push the “AUTO” button.
An indicator light will illuminate to show
that the automatic operation mode has
been selected.
Air flow quantity, switching of the diffusers,
on− off of the air conditioning and switching
of the air intake between RECIRCULATED
AIR and OUTSIDE AIR are automatically
adjusted. When you push the “AUTO”
button with the air intake mode at OUT-
SIDE AIR, internal circulation may be ap-
plied for maximum cooling. The operation
status is shown by each indicator and dis-
play.
When one of the manual control buttons is
depressed while operating in automatic
mode, the operation corresponding to the
depressed button is set. Other conditions
continue to be adjusted automatically.
Push the “OFF”button to turn the air
conditioning system off.
GX470_Navi_U (OM60D58U) 07/06/16
INDEX
306
Numbers/Symbols
? button
38, 84, 85
.....................
3 Routes selection 61
..................
A
A/C button 272, 277
....................
Adding a memo 122
...................
Adding destinations 70
.................
Adding the data to the phone book 155 ...................
Address button 38 .....................
Air flow control touch −screen
buttons 272, 277 .......................
Air intake control button 272, 277 ........
Alphabet key 24 .......................
Angle mark 230, 252 ...................
Area to avoid 99 ......................
Arrow screen 32, 66 ...................
Audio / video system
operating hints 262 ...................
Audio language 229, 252 ...............
Audio/video remote controls 260 .........
Auto answer 150 ......................
AUTO button 272, 275 ..................
Auto voice guidance 85, 111 ............
Automatic air conditioning controls 272 ...
Automatic transition 179 ................
Automatic volume settings for
high speed 148 ......................
B
Beep setting 181
......................
Bluetooth rconnection status 150 .......
Brightness 176
........................
Building information 35
.................
C
Calendar with memo 120
...............
Calibration 85 .........................
Call by speed dial 136 .................
Call by voice recognition 136 ............
Cassette tape player operation 204 ......
Categories 49 .........................
CAUTION screen 22 ...................
Change “Area Size” 102 ................
Change “Icon” 94 ......................
Change “Location” 96, 102 ..............
Change “Name” 96, 101 ................
Change “Phone #” 97 ..................
Change “Quick Access” 95 .............
Change button 38 ..................... Change the route 61
...................
Changing a device name 169 ...........
Changing the angle 228, 251 ............
Changing the audio format 228 ..........
Changing the audio language 227, 250 ...................
Changing the Bluetooth rsettings 169 ....
Changing the security code 164 .........
Changing the still picture 226 ...........
Changing the subtitle language 227, 250 ...................
City center 50 .........................
City name 45, 48 ......................
City to search 45, 48 ...................
CLIMATE button 272 ...................
Climate control 275 ....................
Color 176 ............................
Command list 175 .....................
Compass mode 34 ....................
Compass mode screen 32 ..............
Contrast 176 ..........................
Coordinates button 38 .................
Current position as the search point 51 ...................
Current position display 28 .............
Current position/tire change calibration 112 .......................
Cursor position as a destination 29 ......
Cursor position as a memory point 29 ....
D
Dealer setting 118
.....................
Default 85
............................
Del. Dest button 38
....................
Delete personal data 180
...............
Deleting “Quick Access” 95 .............
Deleting a Bluetooth rphone 171 ........
Deleting a group name 161 .............
Deleting all of the speed dial 144 ........
Deleting all the group name 162 .........
Deleting all the phone data 158 ..........
Deleting all the speed tone 147 ..........
Deleting area to avoid 103 ..............
Deleting destinations 71 ................
Deleting home 99 .....................
Deleting memory points 97 .............
Deleting previous points 55, 103 .........
Deleting set destinations 58 .............
Deleting the phone data 157 ............
Deleting the speed dial individually 143 ......................
Deleting the speed tone individually 146 ......................
DEST button 10, 39 ....................
Destination information 31 ..............
Destination screen 38 ..................
GX470_Navi_U (OM60D80U) 07/08/09
