2008 Lexus GS350 warning light

TABLE OF CONTENTSIndex
2
GS_G_U
June 19, 2008 12:54 pm
1-1. Key information ........................... 20Keys ...................................................... 20
1-2. Opening, closing and locking the doors and trunk .................. 22
Smart access system with push-button start .......................... 22
Wireless remote control .............. 34
Doors.................................................... 37
Trunk..................................................... 42
1-3. Adjustable components (seats, mirrors,
steering wheel) .......................... 45
Front seats .......................................... 45
Driving position memory system ............................................... 47
Head restraints.................................. 51
Seat belts ............................................ 53
Steering wheel.................................. 60
Inside rear view mirror................... 61
Outside rear view mirrors ........... 62
1-4. Opening and closing the windows and moon roof .......... 64
Power windows................................ 64
Moon roof .......................................... 67 1-5. Refueling ........................................ 70
Opening the fuel tank cap........... 70
1-6. Theft deterrent system............... 73 Immobilizer system ........................ 73
Alarm.................................................... 75
Theft prevention labels (U.S.A.) ............................................. 77
1-7. Safety information ....................... 78 Correct driving posture ............... 78
SRS airbags ...................................... 80
Front passenger occupant classification system .................... 92
Child restraint systems ................. 98
Installing child restraints ............. 102
2-1. Driving procedures.................... 112 Driving the vehicle .......................... 112
Engine (ignition) switch ................ 121
Automatic transmission.............. 125
Turn signal lever............................. 130
Parking brake ................................... 131
2-2. Instrument cluster ..................... 132 Gauges and meters ..................... 132
Indicators and warning lights................................................. 136
Multi-information display........... 139
1Before driving
2When driving
GS_U_G.book Page 2 Thursday, June 19, 2008 12:54 PM

1
2
3
4
5
6
7
5
GS_G_U
June 19, 2008 12:54 pm
5-1. Essential information .............. 478If your vehicle needs to be towed .................................. 478
If you think something is wrong ............................................. 484
Fuel pump shut off system ....... 485
Event data recorder ................... 486
5-2. Steps to take in an emergency .............................. 488
If a warning light turns on or a warning buzzer sounds... ...... 488
If a warning message is displayed....................................... 497
If you have a flat tire (Vehicles with standard tires) .................... 512
If you have a flat tire (Vehicles with run-flat tires) ...................... 522
If the engine will not start .......... 523
If the shift lever cannot be shifted from “P” .......................... 524
If you lose your keys .................... 525
If the electronic key does not operate properly ....................... 526
If the 12 volt battery is discharged ................................... 529
If your vehicle overheats .......... 533
If the vehicle becomes stuck................................................ 536 6-1. Specifications............................ 540
Maintenance data (fuel, oil level, etc.).................... 540
Fuel information........................... 553
Tire information ............................ 556
6-2. Customization .......................... 569 Customizable features .............. 569
6-3. Initialization ............................... 575 Items to initialize ........................... 575
Reporting safety defects for U.S. owners.................................. 578
Seat belt instructions for Canadian owners
(in French) .................................... 579
Abbreviation list ....................... 582
Alphabetical index................... 584
What to do if............................... 594
5When trouble arises6Vehicle specifications
7For owners
Index
GS_U_G.book Page 5 Thursday, June 19, 2008 12:54 PM

81
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
Airbag system components
Occupant detection system
(ECU and sensors)
Front passenger’s seat belt
buckle switch
Knee airbag
Front passenger airbag
Curtain shield airbag
Front side airbag
Side and curtain shield airbag
sensorCurtain shield and rear side
airbag sensor
SRS warning light
Rear side airbag (if equipped)
Driver airbag
Driver’s seat belt buckle switch
Driver’s seat position sensor
“A I R B A G O N ” a n d “A I R B A G
OFF” indicator lights
Airbag sensor assembly
Front airbag sensor
Curtain shield airbag
Can help protect primarily the head of front occupants and rear out-
board occupants.
GS_U_G.book Page 81 Thursday, June 19, 2008 12:54 PM

92
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm

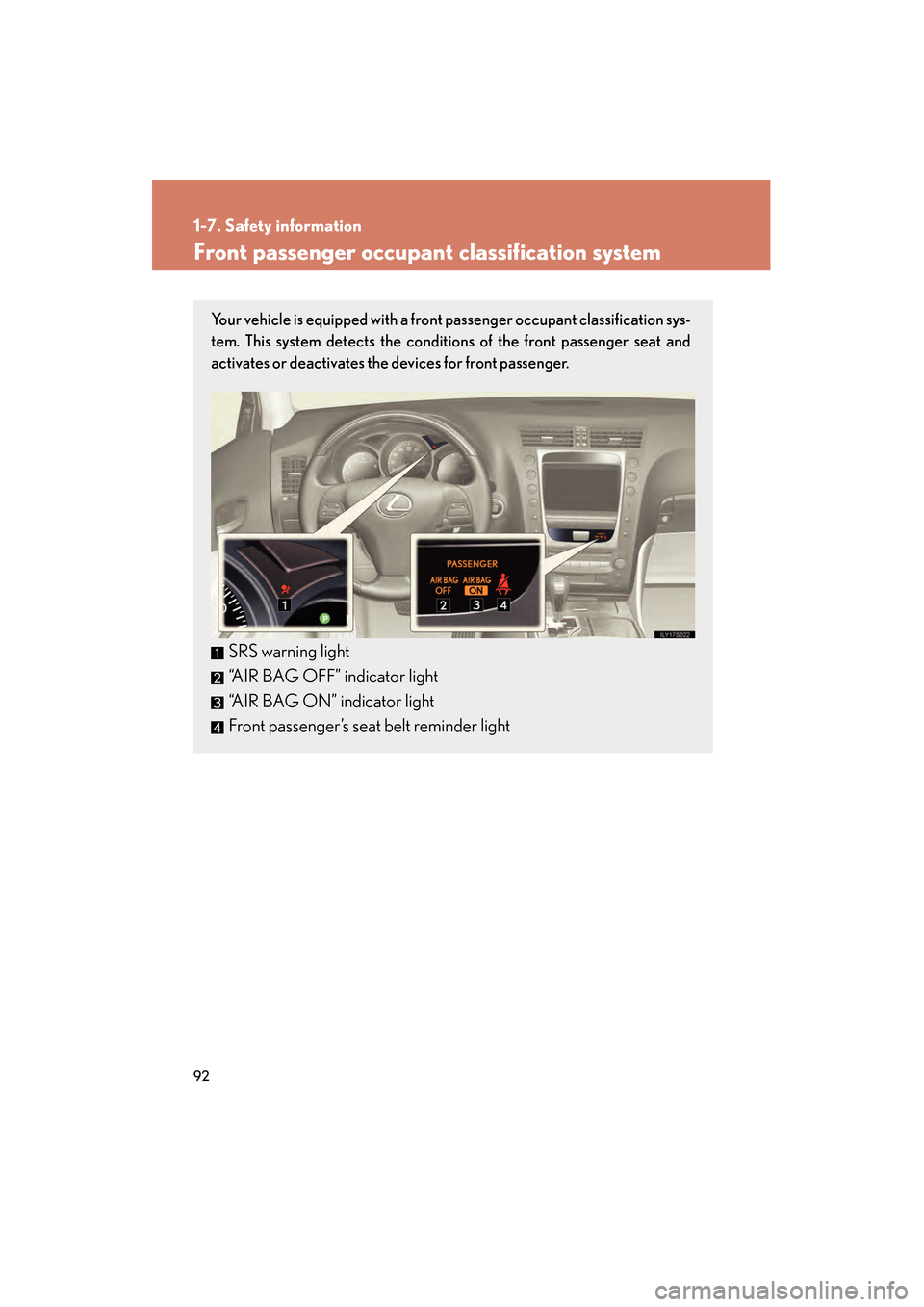

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for front passenger.
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Front passenger’s seat belt reminder light
GS_U_G.book Page 92 Thursday, June 19, 2008 12:54 PM

93
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
Condition and operation in the front passenger occupant classification system
■Adult*1
■Child*3 or child restraint system*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag and knee airbag
Activated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag and knee airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner
GS_U_G.book Page 93 Thursday, June 19, 2008 12:54 PM

94
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm
■Unoccupied
■ System malfunction
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illumi-
nated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag and knee airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner Deactivated
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag and knee airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner
GS_U_G.book Page 94 Thursday, June 19, 2008 12:54 PM

97
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■Front passenger occupant classification system precautions
●If an adult sits in the front passenger seat, the “AIR BAG ON” indicator light is illu-
minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the “AIR BAG OFF” indicator still remain illuminated, either ask the pas-
senger to move to the rear seat, or if that is not possible, move the front passenger
seat fully rearward.
●When it is unavoidable to install a forward-facing child restraint system on the
front passenger seat, install the child restraint system on the front passenger seat
in the proper order. (→P. 1 0 2 )
●Do not modify or remove the front seat.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction in the detection sys-
tem. In this case, contact your Lexus dealer immediately.
●Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.
●Child restraint systems installed on the rear seat should not contact the front seat-
backs.
GS_U_G.book Page 97 Thursday, June 19, 2008 12:54 PM

When driving2
111
GS_G_U
June 19, 2008 12:54 pm
2-1. Driving procedures ........ 112Driving the vehicle................... 112
Engine (ignition) switch .......... 121
Automatic transmission ........ 125
Turn signal lever ....................... 130
Parking brake ............................ 131
2-2. Instrument cluster .......... 132 Gauges and meters ................ 132
Indicators and warning lights ......................................... 136
Multi-information display ..... 139 2-3. Operating the lights and
windshield wipers ........ 142
Headlight switch ..................... 142
Fog light switch ........................ 145
Windshield wipers and washer ..................................... 146
Headlight cleaner switch ..... 149
2-4. Using other driving systems .......................... 150
Cruise control.......................... 150
Dynamic radar cruise control ..................................... 153
Intuitive parking assist ........... 164
Rear view monitor system ....................................... 179
AVS (Adaptive Variable Suspension System) ............ 183
Driving assist systems ............ 184
PCS (Pre-Collision System) ................................... 190
2-5. Driving information........ 194 Cargo and luggage ................ 194
Vehicle load limits ................... 198
Winter driving tips .................. 199
Trailer towing .......................... 204
Dinghy towing......................... 205
GS_U_G.book Page 111 Thursday, June 19, 2008 12:54 PM
