2008 Lexus GS350 warning light

508
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning message and light turn off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once(Comes on for 10 seconds.)
(Flashing)
The electronic key
is not detected
when attempting
to start the
engine.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode.
Confirm the
location of
the elec-
tronic key.
GS_U_G.book Page 508 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
513
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(→ P. 5 5 0 )
■Tr e a d l i f e
The compact spare tire can be used many times, if necessary. It has tread life of up
to 3000 miles (4800 km) depending on road conditions and your driving habits.
When treadwear indicators appear on the tire, replace the tire. ( →P. 4 2 1 )
■When using the compact spare tire
As the spare tire is not equipped with the tire pressure warning valve and transmit-
ter, low inflation pressure of the spare tire will not be warned. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light remains
on.

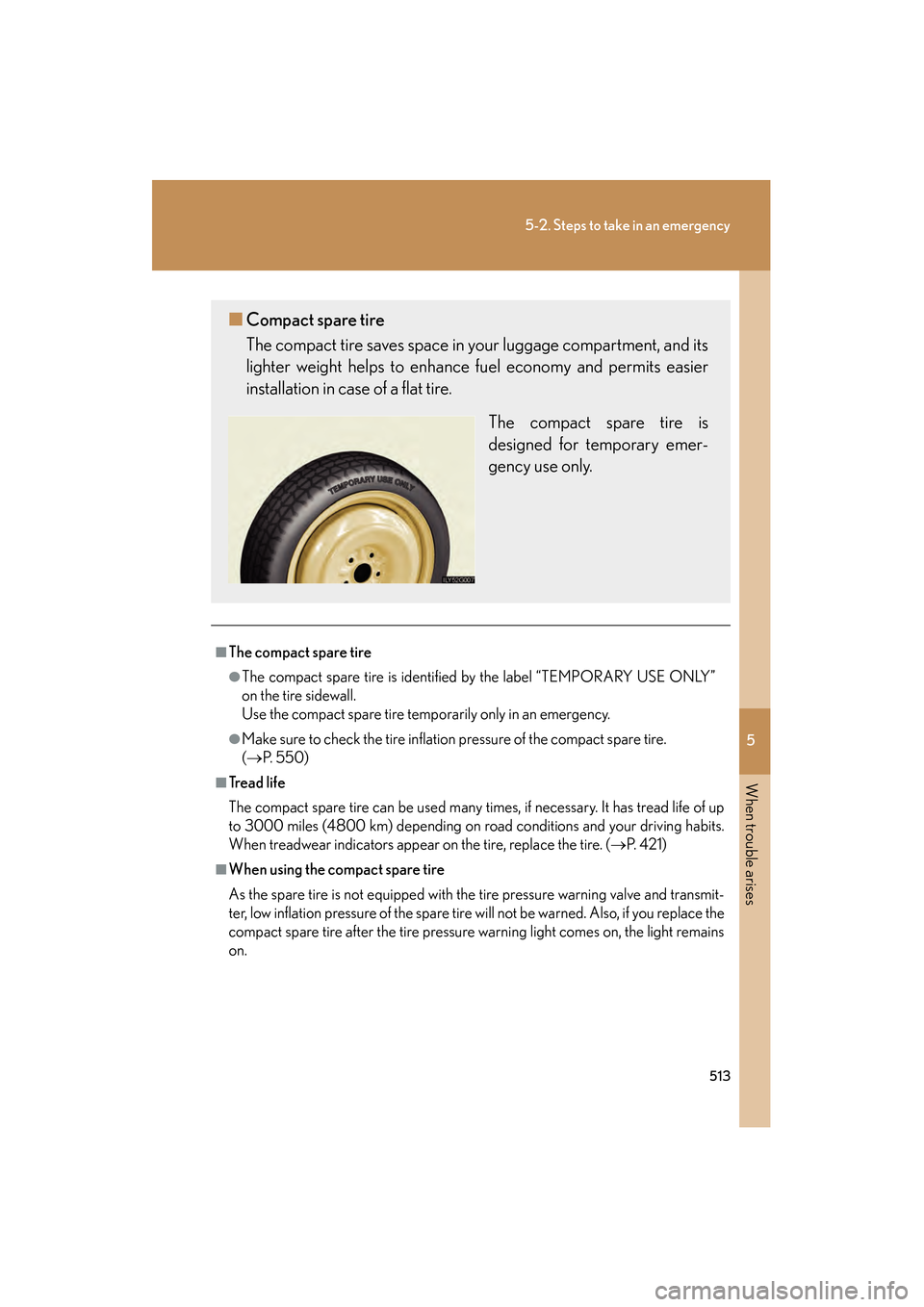

■Compact spare tire
The compact tire saves space in your luggage compartment, and its
lighter weight helps to enhance fuel economy and permits easier
installation in case of a flat tire.
The compact spare tire is
designed for temporary emer-
gency use only.
GS_U_G.book Page 513 Thursday, June 19, 2008 12:54 PM

522
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
If you have a flat tire (Vehicles with run-flat tires)
■In some condition (such as at high temperatures)
You can not continue driving for up to 100 miles (160 km).
■If you cannot distinguish between the standard tires and run-flat tires
Consult your Lexus dealer.
■For the detailed information on run-flat tires
See the tire warranty book.
NOTICE
■When replacing the tires
Have the tires replaced by the nearest Lexus dealer or authorized tire dealer. The
tire pressure warning valves and transmitters will be affected by the installation or
removal of tires.
■To avoid damaging the tire pressure warning valves and transmitters
Do not use liquid sealants on flat tires.
Take your vehicle to the nearest Lexus dealer or authorized tire dealer as
soon as possible.
■ Run-flat tires (A “RFT” or “DSST” mark is molded on the sidewall)
You can continue driving a vehi-
cle with run-flat tires even if any
tire goes flat.
It is able to run for a maximum of
100 miles (160 km) at a speed
below 55 mph (90 km/h) after
the tire pressure warning light
comes on. ( →P. 4 9 0 )
GS_U_G.book Page 522 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
531
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
■Starting the engine when the 12 volt battery is discharged
The engine cannot be started by push-starting.
■To prevent 12 volt battery discharge
●Turn off the headlights and the audio system while the engine is turned off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the 12 volt battery is removed or discharged
The following systems must be initialized.
●Tire pressure warning system (→P. 422)
●Intuitive parking assist (→P. 5 0 7 )
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Maintain the engine speed on the second vehicle and turn the
“ENGINE START STOP” switch to the IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP5
STEP6
GS_U_G.book Page 531 Thursday, June 19, 2008 12:54 PM

584
GS_G_U
June 19, 2008 12:54 pm
Alphabetical index
Alphabetical index
A/C ..............................................................217
ABS.............................................................. 184
ACCESSORY mode .......................... 122
Active stabilizer suspension system...................................................... 184
Adaptive variable
suspension system ............................. 183
Air conditioning system
Air conditioning filter ....................... 437
Automatic air conditioning system .................................................... 217
Airbags
Airbag operating conditions........... 83
Airbag precautions for your child............................................... 87
Airbag warning light ........................489
Curtain shield airbag precautions .......................................... 90
General airbag precautions ........... 87
Locations of airbags............................80
Modification and disposal of airbags ...................................................... 91
Proper driving posture ...................... 78
Side airbag precautions .................... 87
Side and curtain shield airbags operating conditions ....................... 83
SRS airbags .............................................80
Alarm ............................................................ 75
Antenna ....................................................235
Anti-lock brake system ....................... 184
Armrest.....................................................356
Ashtrays ..................................................... 351 Audio system
Antenna.................................................. 235
AUX adapter .......................................287
Cassette player .................................. 238
CD player/changer .......................... 242
DVD information ...............................270
DVD player/changer ....................... 251
DVD video/audio............................. 254
MP3/WMA disc................................ 247
Optimal use ......................................... 282
Radio ........................................................229
Steering switches .............................. 288
Video CD ............................................. 266
Automatic headlight leveling
system ......................................................144
Automatic light control system.........142
Automatic transmission If the shift lever cannot be
shifted from “P” ............................... 524
Mode select switch ............................ 126
S mode ......................................................127
AUX adapter ......................................... 287
Back-up lights
Wattage ................................................. 552
Battery
12 volt battery ........................................ 417
Checking................................................. 417
If the 12 volt battery is discharged ........................................ 529
Preparing and checking before winter...................................... 199
Bluetooth
®.............................................. 296
A
B
GS_U_G.book Page 584 Thursday, June 19, 2008 12:54 PM

585
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
BrakeFluid ............................................................ 416
Parking brake ..........................................131
Brake assist ............................................... 184
Care
Exterior ...................................................388
Interior.......................................................391
Seat belts ............................................... 392
Cargo capacity ....................................... 194
Cargo hooks .......................................... 360
CD player/changer .............................242
Chains....................................................... 200
Child-protectors ..................................... 38
Child restraint system Definition................................................... 98
Installation................................................ 102
Installing CRS with lower
anchors .................................................106
Installing CRS with seatbelts .........103
Installing CRS with top straps ....... 107
Child safety
Airbag precautions ............................. 87
Battery precautions................419, 532
Child restraint system ........................ 98
Child-protectors................................... 38
How your child should wear the seatbelt ........................................... 56
Installing child restraints ................... 102
Moon roof precautions ..................... 69
Power window lock switch ..............64
Power window precautions.............64
Removed electronic key battery precautions ......................................... 441
Seat belt comfort guide..................... 54
Seat belt precautions...........................57 Seat heater precautions................ 355
Trunk precautions................................. 44
Cigarette lighter....................................352
Cleaning Exterior................................................... 388
Interior ...................................................... 391
Seat belts ................................................392
Clock ......................................................... 349
Coin holder .............................................345
Compass .................................................. 369
Condenser ............................................... 415
Console box ........................................... 342
Cooling system Engine overheating.......................... 533
Cruise control Cruise control....................................... 150
Dynamic radar cruise control....... 153
Cup holders ............................................345
Curtain shield airbags........................... 80
Customizable features .......................569
Daytime running light system ........... 143
Defogger Rear window ........................................ 225
Side mirror............................................. 225
Dimension................................................540
Dinghy towing ........................................205
Display
Multi-information display ................ 139
Touch screen ...................................... 208
Trip information ................................... 140
Warning message............................. 497
Do-it-yourself maintenance ............ 400
Door courtesy lights ............................ 337
Door pocket............................................ 346
C
D
GS_U_G.book Page 585 Thursday, June 19, 2008 12:54 PM

586
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
DoorsDoor lock................................. 22, 34, 37
Rear door child protector ................ 38
Driver’s seat belt reminder light .....490
Driver’s seat position memory ........... 47
Driving
Correct posture .................................... 78
Procedures ...............................................112
DVD player/changer........................... 251
Electric power steering ....................... 184
Electronic key If the electronic key does not operate properly .................... 526
Replacing battery .............................. 440
Emergency, in case of
If a warning light turns on ............. 488
If a warning message is displayed ............................................ 497
If the electronic key does
not operate properly .................... 526
If the engine will not
start ........................................................ 523
If the shift lever cannot be
shifted from “P”................................ 524
If the 12 volt battery is
discharged ....................................... 529
If you have a flat tire ...............512, 522
If you lose your keys......................... 525
If you think something is
wrong ................................................... 484
If your vehicle becomes stuck.....536
If your vehicle needs to be towed ................................................... 478
If your vehicle overheats ................533 Engine
ACCESSORY mode........................122
Compartment ..................................... 406
Engine (ignition) switch...................... 121
Hood ....................................................... 403
How to start the engine ..................... 121
If the engine will not start ............... 523
Overheating ........................................ 533
Engine compartment cover .............408
Engine coolant temperature gauge .......................................................132
Engine coolant
Capacity ................................................ 546
Checking................................................. 414
Preparing and checking before winter...................................... 199
Engine oil Capacity ................................................ 544
Checking............................................... 409
Preparing and checking
before winter...................................... 199
Engine oil maintenance data .............412
Engine (ignition) switch......................... 121
Event data recorder ............................ 486
First-aid kit storage belt .....................360
Floor mats ................................................ 359
Fluid
Brake ......................................................... 416
Washer................................................... 420
Fog lights Switch ........................................................ 145
Wattage ................................................. 552
Foot light .................................................. 337
E
F
GS_U_G.book Page 586 Thursday, June 19, 2008 12:54 PM

590
Alphabetical index
GS_G_U
June 19, 2008 12:54 pm
Smart access system with push-button start
Antenna location....................................24
Entry function...........................................22
Starting the engine ................................ 121
Spare tire
Inflation pressure............................... 550
Spare tire..................................................513
Spark plug ................................................546
Specifications ........................................ 540
Speedometer........................................... 132
Steering wheel Adjustment............................................... 60
Audio switches ...................................288
Steering wheel position memory...................................................47
Storage compartment ........................ 344
Storage feature......................................340
Stuck If your vehicle becomes stuck.....536
Sun visors ................................................. 347
Switch “ENGINE START STOP” switch ....................................................... 121
Fog light switch.....................................145
Ignition switch..........................................121
Light switches ........................................ 142
Mode select switch............................. 126
Power door lock switch .....................37
Power window switch ........................ 64
Tire pressure warning reset switch ....................................... 422
Tire pressure warning select switch ................... 424
Window lock switch ........................... 64
Wipers and washer switch ............. 146 Tachometer ..............................................132
Tail lights
Switch ........................................................ 142
Theft deterrent system
Alarm...........................................................75
Immobilizer system .............................. 73
Theft prevention labels...........................77
Tire inflation pressure .........................550
Tire information Glossary ................................................ 562
Size ........................................................... 559
Tire identification number .............558
Uniform Tire Quality Grading ... 560
Tires
Chains..................................................... 200
Checking................................................. 421
Compact spare tire............................ 513
If you have a flat tire ............... 512, 522
Inflation pressure ...............................550
Information ........................................... 556
Replacing ................................................ 512
Rotating tires.......................................... 421
Size ........................................................... 550
Snow tires.............................................. 202
Tire pressure warning system....... 421
Tools.............................................................512
Total load capacity ................................ 198
Touch screen..........................................208
Towing Dinghy towing .................................... 205
Emergency towing ........................... 478
Trailer towing ...................................... 204
Traction control...................................... 184
Trip meter ..................................................132T
GS_U_G.book Page 590 Thursday, June 19, 2008 12:54 PM
