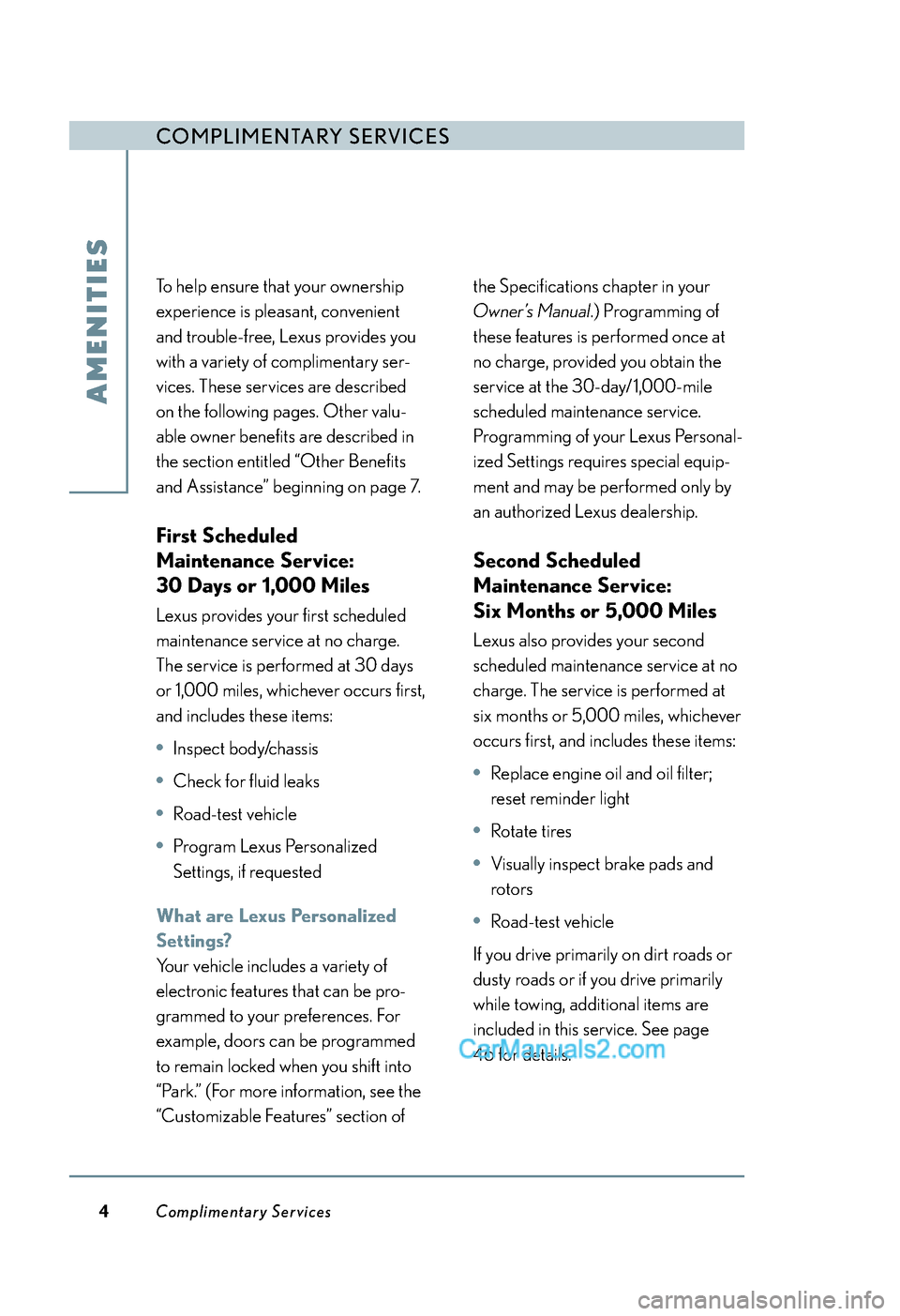

COMPLIMENTARY SERVICES
To help ensure that your ownership
experience is pleasant, convenient
and trouble-free, Lexus provides you
with a variety of complimentary ser-
vices. These services are described
on the following pages. Other valu-
able owner benefits are described in
the section entitled “Other Benefits
and Assistance” beginning on page 7.
First Scheduled
Maintenance Service:
30 Days or 1,000 Miles
Lexus provides your first scheduled
maintenance service at no charge.
The service is performed at 30 days
or 1,000 miles, whichever occurs first,
and includes these items:
• Inspect body/chassis
• Check for fluid leaks
• Road-test vehicle
• Program Lexus Personalized
Settings, if requested
What are Lexus Personalized
Settings?
Your vehicle includes a variety of
electronic features that can be pro-
grammed to your preferences. For
example, doors can be programmed
to remain locked when you shift into
“Park.” (For more information, see the
“Customizable Features” section of the Specifications chapter in your
Owner’s Manual
.) Programming of
these features is performed once at
no charge, provided you obtain the
service at the 30-day/1,000-mile
scheduled maintenance service.
Programming of your Lexus Personal-
ized Settings requires special equip-
ment and may be performed only by
an authorized Lexus dealership.
Second Scheduled
Maintenance Service:
Six Months or 5,000 Miles
Lexus also provides your second
scheduled maintenance service at no
charge. The service is performed at
six months or 5,000 miles, whichever
occurs first, and includes these items:
• Replace engine oil and oil filter;
reset reminder light
• Rotate tires
• Visually inspect brake pads and
rotors
• Road-test vehicle
If you drive primarily on dirt roads or
dusty roads or if you drive primarily
while towing, additional items are
included in this service. See page
46 for details.
Complimentary Services
4
AMENITIES
Lexus sedans-001_008h.cgla 7/3/07 7:17 PM Page 4

Basic Warranty
This warranty covers repairs and
adjustments needed to correct
defects in materials or workmanship
of any part supplied by Lexus, subject
to the exceptions indicated under
“What Is Not Covered” on pages
19–20.
Coverage is for 48 months or
50,000 miles, whichever occurs first,
with the exception of wheel alignment
and wheel balancing, which are cov-
ered for 12 months or 20,000 miles,
whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed
to correct defects in materials or
workmanship of any component listed
here and supplied by Lexus, subject to
the exceptions indicated under “What
Is Not Covered” on pages 19–20.
Coverage is for 72 months or
70,000 miles, whichever occurs first.
Engine
Cylinder block and head and all
internal parts, timing belt and cover,
flywheel, oil pan, water pump, fuel
pump, engine mounts, engine control
computer, seals and gaskets. Transmission and Transaxle
Case and all internal parts, torque
converter, clutch cover, mounts,
engine control computer, seals and
gaskets.
Front-Wheel-Drive System
Drive shaft, axle, hub, bearings, seals
and gaskets.
Rear-Wheel-Drive System
Differential carrier assembly, drive
shaft, axle carrier, axle case, axle
bearing, axle shaft, seals and gaskets.
Restraint Systems Warranty
This warranty covers repairs needed
to correct defects in materials or
workmanship of any seatbelt or air
bag system supplied by Lexus, subject
to the exceptions indicated under
“What Is Not Covered” on pages
19–20.
Coverage is for 72 months or
70,000 miles, whichever occurs first.
For vehicles sold and registered in
Kansas, the warranty for seatbelts and
related components is 10 years,
regardless of mileage.
WHAT IS COVERED
AND HOW LONG
Your Warranties in Detail
18
NEW VEHICLE LIMITED WARRANTY
WARRANTY
Lexus sedans-009_038.cgla 7/3/07 7:28 PM Page 18

This warranty also does not cover the
following:
Tires
Tires are covered by a separate war-
ranty provided by the tire manufac-
turer. See page 34.
Normal Wear and Tear
Noise, vibration, cosmetic conditions
and other deterioration caused by
normal wear and tear.
Maintenance Expense*
Normal maintenance services such
as engine tune-ups; replacement of
fluids and filters; lubrication; cleaning
and polishing; replacement of spark
plugs and fuses; and replacement of
worn wiper blades, brake pads/linings
and clutch linings.
Vehicles With Altered Odometer
Failure of a vehicle on which the
odometer has been altered so that
actual vehicle mileage cannot be
readily determined. Vehicles With Unknown Vehicle
Identification Number
Any vehicle for which the original
factory-assigned vehicle identification
number cannot be determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued
a “salvage” title or similar title under
any state’s law; or has ever been
declared a “total loss” or equivalent
by a financial institution or insurer,
such as by payment for a claim in lieu
of repairs because the cost of repairs
exceeded the cash value of the vehi-
cle. This exclusion does not apply to
the emission control warranties.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited
to inconvenience; the cost of trans-
portation, telephone calls and lodg-
ing; the loss of personal or commer-
cial property; and the loss of pay or
revenue.
Your Warranties in Detail
20
NEW VEHICLE LIMITED WARRANTY
WARRANTY
*Lexus provides the first two scheduled maintenance services at no charge. See page 4 for details.
Lexus sedans-009_038.cgR1 7/9/07 3:31 PM Page 20

These warranty obligations do not
apply to failures or noncompliance
caused by: • The use of replacement parts
not certified in accordance with
aftermarket parts certification
regulations.
• The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty. Air/Fuel Metering System
• Air/fuel ratio feedback control
system
• Cold-start enrichment system
• Deceleration control system
• Electronic fuel injection system
components
– Airflow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System • Intake manifold and intake air
surge tank
Air Injection System • Air injection manifold
• Air injection pump
• Airflow control valves
Catalyst System • Catalytic converter and
protector (8/80)
• Constricted fuel filler neck
• Exhaust manifold
• Exhaust pipe (manifold to cata-
lyst and/or catalyst to catalyst)
WARRANTY PARTS LIST
WHAT IS NOT COVERED
Your Warranties in Detail 23
FEDERAL EMISSION CONTROL WARRANTY
WARRANTY
8/80 = Covered for eight years or 80,000 miles,
whichever occurs first.
Lexus sedans-009_038.cgla 7/3/07 7:36 PM Page 23

The California Air Resources Board
(CARB) and Lexus are pleased to
explain the emission control system
warranty for your 2008 vehicle. In
California, new motor vehicles must
be designed, built and equipped to
meet the state’s stringent anti-smog
standards. CARB regulations require
that Lexus must warrant the emission
control system on your vehicle for the
time periods indicated on the next
page, provided there has been no
abuse, neglect or improper mainte-
nance of your vehicle.
Your emission control system may
include parts such as the fuel injection
system, ignition system, catalytic con-
verter and engine computer. Also
included may be hoses, belts, connec-
tors and other emissions-related
assemblies.
Where a warrantable condition exists,
Lexus will repair your vehicle at no
cost to you, including diagnosis, parts
and labor.
YOUR WARRANTY
RIGHTS AND
OBLIGATIONS
Your Warranties in Detail
28
CALIFORNIA EMISSION CONTROL WARRANTY
WARRANTY
Vehicles equipped with a
California Certified Emission
Control System that are regis-
tered and operated in California
or any state that adopts
California emission warranty
provisions are covered by this
warranty. Connecticut, Maine,
Massachusetts, Pennsylvania,
Rhode Island and Vermont are
the other states to which this
warranty currently applies.
Vehicles covered by this war-
ranty are also covered by the
Federal Emission Control
Warranty (see page 22).
Lexus sedans-009_038.cgla 7/3/07 7:39 PM Page 28

These warranty obligations do not
apply to failures or noncompliance
caused by: • The use of replacement parts
not certified in accordance with
aftermarket parts certification
regulations.
• The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty. The parts listed here are covered for
seven years or 70,000 miles from the
vehicle’s in-service date, whichever
occurs first.
Air/Fuel Metering System
• Air/fuel ratio sensor on GS 460,
LS 460
• Engine control computer
(engine control module)
• Fuel pump on IS 250, IS 350,
GS 350, SC 430
• Throttle body
Air Induction System • Intake manifold and intake air
surge tank
Catalyst System • Catalytic converter (warm-up
three-way catalyst)
• Exhaust front pipe
• Exhaust manifold
• Exhaust manifold gasket on
GS 460, LS 460, SC 430
Evaporative Control System • Charcoal canister
• Fuel tank
WHAT IS NOT COVERED PARTS LIST: LONG-TERM
EMISSION DEFECT
WARRANTY
Your Warranties in Detail
30
CALIFORNIA EMISSION CONTROL WARRANTY
WARRANTY
Lexus sedans-009_038.cgla 7/3/07 7:39 PM Page 30

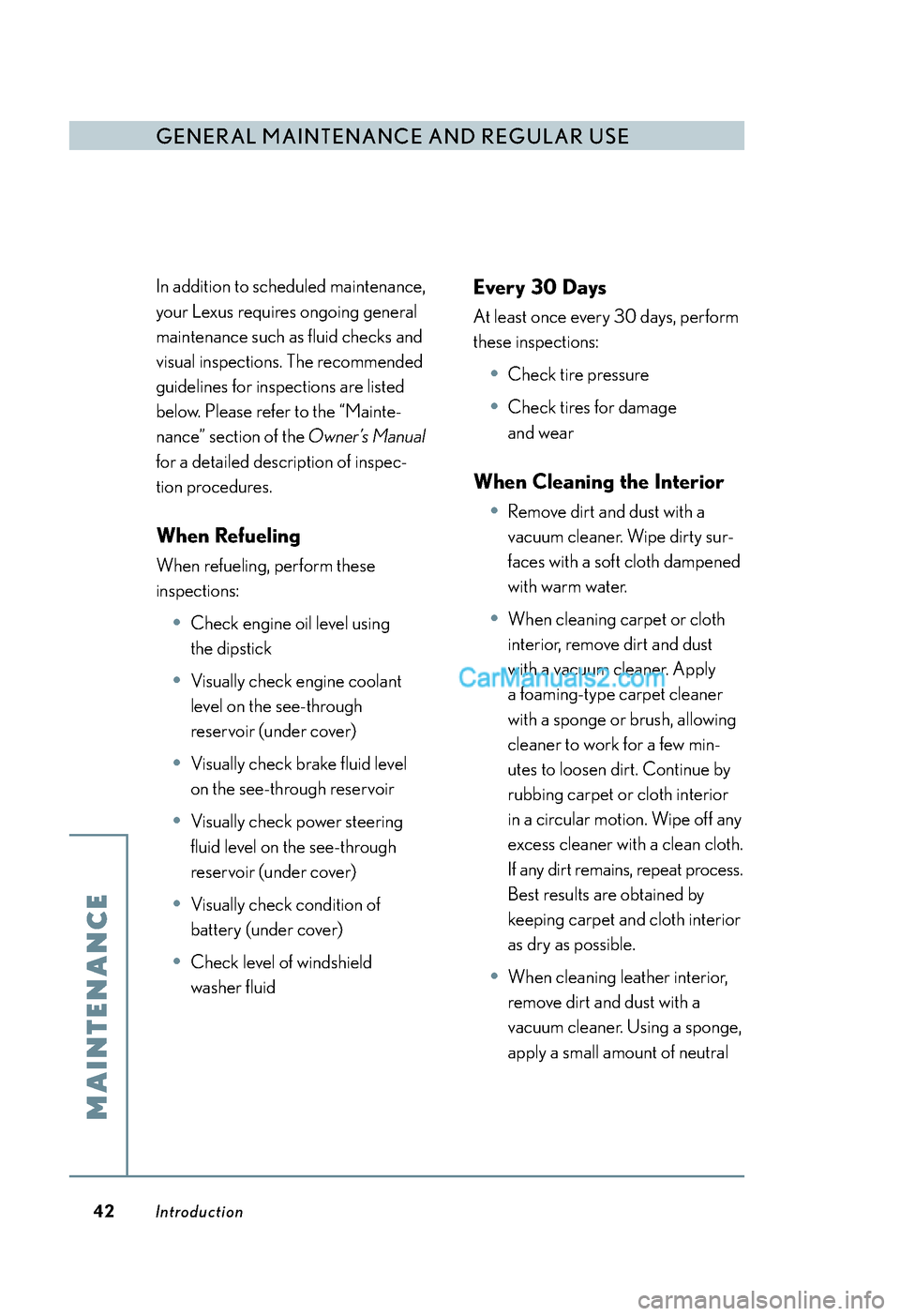

Introduction
GENERAL MAINTENANCE AND REGULAR USE
MAINTENANCE
42
In addition to scheduled maintenance,
your Lexus requires ongoing general
maintenance such as fluid checks and
visual inspections. The recommended
guidelines for inspections are listed
below. Please refer to the “Mainte-
nance” section of the Owner’s Manual
for a detailed description of inspec-
tion procedures.
When Refueling
When refueling, perform these
inspections:
• Check engine oil level using
the dipstick
• Visually check engine coolant
level on the see-through
reservoir (under cover)
• Visually check brake fluid level
on the see-through reservoir
• Visually check power steering
fluid level on the see-through
reservoir (under cover)
• Visually check condition of
battery (under cover)
• Check level of windshield
washer fluid
Every 30 Days
At least once every 30 days, perform
these inspections:
• Check tire pressure
• Check tires for damage
and wear
When Cleaning the Interior
• Remove dirt and dust with a
vacuum cleaner. Wipe dirty sur-
faces with a soft cloth dampened
with warm water.
• When cleaning carpet or cloth
interior, remove dirt and dust
with a vacuum cleaner. Apply
a foaming-type carpet cleaner
with a sponge or brush, allowing
cleaner to work for a few min-
utes to loosen dirt. Continue by
rubbing carpet or cloth interior
in a circular motion. Wipe off any
excess cleaner with a clean cloth.
If any dirt remains, repeat process.
Best results are obtained by
keeping carpet and cloth interior
as dry as possible.
• When cleaning leather interior,
remove dirt and dust with a
vacuum cleaner. Using a sponge,
apply a small amount of neutral
Lexus sedans-039_045.cgla 7/3/07 7:51 PM Page 42

SCHEDULED MAINTENANCE LOG
MAINTENANCE
6 Months or 5,000 Miles1
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
2
❏Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: ________ Mileage: ________
Notes:
12 Months or 10,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
2
❏Measure thickness of brake pads and rotors
(GS, IS, LS3)
❏ Replace air conditioner filter (LS, SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: ________ Mileage: ________
Notes:
Scheduled Maintenance Log
46
1This service is complimentary when performed by an authorized Lexus dealership.2Applies to models with same size front and rear tires and wheels.3Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 7:56 PM Page 46
