Page 5 of 459
1
2
3
4
5
6
7
ES350_U_(L/O_0708)
3
2-3. Operating the lights and windshield wipers ................... 132
Headlight switch ............................ 132
Fog light switch .............................. 135
Windshield wipers and washer............................................. 136
2-4. Using other driving systems.... 139 Cruise control ................................ 139
Dynamic radar cruise control............................................. 142
Intuitive parking assist ................... 151
Driving assist systems.................. 157
PCS (Pre-Collision System)..... 160
2-5. Driving information ................... 163 Cargo and luggage ...................... 163
Vehicle load limits ......................... 166
Winter driving tips ........................ 167
Trailer towing .................................. 173
Dinghy towing ................................ 180
3-1. Using the air conditioning system and defogger ............. 182
Automatic air conditioning system ............................................. 182
Rear window and outside rear view mirror defoggers ............. 189 3-2. Using the audio system............ 190
Audio system type ........................ 190
Using the radio............................... 192
Using the CD player.................... 199
Playing back MP3 and WMA discs................................. 205
Optimal use of the audio system ............................................. 213
Using the AUX adapter............. 216
Using the steering wheel audio switches .............................. 217
3-3. Using the hands-free phone system
(for cellular phone) ................ 219
Hands-free phone system features (for cellular phone) .. 219
Using the hands-free phone system (for cellular phone) ... 222
Making a phone call.................... 230
Setting a cellular phone............. 234
Security and system setup........ 238
Using the phone book................. 241
3-4. Using the interior lights .......... 247 Interior lights list............................ 247
• Front interior lights ................... 249
• Personal lights ............................ 249
3Interior features
Page 14 of 459
12
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 132
P. 120
P. 135Gauges and meters P. 122
Multi-information display P. 128
Windshield wipers and
washer switch
P. 136
“ENGINE START STOP” switch P. 114
Trunk opener main switch P. 41
Glove box P. 250
Tilt and telescopic steering control switch P. 56
Parking brake pedal P. 121
Audio remote control switches P. 217
Hood lock release lever P. 298
Tire pressure warning system reset switch P. 318
Adaptive front lighting system cancel switch∗ P. 133
Tire pressure warning system select switch P. 319
Page 75 of 459
73
1-6. Theft deterrent system
1
Before driving
ES350_U_(L/O_0708)
■Panic mode
■When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is discharged before canceling the alarm, the system may be triggered
when the battery is reconnected.When is pushed for longer than about
one second, the headlights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.
Page 107 of 459
When driving2
105
ES350_U_(L/O_0708)
2-1. Driving procedures ....... 106Driving the vehicle.................. 106
Engine (ignition) switch .......... 114
Automatic Transmission ......... 117
Turn signal lever ....................... 120
Parking brake ............................ 121
2-2. Instrument cluster .......... 122 Gauges and meters ................ 122
Indicators and warning lights ......................................... 124
Multi-information display ..... 128
2-3. Operating the lights and windshield wipers......... 132
Headlight switch...................... 132
Fog light switch ........................ 135
Windshield wipers and washer ..................................... 136 2-4. Using other driving
systems .......................... 139
Cruise control.......................... 139
Dynamic radar cruise control ..................................... 142
Intuitive parking assist ............ 151
Driving assist systems ............. 157
PCS (Pre-Collision System) ....... 160
2-5. Driving information........ 163 Cargo and luggage ................ 163
Vehicle load limits ................... 166
Winter driving tips ................... 167
Trailer towing ........................... 173
Dinghy towing.......................... 180
Page 125 of 459
123
2-2. Instrument cluster
2
When driving
ES350_U_(L/O_0708)
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Brighter
Darker
When the headlight switch is
turned to ON, the brightness will
be reduced slightly unless the con-
trol dial is turned fully up.
Odometer and trip meter
●Odometer
Displays the total distance the vehicle has been driven.
●Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
Engine coolant temperature gauge
Displays the engine coolant temperature.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the temperature gauge is in the red zone (H). In
this case, immediately stop the vehicle in a safe place, and check the engine after
it has cooled completely. ( →P. 4 0 3 )
Page 128 of 459
126
2-2. Instrument cluster
ES350_U_(L/O_0708)
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 2 0 )Cruise control indicator
(→ P. 1 3 9 )
Headlight high beam indi-
cator ( →P. 1 3 2 )
(if equipped)
AFS OFF indicator light
(→ P. 1 3 3 )
(USA)
Headlight indicator
(→ P. 1 3 2 )
Slip indicator ( →P. 157)
(Canada)
Tail light indicator
(→ P. 1 3 2 )
(without
navigation
system)
SRS airbag on-off indica-
tor (→ P. 8 8 )
Front fog light indicator
(→ P. 1 3 5 )
(with navi-
gation sys-
tem)
SRS airbag on-off indica-
tor (→ P. 8 8 )
Shift position and shift range indica-
tors (→
P. 1 1 7)
*
*
*
*
Page 135 of 459
133
2-3. Operating the lights and windshield wipers
2
When driving
ES350_U_(L/O_0708)
AFS (vehicles with discharge headlights)AFS (Adaptive Front Lighting System) improves visibility at intersections
and on curves by automatically adjusting the direction of light axis of the
headlights according to vehicle speed and the degree of the tire angle
that are controlled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Turn the switch OFF to deactivate
AFS.
OFF
ON
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight control system to mal-
function.

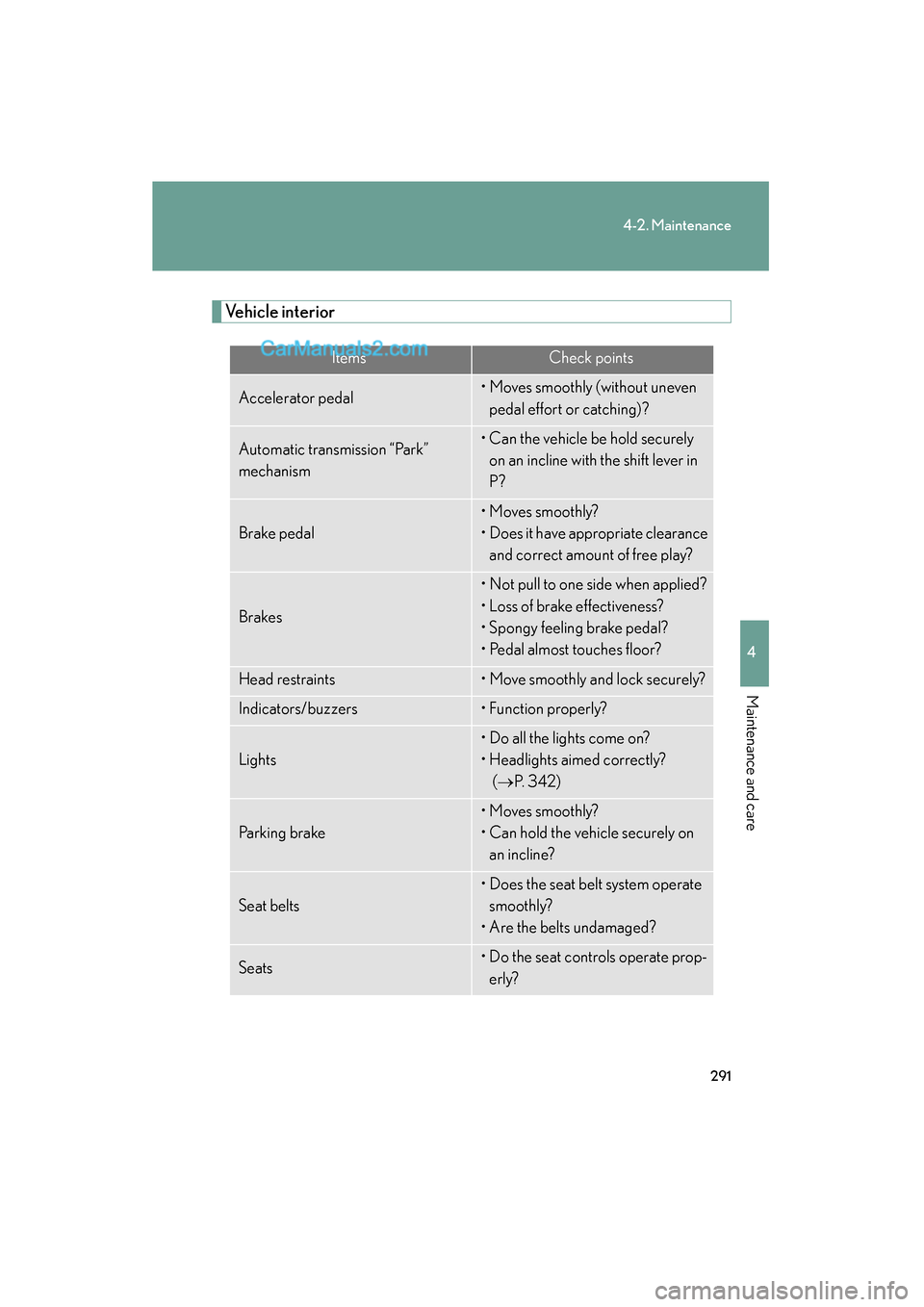

Page 293 of 459
291
4-2. Maintenance
4
Maintenance and care
ES350_U_(L/O_0708)
Vehicle interior
ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Automatic transmission “Park”
mechanism• Can the vehicle be hold securely on an incline with the shift lever in
P?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance and correct amount of free play?
Brakes
• Not pull to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers• Function properly?
Lights
• Do all the lights come on?
• Headlights aimed correctly? (→ P. 3 4 2 )
Parking brake
• Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate prop- erly?
