2008 Lexus ES350 display

259
3-6. Other interior features
3
Interior features
ES350_U_(L/O_0708)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Without navigation systemAdjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
With navigation system

277
3-6. Other interior features
3
Interior features
ES350_U_(L/O_0708)
Compass
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
■Operation
To turn the compass on or off,
push and hold AUTO for 3
seconds.
■ Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest

278
3-6. Other interior features
ES350_U_(L/O_0708)
Calibrating the compassThe direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will devi-
ate.
To obtain higher precision or perfect calibration, refer to the following.
■ Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Push and hold AUTO for 6 sec-
onds.
A number (1 to 15) appears on the
compass display.
STEP1
STEP2

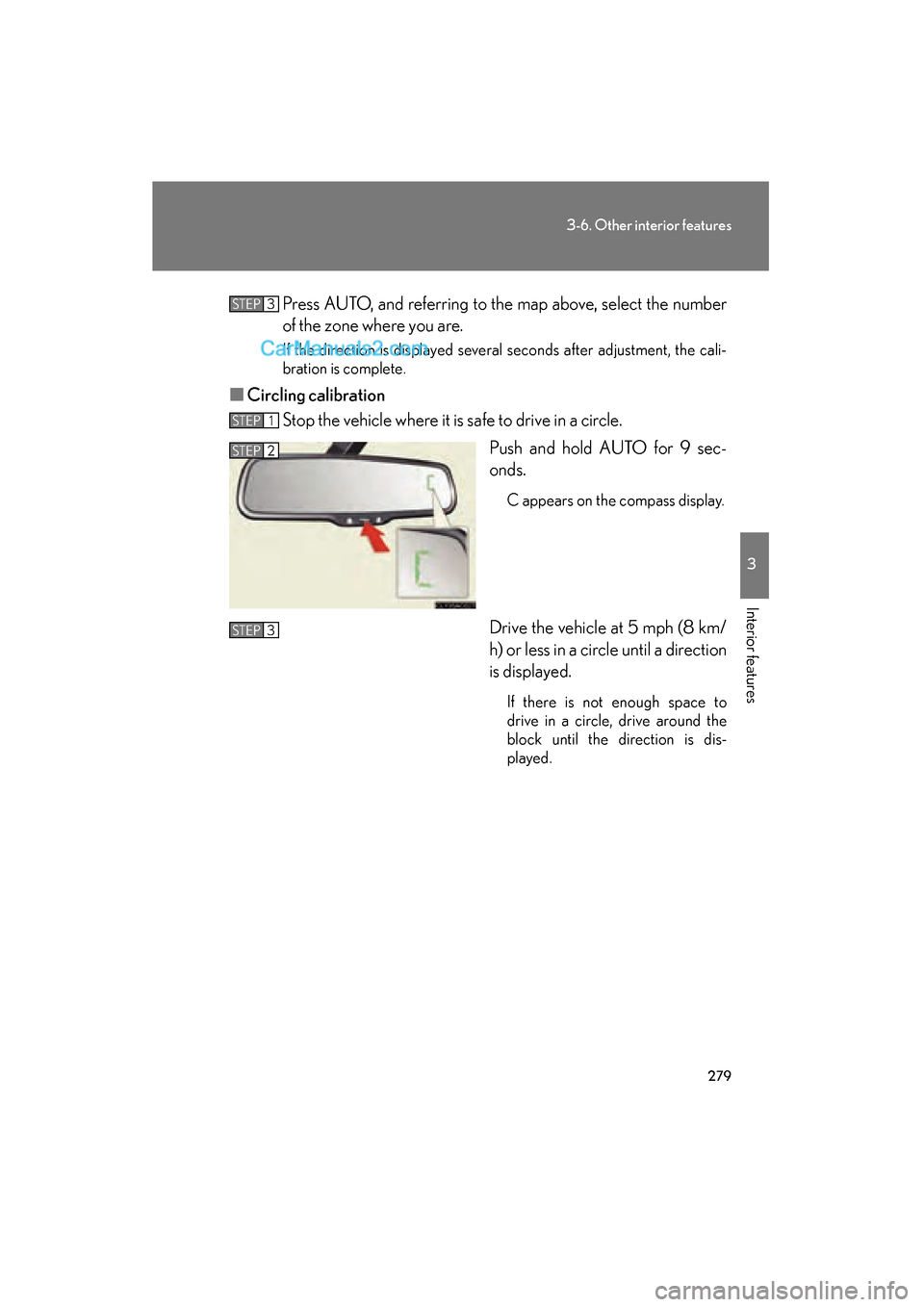

279
3-6. Other interior features
3
Interior features
ES350_U_(L/O_0708)Press AUTO, and referring to the map above, select the number
of the zone where you are.
If the direction is displayed several seconds after adjustment, the cali-
bration is complete.
■
Circling calibration
Stop the vehicle where it is safe to drive in a circle.
Push and hold AUTO for 9 sec-
onds.
C appears on the compass display.
Drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direction
is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP3
STEP1
STEP2
STEP3

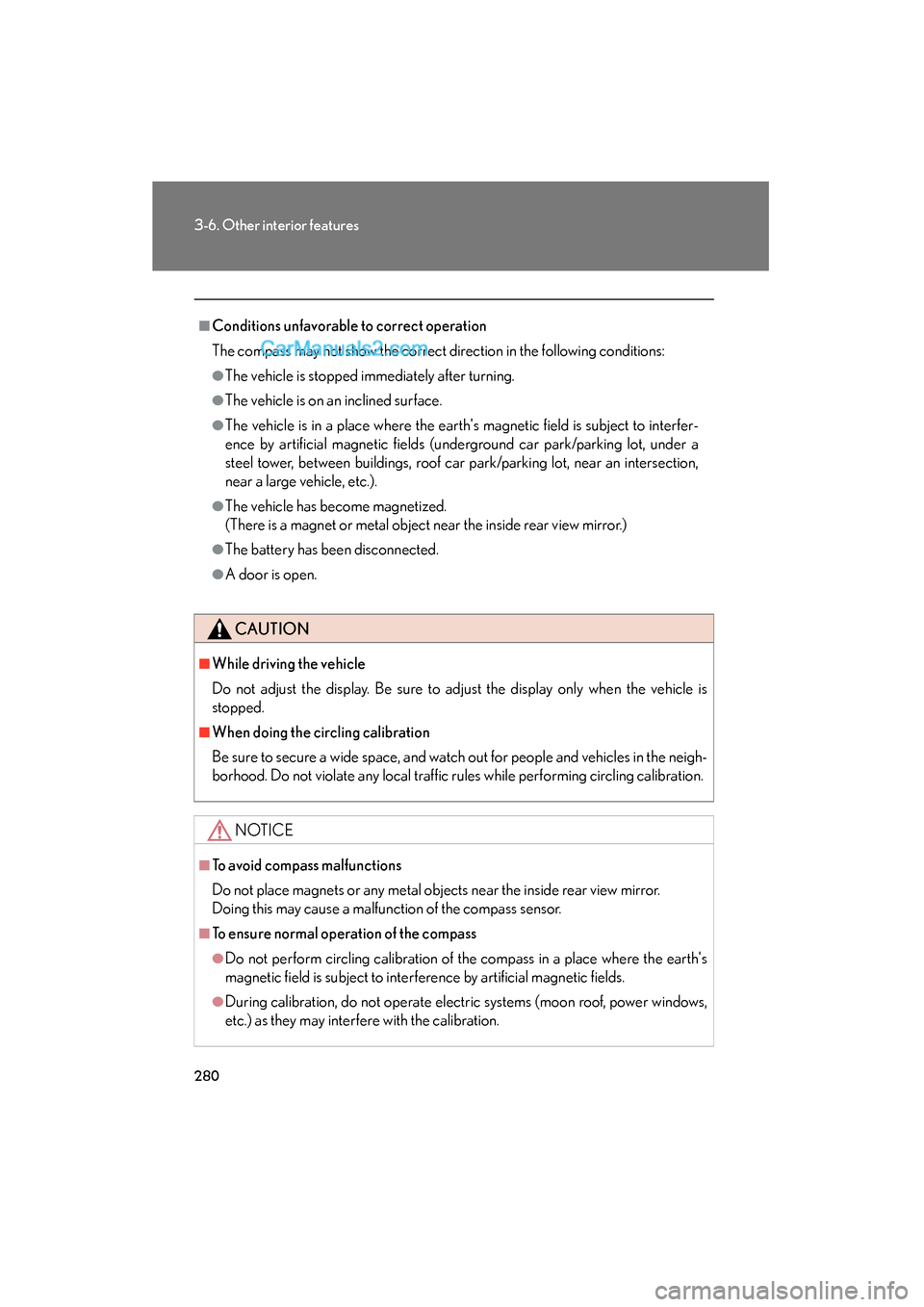

280
3-6. Other interior features
ES350_U_(L/O_0708)
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth's magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car park/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.
CAUTION
■While driving the vehicle
Do not adjust the display. Be sure to adjust the display only when the vehicle is
stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

306
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0708)
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds and fre-
quent acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km)
●If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles (1000 km),
contact your Lexus dealer.
■Changing the engine oil (USA only)
To reset the oil change system, follow the procedure below:
1. Turn the “ENGINE START STOP” switch OFF.
2. While pressing the trip meter reset button (→P. 122), set the “ENGINE START
STOP” switch to the IGNITION ON mode. Continue to press and hold the but-
ton until the trip meter displays 000000.
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.

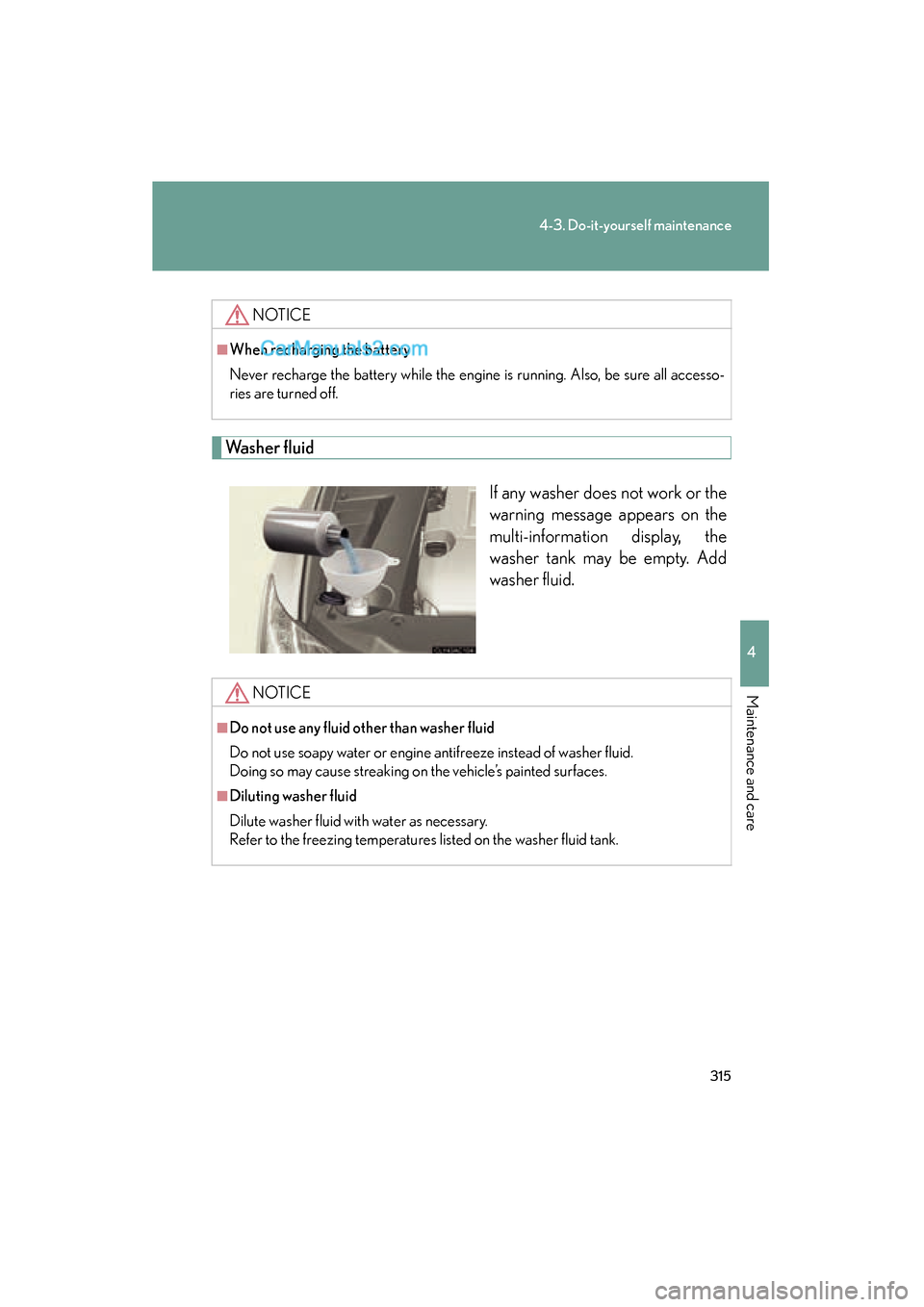

315
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0708)
Washer fluidIf any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.

When trouble arises5
351
ES350_U_(L/O_0708)
5-1. Essential information................... 352
If your vehicle needs to be towed ...................................... 352
If you think something is wrong ..................................... 358
Fuel pump shut off system ..................................... 359
Event data recorder .............. 360
5-2. Steps to take in an emergency.................... 362
If a warning light turns on or a warning buzzer
sounds... ................................. 362
If a warning message is displayed ................................ 373
If you have a flat tire .............. 384
If the engine will not start.......................................... 394
If the shift lever cannot be shifted from P........................ 396
If you lose your keys ............... 397
If the electronic key does not operate properly ......... 398
If the vehicle battery is discharged............................ 400
If your vehicle overheats ............................... 403 If the vehicle becomes
stuck........................................ 405
