2008 KIA Sportage child lock

349
Knowing your vehicle
1
2
3
4
5
6
7
8
9

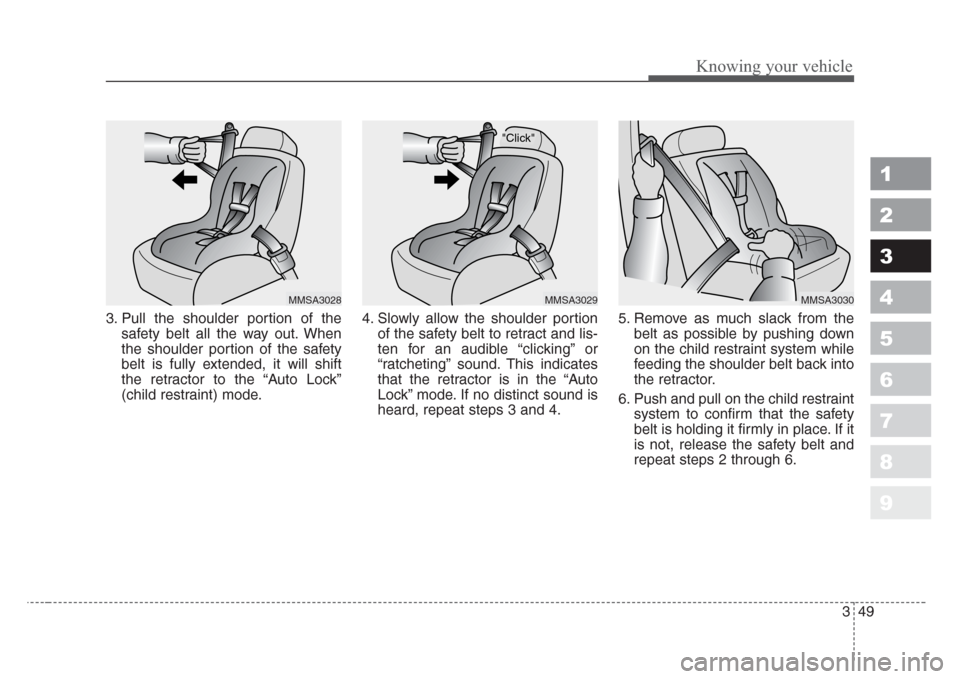

3. Pull the shoulder portion of the
safety belt all the way out. When
the shoulder portion of the safety
belt is fully extended, it will shift
the retractor to the “Auto Lock”
(child restraint) mode.4. Slowly allow the shoulder portion
of the safety belt to retract and lis-
ten for an audible “clicking” or
“ratcheting” sound. This indicates
that the retractor is in the “Auto
Lock” mode. If no distinct sound is
heard, repeat steps 3 and 4.5. Remove as much slack from the
belt as possible by pushing down
on the child restraint system while
feeding the shoulder belt back into
the retractor.
6. Push and pull on the child restraint
system to confirm that the safety
belt is holding it firmly in place. If it
is not, release the safety belt and
repeat steps 2 through 6.
"Click"
MMSA3029MMSA3028MMSA3030

Knowing your vehicle
50 3
1
2
3
4
5
6
7
8
9
7. Double check that the retractor is
in the “Auto Lock” mode by
attempting to pull more of the safe-
ty belt out of the retractor. If you
cannot, the retractor is in the “Auto
Lock” mode.
To remove the child restraint, press
the release button on the buckle and
then pull the lap/shoulder belt out of
the restraint and allow the safety belt
to retract fully.
When the safety belt is allowed to
retract to its fully stowed position,
the retractor will automatically
switch from the “Auto Lock”mode
to the emergency lock mode for
normal adult usage.
Securing a child restraint seat
with “Tether Anchor”system
Child restraint hook holders are
located on the floor behind the rear
seats.
1. Open the tether anchor cover on
the floor behind the rear seats.
WARNING- Auto lock
mode
The lap/shoulder belt automati-
cally returns to the “emergency
lock mode”whenever the belt is
allowed to retract fully.
Therefore, the preceding seven
steps must be followed each
time a child restraint is
installed.
If the safety belt is not placed in
the “Auto lock”mode,severe
injury or death could occur to
the child and/or other occupants
in the vehicle in a collision,
since the child restraint will not
be effectively held in place.
8KMB3533

Knowing your vehicle
68 3
1
2
3
4
5
6
7
8
9
• The curtain airbag deployment
occurs only on the side of the vehi-
cle affected by the impact.
• The side airbags (side and curtain
airbags) are not designed to
deploy during collisions from the
front or rear of the vehicle or in
most rollover situations.
• The curtain airbags are designed
to deploy only during certain side-
impact collisions, depending on the
crash severity, angle, speed and
impact. The curtain airbags are not
designed to deploy in all side
impact situations.
WARNING
• In order for side airbags (side
and curtain airbags) to pro-
vide their best protection,
occupants should sit in an
upright position with the seat
belts properly fastened.
•Children must be seated in the
proper child restraint system.
Make sure to secure the child
restraint system in a locked
position.
(Continued)
(Continued)
•Advise occupants not to lean
their heads or bodies onto
doors, and not to place
objects between the doors
and them since this may
defeat operation of the side
airbags.
• Never try to open or repair any
components of the side cur-
tain airbag system.This
should only be done by an
authorized Kia dealer.
Failure to follow the above men-
tioned instructions can result in
injury or death to the vehicle
occupants in an accident.

Knowing your vehicle
76 3
1
2
3
4
5
6
7
8
9
Installing a child restraint on a
front passenger’s seat is for-
bidden.
Never place a rear-facing child
restraint in the front passenger’s
seat. If the airbag deploys, it would
impact the rear-facing child restraint,
causing serious or fatal injury.
In addition, do not place front-facing
child restraint in the front passen-
ger’s seat either. If the front passen-
ger airbag inflates, it would cause
serious or fatal injuries to the child.
Airbag warning light
The purpose of the airbag warning
light in your instrument panel is to
alert you of a potential problem with
your airbag - Supplemental Restraint
System (SRS).
WARNING- Child
restraints
• Never put a child restraint in
the front passenger’s seat.If
the front passenger airbag
inflates,it would cause seri-
ous or fatal injuries.
• When children are seated in
the rear outboard seats,be
sure to secure the child
restraint system into a locked
in position.
AIR
BAG
E1BLA204

Driving your vehicle
8 4
1
2
3
4
5
6
7
8
9

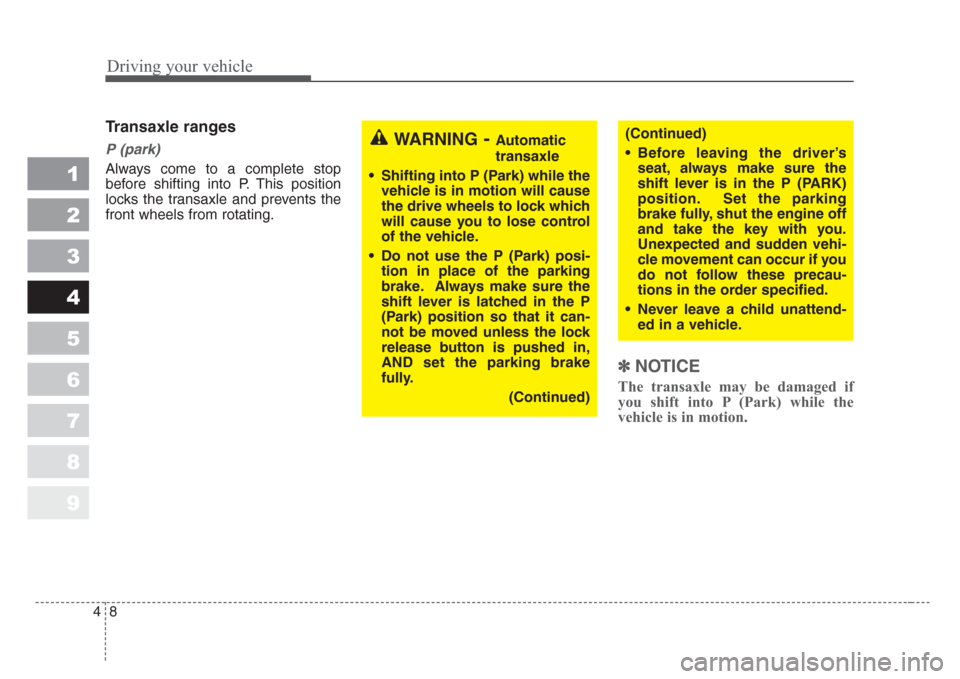

Transaxle ranges
P (park)
Always come to a complete stop
before shifting into P. This position
locks the transaxle and prevents the
front wheels from rotating.
✽
NOTICE
The transaxle may be damaged if
you shift into P (Park) while the
vehicle is in motion.
(Continued)
• Before leaving the driver’s
seat, always make sure the
shift lever is in the P (PARK)
position.Set the parking
brake fully,shut the engine off
and take the key with you.
Unexpected and sudden vehi-
cle movement can occur if you
do not follow these precau-
tions in the order specified.
• Never leave a child unattend-
ed in a vehicle.WARNING-Automatic
transaxle
•Shifting into P (Park) while the
vehicle is in motion will cause
the drive wheels to lock which
will cause you to lose control
of the vehicle.
• Do not use the P (Park) posi-
tion in place of the parking
brake.Always make sure the
shift lever is latched in the P
(Park) position so that it can-
not be moved unless the lock
release button is pushed in,
AND set the parking brake
fully.
(Continued)
