Knowing your vehicle
Driver’s air bag
The driver’s air bag is stored in the
center of the steering wheel.
Front passenger’s air bag
Front passenger’s air bag is stored in
the instrument panel on the glove
box.
Since you cannot anticipate which air
bags will deploy or from what direc-
tion, never put any objects or orna-
ments on the instrument panel.
WARNING
• You must always sit as far
back from the steering wheel
air bag as possible (chest at
least 250 mm (10 inches) away
from the steering wheel), while
still maintaining a comfortable
seating position for good
vehicle control, in order to
reduce the risk of injury or
death in a collision.
• Never place objects over the
air bag storage compartments
or between the air bags and
yourself. Due to the speed and
force of the air bag inflation,
such objects could hit your
body at high speed and cause
severe bodily injury and even
death.
• Do not put stickers or orna-
ments on the steering wheel
cover. These may interfere
with the deployment of the air
bag.
HLZ2120
OLD0260481LDA2049
HLZ2121

Knowing your vehicle
56 3
1
2
3
4
5
6
7
8
9

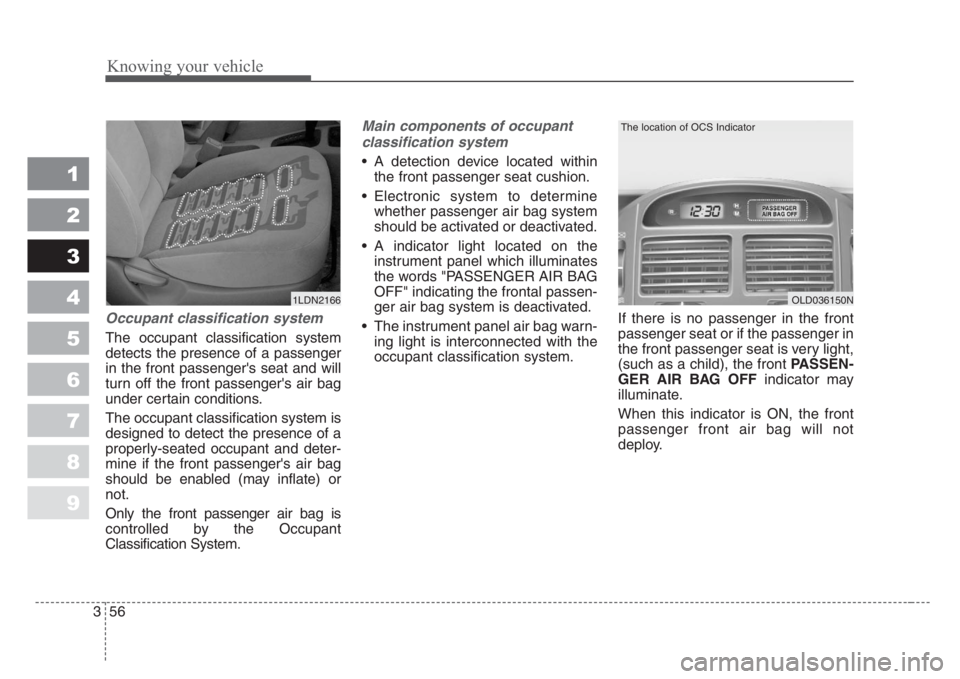

Occupant classification system
The occupant classification system
detects the presence of a passenger
in the front passenger's seat and will
turn off the front passenger's air bag
under certain conditions.
The occupant classification system is
designed to detect the presence of a
properly-seated occupant and deter-
mine if the front passenger's air bag
should be enabled (may inflate) or
not.
Only the front passenger air bag is
controlled by the Occupant
Classification System.
Main components of occupant
classification system
• A detection device located within
the front passenger seat cushion.
• Electronic system to determine
whether passenger air bag system
should be activated or deactivated.
• A indicator light located on the
instrument panel which illuminates
the words "PASSENGER AIR BAG
OFF" indicating the frontal passen-
ger air bag system is deactivated.
• The instrument panel air bag warn-
ing light is interconnected with the
occupant classification system.If there is no passenger in the front
passenger seat or if the passenger in
the front passenger seat is very light,
(such as a child), the front PASSEN-
GER AIR BAG OFFindicator may
illuminate.
When this indicator is ON, the front
passenger front air bag will not
deploy.
1LDN2166OLD036150N The location of OCS Indicator

357
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Always be sure that you and all vehi-
cle occupants are seated and
restrained properly (sitting upright
with the seat in an upright position,
centered on the seat cushion, with
the person's legs comfortably
extended, feet on the floor, and wear-
ing the safety belt properly) for the
most effective protection by the air
bag and the safety belt.
• The OCS may not function proper-
ly if the passenger takes actions
which can defeat the detection sys-
tem. These include:
(1) Failing to sit in an upright posi-
tion.
(2) Leaning against the door or cen-
ter console.
(3) Sitting towards the sides or the
front of the seat.
(4) Putting legs on the dashboard or
resting them on other locations
which reduce the passenger
weight on the front seat.
(5) Improperly wearing the safety
belt.
(6) Reclining the seat back.• The “PASSENGER AIR BAG OFF”
indicator illuminates after the igni-
tion key is turned to the “ON” posi-
tion or after the engine is started. If
the front passenger's seat is occu-
pied by a very small person or is
occupied by someone who is
improperly seated, the “PASSEN-
GER AIR BAG OFF” indicator will
remain illuminated and the front
passenger air bag will not deploy in
frontal crashes. If the front passen-
ger’s seat is occupied by an adult
size person seated properly, the
“PASSENGER AIR BAG OFF” indi-
cator will turn off after approxi-
mately 4 seconds and the front
passenger's air bag will deploy in
frontal collision.
CAUTION
If the occupant classification
system is not working properly,
the air bag warning light ( ) on
the instrument panel will illumi-
nate. If there is a malfunction of
the occupant classification sys-
tem, the "PASSENGER AIR BAG
OFF" indicator will not illumi-
nate and the front passenger's
air bag will deploy in frontal
crashes even if there is child or
no occupant in the front pas-
senger’s seat. If the SRS air bag
warning light does not illumi-
nate when the ignition key is
turned to "ON" position, if it
remains illuminated after blink-
ing for approximately six sec-
onds, or if it illuminates while
the vehicle is being driven, have
an authorized Kia dealer inspect
the occupant classification sys-
tem with the SRS air bag system
as soon as possible.

Knowing your vehicle
58 3
1
2
3
4
5
6
7
8
9
Condition and operation in the front passenger occupant
classification system
Condition detected by
the occupant classifi-
cation system
1. Adult *
1
2. Child*2or child
restraint system
3. Unoccupied Off
On
OnOff
Off
OffActivated
Deactivated
Deactivated
"PASSENGER AIR
BAG OFF" indicator
light
SRS warning lightFront passenger front
air bag Indicator/Warning light Devices
*1The system detects a person who is generally adult size as an adult, thus allowing
the passenger air bag to deploy. When a smaller adult sits in the front passenger
seat, the system may detect their body shape as that of a child, thus preventing air
bag deployment.
*
2When a larger child who has outgrown a child restraint system sits in the front pas-
senger seat, the system may recognize him/her as an adult depending on his/her
physique sitting posture, or objects in the lap of the occupant, thus permitting airbag
deployment.
CAUTION
If the "PASSENGER AIR BAG
OFF" indicator illuminates or
blinks continuously when a per-
son of adult size sits in the front
passenger's seat, it could be
because that person isn't sitting
properly in the seat. If this hap-
pens, turn the vehicle off, make
sure the seat back is not
reclined, have the passenger
center on the seat cushion, with
legs comfortably extended, and
the safety belt properly posi-
tioned. Restart the vehicle and
have the person remain in this
position long enough to allow
the system to detect the person
and activate the passenger air
bag.

359
1
2
3
4
5
6
7
8
9
Knowing your vehicle
(Continued)
• If the "PASSENGER AIR BAG
OFF" indicator is illuminated
when the front passenger's
seat is occupied by a person
of adult size who is seated
properly, or if the "PASSEN-
GER AIR BAG OFF" indicator
is not illuminated when the
front passenger's seat is
unoccupied or occupied by a
very small person, the occu-
pant classification system is
not working properly. Have
your vehicle immediately
inspected by your Kia dealer if
the occupant classification
system is not working proper-
ly.
(Continued)(Continued)
• If a very low weight adult is
seated in the front passenger
seat, the occupant classifica-
tion system may or may not
turn off the right front passen-
ger air bag, depending upon
the person's seating position
and body type. Everyone in
your vehicle should wear a
safety belt properly -- whether
or not there is an air bag for
that person.
• If the front seat passenger
changes their seating position
(for example, by not sitting
upright, by sitting on the edge
of the seat, or by otherwise
being out of position), the
"PASSENGER AIR BAG OFF"
indicator may be turned on,
and the passenger air bag
may not deploy in a collision.
Always be sure to sit properly
in the front passenger seat
and wear the safety belt prop-
erly.

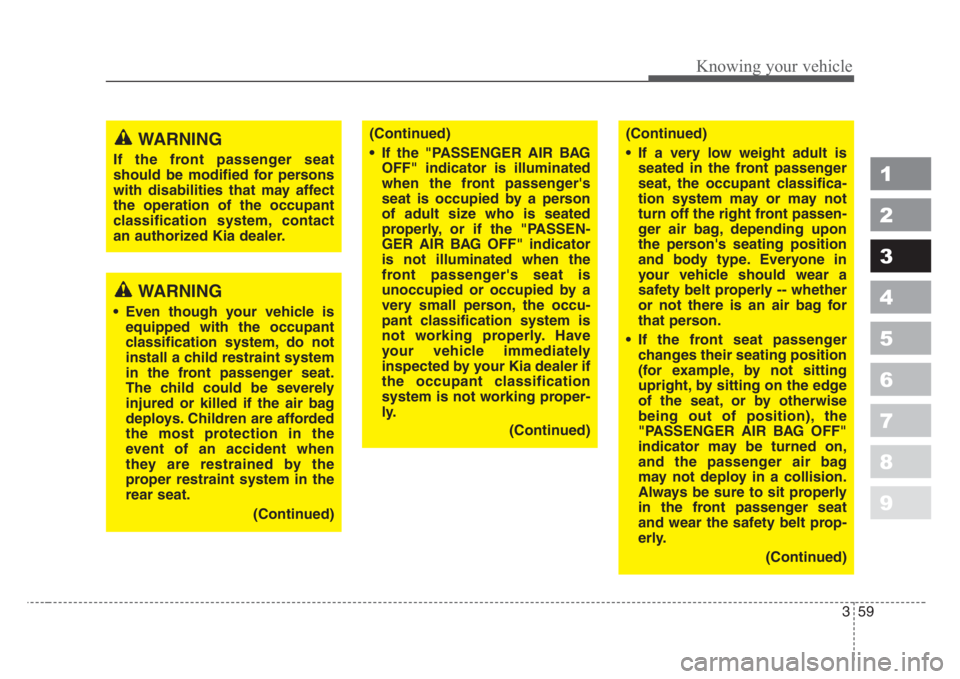

(Continued)WARNING
If the front passenger seat
should be modified for persons
with disabilities that may affect
the operation of the occupant
classification system, contact
an authorized Kia dealer.
WARNING
• Even though your vehicle is
equipped with the occupant
classification system, do not
install a child restraint system
in the front passenger seat.
The child could be severely
injured or killed if the air bag
deploys. Children are afforded
the most protection in the
event of an accident when
they are restrained by the
proper restraint system in the
rear seat.
(Continued)

Knowing your vehicle
60 3
1
2
3
4
5
6
7
8
9
1KMN3663
1KMN3664
- Never sit with hips shifted
towards the front of the seat.
- Never lean on the center con-
sole.
- Never sit on one side of the
front passenger seat. (Continued)
(Continued)
1KMN3665
1KMN3666
-Always sit in a proper seating
position. - Never place feet on the dash-
board.
1KMN3661
1KMN3662
- Never put a heavy load in the
front passenger seat.
- Never excessively recline the
front passenger seatback.

361
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽
NOTICE
• If luggage or other objects are
placed on the front passenger's
seat or if the temperature of the
seat changes while the seat is unoc-
cupied, the "PASSENGER AIR
BAG OFF" indicator may blink.
These conditions do not indicate a
problem.
• Do not put heavy objects on the
front passenger's seat. This may
cause front passenger air bag
deployment in the event of an acci-
dent, thus increasing your repair
costs.WARNING - Front passen-
ger seating
• The front seat passenger air
bag is much larger than the
steering wheel air bag and
inflates with considerably
more force. It can seriously
hurt or kill a passenger who is
not in the proper position and
wearing the safety belt proper-
ly. The front passengers
should always move their seat
as far back as practical and sit
back in their seat.
• It is essential that the front
passengers always wear their
safety belts when vehicle is in
motion, even when the vehicle
is moving in a parking lot or
up a driveway into garage.
(Continued)(Continued)
•
Do not modify or replace the
front passenger seat. This will
disable the OCS unless a prop-
er Kia replacement seat is used.
• Do not place sharp objects on
the front passenger seat.
These can damage the occu-
pant classification system, if
they puncture the seat cush-
ion.
• Do not install accessory seat
covers on the front seats,
since these will interfere with
proper sensor operation.

Knowing your vehicle
62 3
1
2
3
4
5
6
7
8
9
Side air bag (if equipped)
Side air bags are stored in the left
side of the driver’s seat and right side
of the front passenger’s seat.
If air bag inflation conditions are met
(side collision), they will inflate.
1LDA2056
1LDN2050/1LDN2051
(Continued)
• If the driver brakes the vehicle
heavily prior to an impact,
unbelted occupants will be
thrown forward. If the front
passenger is not wearing the
safety belts, they will be
directly in front of the air bag
when deployment occurs.In
that situation,serious injury
or death is possible.
• Never allow front passenger
to put their hands, feet or face
on or close to the instrument
panel. In the event of air bag
deployment,such a misposi-
tioned occupant would be
likely to suffer severe injury or
death.
• Never allow children, pregnant
women or weak persons to sit
in the front passenger seat.
They may be seriously injured
by the air bag inflation when
air bag deploys.
(Continued)(Continued)
• Never allow children, pregnant
women or weak persons to sit
in the front passenger seat.
Do not put child restraint sys-
tem on the front passenger's
seat either. They may be seri-
ously injured by the airbag
inflation when airbag deploys.
• Do not put objects or stickers
on the instrument panel. Do
not apply any accessory to the
front windshield. Do not install
aftermarket mirrors or acces-
sories on the factory-installed
rearview mirror. Any of these
could interfere with the
deployment of the air bag or
could hit your body at high
speed and cause severe bodi-
ly injury and even death.
