2008 KIA Sorento buttons

Knowing your vehicle
104 3
1. Power ON-OFF / Volume Control knob
2. EQ button (Model D446) / Load button
(Model D465)
3. CD EJECT Button
4. Audio Control knob
5. Sound properties
6. AM, FM (Model D465), FM1 (Model
D446), FM2 (Model D446), CD (Model
D465) buttons
7. Sound equalizer and digital signal pro-
cessing (Model D465) /
CD button (Model D446)
Model shown is Model D465. The buttons on your audio system may differ.
For details, see specific descriptions in the following sections.
OBL03465-0
Using Operational and Sound Controls

3 107
Knowing your vehicle
5. AM, FM, FM1, FM2, CD buttons
Model D446: AM, FM1, FM2, CD
Model D465: AM, FM, CD
Use the input source selector buttons to
select/switch operation modes. Press the
AMband selector button, FM/FM1/FM2
band selector button(s) or CDor button
to resume operation in the corresponding
mode.
Pressing any of these buttons automati-
cally switches the audio system on.
The LCD screen displays either the radio
frequency you are tuned into or the track
currently played back.
✽
NOTICE
 Remember that station Presets (1-6)
stored in FM1 mode can only be
accessed in FM1 mode. Similarly,
FM2 presets can only be accessed in
FM2 mode.
 For Model D465:
Press the FM band selector button
repeatedly to switch between the FM1
and FM2 modes.
6. Sound equalizer and digital signal
processing
Both Model D446 and Model D465:EQ
button
EQbutton:
Press the EQbutton repeatedly to select
the sound equalizer setting you want.
The 6 settings are:ROCK, POP, JAZZ,
CLASSIC, TALKand equalizer off. If no
icon is displayed in the LCD screen, the
equalizer is switched off.
The 5 preset equalizer settings have
been optimized for the 5 common genres
of music. For example, the ROCKsetting
enhances bass reproduction with rock
music whereas the CLASSICsetting
enhances the clarity of string instruments
during audio reproduction of classical
music. You may want to experiment with
the different settings to confirm your per-
sonal preferences.
✽
NOTICE
If you store a station Preset (1~6) with a
specific equalizer setting, that setting is
automatically used across other stations
preset.

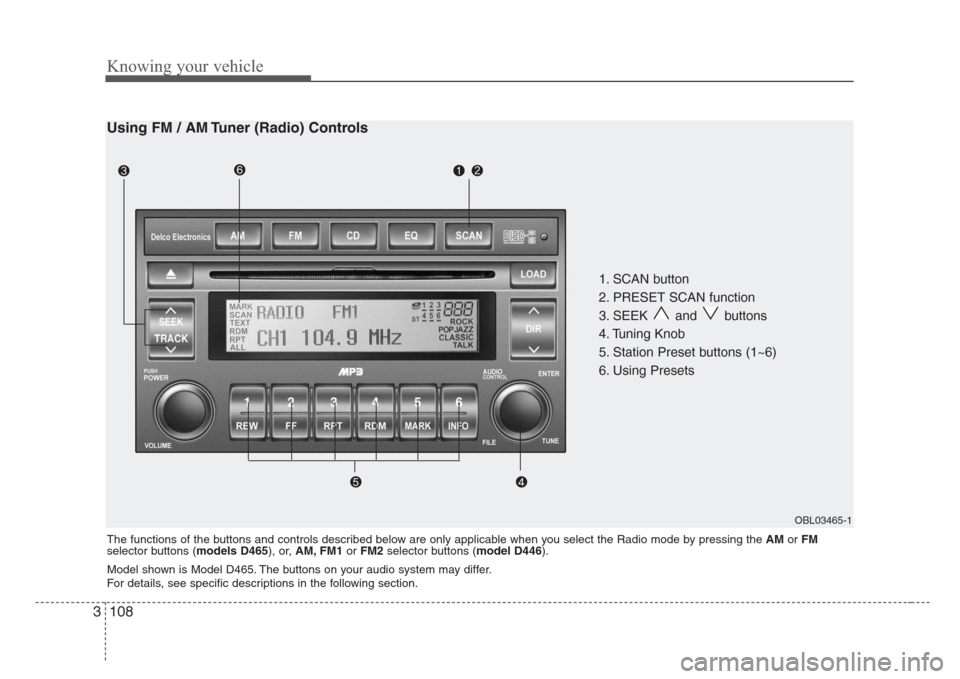

Knowing your vehicle
108 3
1. SCAN button
2. PRESET SCAN function
3. SEEK and buttons
4. Tuning Knob
5. Station Preset buttons (1~6)
6. Using Presets
OBL03465-1
Using FM / AM Tuner (Radio) Controls
The functions of the buttons and controls described below are only applicable when you select the Radio mode by pressing the AMorFM
selector buttons (models D465), or, AM, FM1orFM2selector buttons (model D446).
Model shown is Model D465. The buttons on your audio system may differ.
For details, see specific descriptions in the following section.

3 109
Knowing your vehicle
1. SCAN button
Frequency band scan function
Press the SCANbutton for the tuner to
scan for radio signals in the selected fre-
quency band (AM or FM). Once the tuner
locks onto the signal of a transmitting
station, it plays that station for 5 seconds
before scanning for the next available
station in the selected frequency band.
If you want to keep listening to a particu-
lar station and want to stop the scanning,
press the SCANbutton again.
This function is useful for providing you
with a good overview of all the radio sta-
tions within range of your tuner.
2. PRESET SCAN function
Press and hold the SCANbutton for
more than 2 seconds. Each preset radio
stations will be automatically played for 5
seconds. If you want to keep listening to
a particular preset station and want to
stop the scanning, press the SCANbut-
ton again.
3. SEEK and buttons
Automatic Channel Selection function
Press the and buttons to scan up
and down the frequency range for the
next available radio station and automat-
ically lock on to that frequency.
The LCD screen displays the frequency
of the radio station transmitting a clear
and strong signal.
Use this function to search for a radio
station you want. If you like a particular
station, you can store it as one of 6
Presets using the Presetbuttons below.
✽
NOTICE
This function is not effective if you are
experiencing poor reception in your
vicinity.
4. Tuning Knob
Manual Channel Selection
Rotate the knob clockwise or counter-
clockwise to manually advance up or
down the frequency range. The tuning
knob also gives you fine-grain control
which you can use to manually fine-tune
your frequency selection. This is useful if
you are searching for a radio signal
which is not strong enough for you to use
the Automatic Channel Selection func-
tion
✽
NOTICE
The speed at which you advance up or
down the frequency range depends on
how fast you turn the knob.

Knowing your vehicle
110 3
5. Station Preset buttons (1~6)
There are 6 Station Preset buttons which
you can use to store the frequencies of
your 6 favorite radio stations. Saving a
station as a preset gives you one-touch
access to the station you want.
Remember that the 6 presets stations
you store are for the specific radio band
mode you are in. That means that you
can store up to 6 stations in AM mode, 6
in FM1 mode, and 6 in FM2 mode. This
means that you can store up to 18 of your
favorite stations in the preset memory.
✽
NOTICE
 To switch between FM1 and FM2
mode:
Use the FM1 and FM2 buttons (for
Model D446)
Press the FM button to switch
between FM1 and FM2 modes (For
Model D465)
 Remember that if you store a station
as preset 1 in FM2 mode, you must
first select FM2 mode before you can
use that preset button.
 This function is not effective if you are
experiencing poor reception in your
vicinity.
6. Using Presets
To save a radio station as a preset:
1. Take note of the band selection dis-
played on the LCD screen (AM, FM1 or
FM2)
2. Tune in to the radio station you want
using either the SEEK UPandDOWN
buttons or the Tuning Knob.
3. Choose the Preset button (1~6) you
want to use to store the radio station.
4. Press and hold the Preset button for
more than 2 seconds.
The system beeps to indicate that it
has saved the new station and displays
the frequency and preset number on
the LCD screen.
✽
NOTICE
Saving a new station erases the previous
setting saved in that preset.
To tune in to a preset station:
1. Select the band (AM, FM1 or FM2) you
want using the band selector buttons.
2. Press the preset button corresponding
to the radio station you want.
The system automatically jumps to the
preset station. The frequency and pre-
set number is displayed on the LCD
screen.
Buttons not in use in Radio mode:
The following buttons and functions are
not used in Radio mode.
•REWbutton
•FFbutton
•RPTbutton
•RDMbutton
•MARKbutton
•NFObutton

3 111
Knowing your vehicle
1. SCAN button
2. Track UP and DOWN buttons
3. CD selector buttons (1~6)
4. Rewind REW and Fast Forward FF
buttons
5. Dir and buttons (MP3 and
WMA discs)
6. File Search Knob
7. RPT, RDM, MARK & INFO buttons
OBL03465-0
The functions of the buttons and controls described below are only applicable when you select the CD mode by pressing the CDselector button
(for both Model D446 and Model D465).
Using CD player Controls
Model shown is D465. The buttons on your audio system may differ.
For details, see specific descriptions in the following section.

Knowing your vehicle
112 3
1. SCAN button
Disc Scan function
Model D446:
During CD playback, press the SCAN
button to play the first 10 seconds (pre-
view) of all tracks on the current CD.
Model D465:
To preview the first track of all the CDs in
the CD changer, press and hold the
SCANbutton for more than 2 seconds.
Once you hear a track you want, press
theSCANbutton again to resume nor-
mal playback.
2. Track UP and DOWN but-
tons
During CD playback, press the and
buttons to select and play the
next or previous track on the current disc.
The LCD screen displays the track num-
ber as you press the buttons. You can
press the button several times to select
the track you want.
3. CD selector buttons (1~6)
Model D446:
TheCDselector buttons are not used
with Model D446.
Model D465:
Press the CDselector button correspon-
ding to the CD you want. The CD player
automatically interrupts playback and
loads the selected CD.
✽
NOTICE
If no CD is loaded in the selected posi-
tion, the LCD screen displays the No
Disc indicator.
4. Rewind REW and Fast Forward FF
buttons
During CD playback, press and hold the
REWorFFbuttons to rewind or fast-for-
ward playback of the current track. The
LCD screen displays the elapsed time of
the track you are rewinding or fast-for-
warding.
Release the REWorFFbutton when you
have reached the point you want.
Playback resumes automatically at the
selected point.
5. Dir and buttons (MP3 and
WMA discs)
During MP3/WMACD playback, press
theDIRor buttons to switch to the
next or previous directory on the CD. The
LCD screen displays the name of the
directory you have switched to. You can
press the button several times to search
for the directory you want. The directories
are displayed in sequence (i.e. ascend-
ing or descending alphabetical order).
To access the directory displayed, press
theFile Search knobtoENTERyour
selection.
✽
NOTICE
The Directory UP and DOWN buttons
can only be used when you are playing a
CD which has organized its tracks in the
form of directories. Normally, only MP3
or WMA CDs will contain a directory
tree which you can navigate using these
buttons.

3 113
Knowing your vehicle
6. File Search Knob
Rotate the knob clockwise or counter-
clockwise to manually advance up or
down the track list of the CD currently
played. This function allows you to quick-
ly scroll to a specific track number. It is
especially useful if you are playing a MP3
orWMA CDwhich contains many direc-
tories and tracks. The LCD screen dis-
plays the track number you have scrolled
to.
Once the track number you want is dis-
played, press the File Search knob to
ENTERyour selection and begin play-
back of the selected track.
✽
NOTICE
You must push the File Search knob to
select the track for playback. Otherwise,
the CD player will not jump to the track
number displayed in the number count-
er.
Use the File Search knob and the DIR
and buttons in together to quick-
ly search for a track you want on a MP3
CD with many directories and tracks.
7. RPT, RDM, MARK & INFO buttons
These buttons correspond to the Repeat,
Random Playback, Marklist and Disc
Information functions.
Turn to the next section of your handbook
for detailed instructions.
Playing CDs, MP3 and WMA discs
1. Loading CDs
Model D446:
Only one CD can be loaded at any one
time. If there is already a disc inserted in
the CD player, eject the disc before load-
ing a new CD.
To load a CD, gently insert the CD into
the CD slot. The CD will be automatically
loaded. The CD player then starts to play
the CD.
✽
NOTICE
 Do not force-load the CD as it will
damage the loading mechanism and
cause your disc to jam in the player.
 If a CD cannot be loaded, check if
there is already a disc in the player
and eject it first.
Only one CD can be loaded at any one
time.
