2008 KIA CERATO glove box

23
1 23456789
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s Air Bag*
2. Light control / Turn signals
3. Instrument cluster
4. Wiper/Washer
5. Ignition switch
6. Seat warmer*
7. Hazard
8. Climate control system
9. Shift lever*
10. Passenger’s airbag*
11. Glove box
12. Audio controls*
13. Auto cruise controls*
* : if equippedOLD006003

Knowing your vehicle
2
3
1 23456789
CAUTION
Use only Kia original parts for
the ignition key in your vehicle.If an aftermarket key is used, theignition switch may not return to ON after START. If this hap-pens, the starter will continue tooperate causing damage to the starter motor and possible firedue to excessive current in thewiring.
The key code number is stamped on
the plate attached to the key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
Dealer to duplicate the keys easily.
Remove the plate and store it in a
safe place. Also, record the code
number and keep it in a safe and
handy place, but not in the vehicle. Key operations
Master key
Used to start the engine, lock and
unlock the doors, lock and unlock the
glove box (if equipped), and open the
trunk (if equipped).
KEYS
OUN046100LOUN026060
WARNING
- Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death. Never leave the keys in
your vehicle with unsupervised
children.

Knowing your vehicle
58
3
1 23456789
Front passenger’s airbag (if equipped)
Front passenger’s airbag is stored in
the instrument panel on the glove
box. Since you cannot anticipate which
airbags will deploy or from what
direction, never put any objects or
ornaments on the instrument panel.
Passenger’s front air bag ON/OFF
switch (if equipped)
The passenger’s front air bag can be
deactivated by the passenger’s front
air bag ON/OFF switch if a child
restraint is installed on the front pas-senger's seat or if the front passen-
ger's seat is unoccupied by a person.
To ensure the safety of your child,
the passenger’s front air bag must be
deactivated when it should be neces-
sary to install a rearward facing childseat on the front passenger seat in
exceptional circumstances.
1LDA2049
HLZ2121
OMG035200

Knowing your vehicle
88
3
1 23456789

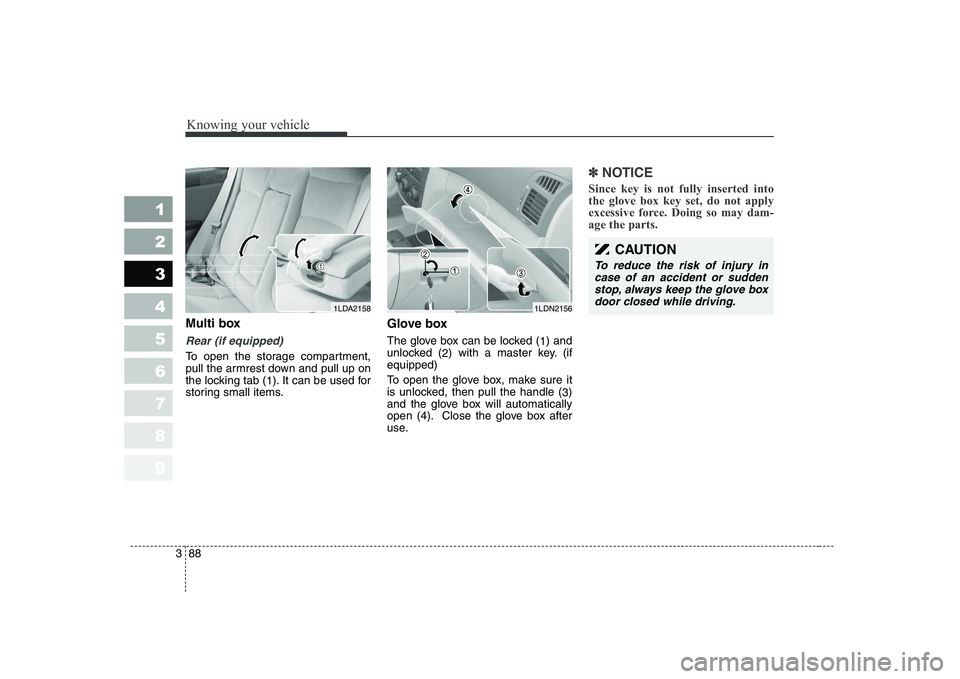

Multi box
Rear (if equipped)
To open the storage compartment,
pull the armrest down and pull up on
the locking tab (
1). It can be used for
storing small items. Glove box
The glove box can be locked (
1) and
unlocked ( 2) with a master key. (if
equipped)
To open the glove box, make sure it
is unlocked, then pull the handle ( 3)
and the glove box will automatically
open (4). Close the glove box after
use.
✽✽ NOTICE
Since key is not fully inserted into the glove box key set, do not apply
excessive force. Doing so may dam-age the parts.
1LDN2156
CAUTION
To reduce the risk of injury in case of an accident or suddenstop, always keep the glove boxdoor closed while driving.
1LDA2158

Maintenance
30
7
1 23456789

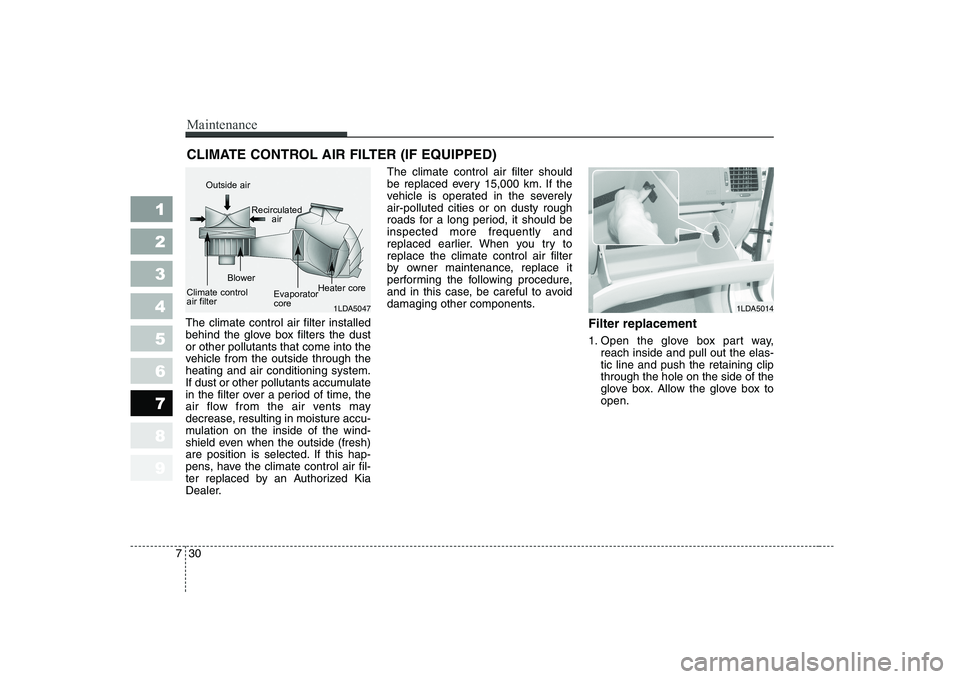

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
The climate control air filter installed
behind the glove box filters the dustor other pollutants that come into the
vehicle from the outside through theheating and air conditioning system.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
are position is selected. If this hap-
pens, have the climate control air fil-
ter replaced by an Authorized Kia
Dealer. The climate control air filter should
be replaced every 15,000 km. If the
vehicle is operated in the severelyair-polluted cities or on dusty rough
roads for a long period, it should beinspected more frequently and
replaced earlier. When you try toreplace the climate control air filter
by owner maintenance, replace it
performing the following procedure,
and in this case, be careful to avoid
damaging other components.
Filter replacement
1. Open the glove box part way,reach inside and pull out the elas- tic line and push the retaining clipthrough the hole on the side of the
glove box. Allow the glove box toopen.
1LDA50141LDA5047
Outside air
Recirculatedair
Climate control air filter Blower
EvaporatorcoreHeater core

731
Maintenance
1 23456789

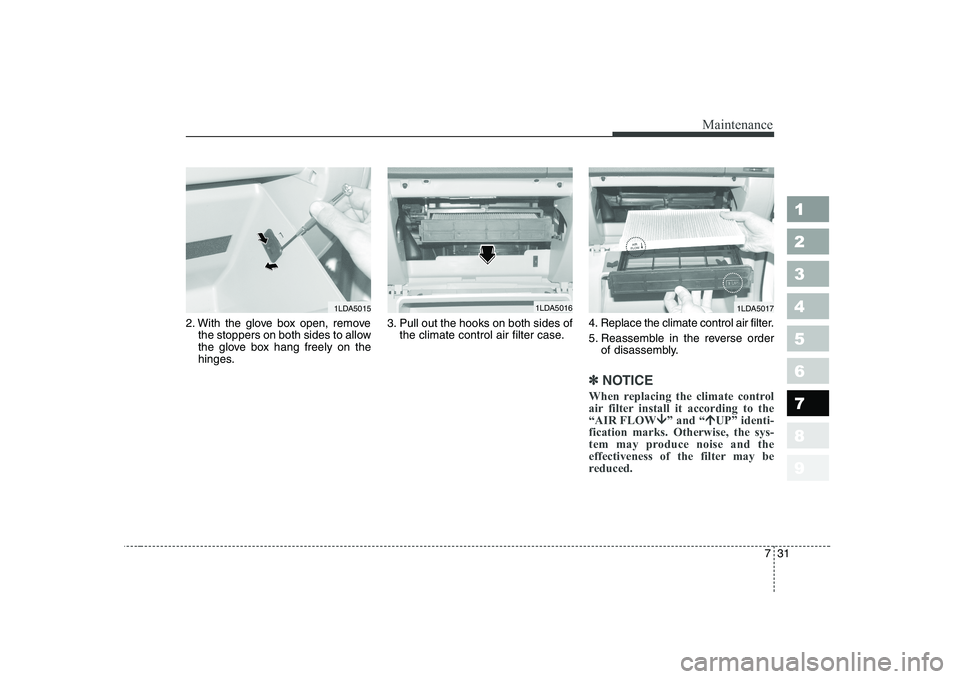

2. With the glove box open, removethe stoppers on both sides to allow
the glove box hang freely on the
hinges. 3. Pull out the hooks on both sides of
the climate control air filter case. 4. Replace the climate control air filter.
5. Reassemble in the reverse order
of disassembly.
✽✽ NOTICE
When replacing the climate control
air filter install it according to the
“AIR FLOW
È ” and “Ç UP” identi-
fication marks. Otherwise, the sys-
tem may produce noise and the
effectiveness of the filter may be
reduced.
1LDA50161LDA50171LDA5015
