Page 292 of 4083
AV
AV CONTROL UNITAV-111
< ECU DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
Wiring DiagramINFOID:0000000001696142
AANWA0067GB
Revision: March 2010 2008 QX56
Page 293 of 4083
AV-112
< ECU DIAGNOSIS >[AUDIO SYSTEM]
AV CONTROL UNIT
AANWA0068GB
Revision: March 2010
2008 QX56
Page 294 of 4083
AV
AV CONTROL UNITAV-113
< ECU DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
AANWA0069GB
Revision: March 2010 2008 QX56
Page 295 of 4083
AV-114
< ECU DIAGNOSIS >[AUDIO SYSTEM]
AV CONTROL UNIT
AANWA0070GB
Revision: March 2010
2008 QX56
Page 296 of 4083
AV
AV CONTROL UNITAV-115
< ECU DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
AANWA0071GB
Revision: March 2010 2008 QX56
Page 297 of 4083

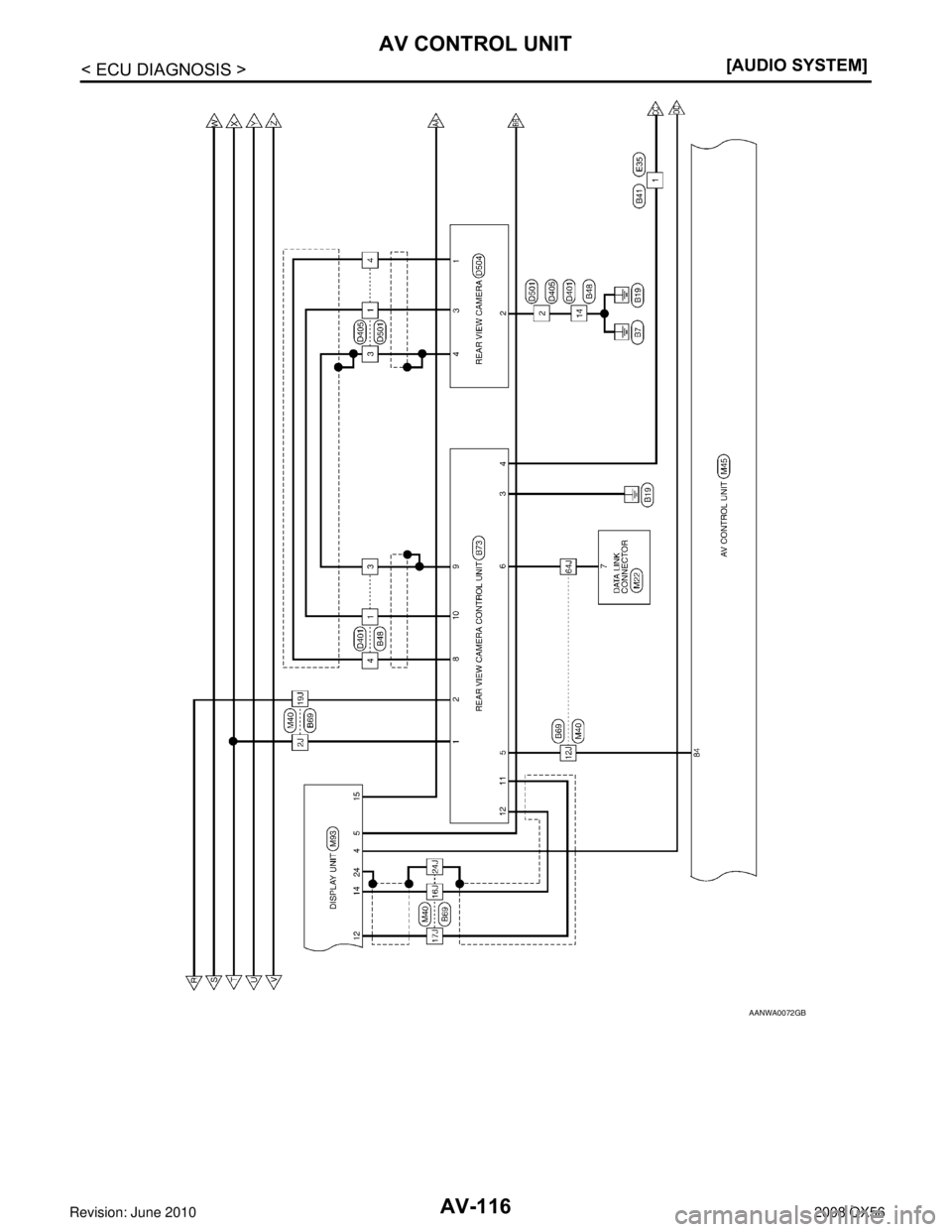

AV-116
< ECU DIAGNOSIS >[AUDIO SYSTEM]
AV CONTROL UNIT
AANWA0072GB
Revision: March 2010
2008 QX56
Page 298 of 4083
AV
AV CONTROL UNITAV-117
< ECU DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
AANWA0073GB
Revision: March 2010 2008 QX56
Page 299 of 4083
AV-118
< ECU DIAGNOSIS >[AUDIO SYSTEM]
AV CONTROL UNIT
AANWA0074GB
Revision: March 2010
2008 QX56
