2008 INFINITI QX56 ECU

SUSPENSION CONTROL UNITSCS-27
< ECU DIAGNOSIS >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P
ECU DIAGNOSIS
SUSPENSION CONTROL UNIT
Reference ValueINFOID:0000000001731999
TERMINAL LAYOUT
PHYSICAL VALUES
ALNIA0660GB
Te r m i n a l
(Wire color) Description
ConditionReference value
(Approx.)
+ – Signal nameInput/
Output
1
(V) Ground Compressor relay output Output Ignition
switch
ON Air levelizer ra
ising vehicle
ride height Battery voltage
3
(W) Ground Height sensor input
InputIgnition
switch ON —
0.2V - 4.8V
5
(R) Ground VREF output (height sen-
sor) OutputIgnition
switch ON —5
V
6
(G/R) Ground IGN power supply
InputIgnition
switch
ON or
START —
Battery voltage
7
(W/L) Ground BAT power supply
InputIgnition
switch
OFF —
Battery voltage
8
(G/W) Ground Diagnostic K-line Input/
Output ——
—
9
(SB) Ground Exhaust valve output Output Ignition
switch ON Air levelizer lo
wering vehi-
cle ride height (venting) Battery voltage
10
(BR) Ground Warning lamp output Output Ignition
switch ON Warning lamp ON
0V
Warning lamp OFF Battery voltage
14
(L) Ground Height sensor ground Output Ignition
switch
ON —
Less than 0.2V
15
(BR/W) Ground Generator input
InputIgnition
switch ON Charge light ON
0V
Charge light OFF Battery voltage
16
(B) Ground Suspension control unit
ground InputIgnition
switch ON —
Less than 0.2V
Revision: March 2010 2008 QX56

SCS-28
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT
Wiring Diagram
INFOID:0000000001732000
AAEWA0003GB
Revision: March 2010 2008 QX56

SUSPENSION CONTROL UNITSCS-29
< ECU DIAGNOSIS >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P

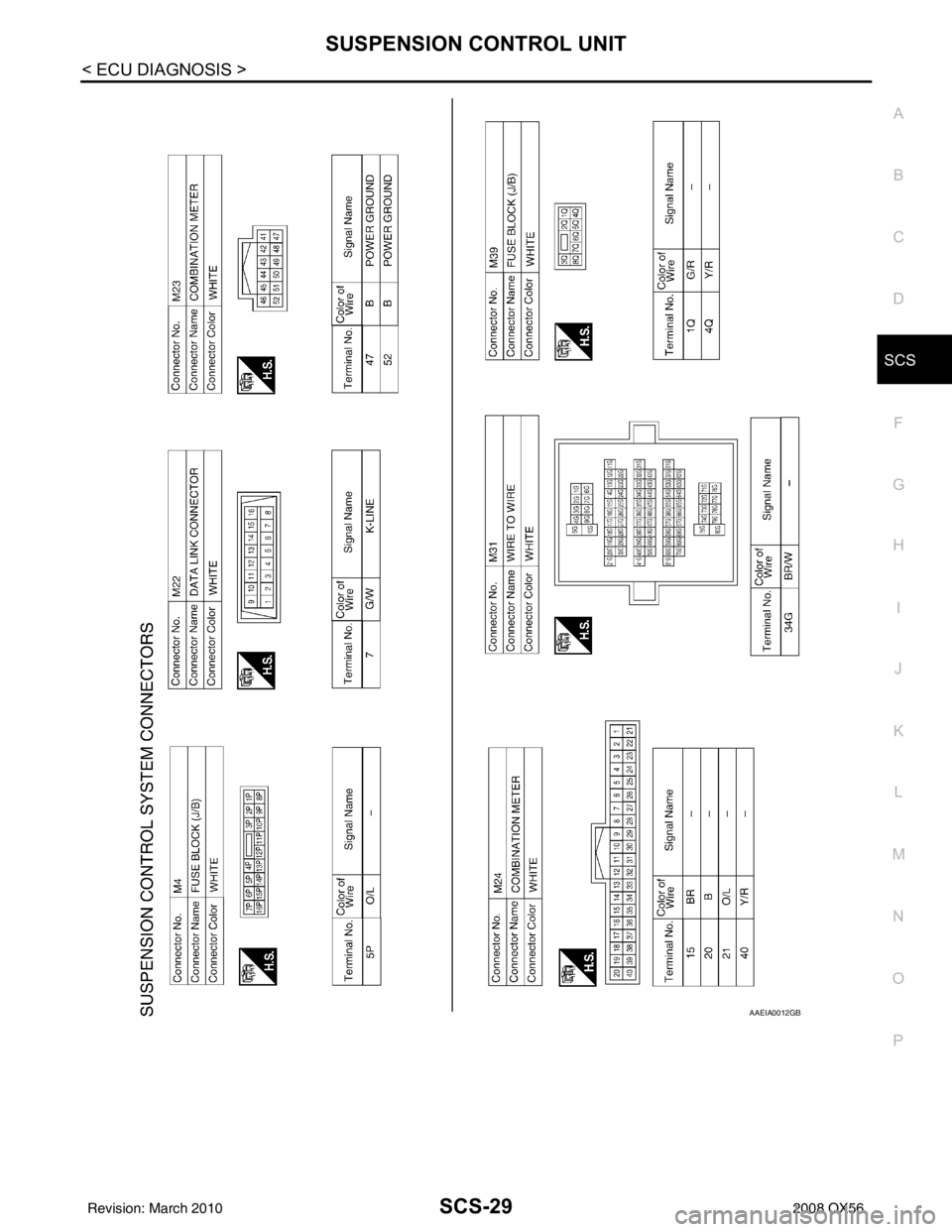

AAEIA0012GB
Revision: March 2010 2008 QX56

SCS-30
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT

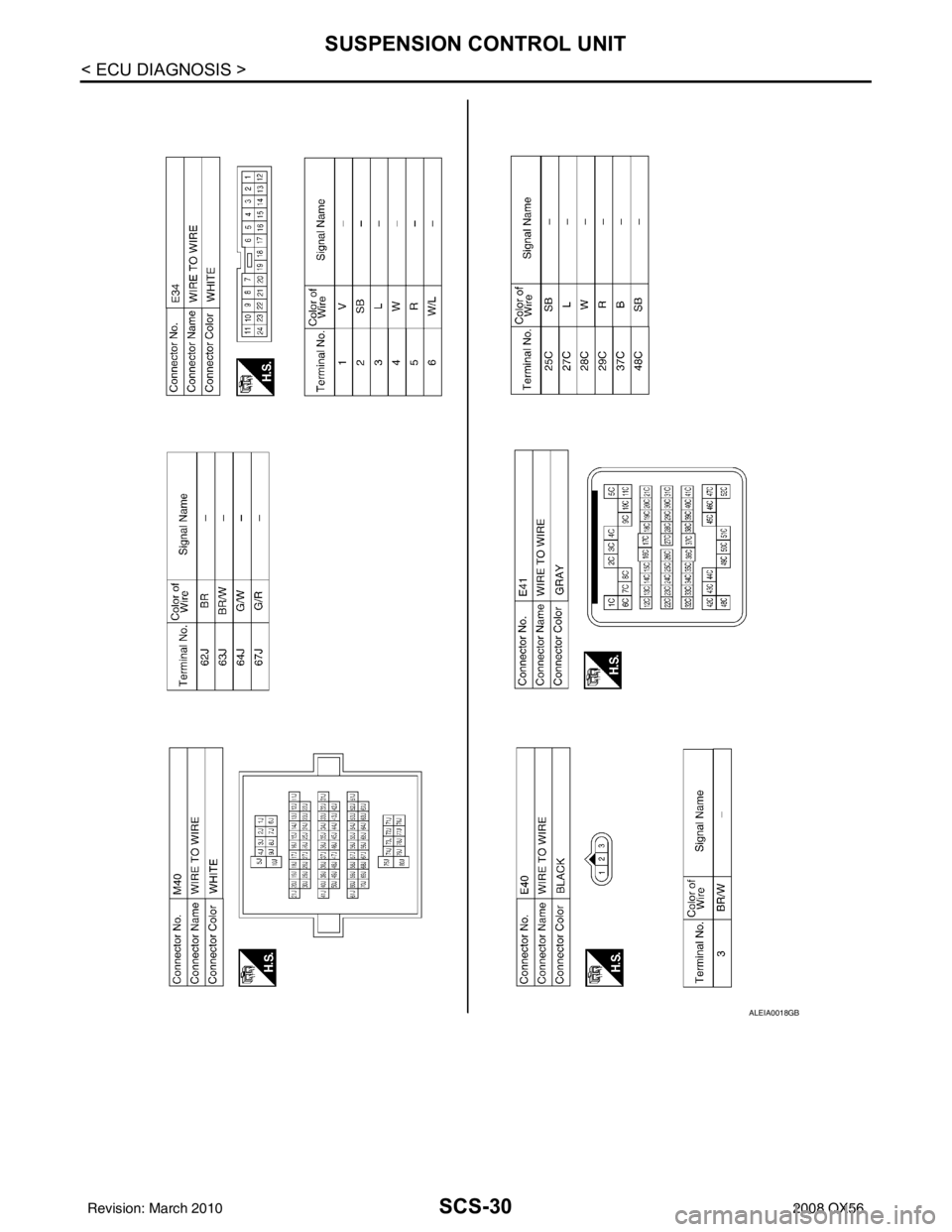

ALEIA0018GB
Revision: March 20102008 QX56

SUSPENSION CONTROL UNITSCS-31
< ECU DIAGNOSIS >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P

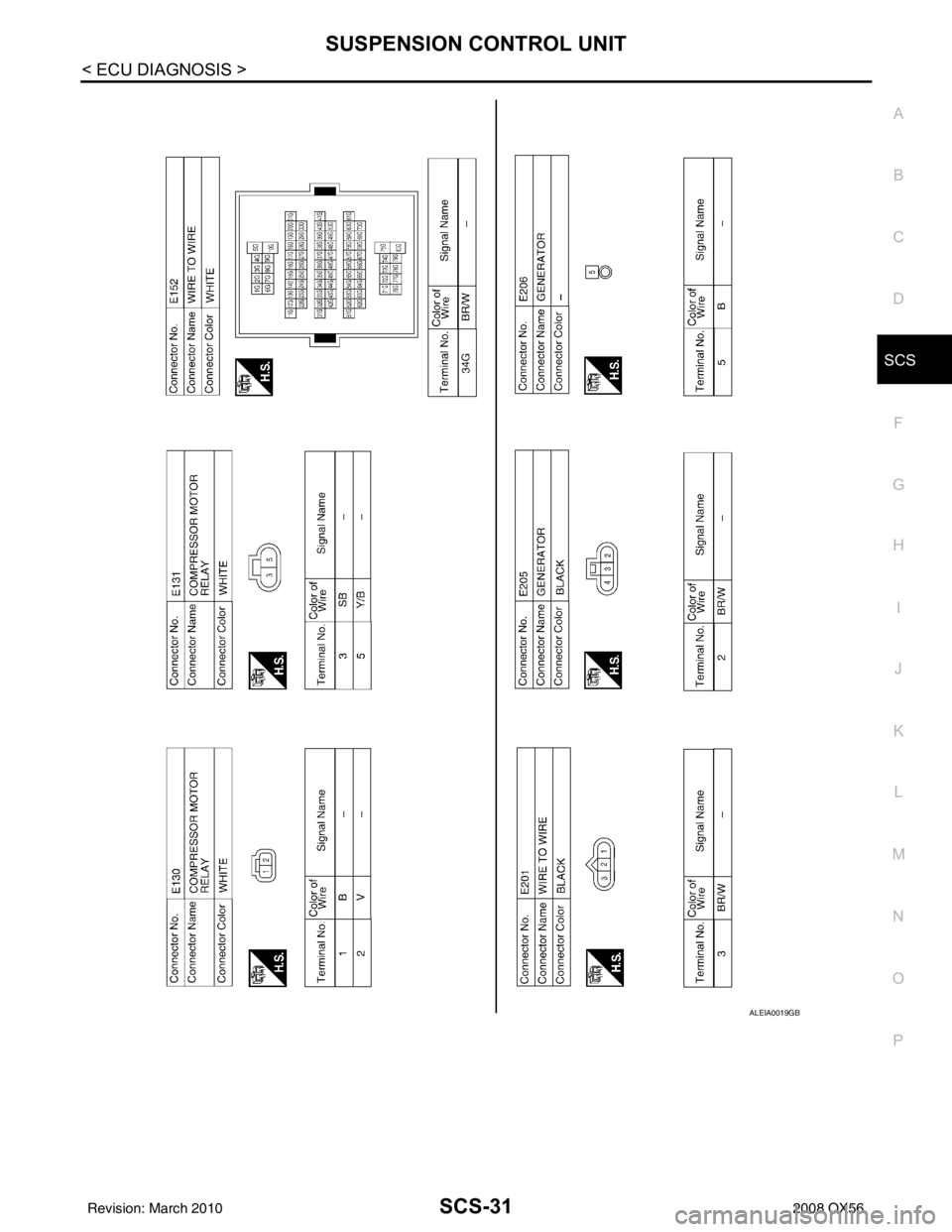

ALEIA0019GB
Revision: March 2010 2008 QX56

SCS-32
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT

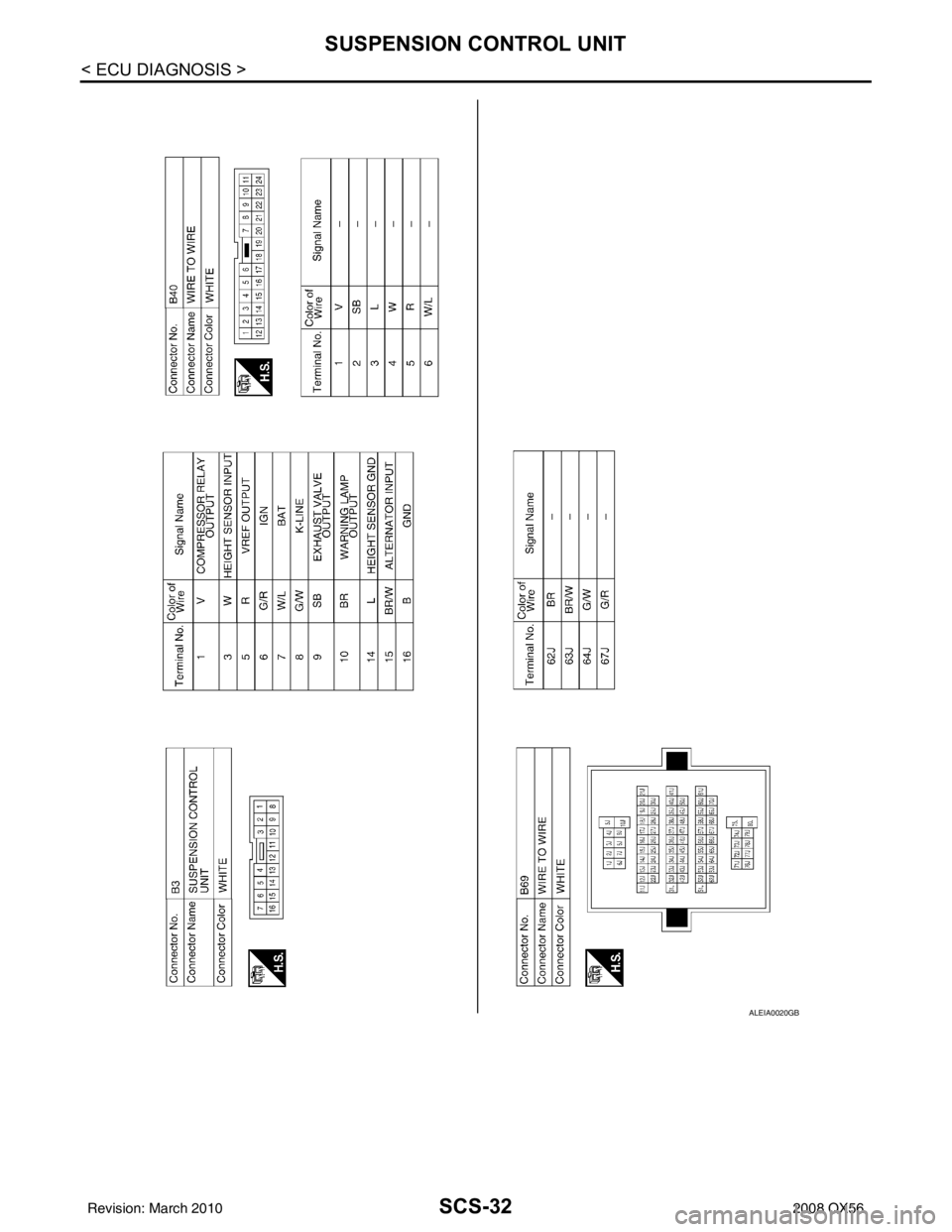

ALEIA0020GB
Revision: March 20102008 QX56

SUSPENSION CONTROL UNITSCS-33
< ECU DIAGNOSIS >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P
DTC IndexINFOID:0000000001732001
Self-diagnosis results display item
ALEIA0043GB
CONSULT-III display MalfunctionReference page
Vehicle height sensor [C1801] Vehicle height sensor voltage is less than 0.2V or greater than
4.8V for more than 60 seconds. SCS-9,
"DiagnosisProcedure"
Revision: March 2010
2008 QX56

SCS-34
< ECU DIAGNOSIS >
SUSPENSION CONTROL UNIT
Compressor relay [C1802]• Driving transistor for compre
ssor relay is OFF and monitor
voltage continues at a high level for more than 10 seconds.
• Driving transistor for compressor relay is ON and monitor volt-
age continues at a low level for more than 5 seconds. SCS-10, "DiagnosisProcedure"
Exhaust solenoid [C1803]
• Driving transistor for exhaust valve solenoid is OFF and mon-
itor voltage continues at a high level for more than 10 seconds.
• Driving transistor for exhaust valve solenoid is ON and monitor voltage continues at a low level for more than 5 secondsl. SCS-11, "DiagnosisProcedure"
Vehicle height adjusting malfunction
(compressor)[C1804]
Continuous compressor relay ON time is more than 120 sec-
onds. SCS-12,
"DiagnosisProcedure"
Vehicle height adjusting malfunction
(exhaust solenoid)[C1805]Continuous exhaust valve solenoid ON time is more than 120
seconds. SCS-13,
"DiagnosisProcedure"
Vehicle height sensor locking mal-
function [C1806]Output sensor voltage variation
±0.02V is more than 100 sec-
onds when vehicle height range is normal. SCS-14, "Diagnosis Pro-
cedure"
Sensor 5V malfunction [C1807]
Sensor reference voltage is less than 0.8V or more than 6V for
20 seconds. SCS-15, "DiagnosisProcedure"
Integral time malfunction by supply-
ing air [C1808]A suspension air compressor ON request has been in effect for
180 seconds and the suspension air compressor has not activat-
ed during that time. SCS-16,
"DiagnosisProcedure"
Revision: March 2010
2008 QX56
