Page 3888 of 4083

WCS
WARNING CHIME SYSTEMWCS-11
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
KEY WARNING CHIME : Co mponent Parts LocationINFOID:0000000004872564
KEY WARNING CHIME : Component DescriptionINFOID:0000000001697668
AWNIA0211ZZ
1. Combination meter M23, M24 2. Combination switch (lighting switch)
M283. BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)
4. Front door switch LH B8 5. Key switch and ignition knob switch
M12 6. Seat belt buckle pre-tensioner assem-
bly LH (seat belt buckle switch) B74
Unit Description
Combination meter Receives key warning signal from BCM via CAN communication line and sounds the buzzer.
BCM Judges the key warning condition using the door switch signal received from the front door switch
LH, and the key switch signal received from the key switch and ignition knob switch. It then transmits
a buzzer output signal to the combination meter via CAN communication line if necessary.
Front door switch LH Transmits door switch signal to BCM.
Key switch and ignition knob
switch Transmits key switch signal to BCM.
Revision: March 2010
2008 QX56
Page 3891 of 4083
![INFINITI QX56 2008 Factory Service Manual WCS-14
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
X: Applicable
Display item [Unit]MAIN
SIGNALS SELECTION
FROM MENU Description
SPEED METER [km/h] or [mph] X X Displays the value of vehicle spee INFINITI QX56 2008 Factory Service Manual WCS-14
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
X: Applicable
Display item [Unit]MAIN
SIGNALS SELECTION
FROM MENU Description
SPEED METER [km/h] or [mph] X X Displays the value of vehicle spee](/manual-img/42/57030/w960_57030-3890.png)
WCS-14
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
X: Applicable
Display item [Unit]MAIN
SIGNALS SELECTION
FROM MENU Description
SPEED METER [km/h] or [mph] X X Displays the value of vehicle speed signal.
SPEED OUTPUT [km/h] or [mph] X XDisplays the value of vehicle speed signal, which is transmitted to
each unit with
CAN communication.
TACHO METER [rpm] XX Displays the value of engine speed signal, which is input from ECM.
FUEL METER [lit.] XXDisplays the value, which processes a resistance signal from fuel
gauge.
W TEMP METER [ °C] or [° F] X XDisplays the value of engine coolant temperature signal, which is in-
put from ECM.
ABS W/L [ON/OFF] X Displays [ON/OFF] condition of ABS warning lamp.
VDC/TCS IND [ON/OFF] X Displays [ON/OFF] condition of VDC OFF indicator lamp.
SLIP IND [ON/OFF] X Displays [ON/OFF] condition of SLIP indicator lamp.
BRAKE W/L [ON/OFF] X Displays [ON/OFF] condition of brake warning lamp.*
DOOR W/L [ON/OFF] X Displays [ON/OFF] condition of door warning lamp.
TRUNK W/L [ON/OFF] X Displays [ON/OFF] condition of glass hatch warning lamp.
HI-BEAM IND [ON/OFF] X Displays [ON/OFF] condition of high beam indicator.
TURN IND [ON/OFF] X Displays [ON/OFF] conditio n of turn indicator.
OIL W/L [ON/OFF] X Displays [ON/OFF] condition of oil pressure warning lamp.
C-ENG W/L [ON/OFF] X Displays [ON/OFF] condition of malfunction indicator lamp.
CRUISE IND [ON/OFF] X Displays [ON/OFF] condition of CRUISE indicator.
SET IND [ON/OFF] X Displays [ON/OFF] condition of SET indicator.
AT CHECK W/L [ON/OFF] X Displays [ON/OFF] condition of AT CHECK warning lamp.
FUEL W/L [ON/OFF] XX Displays [ON/OFF] condition of low-fuel warning lamp.
AIR PRES W/L [ON/OFF] X Displays [ON/OFF] condition of tire pressure warning lamp.
KEY G W/L [ON/OFF] X Displays [ON/OFF] condition of key green warning lamp.
KEY R W/L [ON/OFF] X Displays [ON/OFF] condition of key red warning lamp.
KEY KNOB W/L [ON/OFF] X Displays [ON/OFF] condition of key knob warning lamp.
M RANGE SW [ON/OFF] XX Displays [ON/OFF] condition of manual mode range switch.
NM RANGE SW [ON/OFF] XXDisplays [ON/OFF] condition of except for manual mode range
switch.
AT SFT UP SW [ON/OFF] XX Displays [ON/OFF] condition of A/T shift-up switch.
AT SFT DWN SW [ON/OFF] XX Displays [ON/OF F] condition of A/T shift-down switch.
DISTANCE [km] or [mile] XXDisplays the value, which is calculated by vehicle speed signal, fuel
gauge and fuel consumption from ECM.
BUZZER [ON/OFF] XX Displays [ON/ OFF] condition of buzzer.
BRAKE SW [ON/OFF] X Indicates [ON/OFF] condition of parking brake switch.
AT-M GEAR [1, 2, 3, 4, 5] XX Indicates [1, 2, 3, 4, 5] condition of A/T manual mode gear position.
P RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift P range indicator.
R RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift R range indicator.
N RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift N range indicator.
D RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift D range indicator.
4 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 4 range indicator.
3 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 3 range indicator.
2 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 2 range indicator.
1 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 1range indicator.
Revision: March 2010 2008 QX56
Page 3892 of 4083

WCS
DIAGNOSIS SYSTEM (METER)WCS-15
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
NOTE:
Some items are not available due to vehicle specification.
*: The monitor will indicate “OFF” even though the brake warnin g lamp is on if either of the following conditions exist.
• The parking brake is engaged
• The brake fluid level is low CRUISE W/L [ON/OFF]
X Indicates [ON/OFF] condition of CRUISE warning lamp.
4WD LOCK SW [ON/OFF] X Indicates [ON/OFF] condition of 4WD lock switch.
4WD LOCK IND [ON/OFF] X Indicates [ON/OFF] condition of 4WD lock indicator.
SEAT BELT W/L [ON/OFF] X Indicates [ON/OFF] condition of seat belt warning lamp.
FR FOG IND [ON/OFF] X This item is not used for this model. “OFF” is always displayed.
RR FOG IND [ON/OFF] X This item is not used for this model. “OFF” is always displayed.
LIGHT IND [ON/OFF] X Indicates [ON/OFF] condition of light indicator.
PNP P SW [ON/OFF] XX Indicates [ON/OFF] co ndition of transmission range P switch.
PNP N SW [ON/OFF] XX Indicates [ON/OFF] condition of transmission range N switch.
4WD W/L [ON/OFF] X Indicates [ON/OFF] condition of 4WD warning lamp.
Display item [Unit]
MAIN
SIGNALS SELECTION
FROM MENU Description
Revision: March 2010
2008 QX56
Page 3893 of 4083
![INFINITI QX56 2008 Factory Service Manual WCS-16
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
BUZZER
BUZZER : CONSULT-III Function (BCM - BUZZER)INFOID:0000000004872980
DATA MONITOR
ACTIVE TEST
Monitor Item[Unit] Descr INFINITI QX56 2008 Factory Service Manual WCS-16
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
BUZZER
BUZZER : CONSULT-III Function (BCM - BUZZER)INFOID:0000000004872980
DATA MONITOR
ACTIVE TEST
Monitor Item[Unit] Descr](/manual-img/42/57030/w960_57030-3892.png)
WCS-16
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
BUZZER
BUZZER : CONSULT-III Function (BCM - BUZZER)INFOID:0000000004872980
DATA MONITOR
ACTIVE TEST
Monitor Item[Unit] Description
IGN ON SW [ON/OFF] Ignition switch (ON) st atus judged by ignition power supply input
KEY ON SW [ON/OFF] Key switch status
DOOR SW -DR [ON/OFF] Front door switch (driver side) status judged by BCM
LIGHT SW 1ST [ON/OFF] Lighting switch status judged by the lighting switch signal read with combination switch reading func-
tion
BUCKLE SW [ON/OFF] Seat belt buckle switch status
Test Item Description
LIGHT WARN ALM The light reminder warning operation can be checked by operating the relevant function (On/Off).
IGN KEY WARN ALM The key reminder warning operation can be checked by operating the relevant function (On/Off).
SEAT BELT WARN TEST The seat belt warning operation can be checked by operating the relevant function (On/Off).
DOOR WARNING IND The door open warning operation can be checked by operating the relevant function (On/Off).
Revision: March 2010 2008 QX56
Page 3896 of 4083
WCS
METER BUZZER CIRCUITWCS-19
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
METER BUZZER CIRCUIT
DescriptionINFOID:0000000001697678
• The buzzer for warning chime system is installed in the combination meter.
• The combination meter sounds the alarm buzzer bas ed on the signals transmitted from various units.
Component Function CheckINFOID:0000000001697679
1.CHECK OPERATION OF METER BUZZER
1. Select “BUZZER” of “BCM” on CONSULT-III.
2. Perform “LIGHT WARN ALM” of “ACTIVE TEST”.
Does meter buzzer activate?
YES >> Inspection End.
NO >> Replace combination meter. Refer to MWI-76, "
Removal and Installation".
Diagnosis ProcedureINFOID:0000000001697680
1.CHECK POWER SUPPLY OF COMBINATION METER
Check power supply of combination meter. Refer to MWI-30, "
COMBINATION METER : Diagnosis Proce-
dure".
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair power supply circuit of combination meter.
Revision: March 2010 2008 QX56
Page 3901 of 4083
WCS-24
< COMPONENT DIAGNOSIS >
WARNING CHIME SYSTEM
WARNING CHIME SYSTEM
Wiring DiagramINFOID:0000000001697693
AANWA0105GB
Revision: March 20102008 QX56
Page 3902 of 4083
WCS
WARNING CHIME SYSTEMWCS-25
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P

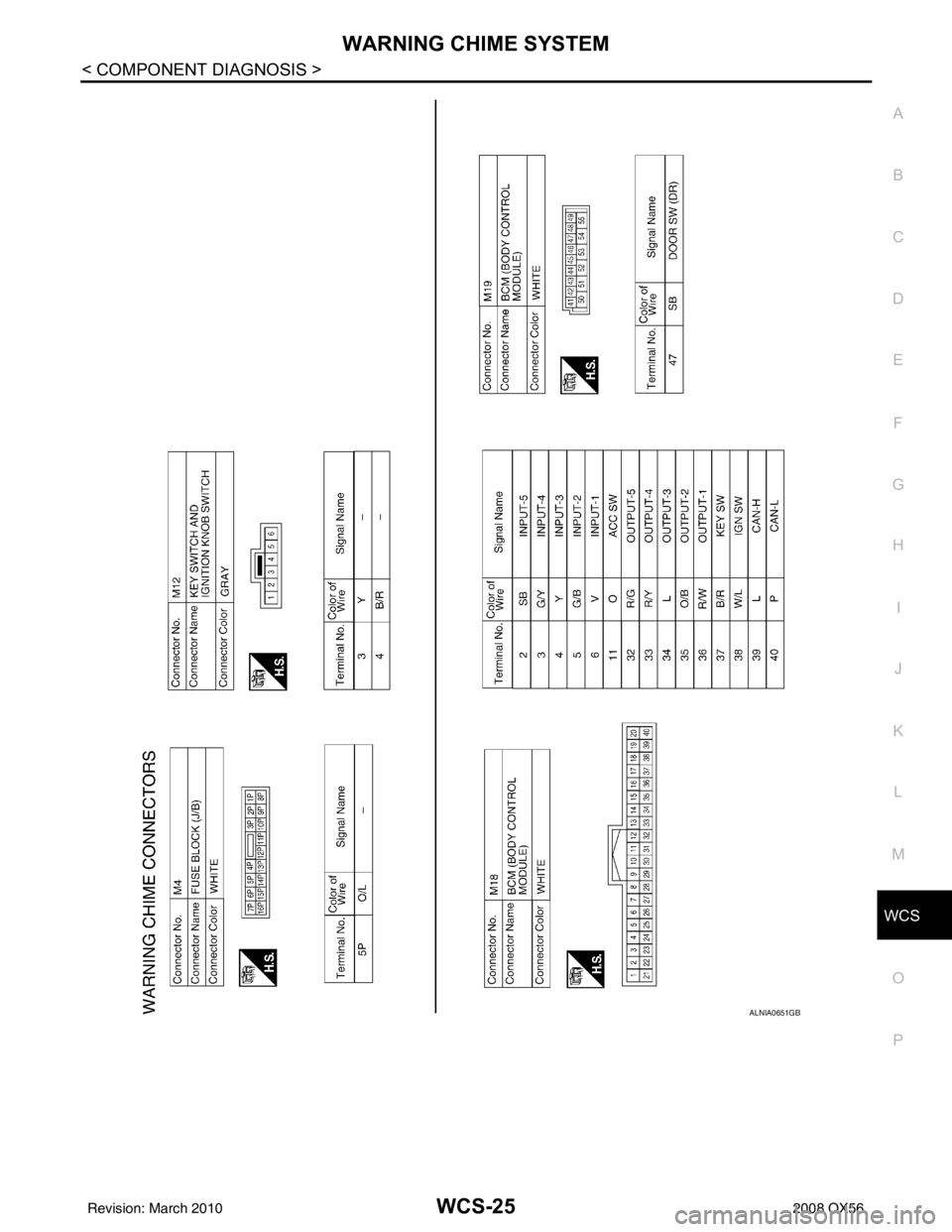

ALNIA0651GB
Revision: March 2010 2008 QX56
Page 3903 of 4083
WCS-26
< COMPONENT DIAGNOSIS >
WARNING CHIME SYSTEM

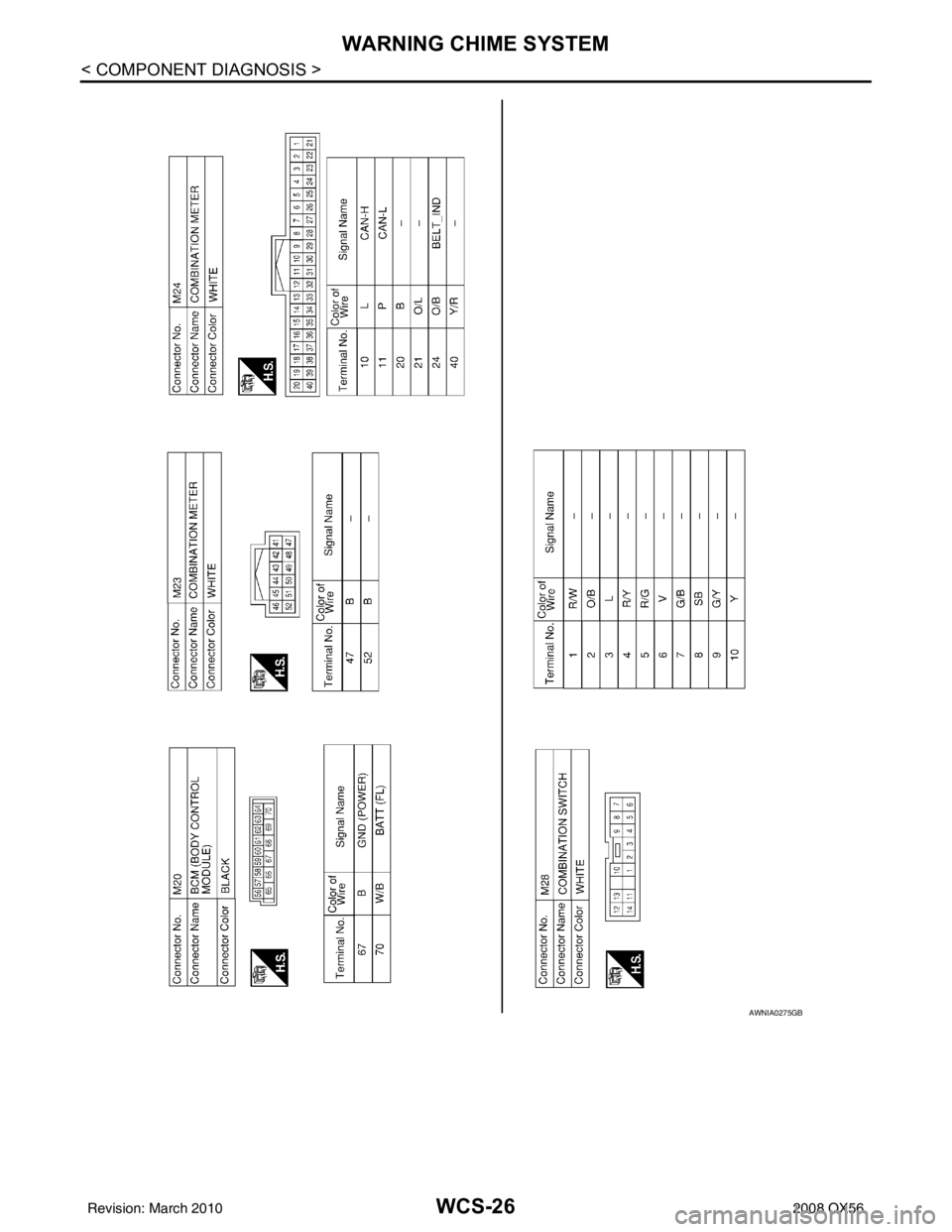

AWNIA0275GB
Revision: March 20102008 QX56
