2008 INFINITI QX56 ECU

BACK DOOR CONTROL UNITDLK-199
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Fail SafeINFOID:0000000001539063
Fail-safe operation
The automatic back door system operation will be interrupt ed if the back door control unit loses power, switch
input signals or communication with the BCM.
AAKIA0182GB
Revision: March 2010 2008 QX56

DLK-204
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR OPENER FUNCTION
BACK DOOR OPENER FUNCTION
BACK DOOR OPENER SWITCH
BACK DOOR OPENER SWITCH : Symptom TableINFOID:0000000001539068
TRUNK OPEN FUNCTION MALFUNCTION
NOTE:
• Before performing the diagnosis in the following table, check “WORK FLOW”. Refer to
DLK-6, "
Work Flow".
• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and
check each symptom.
• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column in this order.
Conditions of Vehicle (Operating Conditions)
• Vehicle is in park.
BACK DOOR SWITCH
Symptom Suspect systemsRefer to
Automatic operations are not executed from the back door fully
closed or fully open position.
(Auto closure operates normally). Power liftgate switch system inspection
DLK-137
Park switch —
Power window serial link —
Pinch strip system inspection DLK-129
Automatic operations are not carried out together with open/close
operations.
(Manual operations are normal). Power liftgate switch system inspection
DLK-137Back door close switch system inspectionDLK-133
Auto back door power supply and ground cir-
cuit system inspection. DLK-65
The auto closure function does not operate.
(Stops at the halfway position for auto closing operations).
Pinch strip system inspection
DLK-129
During auto closing operations, if obstruction is detected, the door
does not operate in reverse. Back door motor assembly
DLK-236
During close or cinch operations, the door does not operate in re-
verse if the back door handle is operated. Handle switch system
DLK-136
When the keyfob is operated, the back door does not operate au-
tomatically. Remote keyless entry system inspection
DLK-99Power window serial link —
Pinch strip system inspection DLK-129
Auto closure does not operate. Half-latch switch system
DLK-131Cinch latch motor systemDLK-135
Handle switch systemDLK-136
The back door does not open.
(Closure motor rotation is not reversed). Open switch system
DLK-132
Handle switch systemDLK-136
Warning chime does not sound. Back door warning chime systemDLK-130
Auto closure operation works, but the back door is not fully closed Close switch system
DLK-133
Handle switch systemDLK-136
Cinch latch motor systemDLK-135
Back door latch assembly mechanism dam-
aged or worn.DLK-236
Auto open operation releases lock, but does not fully open back
door. Glass hatch ajar switch check
DLK-125
Glass hatch lock actuator does not operate
(Right front door must be unlocked for normal operation) Glass hatch switch check
DLK-123Glass hatch lock actuator check DLK-88
Replace BCMBCS-55
Revision: March 2010 2008 QX56

DLK-214
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-
clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
• If it is difficult to duplicate the noise, drive the v ehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, chec k ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follo w the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pi npoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
• removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.
• tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.
• feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.
• placing a piece of paper between components that you suspect are causing the noise.
• looking for loose components and contact marks. Refer to DLK-215, "
Inspection Procedure".
REPAIR THE CAUSE
• If the cause is a loose component, tighten the component securely.
• If the cause is insufficient clearance between components:
- separate components by repositioning or loos ening and retightening the component, if possible.
- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts Depart-
ment.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Departm ent for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 ×135 mm (3.94 ×5.31 in)/76884-71L01: 60 ×85 mm (2.36 ×3.35 in)/76884-
71L02: 15 ×25 mm (0.59 ×0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 ×50 mm (1.97 ×1.97 in)/73982-
50Y00: 10 mm (0.39 in) thick, 50 ×50 mm (1.97 ×1.97 in)
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 ×50 mm (1.18 ×1.97 in)
FELT CLOTHTAPE
Used to insulate where movement does not occu r. Ideal for instrument panel applications.
68370-4B000: 15 ×25 mm (0.59 ×0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Revision: March 2010 2008 QX56

DLK-216
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Most of these incidents can be repaired by adjusting, se
curing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area c an often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the pos ition the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of thes e incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the \
vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
Revision: March 2010 2008 QX56

HOOD
DLK-225
< ON-VEHICLE REPAIR > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
1. Secure hood stay (1) using a vise (C)
2. Using hacksaw (A) slowly make 2 holes in the hood stay (1), in numerical order as shown in the figure
CAUTION:
• When cutting a hole on ho od stay (1), always cover a
hacksaw using a shop cloth (B) to avoid scattering metal
fragments or oil
• Wear eye protection (safety glasses)
• Wear gloves
A: 20 mm (0.787 In)
B: Cut at the groove
Removal and Installation of Hood Lock ControlINFOID:0000000001542678
REMOVAL
JMKIA3336ZZ
JMKIA3609ZZ
1. Hood lock assembly 2. Secondary hood lock release as-
sembly 3. Secondary hood lock cable
4. Primary hood lock cable 5. Grommet6. Hood lock release handle
WIIA0900E
Revision: March 2010 2008 QX56

DLK-226
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
HOOD
1. Remove the front fender protector (LH). Refer to
EXT-23, "Removal and Installation".
2. Disconnect the hood lock primary and secondary hood lock cables from the hood lock. Unclip the primary
cable from the radiator core support upper and hood ledge.
3. Remove the hood lock assembly.
4. Remove the secondary hood lock release assembly.
5. Remove the grommet from the dash lower, and pull the primary hood lock cable into the passenger room.
CAUTION:
While pulling, be careful not to dama ge the outside of the hood lock cable.
INSTALLATION
1. Pull the hood lock cable through the dash lower hole into the engine room.
Be careful not to bend the cable too much, keeping the radius
100mm (3.94 in) or more.
2. Make sure the cable is not offset from the positioning grommet, and push the grommet into the dash lower hole securely.
3. Apply sealant around the grommet at * mark.
4. Install the primary and secondary cables securely to the hood lock.
5. Install the hood lock and the secondary hood lock release assemblies.
6. Check the hood lock adjustment and hood opener operation. Refer to DLK-223, "
Fitting Adjustment".
Hood Lock Control InspectionINFOID:0000000001542679
CAUTION:
If the hood lock cable is bent or deformed, replace it.
1. Remove the front grille. Refer to EXT-17, "
Removal and Installation".
2. Make sure the secondary latch is properly engaged with the sec- ondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height.
3. While operating the hood opener, carefully make sure the front end of the hood is raised by approx. 20 mm (0.79 in). Also make
sure the hood opener returns to the original position.
PIIA0173E
PIIA0174E
PIIA1086E
Revision: March 2010 2008 QX56

DOOR
DLK-231
< ON-VEHICLE REPAIR > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Installation
Installation is in the reverse order of removal.

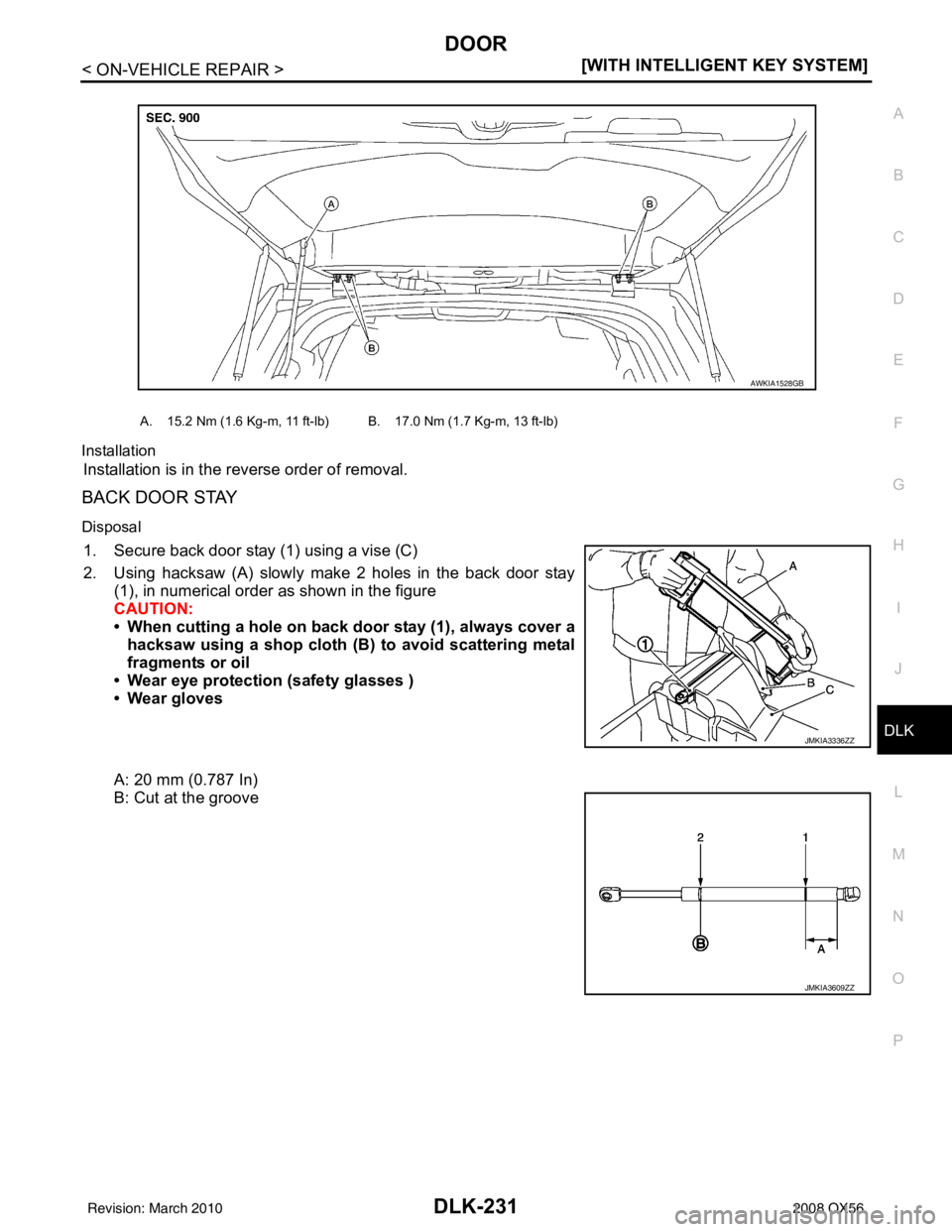

BACK DOOR STAY
Disposal
1. Secure back door stay (1) using a vise (C)
2. Using hacksaw (A) slowly make 2 holes in the back door stay
(1), in numerical order as shown in the figure
CAUTION:
• When cutting a hole on back door stay (1), always cover ahacksaw using a shop cloth (B) to avoid scattering metal
fragments or oil
• Wear eye protection (safety glasses )
• Wear gloves
A: 20 mm (0.787 In)
B: Cut at the groove
A. 15.2 Nm (1.6 Kg-m, 11 ft-lb) B. 17.0 Nm (1.7 Kg-m, 13 ft-lb)
AWKIA1528GB
JMKIA3336ZZ
JMKIA3609ZZ
Revision: March 2010 2008 QX56

DLN-2
P1820 ENGINE SPEED SIGNAL ......................52
Description ........................................................... ...52
DTC Logic ...............................................................52
Diagnosis Procedure ..............................................52
P1822 CLUTCH PRESSURE SOLENOID .........53
Description ..............................................................53
DTC Logic ...............................................................53
Diagnosis Procedure ..............................................53
Component Inspection ............................................55
P1823 2-4 SOLENOID .......................................57
Description ........................................................... ...57
DTC Logic ...............................................................57
Diagnosis Procedure ..............................................57
Component Inspection ............................................60
P1824 TRANSFER MOTOR ..............................61
Description ..............................................................61
DTC Logic ...............................................................61
Diagnosis Procedure ..............................................61
Component Inspection ............................................65
P1826 TRANSFER FLUID TEMPERATURE ....67
Description ........................................................... ...67
DTC Logic ...............................................................67
Diagnosis Procedure ..............................................67
Component Inspection ............................................68
P1827 CLUTCH PRESSURE SWITCH .............70
Description ........................................................... ...70
DTC Logic ...............................................................70
Diagnosis Procedure ..............................................70
Component Inspection ............................................71
P1828 LINE PRESSURE SWITCH ....................73
Description ........................................................... ...73
DTC Logic ...............................................................73
Diagnosis Procedure ..............................................73
Component Inspection ............................................75
P1829 THROTTLE POSITION SIGNAL (ECM)
...
76
Description ........................................................... ...76
DTC Logic ...............................................................76
Diagnosis Procedure ..............................................76
P1830 ABS OPERATION SIGNAL (ABS) ........77
Description ........................................................... ...77
DTC Logic ...............................................................77
Diagnosis Procedure ..............................................77
P1831 VDC OPERATION SIGNAL (ABS) ........78
Description ........................................................... ...78
DTC Logic ...............................................................78
Diagnosis Procedure ..............................................78
P1832 TCS OPERATION SIGNAL (ABS) .........79
Description ........................................................... ...79
DTC Logic ...............................................................79
Diagnosis Procedure ..............................................79
ECU DIAGNOSIS .......................................80
TRANSFER CONTROL UNIT ...........................80
Reference Value .................................................. ...80
Wiring Diagram .......................................................88
DTC Index ...............................................................95
SYMPTOM DIAGNOSIS ...........................100
4WD SYSTEM SYMPTOMS ........................... ..100
Symptom Table .................................................... .100
4WD SHIFT INDICATOR LAMP AND 4LO IN-
DICATOR LAMP DO NOT TURN ON ..............
101
Description ............................................................101
Diagnosis Procedure .............................................101
4WD WARNING LAMP DOES NOT TURN ON ..103
Description ........................................................... .103
Diagnosis Procedure .............................................103
4WD SHIFT INDICATOR LAMP OR 4LO INDI-
CATOR LAMP DO NOT CHANGE ...................
105
Description ........................................................... .105
Diagnosis Procedure .............................................105
ATP WARNING LAMP DOES NOT TURN ON ..107
Description ........................................................... .107
Diagnosis Procedure .............................................107
4WD SHIFT INDICATOR LAMP KEEPS
FLASHING ........................................................
109
Description ........................................................... .109
Diagnosis Procedure .............................................109
4WD WARNING LAMP FLASHES RAPIDLY ..110
Description ............................................................110
Diagnosis Procedure .............................................110
4WD WARNING LAMP FLASHES SLOWLY ..111
Description ............................................................111
Diagnosis Procedure .............................................111
HEAVY TIGHT-CORNER BRAKING SYMP-
TOM OCCURS ................................................ ..
112
Description ........................................................... .112
Diagnosis Procedure .............................................112
ATP SWITCH ....................................................114
Description ........................................................... .114
Diagnosis Procedure .............................................114
4WD SYSTEM DOES NOT OPERATE ............116
Description ........................................................... .116
Diagnosis Procedure .............................................116
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ...........................
117
NVH Troubleshooting Chart ..................................117
PRECAUTION ............... ............................118
Revision: March 2010 2008 QX56
