2008 INFINITI QX56 ECU

DLN-92
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT

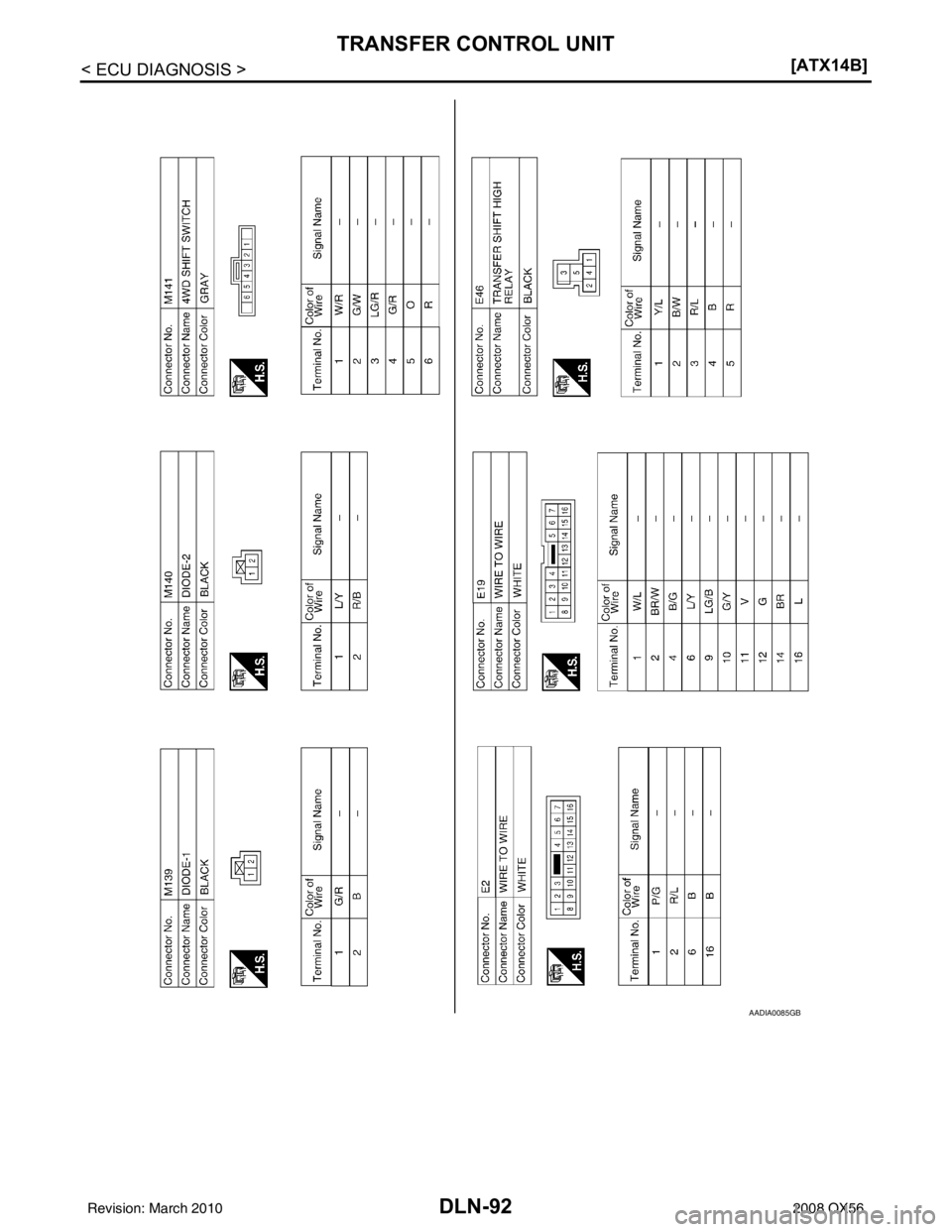

AADIA0085GB
Revision: March 2010
2008 QX56

TRANSFER CONTROL UNITDLN-93
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

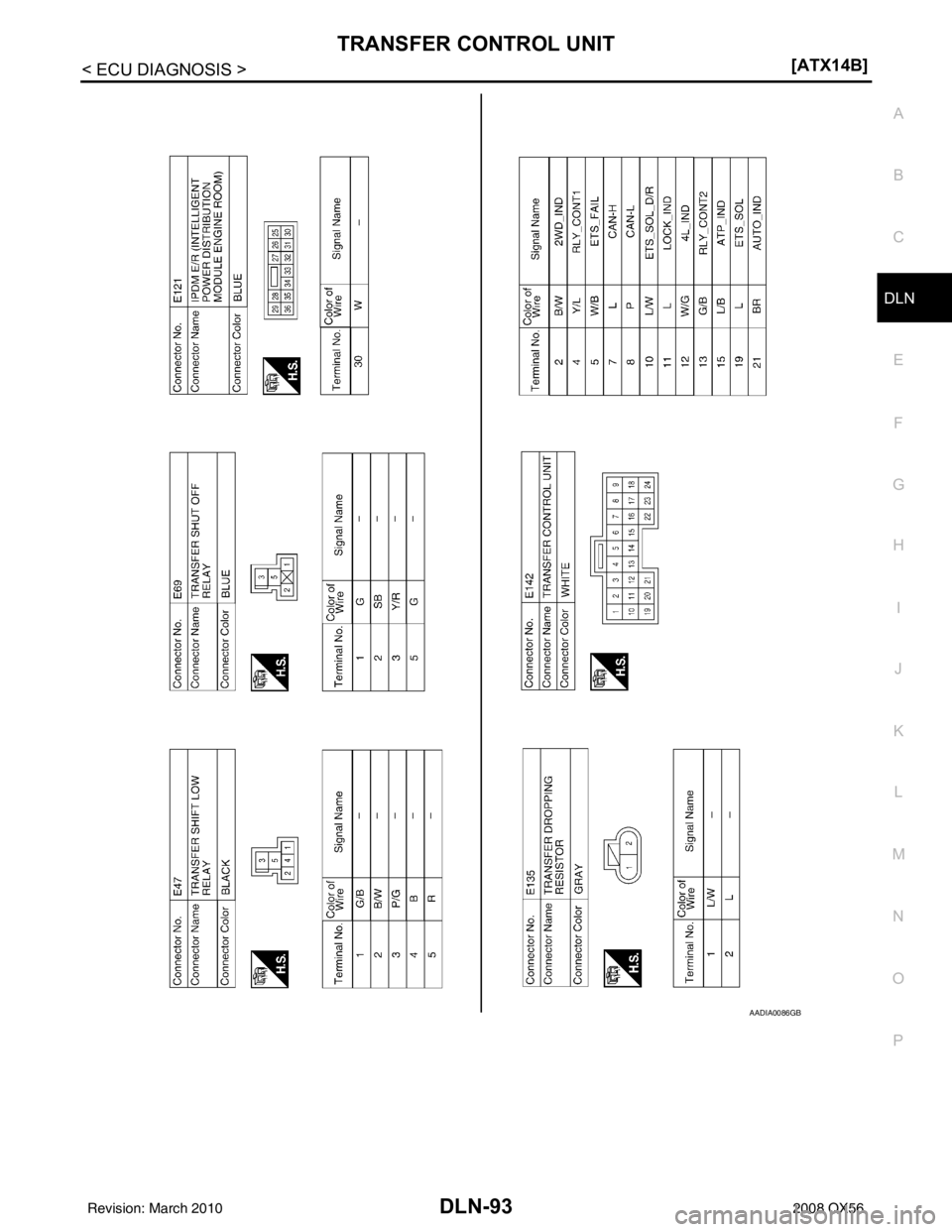

AADIA0086GB
Revision: March 2010 2008 QX56

DLN-94
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT

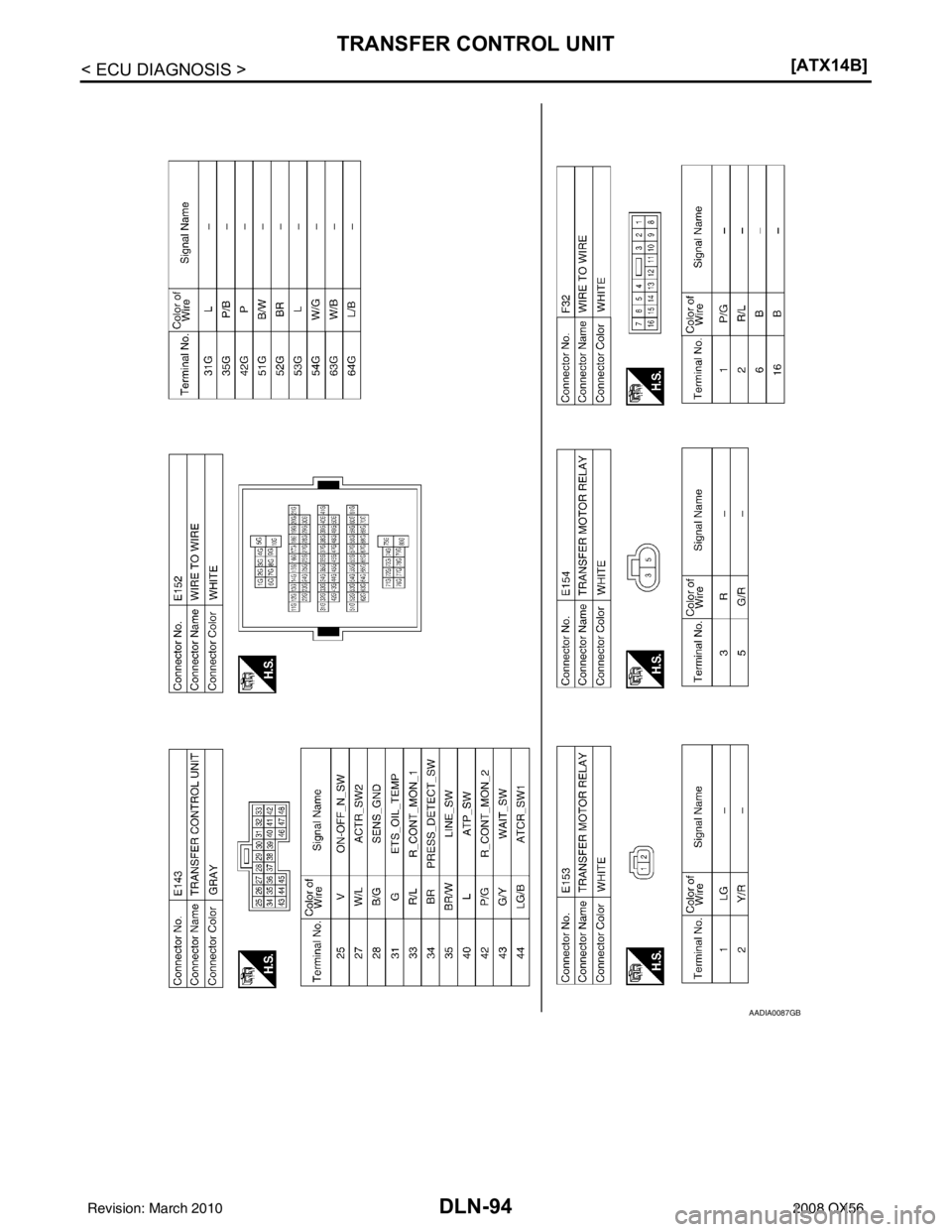

AADIA0087GB
Revision: March 2010
2008 QX56

TRANSFER CONTROL UNITDLN-95
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
DTC IndexINFOID:0000000001737181
DTC CHART

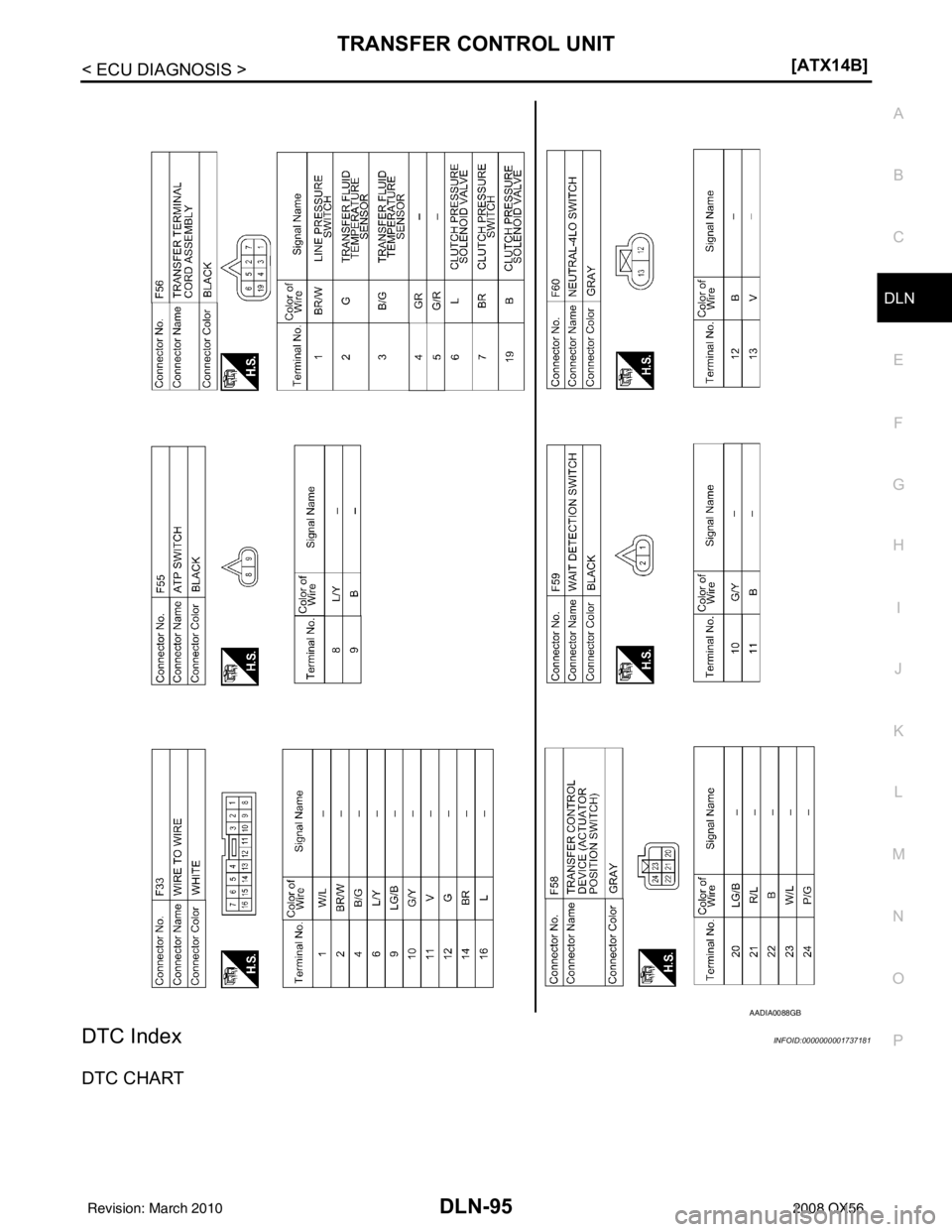

AADIA0088GB
Revision: March 2010 2008 QX56

DLN-96
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT
DTC CONSULT-III
Diagnostic item is detected when... Reference
[P1802] CONTROL UNIT 1 Malfunction is detected in the memory (RAM) sys-
tem of transfer control unit.
Refer to DLN-24
.
[P1803] CONTROL UNIT 2 Malfunction is detected in the memory (ROM) sys-
tem of transfer control unit.
[P1804] CONTROL UNIT 3 Malfunction is detected
in the memory (EEPROM)
system of transfer control unit.
[P1807] VHCL SPEED SEN·AT • Malfunction is detected in output speed sensor
signal that is output from TCM through CAN com-
munication.
• Improper signal is input while driving. Refer to DLN-26
.
[P1808] VHCL SPEED SEN·ABS • Malfunction is detected in vehicle speed signal
that is output from ABS actuator and electric unit
(control unit) through CAN communication.
• Improper signal is input while driving. Refer to DLN-27
.
[P1809] CONTROL UNIT 4 AD converter system of transfer control unit is mal-
functioning. Refer to DLN-24
.
[P1810] 4L POSI SW TF Improper signal from neutral-4LO switch is input due
to open or short circuit. Refer to DLN-28
.
[ P 1 8 11 ] B AT T E R Y V O LTA G E Power supply voltage for transfer control unit is ab-
normally low while driving.
Refer to DLN-22
.
[P1813] 4WD MODE SW More than two switch inputs are simultaneously de-
tected due to short circuit of 4WD shift switch. Refer to DLN-31
.
[P1814] 4WD DETECT SWITCH Improper signal from wait detection switch is input
due to open or short circuit. Refer to DLN-35
.
[P1816] PNP SW/CIRC When transmission range switch signal is malfunc-
tion or communication error between the control
units. Refer to DLN-38
.
[P1817] SHIFT ACTUATOR • Motor does not operate properly due to open or
short circuit in actuator motor.
• Malfunction is detected in the actuator motor. (When 4WD shift switch is operated and actuator
motor is not operated)
• Malfunction is detected in transfer shift high relay and transfer shift low relay. Refer to DLN-39
.
[P1818] SHIFT ACT POSI SW • Improper signal from actuator position switch is in-
put due to open or short circuit.
• Malfunction is detected in the actuator position
switch. Refer to DLN-45
.
[P1819] SHIFT ACT CIR • Transfer control device actuator circuit is shorted
or open. (Malfunctions are detected when transfer
shift relay circuit is open/shorted or relay monitor
circuit is open/shorted.)
• Malfunction occurs in transfer control device drive circuit.
• Malfunction is detected in transfer shut off relay. Refer to DLN-48
.
[P1820] ENGINE SPEED SIG • Malfunction is detected in engine speed signal
that is output from ECM through CAN communi-
cation.
• Improper signal is input while driving. Refer to DLN-52
.
[P1822] DUTY SOLENOID Proper voltage is not applied to clutch pressure so-
lenoid valve due to open or short circuit. Refer to DLN-53
.
[P1823] 2-4WD SOLENOID Proper voltage is not applied to 2-4WD solenoid
valve due to open or short circuit. Refer to DLN-57
.
[P1824] MOTOR RELAY Motor does not operate properly due to open or
short circuit in transfer motor or transfer motor relay.
Refer to DLN-61
.
Revision: March 2010
2008 QX56

TRANSFER CONTROL UNITDLN-97
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
CAUTION:
• If CAN COMM CIRCUIT [U1000] or CONTROL UNIT (CAN) [U1010] is displayed with other DTCs, first perform the trouble
diagnosis for CAN communication line.
• If ABS OP SIG [P1830], VDC OP SIG [P1831] or TCS OP SIG [P 1832] is displayed, first perform the trouble diagnosis for ABS
system.
• If VHCL SPEED SEN·AT [P1807] is displayed, firs t perform the trouble diagnosis for A/T system.
NOTE:
• If SHIFT ACT POSI SW [P1818] or SHIFT ACT CIR [P1819] is disp layed, first erase self-diagnostic results. (SHIFT ACT POSI SW
[P1818] or SHIFT ACT CIR [P1819] may be displayed after installing transfer control unit or transfer assembly.)
• If CL PRES SW [P1827] or LINE PRES SW [P1828] is displayed only while driving in reverse, check the continuity of R position o n
transmission range switch. When there is no malfunction found in the electrical system, check the hydraulic system.
FLASH CODE CHART
[P1826] OIL TEMP SEN Signal voltage from transfer fluid temperature sen-
sor is abnormally high (Transfer fluid temperature is
abnormally low) while driving. Refer to
DLN-67.
[P1827] CLUTCH PRES SW • Improper signal from clutch pressure switch is in-
put due to open or short circuit.
• Malfunction occurs in clutch pressure switch or
hydraulic circuit. Refer to
DLN-70
.
[P1828] LINE PRES SW • Improper signal from line pressure switch is input
due to open or short circuit.
• Malfunction occurs in line pressure switch or hy-
draulic circuit. Refer to
DLN-73
.
[P1829] THROTTLE POSI SEN • Malfunction is detected in accelerator pedal posi-
tion signal that is output from ECM through CAN
communication.
• Signal voltage from accelerator pedal position sensor is abnormally high or low. Refer to
DLN-76
.
[P1830] ABS OP SIG Malfunction is detected in ABS operation signal that
is output from ABS actuator and electric unit (control
unit) through CAN communication. Refer to
DLN-77
.
[P1831] VDC OP SIG Malfunction is detected in VDC operation signal that
is output from ABS actuator and electric unit (control
unit) through CAN communication.
Refer to
DLN-78
.
[P1832] TCS OP SIG Malfunction is detected in TCS operation signal that
is output from ABS actuator and electric unit (control
unit) through CAN communication. Refer to
DLN-79
.
DTC CONSULT-III Diagnostic item is detected when... Reference
Flashing pattern
ItemDiagnostic item is detected when... Reference
2 Vehicle speed signal
(from A/T) • Malfunction is detected in output speed sensor signal that
is output from TCM through CAN communication.
• Improper signal is input while driving. Refer to DLN-26
.
3 Clutch pressure sole-
noid signal Proper voltage is not applied to clutch pressure solenoid
valve due to open or short circuit.
Refer to DLN-53
.
4 2-4WD solenoid signal Proper voltage is not applied to 2-4WD solenoid valve due
to open or short circuit. Refer to DLN-57
.
5 Transfer motor Transfer motor does not operate properly due to open or
short circuit in transfer motor or transfer motor relay.
Refer to DLN-61
.
6 Vehicle speed signal
(from ABS) • Malfunction is detected in vehicle speed signal that is out-
put from ABS actuator and electric unit (control unit)
through CAN communication.
• Improper signal is input while driving. Refer to DLN-27
.
7 CAN communication Malfunction has been detected from CAN communication
line. Refer to LAN-51
.
8 AD converter AD converter system of transfer control unit is malfunction-
ing. Refer to DLN-24
.
Revision: March 2010
2008 QX56

DLN-98
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT
9Transfer fluid tempera-
ture Signal voltage from transfer fluid temperature sensor is ab-
normally high (Transfer fluid temperature is abnormally low)
while driving.
Refer to DLN-67.
10 Neutral-4LO switch Improper signal from neutral-4LO switch is input due to
open or short circuit. Refer to DLN-28
.
11 Clutch pressure switch • Improper signal is input due to open or short circuit.
• Malfunction occurs in clutch pressure switch or hydraulic
circuit. Refer to DLN-70
.
12 Line pressure switch • Improper signal is input due to open or short circuit.
• Malfunction occurs in line pressure switch or hydraulic
circuit. Refer to DLN-73
.
13 Engine speed signal
(from ECM) • Malfunction is detected in engine speed signal that is out-
put from ECM through CAN communication.
• Improper signal is input while driving. Refer to DLN-52
.
14 Accelerator pedal posi-
tion sensor (from
ECM) • Malfunction is detected in accelerator pedal position sig-
nal that is output from ECM through CAN communication.
• Signal voltage from accelerator pedal position sensor is abnormally high or low. Refer to DLN-76
.
15 Power supply Power supply voltage for transfer control unit is abnormally
low while driving. Refer to DLN-22
.
16 4WD shift switch More than two switch inputs are simultaneously detected
due to short circuit of 4WD shift switch.
Refer to DLN-31
.
17 ABS operation signal
(from ABS) Malfunction is detected in ABS operation signal that is out-
put from ABS actuator and electric unit (control unit)
through CAN communication.
Refer to DLN-77
.
18 Wait detection switch Improper signal from wait detection switch is input due to
open or short circuit.
Refer to DLN-35
.
19 Actuator motor • Motor does not operate properly due to open or short cir-
cuit in actuator motor.
• Malfunction is detected in the actuator motor. (When
4WD shift switch is operated and actuator motor is not
operated)
• Malfunction is detected in transfer shift high relay and
transfer shift low relay. Refer to DLN-39
.
20 Actuator position
switch • Improper signal from actuator position switch is input due
to open or short circuit.
• Malfunction is detected in the actuator position switch. Refer to DLN-45
.
21 Actuator circuit • Transfer control device actuator circuit is shorted or open.
(Malfunctions are detected when motor relay circuit is
open/shorted or relay transfer shift circuit is open/short-
ed.)
• Malfunction occurs in transfer control device drive circuit. Refer to DLN-48
.
22 VDC operation signal
(from VDC) Malfunction is detected in VDC operation signal that is out-
put from ABS actuator and electric unit (control unit)
through CAN communication.
Refer to DLN-78
.
23 TCS operation signal
(from TCS) Malfunction is detected in TCS operation signal that is out-
put from ABS actuator and electric unit (control unit)
through CAN communication.
Refer to DLN-79
.
24 Transmission range
switch signal (from
TCM) When transmission range switch signal is malfunction or
communication error between the control units.
Refer to DLN-38
.
Repeats flickering
every 2 to 5 sec. — System normal. Refer to DLN-100
Flashing pattern
ItemDiagnostic item is detected when... Reference
Revision: March 2010 2008 QX56

TRANSFER CONTROL UNITDLN-99
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
CAUTION:
• If CAN communication is displayed wi th other DTCs, first perform the trouble diagnosis for CAN communication line.
• If ABS operation signal, VDC operation signal or TCS operation si gnal is displayed, first perform the trouble diagnosis for
ABS system.
• If Output speed sensor signal is displayed, first perform the trouble diagnosis for A/T system.
NOTE:
• If actuator position switch or actuator circuit is displayed, first erase self-diagnostic results. (Actuator position switch o r actuator circuit
may be displayed after installing transfer control unit or transfer assembly.)
• If clutch pressure switch or line pressure switch is displayed only while driving in reverse, check the continuity of R positi on on trans-
mission range switch. When there is no malfunction found in the electrical system, check the hydraulic system.
Repeats flickering
every 0.25 sec.
Data erase display • Power supply failure of memory back-up.
• Battery performance is poor. Refer to DLN-22
.
No flickering Transmission range
switch or 4WD shift
switch Transmission range switch or 4WD shift switch circuit is
shorted or open.
Refer to DLN-38
or
DLN-31
.
Flashing pattern
ItemDiagnostic item is detected when... Reference
Revision: March 2010 2008 QX56
