2008 INFINITI QX56 service

BRM-38
< SERVICE INFORMATION >
BODY REPAIR
The symbols used in this section for cutting and welding / brazing operations are shown below.
PIIA0149E
Revision: March 2010 2008 QX56

BODY REPAIRBRM-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
• Front pillar butt joint can be determined anywhere within shaded area as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle. Refer to the front
pillar section.
• Determine cutting position and record distance from the locating indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm above inner front pillar cut position.
• Prepare a cutting jig to make outer pillar easier to cut. Also, this will permit service part to be accurately cut at joint position.
• An example of cutting operation using a cutting jig is as follows.
1. Mark cutting lines. A: Cut position of outer pillar
B: Cut position of inner pillar
2. Align cutting line with notch on jig. Clamp jig to pillar.
3. Cut outer pillar along groove of jig. (At position A)
4. Remove jig and cut remaining portions.
5. Cut inner pillar at position B in same manner.
HOODLEDGE
PIIA0150E
PIIA0151E
PIIA0152E
PIIA0153E
Revision: March 2010 2008 QX56

BRM-40
< SERVICE INFORMATION >
BODY REPAIR
• Work after radiator core support has been removed.
FRONT PILLAR
LIIA1154E
Revision: March 20102008 QX56

BODY REPAIRBRM-41
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
• Work after rear hoodledge reinforcement has been removed.
LIIA1108E
Revision: March 2010 2008 QX56

BRM-42
< SERVICE INFORMATION >
BODY REPAIR
LIIA1109E
Revision: March 20102008 QX56

BODY REPAIRBRM-43
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

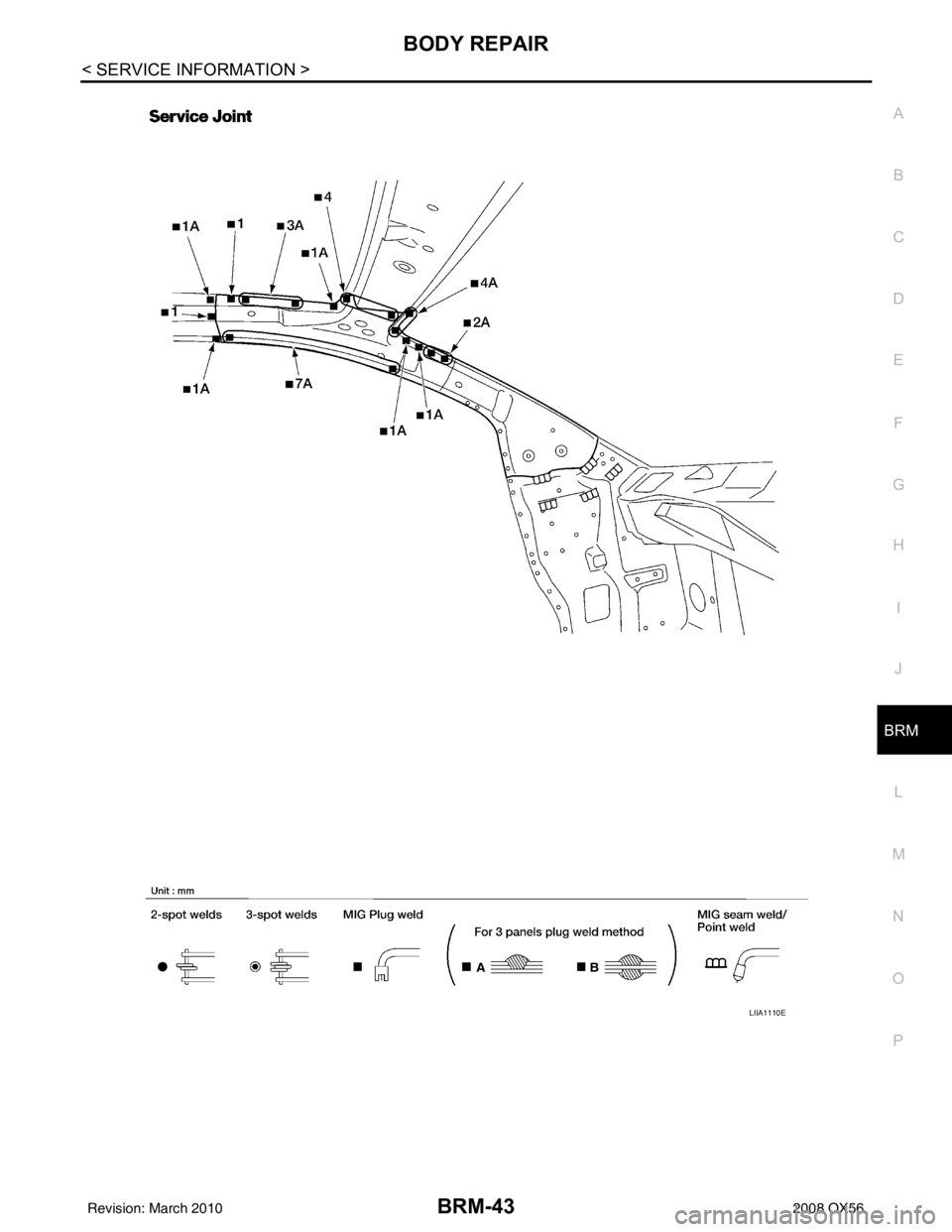

LIIA1110E
Revision: March 2010 2008 QX56

BRM-44
< SERVICE INFORMATION >
BODY REPAIR
CENTER PILLAR
LIIA1111E
Revision: March 20102008 QX56

BODY REPAIRBRM-45
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
LIIA1112E
Revision: March 2010 2008 QX56
