2008 INFINITI FX35 sensor

EC-906
< SERVICE INFORMATION >[VK45DE]
DTC P0335 CKP SENSOR (POS)
DTC P0335 CKP SENSOR (POS)
Component DescriptionINFOID:0000000001326738
The crankshaft position sensor (P
OS) is located on the A/T assem-
bly facing the gear teeth (cogs) of the signal plate. It detects the fluc-
tuation of the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326739
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326740
DTC Confirmation ProcedureINFOID:0000000001326741
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following pro cedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
PBIB0562E
PBIB3459E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED  Run engine an d compare CONSULT-III value with the tachometer indication.Almost the same speed as
the tachometer indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335 Crankshaft position sen-
sor (POS) circuit  The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
 The proper pulse signal from the crankshaft position sensor (POS) is not sent to ECM
while the engine is running.
 The crankshaft position sensor (POS) signal is not in the normal pattern during engine run-
ning.  Harness or connectors
(The sensor circuit is open or shorted)
 Crankshaft position sensor (POS)
 Signal plate
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0335 CKP SENSOR (POS)EC-907
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. If 1st trip DTC is detected, go to
EC-908, "Diagnosis Procedure".

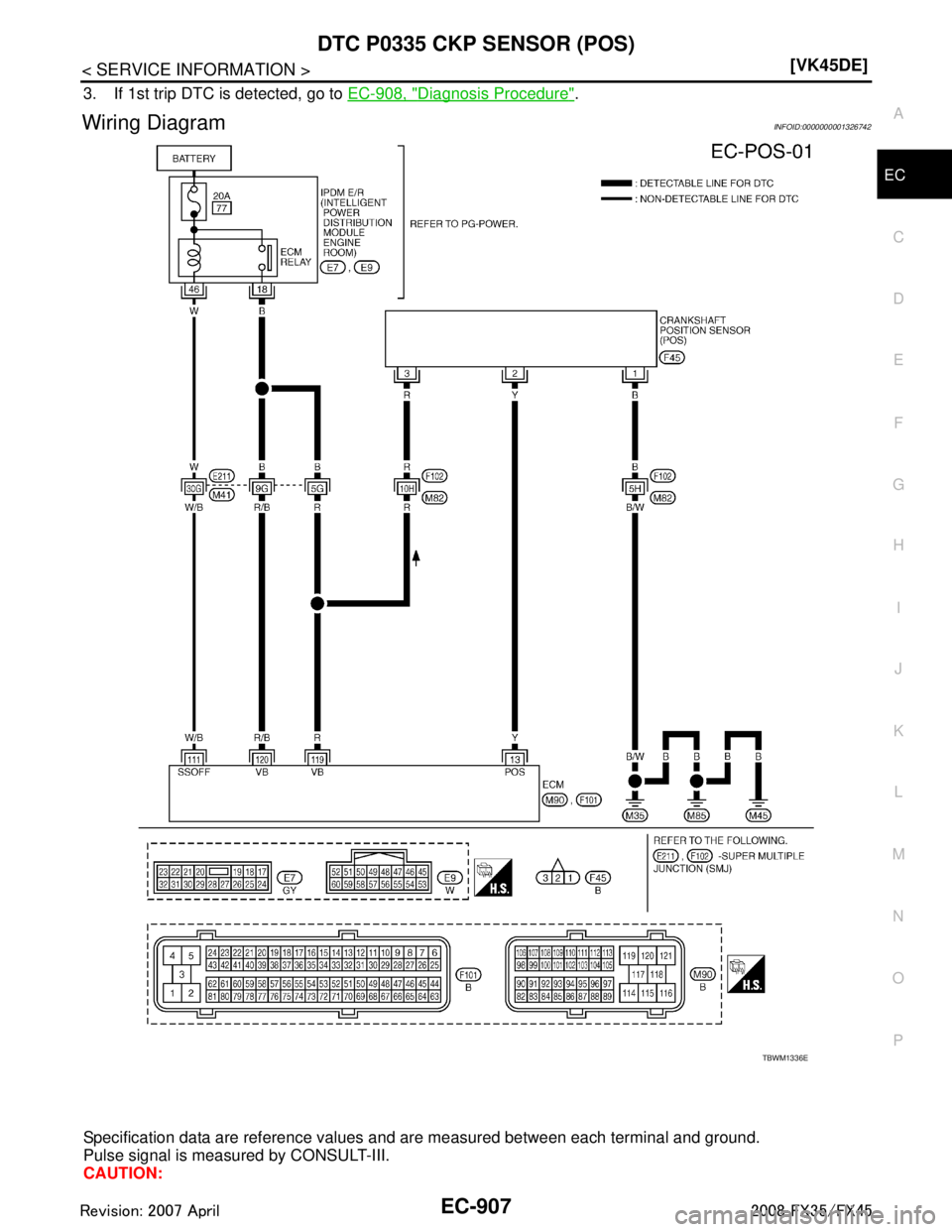

Wiring DiagramINFOID:0000000001326742
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
TBWM1336E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-908
< SERVICE INFORMATION >[VK45DE]
DTC P0335 CKP SENSOR (POS)
Do not use ECM ground terminals when measuring in
put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000001326743
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-723, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK CRANKSHAFT POSITION (CKP) SE NSOR (POS) POWER SUPPLY CIRCUIT
TER-
MI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
13 Y Crankshaft position sensor
(POS) [Engine is running]

Warm-up condition
 Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 2.0V
[Engine is running]
 Engine speed: 2,000 rpm 1.0 - 2.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
 For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
 More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B
Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB1041E
PBIB1042E
PBIB2195E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0335 CKP SENSOR (POS)EC-909
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

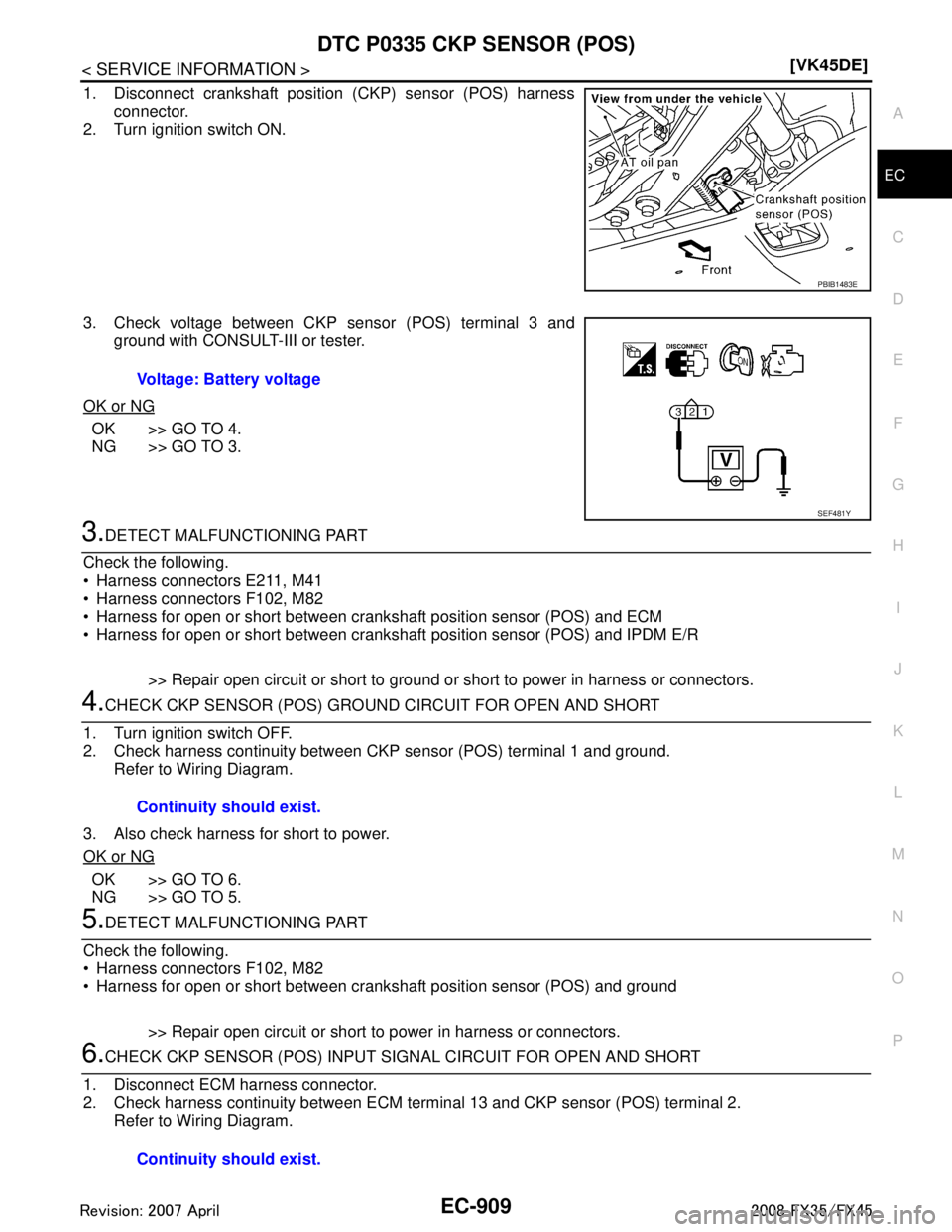

1. Disconnect crankshaft position (CKP) sensor (POS) harness
connector.
2. Turn ignition switch ON.
3. Check voltage between CKP sensor (POS) terminal 3 and
ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E211, M41
 Harness connectors F102, M82
 Harness for open or short between crank shaft position sensor (POS) and ECM
 Harness for open or short between crankshaf t position sensor (POS) and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK CKP SENSOR (POS) GRO UND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between C KP sensor (POS) terminal 1 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors F102, M82
 Harness for open or short between crank shaft position sensor (POS) and ground
>> Repair open circuit or short to power in harness or connectors.
6.CHECK CKP SENSOR (POS) INPUT SI GNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2. Refer to Wiring Diagram.
PBIB1483E
Voltage: Battery voltage
SEF481Y
Continuity should exist.
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-910
< SERVICE INFORMATION >[VK45DE]
DTC P0335 CKP SENSOR (POS)
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK CRANKSHAFT POSI
TION SENSOR (POS)
Refer to EC-910, "
Component Inspection".
OK or NG
OK >> GO TO 8.
NG >> Replace crankshaft position sensor (POS).
8.CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
OK or NG
OK >> GO TO 9.
NG >> Replace the signal plate.
9.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END

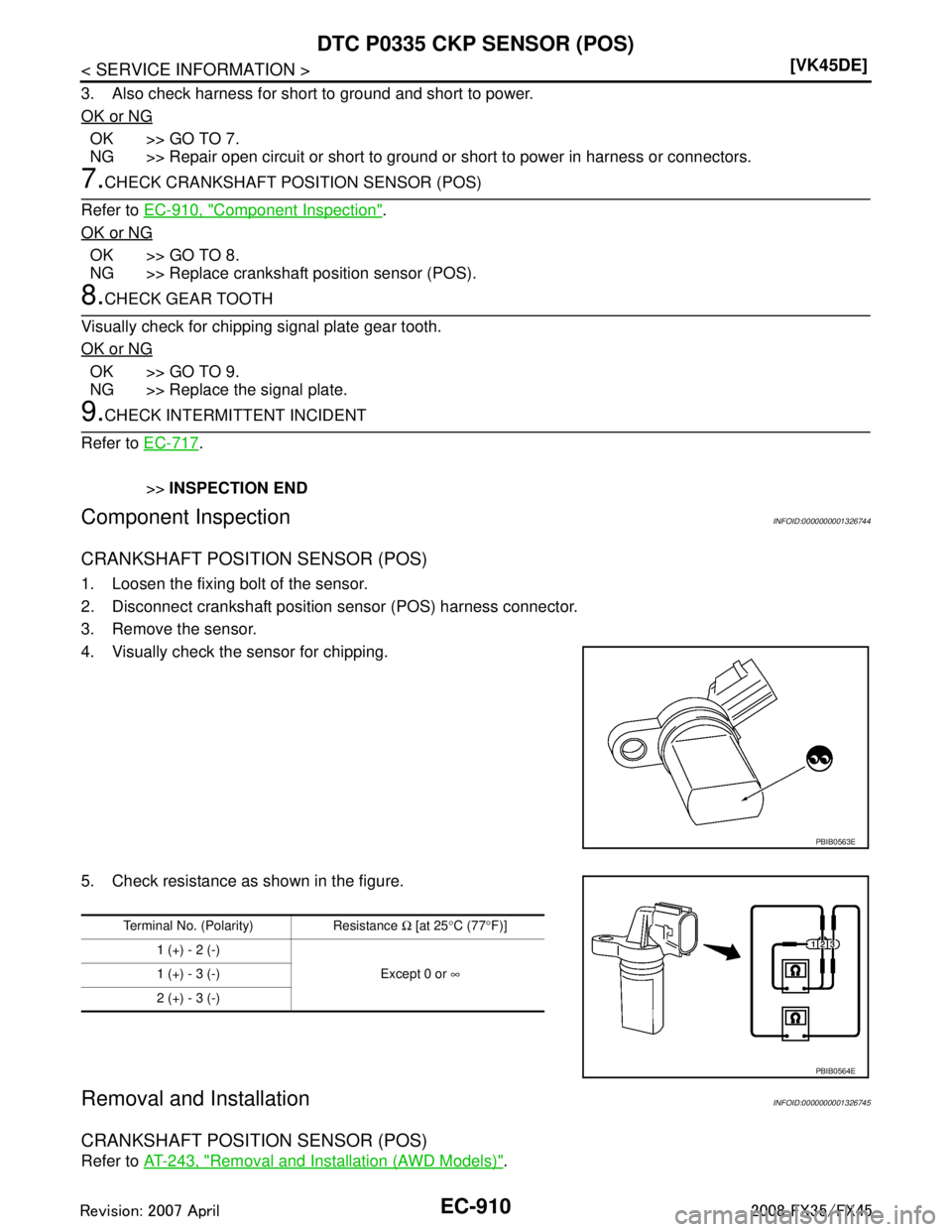

Component InspectionINFOID:0000000001326744
CRANKSHAFT POSITION SENSOR (POS)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor (POS) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationINFOID:0000000001326745
CRANKSHAFT POSITION SENSOR (POS)
Refer to AT-243, "Removal and Installation (AWD Models)".
PBIB0563E
Terminal No. (Polarity) Resistance Ω [at 25 °C (77 °F)]
1 (+) - 2 (-) Except 0 or ∞
1 (+) - 3 (-)
2 (+) - 3 (-)
PBIB0564E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
EC-911
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0340 CAMSHAFT POSITI
ON (CMP) SENSOR (PHASE)

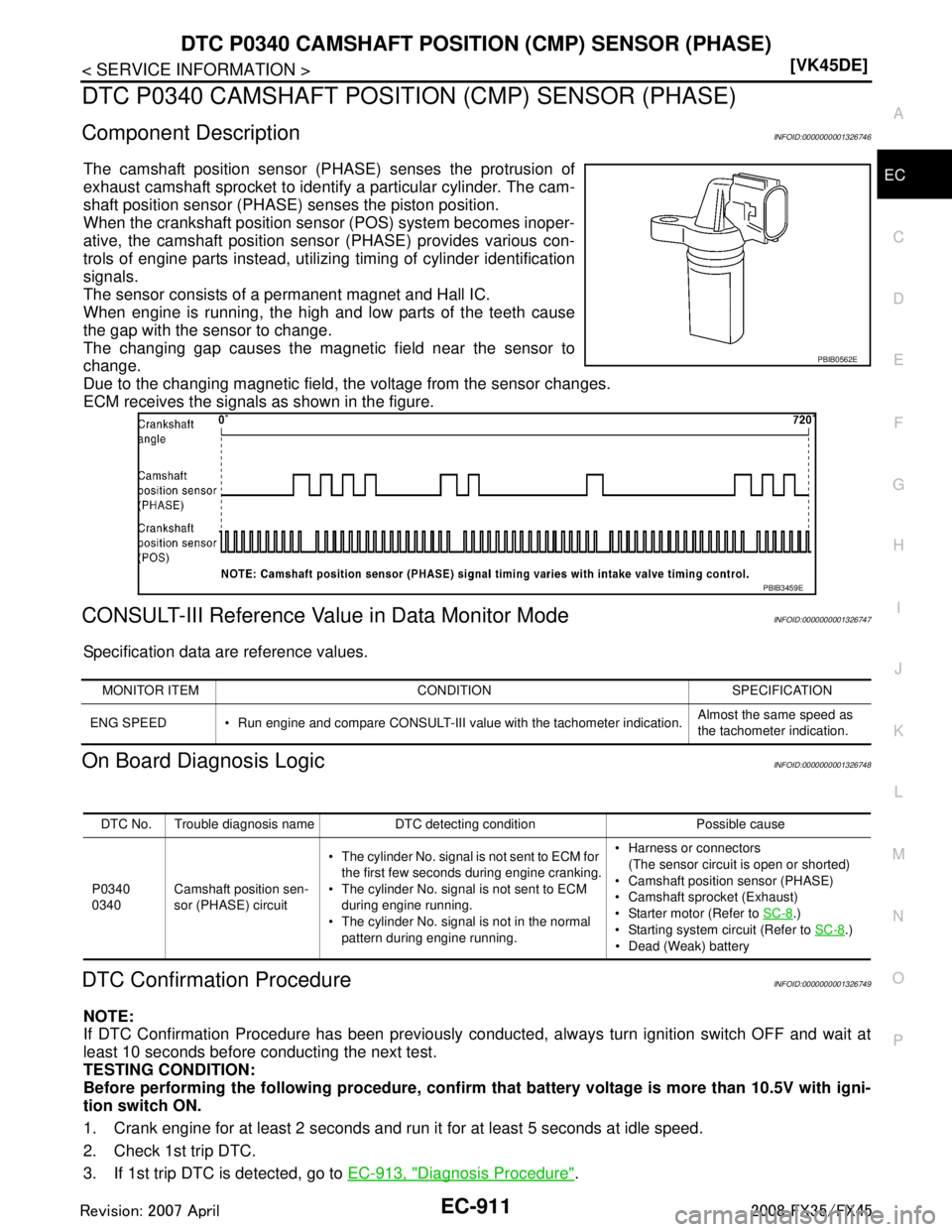

Component DescriptionINFOID:0000000001326746
The camshaft position sensor (P HASE) senses the protrusion of
exhaust camshaft sprocket to identif y a particular cylinder. The cam-
shaft position sensor (PHASE ) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326747
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001326748
DTC Confirmation ProcedureINFOID:0000000001326749
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm th at battery voltage is more than 10.5V with igni-
tion switch ON.
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-913, "
Diagnosis Procedure".
PBIB0562E
PBIB3459E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED  Run engine and compare CONSULT-III value with the tachometer indication. Almost the same speed as
the tachometer indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340 Camshaft position sen-
sor (PHASE) circuit  The cylinder No. signal is not sent to ECM for
the first few seconds during engine cranking.
 The cylinder No. signal is not sent to ECM during engine running.
 The cylinder No. signal is not in the normal
pattern during engine running.  Harness or connectors
(The sensor circuit is open or shorted)
 Camshaft position sensor (PHASE)
 Camshaft sprocket (Exhaust)
 Starter motor (Refer to SC-8
.)
 Starting system circuit (Refer to SC-8
.)
 Dead (Weak) battery
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-912
< SERVICE INFORMATION >[VK45DE]
DTC P0340 CAMSHAFT POSITI
ON (CMP) SENSOR (PHASE)
If 1st trip DTC is not detected, go to next step.
4. Maintaining engine speed at more than 800 rpm for at least 5 seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-913, "
Diagnosis Procedure".

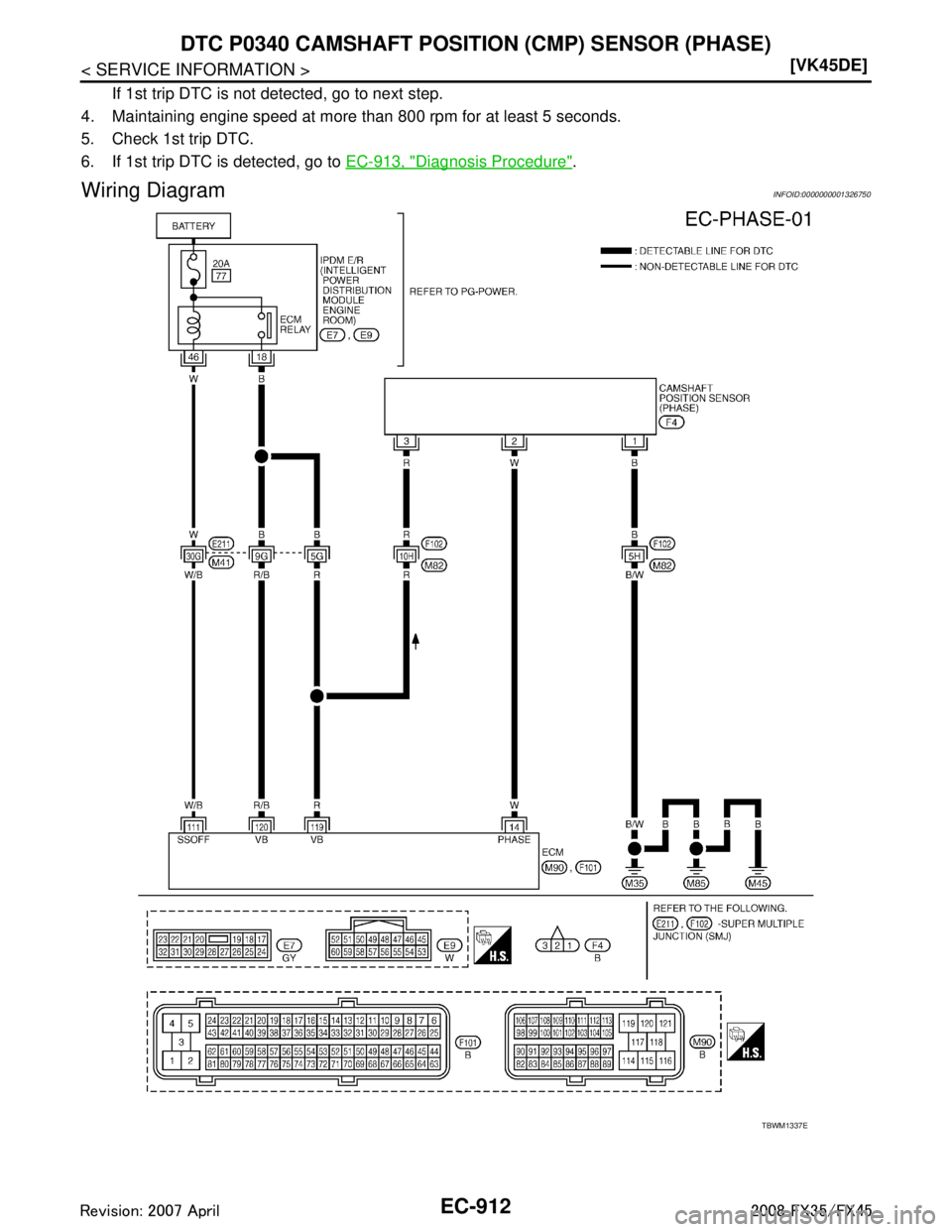

Wiring DiagramINFOID:0000000001326750
TBWM1337E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
EC-913
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Specification data are reference values
and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000001326751
1.CHECK STARTING SYSTEM
Turn ignition switch to START position.
Ye s o r N o
Yes >> GO TO 2.
No >> Check starting system. (Refer to SC-8
.)
2.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
TER- MI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
14 W Camshaft position sensor
(PHASE) [Engine is running]

Warm-up condition
 Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]
 Engine speed: 2,000 rpm 1.0 - 4.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
 For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
 More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B
Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB1039E
PBIB1040E
Does the engine turn over?
Does the starter motor operate?
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
