2008 Hyundai Tiburon Owner's Manual

6
DO-IT-YOURSELF MAINTENANCE
25
8. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.
9. Use the protective cap and carton to prompt-
ly dispose of the old bulb.
10.Check for proper headlight aim.
OGK076050
OGK076049
7. Push the bulb spring to remove the headlight
bulb.
OGK076052
11.To replace the front turn signal light bulb,
remove from the bulb holder and install the
new bulb.

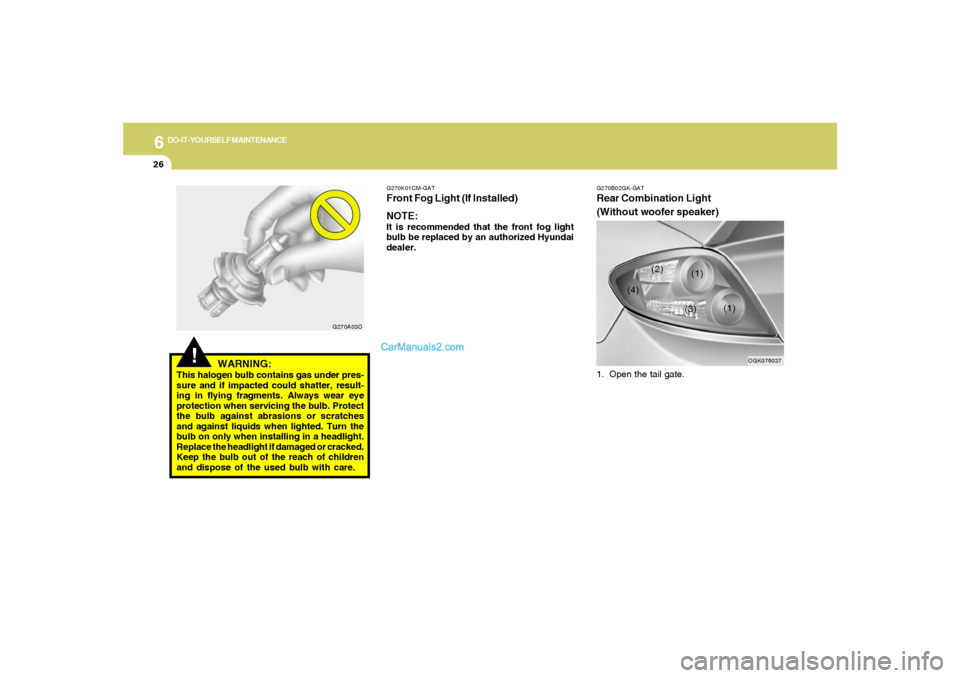

6
DO-IT-YOURSELF MAINTENANCE
26
!
WARNING:
This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care.
G270A03OG270B02GK-GAT
Rear Combination Light
(Without woofer speaker)1. Open the tail gate.
G270K01CM-GATFront Fog Light (If Installed)
NOTE:It is recommended that the front fog light
bulb be replaced by an authorized Hyundai
dealer.
OGK076037
(1) (2)
(3)(1) (4)

6
DO-IT-YOURSELF MAINTENANCE
27
OGK076041
3. Remove the nut (8mm) with a socket wrench.
4. To detach the rear combination light tap it
strongly with your hand.
5. To replace the rear combination light (stop/
tail light, back-up light, turn signal light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
6. Install the new bulb.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
OGK076042
2. To remove the cover of the rear luggage trim,
turn the knobs by hand to the counterclock-
wise.
OGK076040

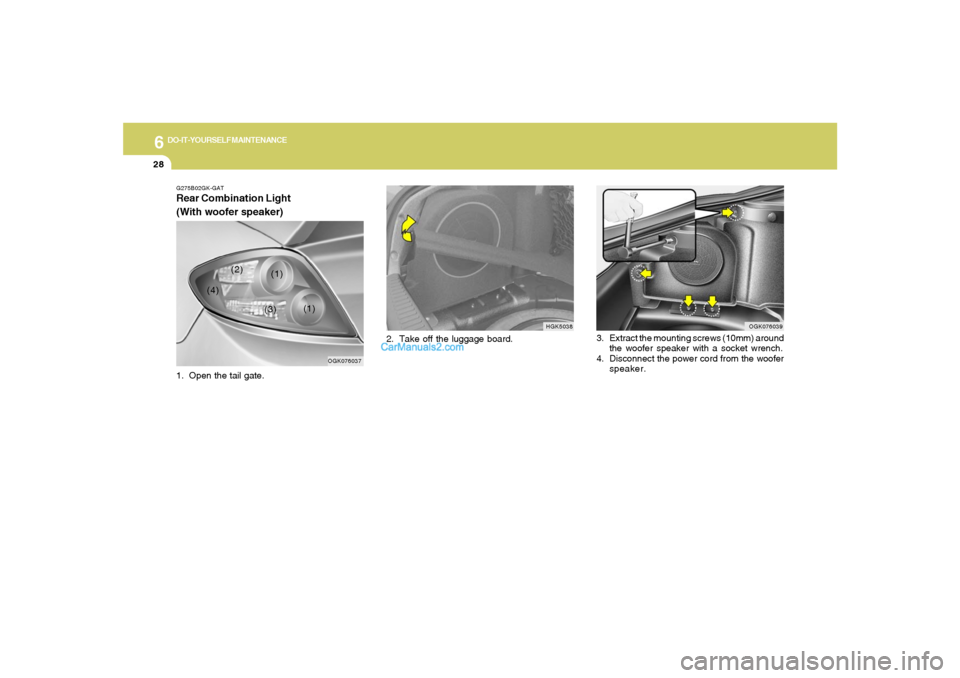

6
DO-IT-YOURSELF MAINTENANCE
28
2. Take off the luggage board.
HGK5038 G275B02GK-GAT
Rear Combination Light
(With woofer speaker)1. Open the tail gate.
OGK076039
3. Extract the mounting screws (10mm) around
the woofer speaker with a socket wrench.
4. Disconnect the power cord from the woofer
speaker.
OGK076037
(1) (2)
(3)(1) (4)

6
DO-IT-YOURSELF MAINTENANCE
29
8. To replace the rear combination light (stop/
tail light, back-up light, turn signal light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
9. Install the new bulb.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
OGK076040
5. To remove the cover of the rear luggae trim,
turn the knob by hand to the counterclock-
wise.
OGK076041
6. Remove the nut (8mm) with a socket wrench.
OGK076042
7. To detach the rear combination light tap it
strongly with your hand.

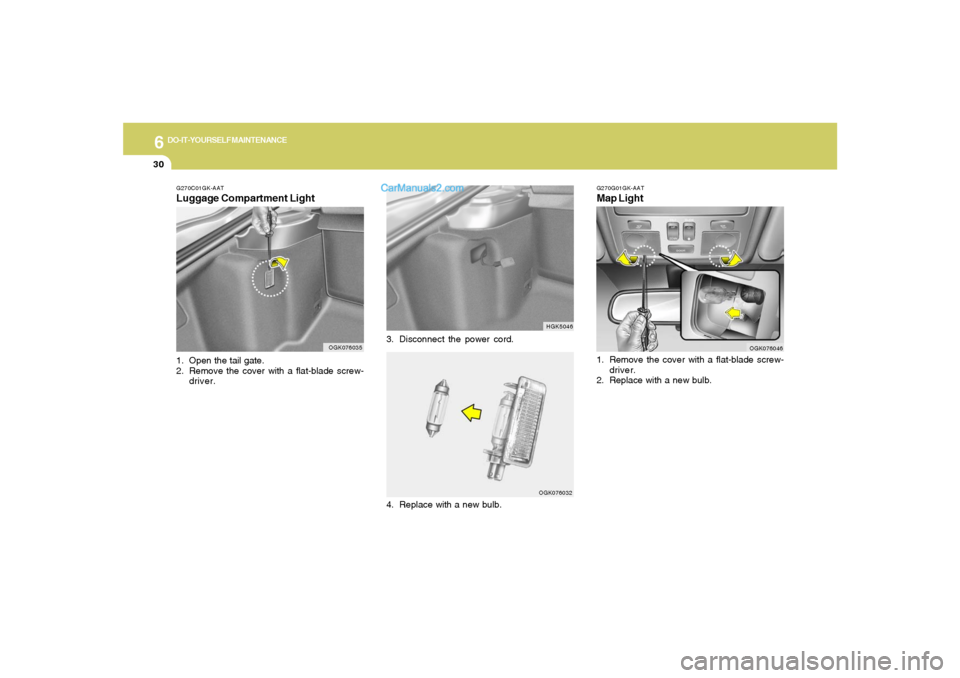

6
DO-IT-YOURSELF MAINTENANCE
30
3. Disconnect the power cord.
HGK5046OGK076032
G270C01GK-AATLuggage Compartment Light1. Open the tail gate.
2. Remove the cover with a flat-blade screw-
driver.
OGK076035
4. Replace with a new bulb.
G270G01GK-AATMap Light
OGK076046
1. Remove the cover with a flat-blade screw-
driver.
2. Replace with a new bulb.

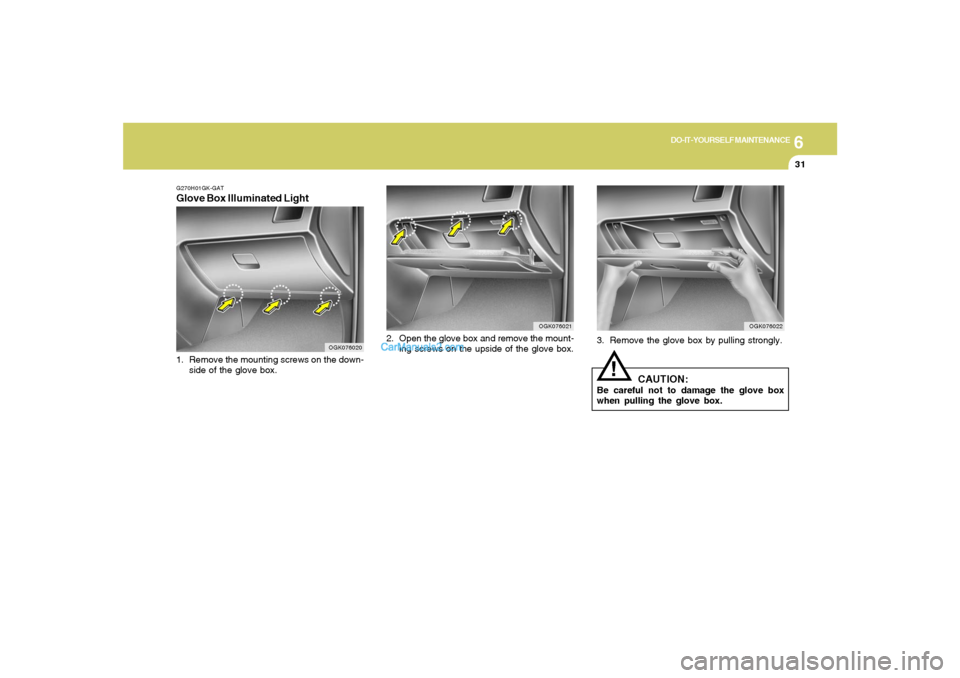

6
DO-IT-YOURSELF MAINTENANCE
31
3. Remove the glove box by pulling strongly.
CAUTION:
Be careful not to damage the glove box
when pulling the glove box.
!
OGK076022
OGK076021
2. Open the glove box and remove the mount-
ing screws on the upside of the glove box.
G270H01GK-GATGlove Box Illuminated Light1. Remove the mounting screws on the down-
side of the glove box.
OGK076020

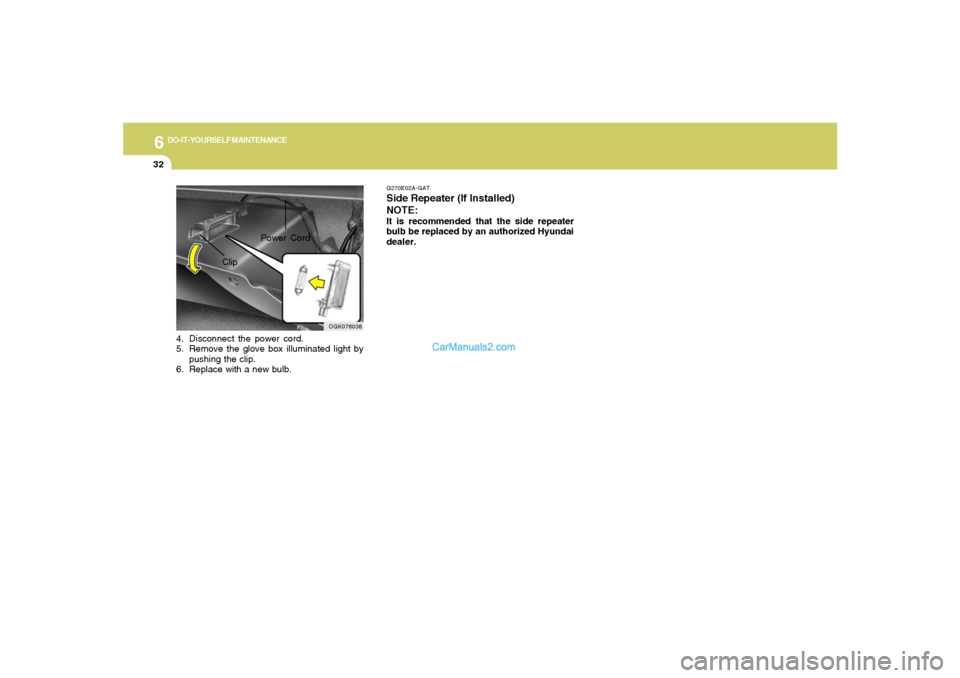

6
DO-IT-YOURSELF MAINTENANCE
32
OGK076038
ClipPower Cord
4. Disconnect the power cord.
5. Remove the glove box illuminated light by
pushing the clip.
6. Replace with a new bulb.
G270E02A-GATSide Repeater (If Installed)
NOTE:It is recommended that the side repeater
bulb be replaced by an authorized Hyundai
dealer.
