2008 HONDA RIDGELINE Owners Manual

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it.Turning this dial clockwise increases
the temperature of the airflow.
On RTS, RTL, and Canadian EXL
models, see pages and f or
inf ormation on automatic climate
control and semi-automatic operation.
Select the f an speed by pressing the
fan control buttons ( or ).
The f an speed is shown in vertical
bars on the display.
When the indicator in the DUAL
button is of f , both sides adjust to the
driver’s side temperature.
Push the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature.
The driver and passenger can select
independent temperature settings.
You can set the temperatures for the
driver’s side and the passenger’s side
separately when this button is
pressed (indicator on). When the
indicator in the DUAL button is of f ,
you can adjust both sides to the
same temperature with the driver’s
side temperature control dial.
Press the DUAL button to select
dual temperature control mode (see
page ).
130131
132
On RTS, RTL, and Canadian EXLmodels
On RT, RTX, and Canadian LX models On RTS, RTL, and Canadian EXL
models
On RTS, RTL, and Canadian EXL models On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
Fan Control
Temperature Control Dual Button
Features
125
\f—\f—y

y
(\fy\f
\fy
2008 Ridgeline

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
Each time you press the MODE
button (On RTS, RTL, and Canadian
EXL models) or either mode button
(On RT, RTX, and Canadian LX
models), the display shows the mode
selected.
Air f lows f rom the f loor
vents. Airf low is divided between
the vents in the dashboard, rear and
the f loor vents. Air flows from the center,
corner, and rear vents in the
dashboard.
Recirculation Button Mode Control
Air Conditioning (A/C) Button
Vents, Heating, and A/C
126
\f—\f—y
y
(\fy\f

y
2008 Ridgeline

Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the back window.
Press the button, Air f lows
f rom the def roster vents at the base
of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C. Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center, side, and rear vents in the
dashboard. Pressing the or
A/C button cancels MAX A/C.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C.
When you select , the system
automatically switches to f resh air
mode. 1.
2.
3.
4.
On RTS, RTL, and Canadian EXL
models
On RT, RTX, and Canadian LX models
On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
MAX A/C Button Ventilation
Features
127
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The display shows A/C
ON on when a f an speed is
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C:
Select .
When you select , the system
automatically switches to the fresh
air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Set the f an to the desired speed.
Select MAX A/C.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool.
1.
2.
3.
1.
2.
3.
1.
2.
3.
4.
5. 72
If the interior is very warm,
On RT, RTX, and Canadian LX modelsUsing the Heater Using the A /C
Vents, Heating, and A/C
128
\f—\f—y
\fy
(\fy\f
y
2008 Ridgeline

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).To remove f og f rom the inside of the
windows:
Turn the fan on.
Press the A/C button.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f .Set the f an to the desired speed or
high f or f aster def rosting.
Select . When you select
, the system automatically
switches to f resh air mode and
turns on the A/C. The A/C
indicator will not be displayed if it
was off to start with.
Adjust the temperature so the
airflow feels warm.
To increase airf low to the
windshield, close the side vents. Your vehicle has heating wires at the
bottom of the windshield to help
heat the wiper blades and the
windshield. If the outside
temperature is near f reezing, the
heater turns on automatically when
you turn the ignition switch to the
ON (II) position. The heater turns
of f automatically when the outside
temperature is above f reezing.
This f unction helps to increase wiper
perf ormance when the wiper arms
sit in the parked position in snowy or
icy conditions.
1.
2.
3.
4.
1.
2.
3.
4.
Dehumidif y the Interior T o Def og and Def rost A utomatic Heated Wiper Zone
Vents, Heating, and A/C
Features
129
\f—\f—y
y
(\fy\f
y
2008 Ridgeline

µ
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator does not come on if
it was of f to start with.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to
(passenger’s side) or below it
(driver’s side). This will send more
warm air to the windshield def roster
vents. Once the windshield is clear,
select f resh air mode to avoid
f ogging the windows. The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence.
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the DUAL button is
on, the driver’s side and passenger’s
side temperature can be controlled
independently (see page ).
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
Press the AUTO button.
Set the desired temperature by
turning the temperature control
dial. You will see AUTO in the
system’s display.
The climate control system can also
be operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
1.
2.
3.
132Dual Temperature Control
On vehicles with navigation system
On RTS, RTL, and Canadian EXLmodels
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
Using A utomatic Climate Control
Voice Control System
130
\f—\f—y


y
(\fy\f
y
2008 Ridgeline

µ
µ
Turning the f an speed control dial all
the way to the left shuts the system
off.You can adjust the direction of the
air coming from the rear vents in the
back of the center console by
moving the tab in the center of each
vent up-and-down and side-to-side.
You can also adjust the amount of
airf low by turning the dial between
the vents.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
You can manually select various
f unctions of the climate control
system when it is in f ull automatic
mode. All other f eatures remain
automatically controlled.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
Keep the system of f f or short
periods only.
If youpressOFF,theclimatecontrol
system shuts of f .
On RTS, RTL, and Canadian EXL
models
On RTS, RTL, and Canadian EXLmodels
On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
Semi-automatic Operation T o T urn Everything Of f Rear Ventilation
Features
131
DIAL
TAB
\f—\f—y

y
(\fy\f
y
2008 Ridgeline

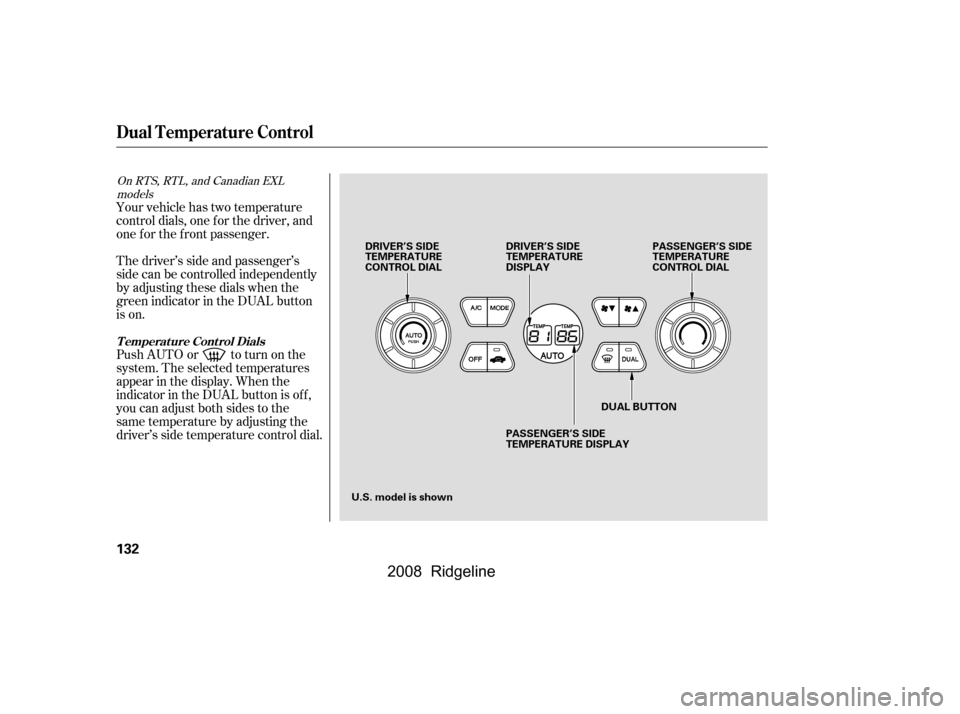

The driver’s side and passenger’s
side can be controlled independently
by adjusting these dials when the
green indicator in the DUAL button
is on.
Your vehicle has two temperature
control dials, one f or the driver, and
one f or the f ront passenger.
Push AUTO or to turn on the
system. The selected temperatures
appear in the display. When the
indicator in the DUAL button is of f ,
you can adjust both sides to the
same temperature by adjusting the
driver’s side temperature control dial.
On RTS, RTL, and Canadian EXLmodels
Dual Temperature Control
T emperat ure Cont rol Dials
132
DUAL BUTTON PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL DRIVER’S SIDE
TEMPERATURE
DISPLAY
PASSENGER’S SIDE
TEMPERATURE DISPLAY
U.S. model is shown
\f—\f—y
y
(\fy\f
y
2008 Ridgeline
