2008 HONDA CIVIC HYBRID Owners Manual

This gauge shows you the status of
the Integrated Motor Assist (IMA).
When the IMA battery is being
charged, the bottom side of the
gauge illuminates. When the IMA is
assisting the engine, the upper side
of the gauge illuminates.If the IMA battery is too hot or too
cold, the IMA system limits the IMA
battery’s output power to protect the
battery. This disables the IMA assist
and Auto Idle Stop, even though the
Battery Level Gauge may show that
the battery is well-charged.
Theref ore, if the motor assist is
f requently used, the battery
becomes hot and starts to limit its
output power.
It takes the IMA system a f ew
minutes in cold weather to normalize
the IMA battery’s output power, and
about 15 minutes in hot weather.

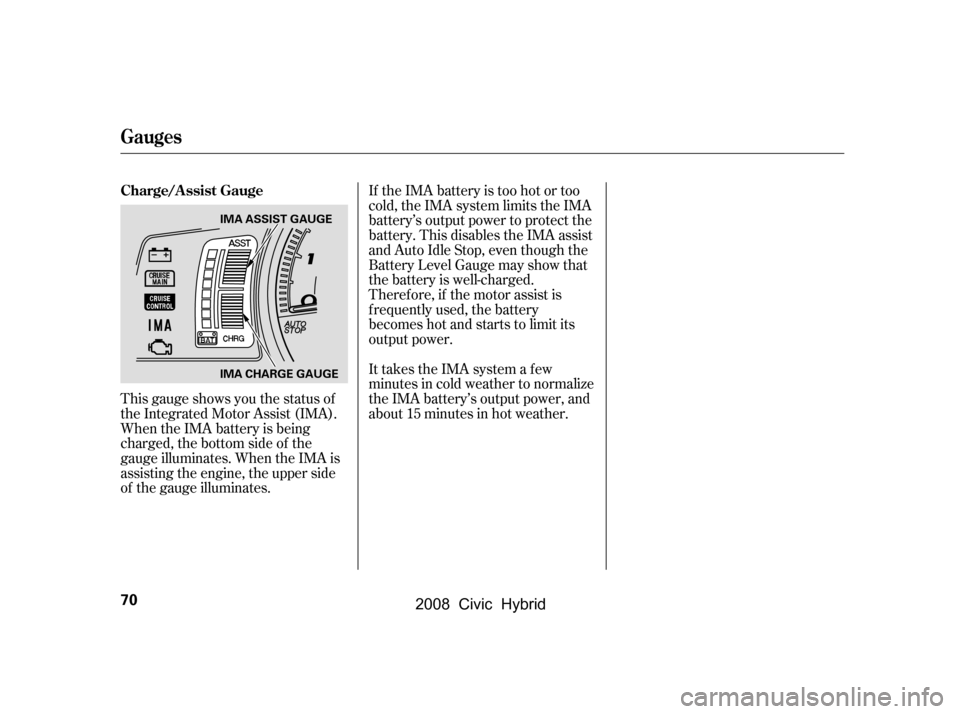

Charge/Assist Gauge
Gauges
70
IMA ASSIST GAUGE
IMA CHARGE GAUGE
\f—\f—\fy
y
(#\fy\f\fy
2008 Civic Hybrid

Î
Î
Î
Î
Î
Î
Only on vehicles equipped with navigation system. Ref er to the navigation system manual.
To use the horn, press the center pad of the steering wheel.
Canadian model only
1:
2:
3:
Controls Near the Steering Wheel
Inst rument s and Cont rols
71
REAR WINDOW
DEFOGGER
(P.31)
PASSENGER AIRBAG
OFF INDICATOR
(P.75)
CRUISE CONTROL BUTTONS (P.96)
HEATED MIRRORS
HAZARD WARNING
BUTTON
SEL/RESET BUTTON
DISPLAY CHANGE BUTTON
(P.65)
REMOTE AUDIO CONTROLS (P.74)
(P.64) (P.73)
INSTRUMENT PANEL BRIGHTNESS
HOOD RELEASE HANDLE WINDSHIELD WIPERS/WASHERS
(P.72)
STEERING WHEEL
ADJUSTMENT
HEADLIGHTS/TURN
SIGNAL
(P.167)
(P.176)
VOICE CONTROL
SWITCHES HORN
(P.76)
Vehicle with navigation system is shown. (P.170)(P.75)
2
3
1
\f—\f—\fy
\fy
(#\fy\f\fy
2008 Civic Hybrid

µ
µ
µ µ
µ
µ µ
µ µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers
Push the right lever up or down to
select a position. The wipers run at high
speed until you release the
lever.
The wipers are not activated. The length of the wiper
interval is varied
automatically according to
the vehicle’s speed. The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you,
andholdit.Thewashersspray
until you release the lever. The
wipers run at low speed, then
complete one more sweep af ter
you release the lever.
Vary the delay by turning the
adjustment ring. If you turn it to
the shortest delay
( position), the wipers
change to low speed operation
when the vehicle speed exceeds 12
mph (20 km/h).
While the vehicle is stopped and in
gear, the wipers sweep the
windshield whenever you remove
your f oot f rom the brake pedal.
1.
2.
3.
4.
5.
6. MIST
OFF
INT
LO
HI
Windshield Washers
Windshield Wipers and Washers
72
ADJUSTMENT RING
\f—\f—\fy
\f\fy
(#\fy\f\fy
2008 Civic Hybrid

µ
µ µ
Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turn signal
Of f
Parking and interior lights
Headlights
High beams
Flashhighbeams Turning the switch to the ‘‘ ’’
position turns on the headlights. If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position. Push the lever
f orward and the high beam indicator
will come on (see page ). Pull it
back to return to low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
1.
2.
3.
4.
5.
6. 60
Turn Signal
Headlights
High Beams
Turn Signals and Headlights
Inst rument s and Cont rols
73
\f—\f—\fy
\fy
(#\fy\f\fy
2008 Civic Hybrid

´µ
The buttons under the lef t side vent
control the brightness of the
instrument panel. Push the or
button to adjust the brightness.
Separate adjustments can be made
when the headlights are on and of f .
With the headlight switch of f or
position, the high beam
headlights come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch. To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to the
or position.
There are six brightness levels.
When you push either button, the
inf ormation display indicates the
current level. You will hear a tone when you reach the maximum or
minimum brightness. The display
returns to the odometer 5 seconds
af ter you stop adjusting the
brightness.
The center of each meter (upper and
lower) illuminates with reduced
brightness when you unlock and
open the driver’s door, and then goes
back to the selected brightness when
you turn the ignition switch to the
ON (II) position.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.
Daytime Running L ights Instrument Panel Brightness
Headlights, Instrument Panel Brightness
74
INSTRUMENT PANEL BRIGHTNESS
CONTROL BUTTONS
\f—\f—\fy

y
(#\fy\f\fy
2008 Civic Hybrid

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
Pushing this button also turns the
mirror heaters on or of f . For more
inf ormation, see page .

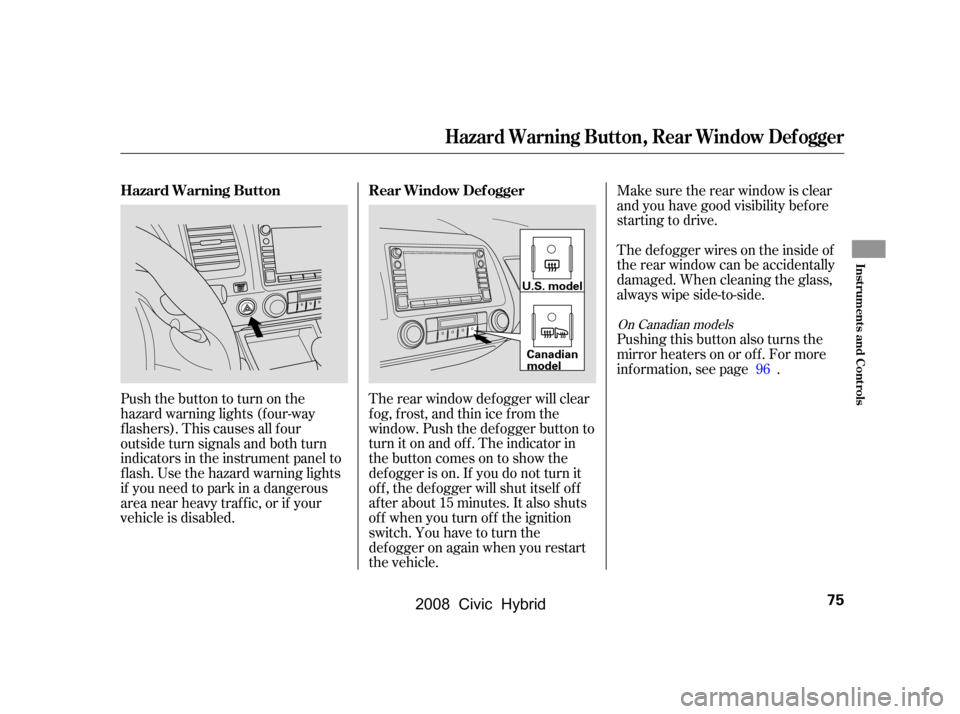

The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and of f . The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Pushthebuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both turn
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.
96
On Canadian models
Rear Window Def ogger
Hazard Warning Button
Hazard Warning Button, Rear Window Def ogger
Inst rument s and Cont rols
75
Canadian
model
U.S. model
\f—\f—\fy
y
(#\fy\f\f\fy
2008 Civic Hybrid

Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
Push the lever under the steering
column all the way down.
Make any steering wheel adjustment
bef ore you start driving.
Move the steering wheel up or
down, and in or out, so it points
toward your chest, not toward
your f ace. Make sure you can see
the instrument panel gauges and
indicators.
1. 4.
2. 3.
Steering Wheel A djustment
76
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
\f—\f—\fy
\fy
(#\fy\f\f
y
2008 Civic Hybrid

Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys without a remote
transmitter do not contain batteries.
Do not try to take them apart.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.

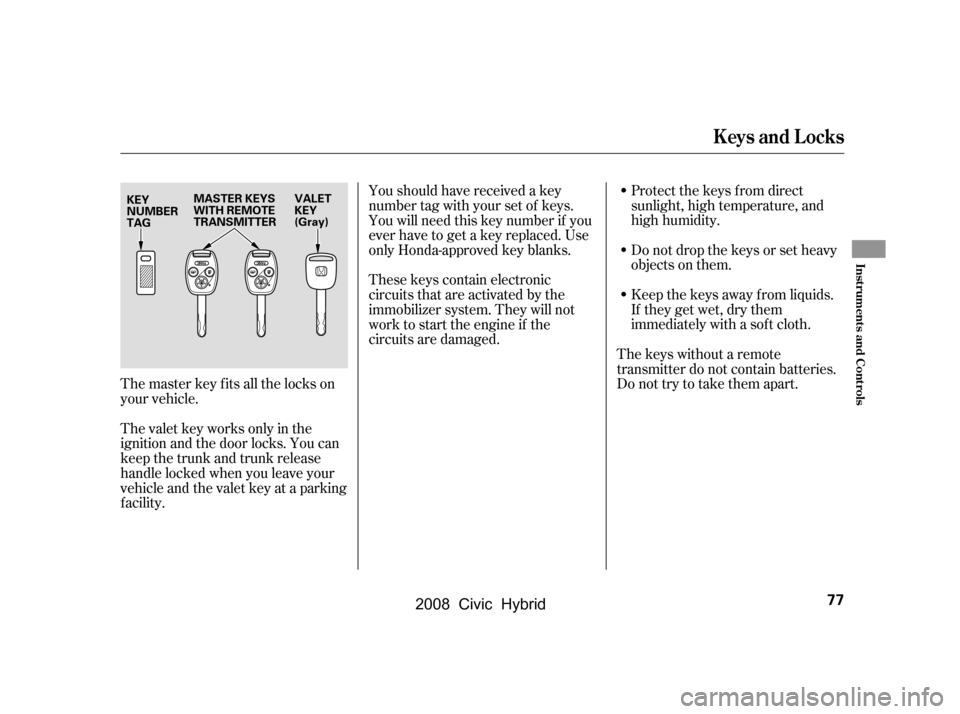

The master key fits all the locks on
your vehicle.
The valet key works only in the
ignition and the door locks. You can
keep the trunk and trunk release
handle locked when you leave your
vehicle and the valet key at a parking
f acility. Youshouldhavereceivedakey
number tag with your set of keys.
You will need this key number if you
ever have to get a key replaced. Use
only Honda-approved key blanks.
Keys and Locks
Inst rument s and Cont rols
77
KEY
NUMBER
TAG
VALET
KEY
(Gray)
MASTER KEYS
WITH REMOTE
TRANSMITTER
\f—\f—\fy
y
(#\fy\f\fy
2008 Civic Hybrid
